BAER HSSE Short Machine Tap 35° RSP - NPT 1.1/2 x 11.5
EAN
4058462111372
Item no
240601009
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information
BAER HSSE Short Machine Tap 35° RSP - NPT 1.1/2 x 11.5
This BAER single flute tap is especially designed for use with the machine. Due to the 35° right-hand helix of the flutes, the chips are transported upwards out of the blind hole. However, spiral flutes cause an increased risk of breakage when used by hand. Therefore, care must be taken to ensure exact guidance. A machine guide is ideal for this. The tap cuts the finished internal thread in just one operation. The thread can be cut in a pre-drilled core hole and does not require any preparatory work by a taper tap (No. 1) or intermediate tap (No. 2).
Dimensions
| Diameter |
1.1/2" |
|---|---|
| Nominal diameter in mm |
48,05 |
| Pitch |
11,5 |
| Pitch in mm |
2,21 |
| Dimension |
NPT 1.1/2" x 11,5 |
Characteristics
| Product group |
Screw taps |
|---|---|
| Product type |
Short machine taps |
| Thread standard |
NPT: National Pipe Thread or American pipe thread according to ANSI B 1.20.1 |
| Tolerance |
medium |
| Direction |
Right |
| Standard |
Factory standard |
| Tensile strength at room temperature |
up to 900 N/mm² | 27.1 HRC |
| Material |
HSSE bright |
Core hole diameter
44 mm
44 mm
Hole type
Blind hole up to 2 x D
Blind hole up to 2 x D
Form / Geometry
Form C 35° RSP
Form C 35° RSP
Chamfer
2-3 threads
2-3 threads
Chip removal
Chips are removed upwards against the cutting direction
Chips are removed upwards against the cutting direction
Cooling
External cooling and lubrication
External cooling and lubrication
Material
HSSE bright
HSSE bright
Tensile strength at room temperature
up to 900 N/mm² | 27.1 HRC
up to 900 N/mm² | 27.1 HRC
Tolerance
medium
medium
Applications
- General-purpose use
- Good machinable materials up to 900 N/mm²
- Unalloyed and low-alloy steels
- for blind holes
- for machine use

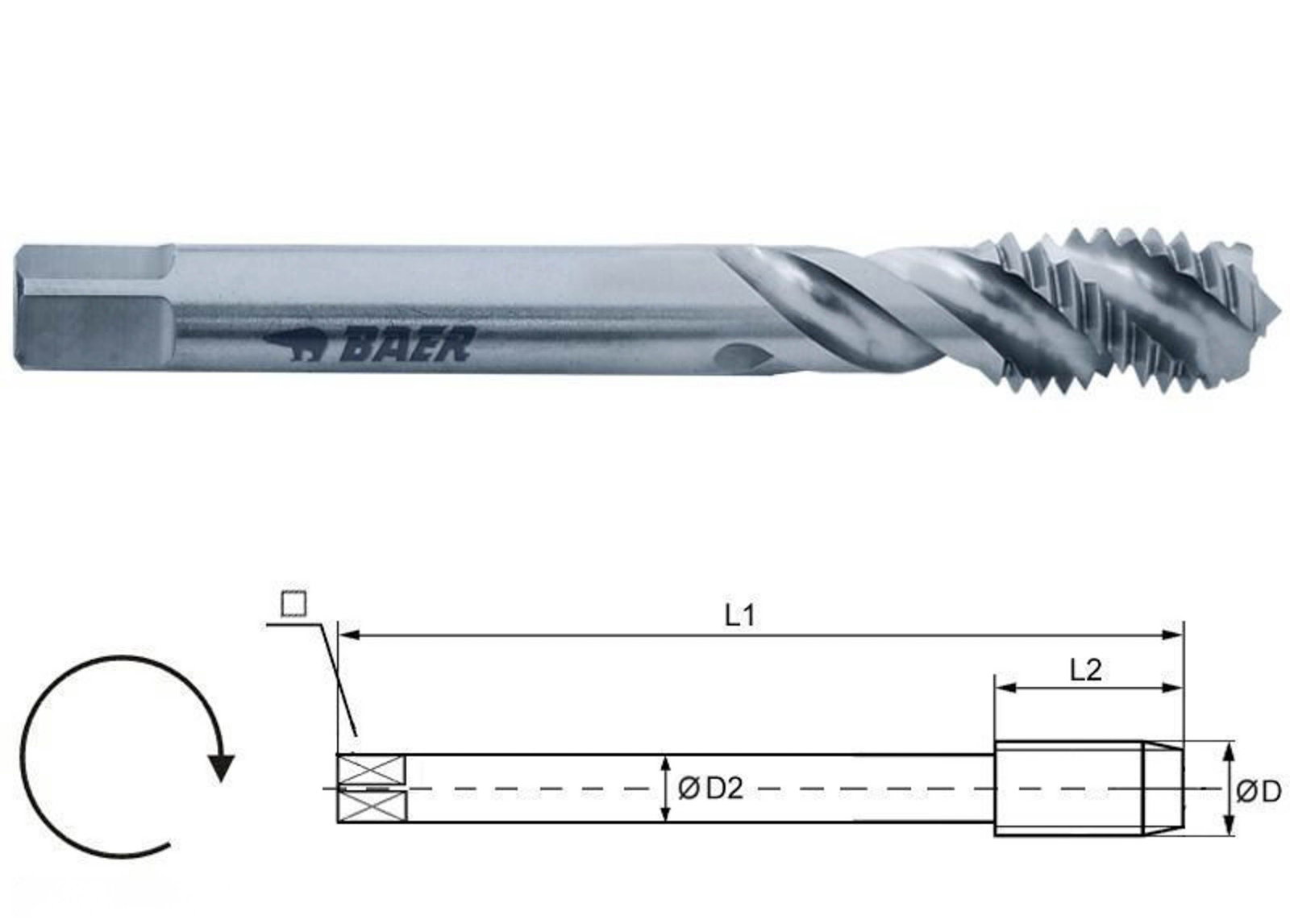

Technical drawing
| D1 |
NPT 1.1/2 x 11.5 |
|---|---|
| D2 |
38 mm |
| L1 |
110 mm |
| L2 |
45 mm |
| Diameter |
1.1/2" |
| Square |
29 mm |
Application – Sample materials for taps
| Unalloyed construction steels | |
|---|---|
| 1.0035 | S185 (St33) |
| 1.0036 | S235JRH |
| 1.0038 | RSt37-2 |
| 1.0039 | S235JRG1+CR |
| 1.0044 | St44-2 |
| 1.0060 | E335 (St60-2) |
| 1.0116 | St37-3 |
| 1.0570 | St 52-3 |
| Alloyed construction steels | |
|---|---|
| 1.5415 | 15Mo3 |
| 1.5423 | 16Mo5 |
| 1.5622 | 14Ni6 |
| 1.7335 | 13CrMo44 |
| 1.7337 | 16CrMo44 |
| 1.7715 | 14MoV63 |
| Free-cutting steels | |
|---|---|
| 1.0711 | 9S20 |
| 1.0715 | 9SMn28 |
| 1.0718 | 11SMnPb30 |
| 1.0721 | 10S20 |
| 1.0723 | 15S20 |
| 1.0726 | 35S20 |
| 1.0737 | 9SMnPb36 |
| 1.0758 | 60SPb20 |
| Case-hardening steels | |
|---|---|
| 1.0401 | (C15) |
| 1.7016 | 17CR3 |
| 1.7131 | 16MnCr5 |
| 1.5919 | 15CrNi6 |
| Quenched and tempered steels unalloyed | |
|---|---|
| 1.0402 | C 22 |
| 1.1151 | C22E (Ck22) |
| 1.0503 | C 45 |
| 1.1191 | C45E (Ck45) |
| Cast steel | |
|---|---|
| 1.0420 | GS-38 |
| 1.5419 | GS-22 Mo 4 |
| 1.6750 | GS-20 NiCrMo3 7 |
| 1.7357 | GS-17 CrMo 5 5 |
| Malleable cast iron | |
|---|---|
| 0.8145 | EN-GJMB 450-6 |
| 0.8170 | EN-GJMB 700-2 |
| 0.8045 | EN-GJMW-450-7 |
| 0.8055 | EN-GJMW-550-4 |
| Pure copper low-alloyed | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
| Brass short-chipping | |
|---|---|
| 2.0401 | CuZn39Pb3 |
| Brass long-chipping | |
|---|---|
| 2.0321 | CuZn37 |
| 2.0335 | CuZn36 |
| 2.0360 | CuZn40 |
| Aluminum cast Si > 5-12 % | |
|---|---|
| 3.2161 | G-AlSi8Cu3 |
| 3.2163 | G-AlSi9Cu3 |
| 3.2381 | G-AlSi10Mg |
| 3.2583 | G-AlSi12(Cu) |
| Lamellar graphite cast iron | |
|---|---|
| 0.6010 | EN-GJL 100 (GG-10) |
| 0.6020 | EN-GJL 200 (GG -20) |
| 0.6025 | EN-GJL 250 (GG-25) |
| 0.6030 | EN-GJL 300 (GG -30) |
| Copper-tin alloy (bronze) short-chipping | |
|---|---|
| 2.1090.01 | G-CuSn7ZnPb |
| 2.1086.01 | G-CuSn10Zn |
| 2.1097 | G-CuSn5ZnPb |
| Pure copper, low-alloyed copper | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
