BAER machine thread cutters for efficient threading

Machine screw tap by BAER – efficient thread production

If you need a thread, you typically proceed as follows: As a rule, a pilot hole is first drilled using a centre drill ( through hole or blind hole), into which the thread is then cut using a tap. However, if you work with a precision threading tool ( machine screw tap), you can complete both operations with the same tool. This saves you the time required for tool changeover.

In addition, some machine taps feature a practical chip-breaking groove, which ensures that the chips produced during the thread-cutting process are broken up and pushed downwards out of the through hole. For a blind hole, a machine screw tap with a twisted groove serves the same purpose by pushing the chips upwards out of the hole against the cutting direction.

Wide selection with different shapes – suitable for every material

If you work with different materials, you will also need different machine screw tap to achieve the best possible result in each material.

For this, you can choose from our reliable, high-quality machine screw tap in various shapes :

• Shape A, straight-grooved and with a long lead-in for through hole
• Form B with a peel-off cut for through hole
• Type C with a 35° right-hand spiral for blind hole
• Type C, straight fluted and suitable for through-hole and blind hole
• Type E with 40° right-hand spiral and short cut-in for blind hole
• Combination machine screw tap
• Machine tap

For each form, you also have a choice of different variants

Form B is available, for example, for: universal use (UNiTAP), standard applications, left-hand threads, high-alloy steels, aluminium, stainless steels, special alloys and other applications.

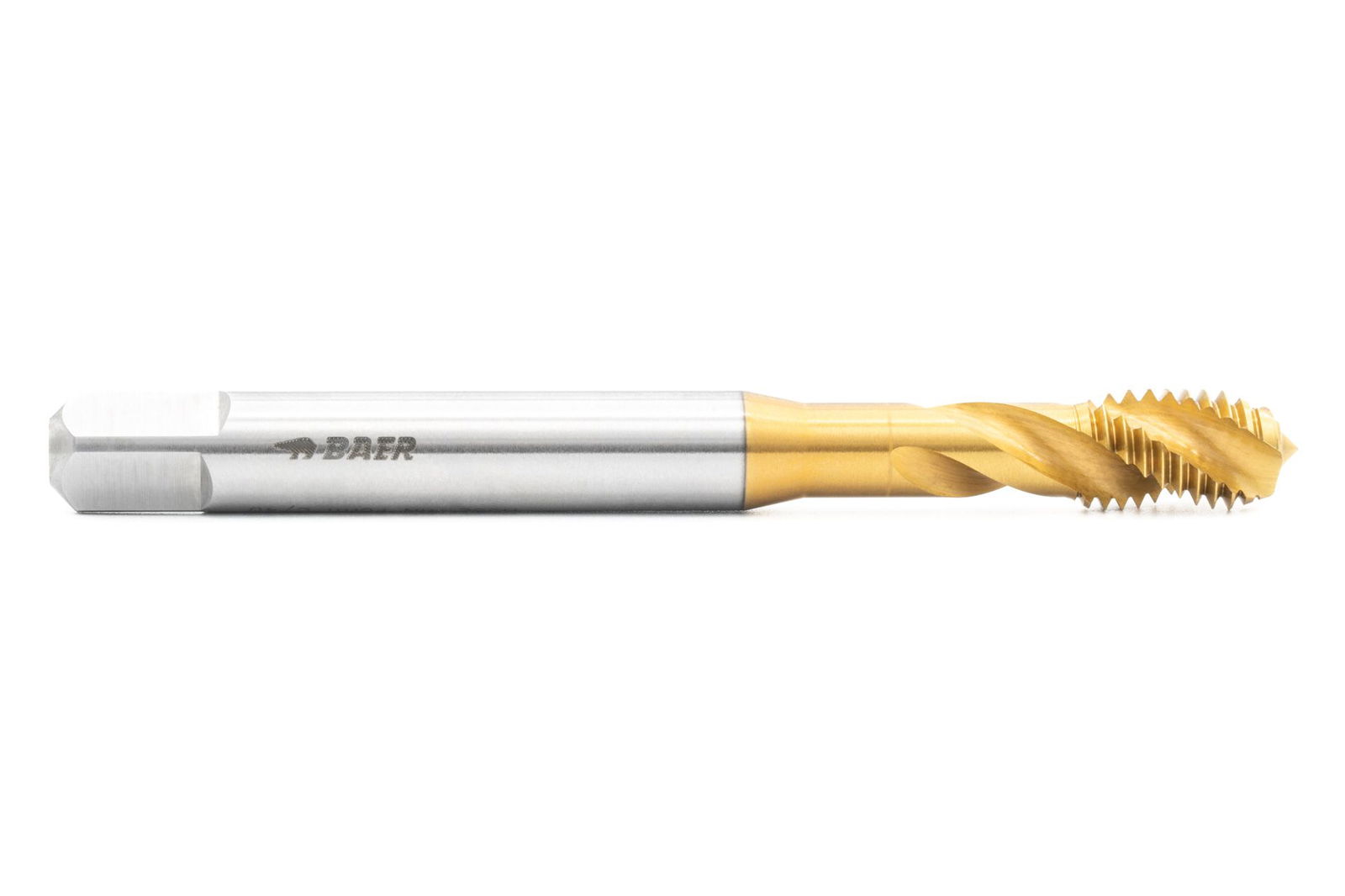

Form C is available, for example, for: standard applications in structural steel or free-cutting steel, TIN-coated, for cast materials, for titanium and titanium alloys, for brass or solid carbide

Particularly popular is our Combi- machine screw tap

With this all-round tool, you can create core hole diameter and through-threads in a single operation. This high-quality combination machine screw tap consists of a twist drill section and a threading section and can be used for all materials of medium strength. However, you are limited to a thread depth of 2 x D (through-thread).

Do you have any questions or need assistance? Please feel free to use our contact form for advice!

Machine screw tap, hand screw tap, short machine tap

Perhaps you do not use only machine screw tap, but also hand screw tap or short machine tap. In that case, we can of course assist you with the appropriate high-quality tools. Have you not used them all yet? Then we would be happy to explain the differences to you :

As the name suggests, the machine screw tap is used for machine applications and is a key tool in industrial manufacturing.

Short machine taps have been popular since the 1970s as an economical internal thread cutter for short through-holes. It could also re-cut the thread and therefore replaced, for interested customers, the three-piece combination of pre-cutter, centre cutter and finish cutter that was typical at the time. Our short machine taps have a full thread profile and can therefore be operated both manually and by machine!

Hand screw tap are the traditional tools used for cutting a thread. For standard threads, three-piece hand tap sets with a pilot tap, intermediate tap and finishing tap are used. For fine threads, two-piece hand screw tap are used. In the comparison, alongside the machine screw tap in a long version, the hand screw tap are available in a short version. With us offers a wide selection suitable for various materials as well as left-hand threads or special pitches.

Machine screw tap Shop at BAER

At BAER, you will always find a wide selection of innovative and modern tools for all areas of application. Naturally, we offer you only the highest quality products in robust designs, ensuring you receive functional and durable tools.

We prioritise quality

To ensure we can offer you the very best quality, we take great care in selecting the finest raw materials and work exclusively with reliable suppliers. During production, we also continuously monitor quality standards and subject all products to a very thorough final inspection.

Extensive range and custom-made products

In our clear and comprehensive online shop, you will find all the right machine screw tap for your specific work processes – and if you happen not to find what you’re looking for, please feel free to ask us about the option of a custom-made product. We’d be happy to see how we can help you!

Advice and excellent service included

In addition to the option of custom-made products, alongside our machine taps you will also find all the other tools you need for creating, finishing or repairing threads. You can contact us at any time for detailed advice – we are always happy to help.

Part of our understanding of good customer service is to inform you about the selection and operation of machine taps, or to advise you on possible applications, even before you make a purchase. This way, you can be sure that you are always choosing the right tool. But we are also happy to assist you with any questions you may have after your purchase!

Are you interested in our products or would you like to purchase a specific machine screw tap? Then please feel free to contact us in advance by email or phone, or make your purchase directly in our user-friendly shop.
