Taper Arbors / Drill Chuck Arbors
A taper arbor connects a toolholding head (e.g., a drill chuck) to the machine spindle. As the interface between tool and machine, it is a small yet critical component. In the BAER online shop you will find a wide selection of arbors in different sizes and designs – ensuring a secure connection between chuck and spindle and precise results.
Everything you need to know about taper arbors
First choose the correct connection type: arbors with tang, with drawbar thread, with a threaded mount, or with a steep taper. Refer to your machine manual to confirm the required interface.
Next, match the dimensions: on the machine side the arbor uses a Morse taper (MT); on the chuck side a B-taper seat. MT sizes are designated MT0, MT1, MT2, etc., while chuck seats are marked B10, B12, B16, B18. For drawbar versions, also note the thread size.
Taper arbors – Our range
We stock many sizes and variants. All BAER arbors feature premium materials and precise workmanship. See each product page for full dimensional data.

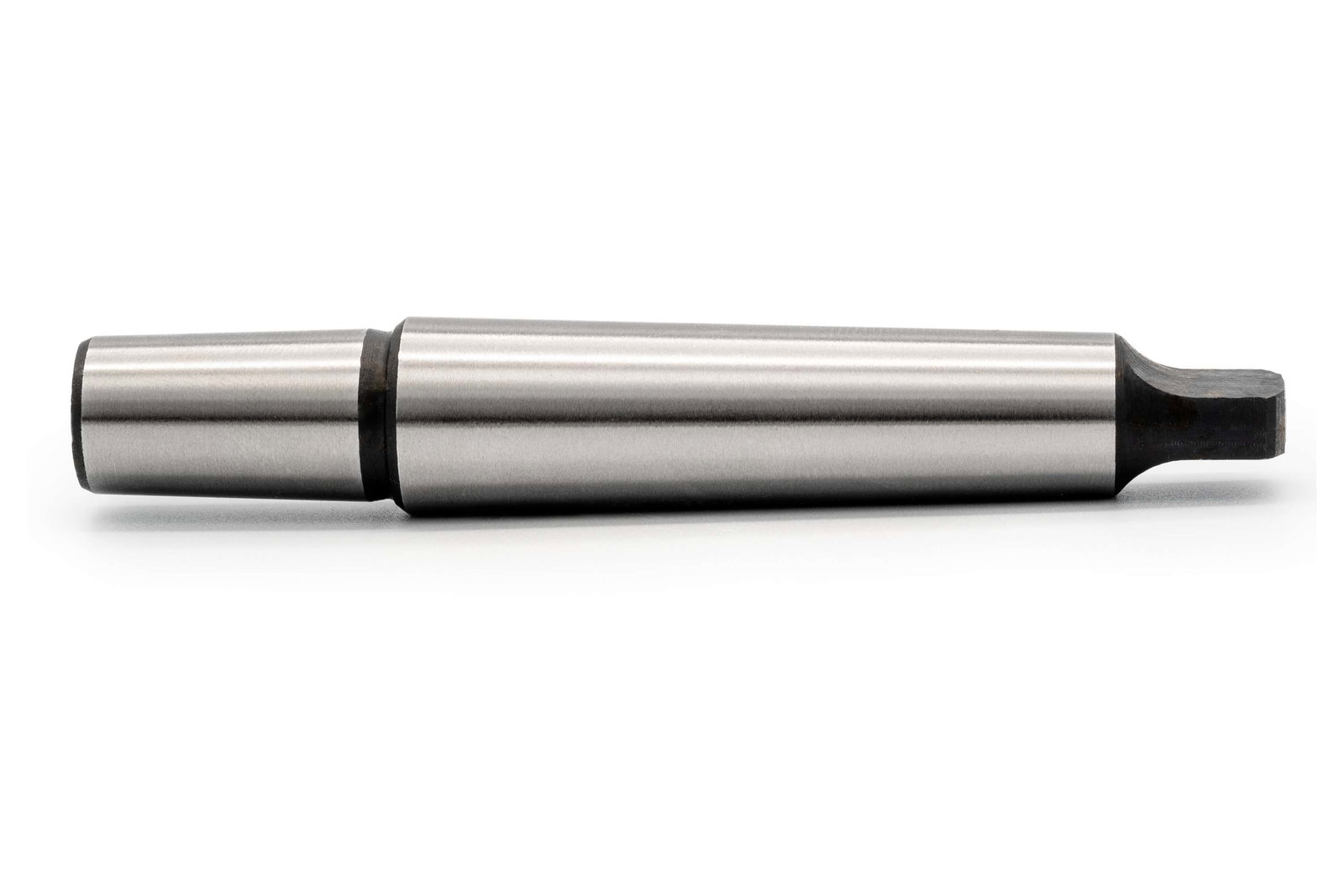

Arbor with tang (DIN 238)
Arbors with tang according to DIN 238, covering machine tapers MT1–MT4 and chuck tapers B10–B18.

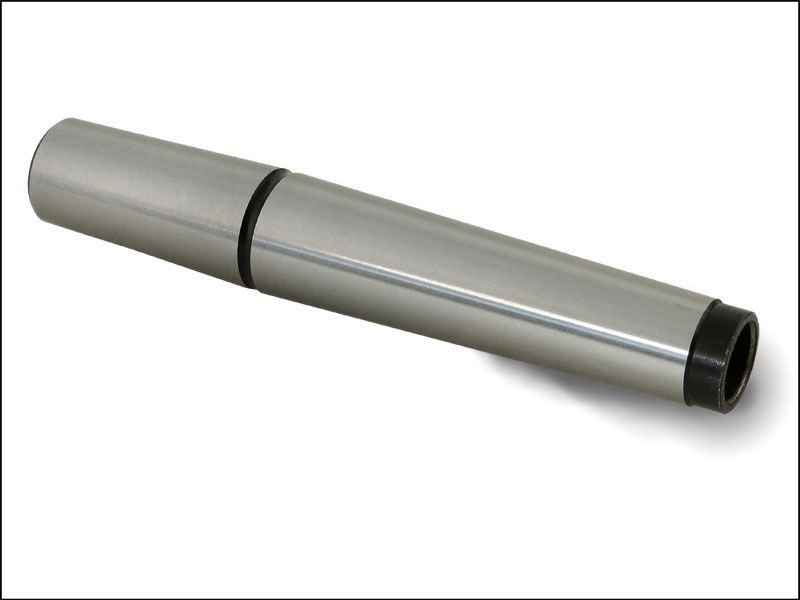

Arbor with drawbar thread
Wide range of arbors with drawbar thread. Suitable for machines with Morse taper and drawbar; by adding a tang screw, also usable on drill presses. Available for MT1–MT4, chuck tapers B10–B18, and threads M6–M16.

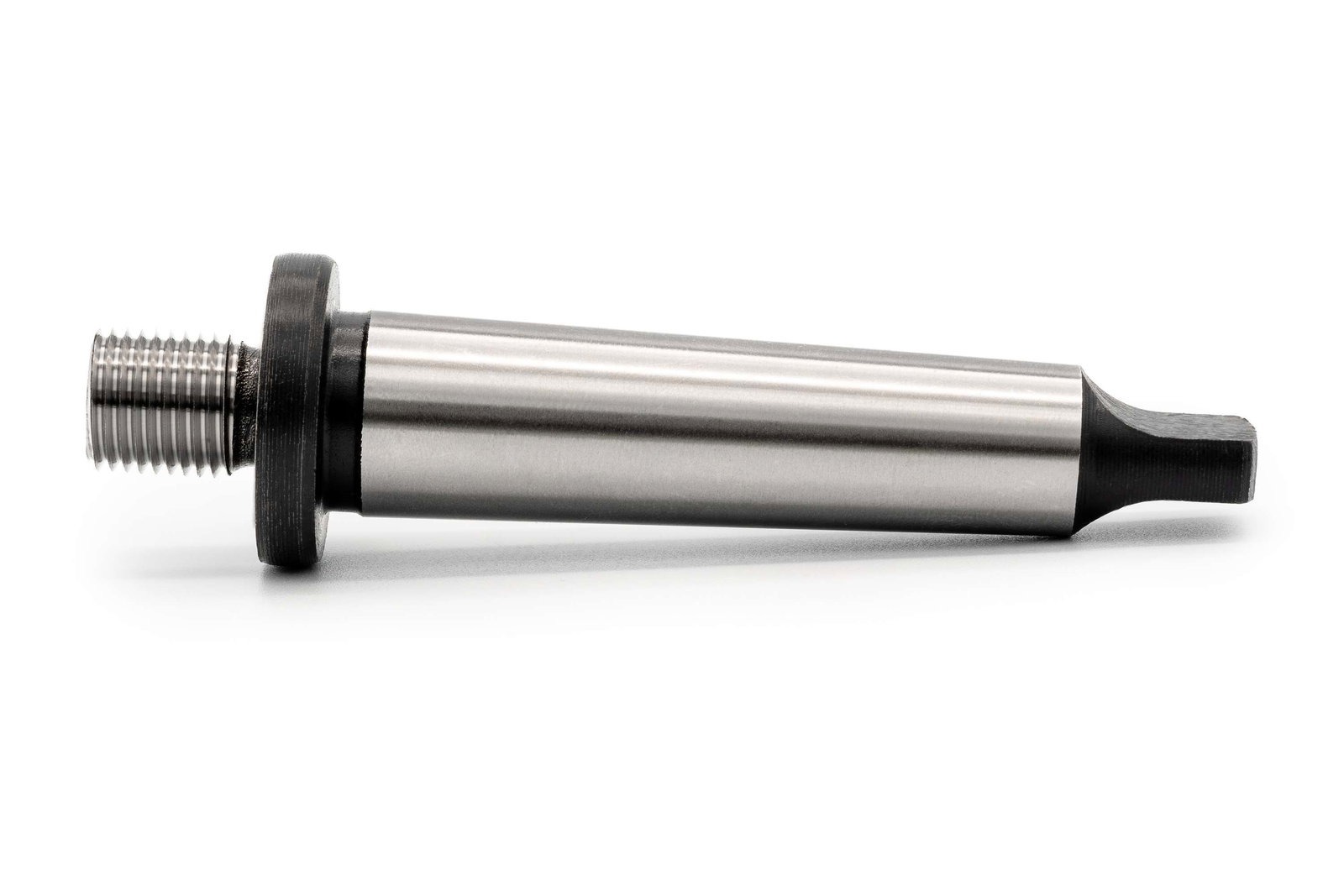

Arbor with threaded mount
Arbors with tang and threaded mount for chucks with 1/2" × 20 UNF, ideal for column and bench drills. Available for MT2 and MT3.

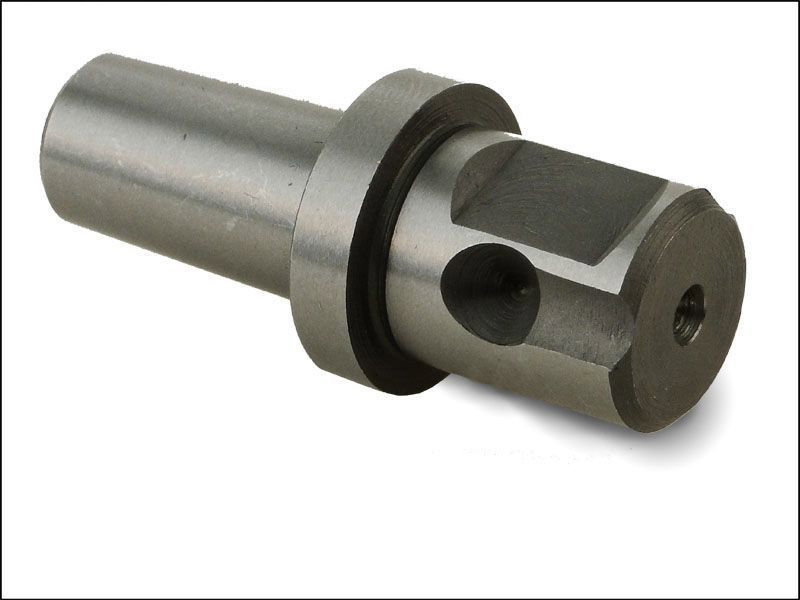

Weldon shank / Magnetic core drill (B16)
Special adapter to connect a magnetic core drill with FEIN Quick-In (Ø 18 mm) to a B16 chuck. Precision-ground, through-hardened steel – perfect for industrial and workshop use.

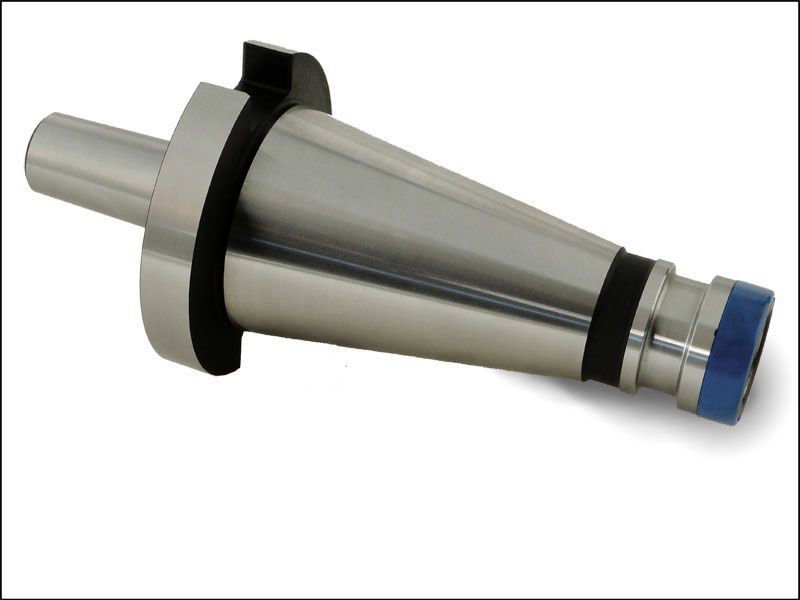

Arbor with steep taper
Steep-taper arbors to DIN 2080, DIN 69781 A, and MAS 403 BT. Sizes SK 30, SK 40, SK 50 for chuck seats B12–B18.
Discover B16 taper arbors and more in the BAER online shop!
Find arbors, drill chucks, and more in the BAER online shop – with fast shipping, fair pricing, and expert support. Contact us by phone or via the contact form.
