BAER Adjustable Tap Wrench - PRO NO. 1.1/2 |M 1-12 | 1/16-1/2 | G (BSP) 1/8
BAER Adjustable Tap Wrench - PRO NO. 1.1/2 |M 1-12 | 1/16-1/2 | G (BSP) 1/8

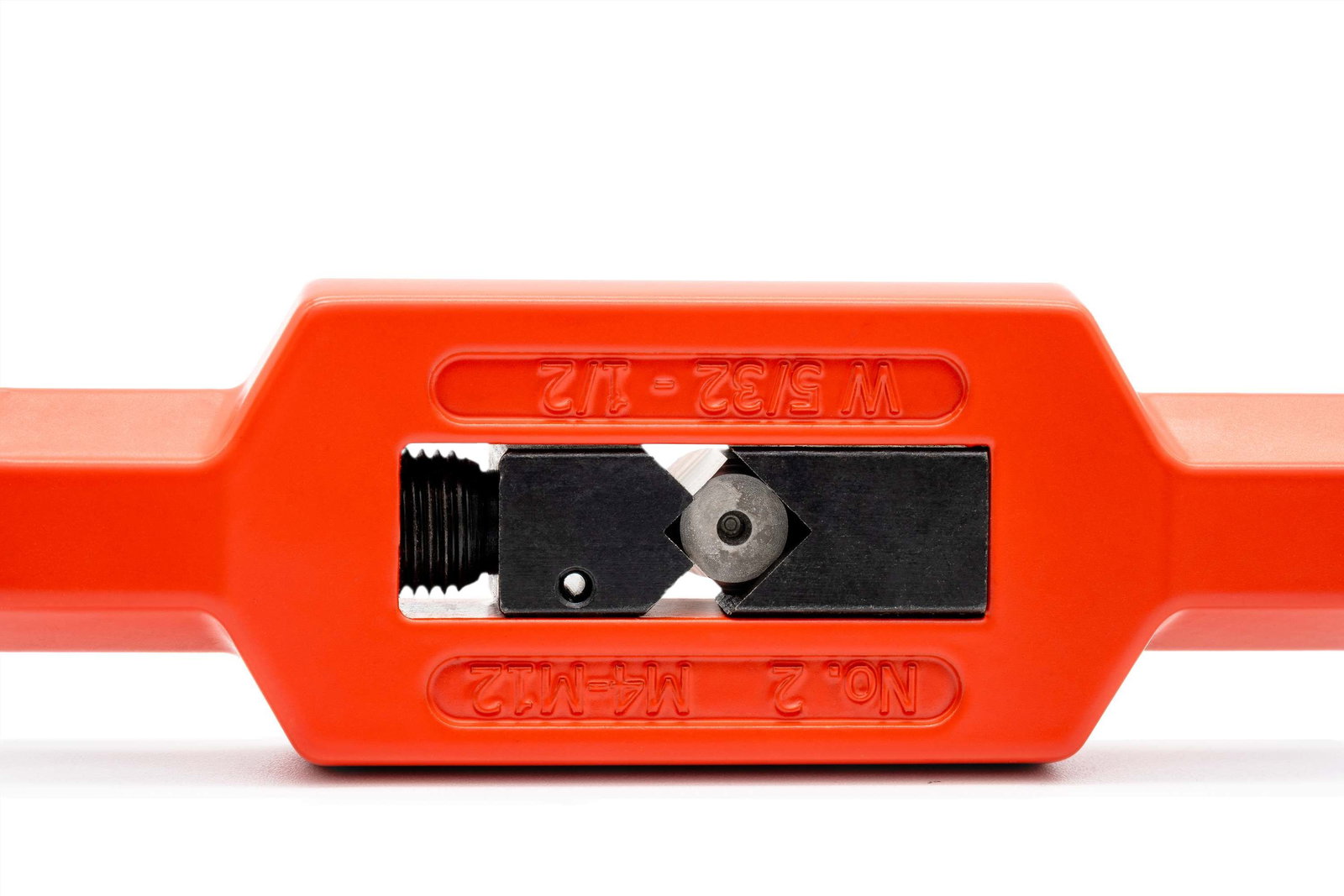

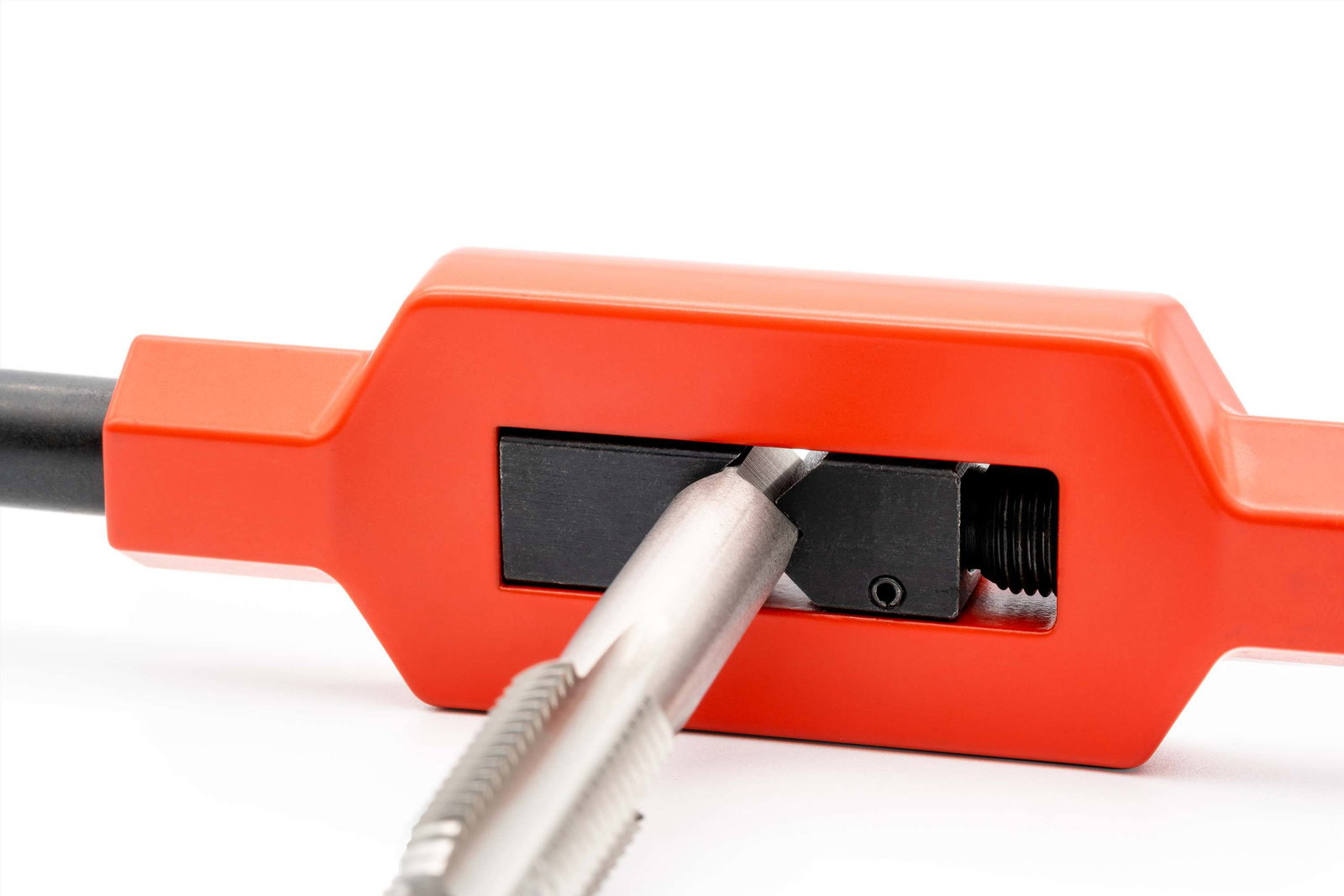

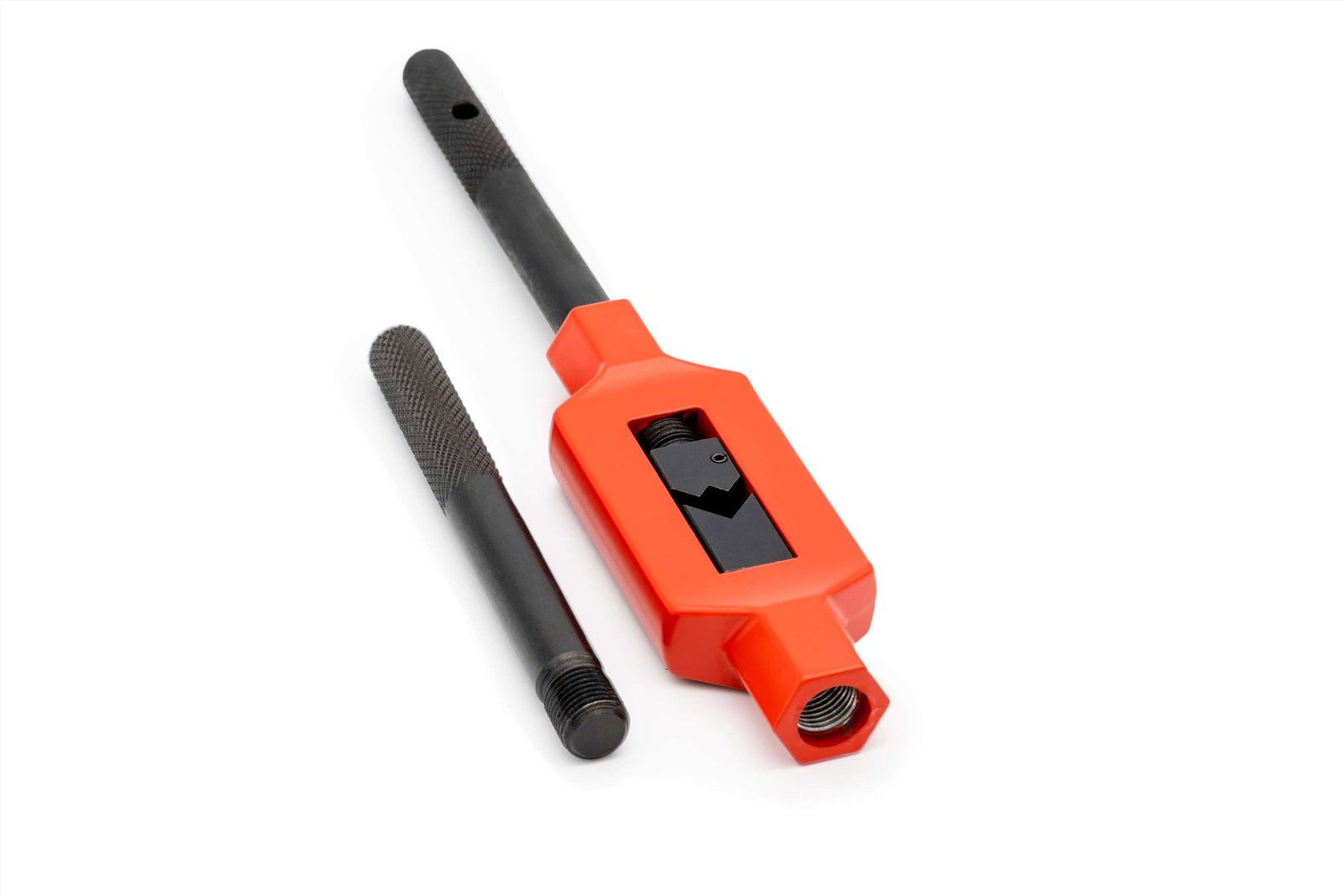

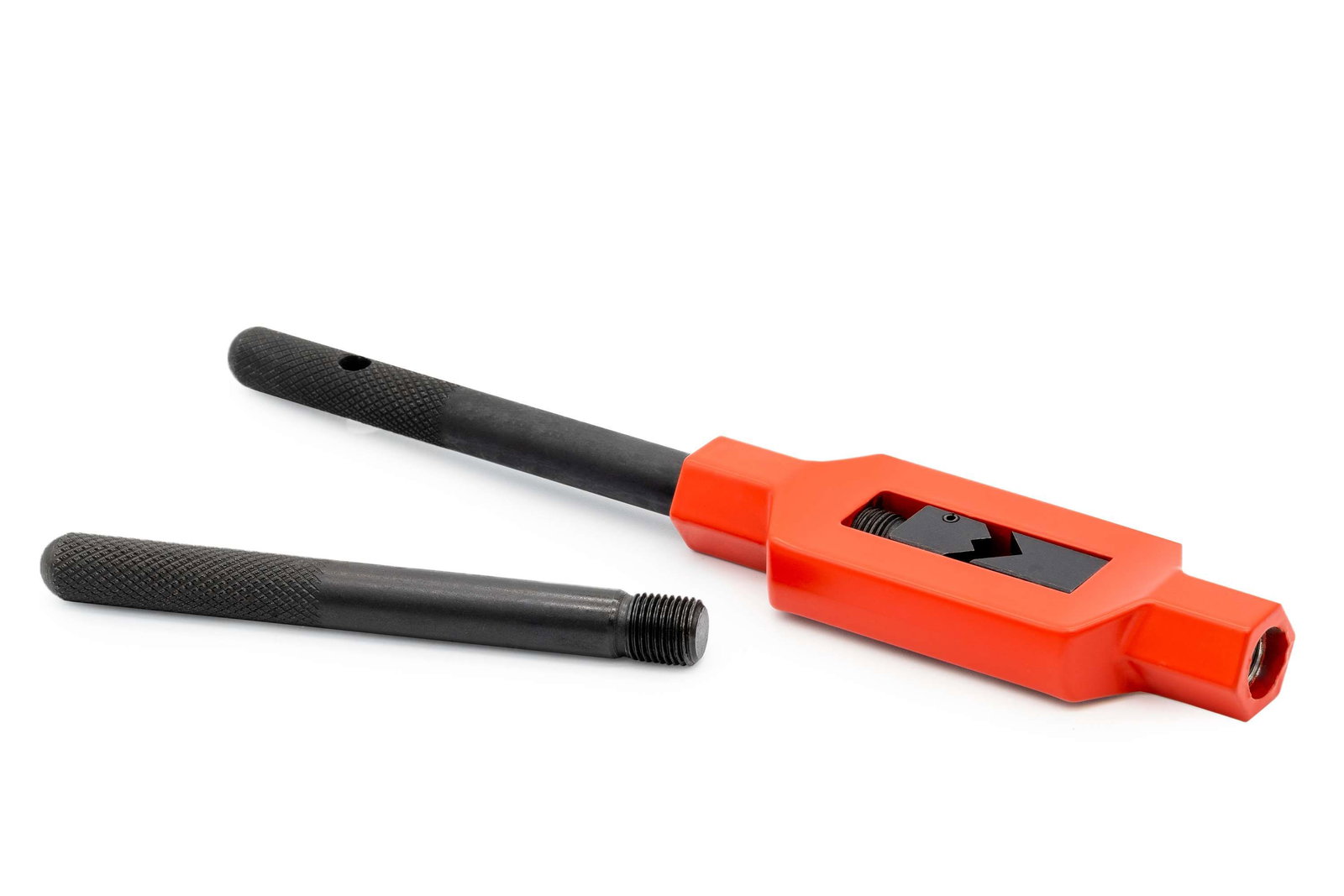

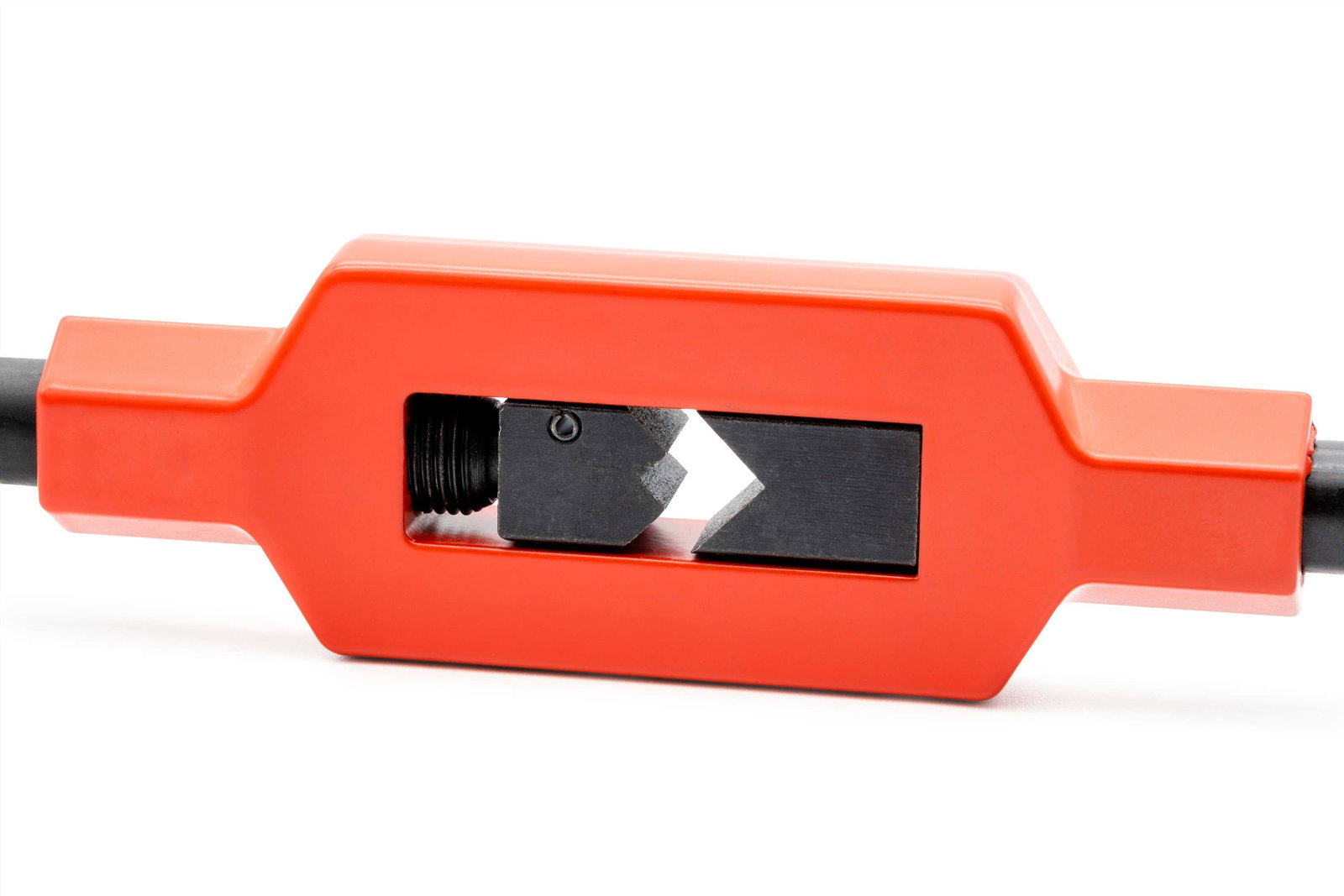

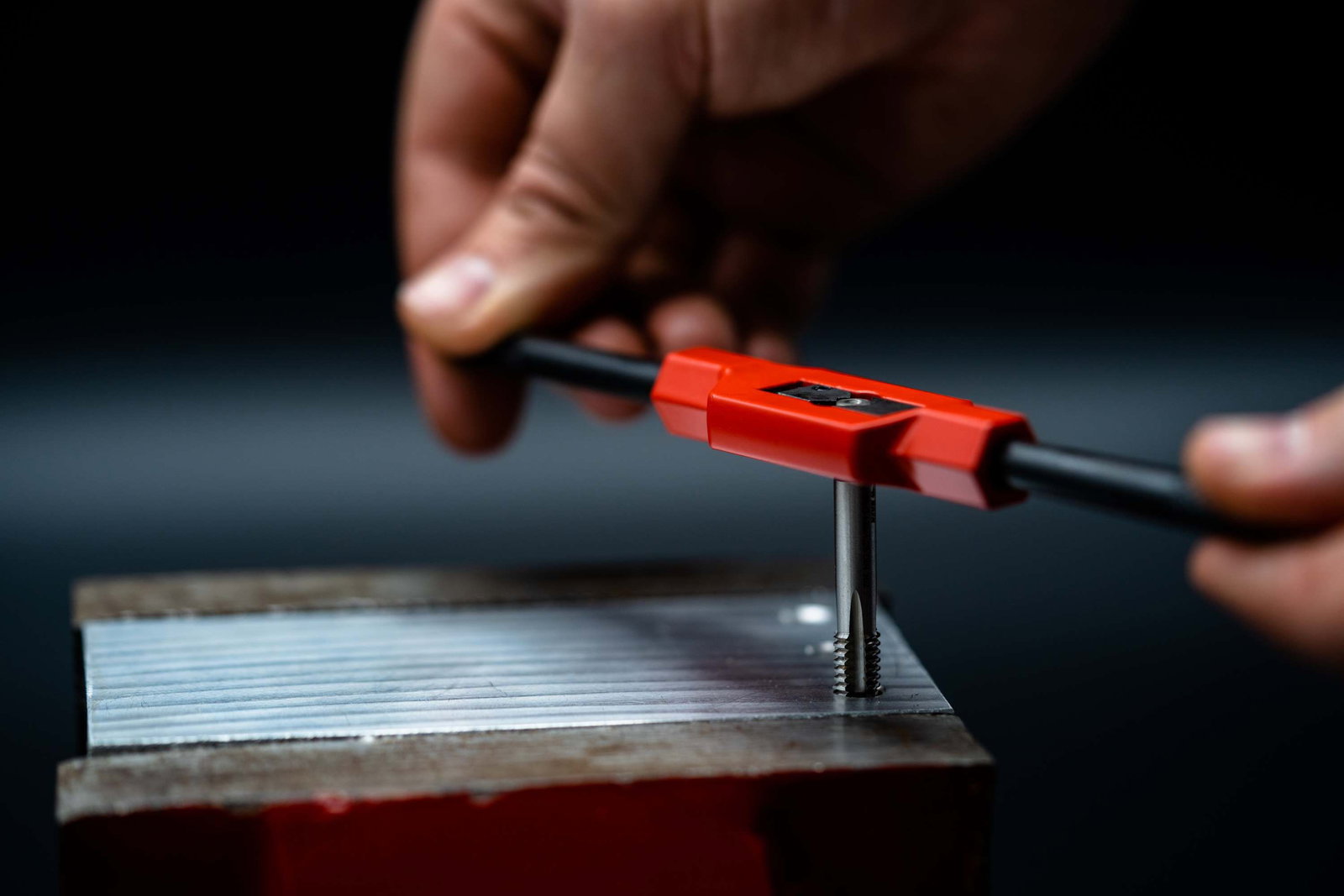

The adjustable PRO tap wrench is an operating tool made of high-end zinc die casting for taps, with which internal thread can be cut by hand. The outstanding quality of the tap wrench lies not only in the material, but also in the high-quality clamping jaws, handles and geometry, which make the tool extremely stable and very precise to use. They are standardised according to DIN 1814, equipped with hardened clamping jaws and can be adjusted. The term "Tap turning tool" is also used equivalently in everyday life. These holding tools are not only used for thread cutting, because they and are generally used to clamp tools with square ends. For example, screwdrivers, reamers or insertion tools for thread inserts can be clamped. The long levers on both sides support plumb cutting in the bore and easy application of the required torque. Another advantage is the easy handling and the short changing times. In order to be able to work in hard-to-reach places, one lever can be unscrewed on one side.
The most important at a glance:
- BAERENSTARK - Our tap wrenchs impress with their resilience and durability. Premium- clamping jaws for a firm hold and high-quality zinc die-cast bodies.
- EXCELLENT QUALITY - At BAER you buy tested tools at bear-strong prices with outstanding precision for durable stability and force absorption!
- EASY TO USE - The tap wrench is characterised by easy handling and good weight distribution.

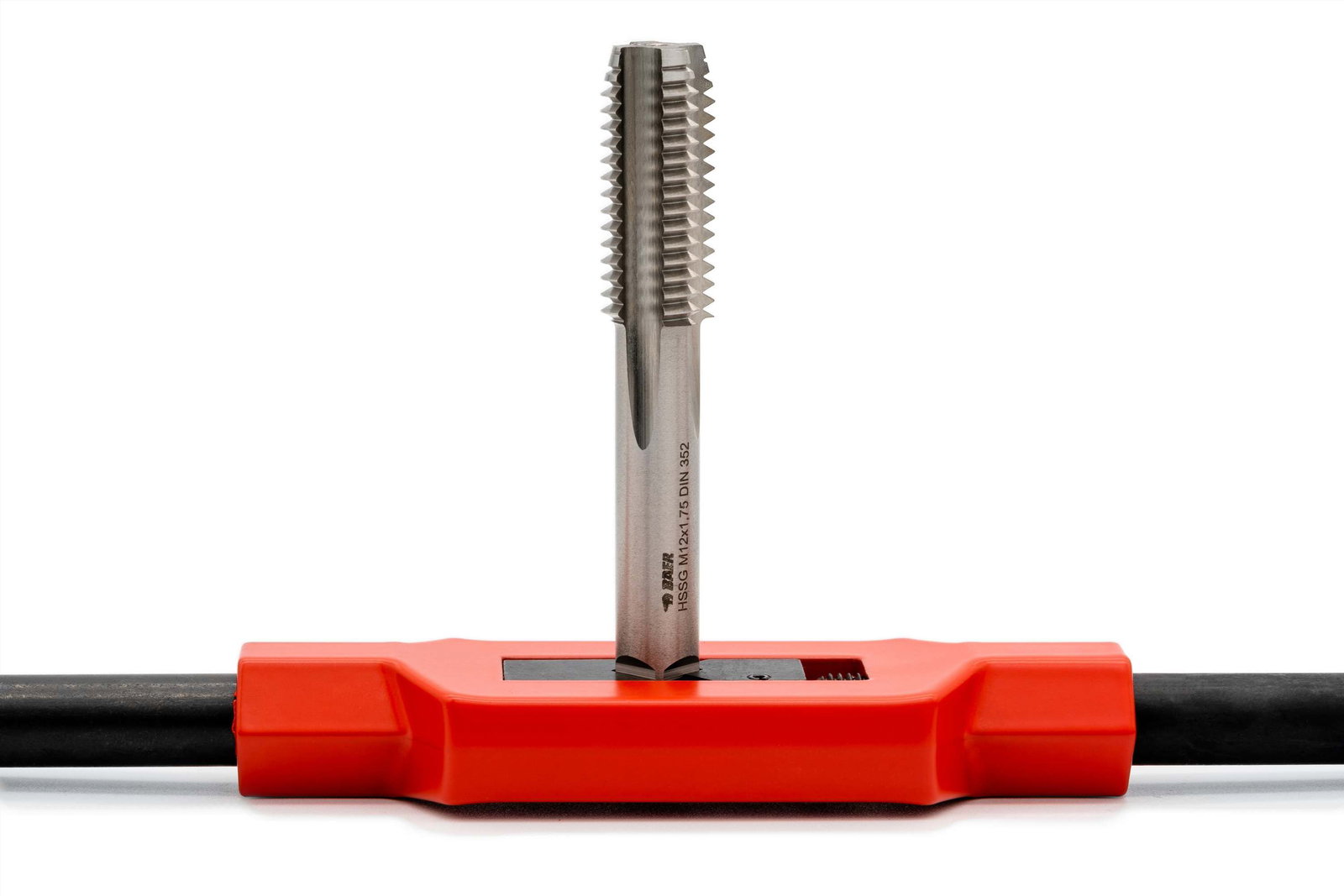

- APPLICATION - Tap wrenches are used for clamping hand and short machine taps. The adjustable tap wrench is made of premium die-cast.
- NOTE - The handles of the tap wrench must never be extended. The forces achievable with the normal handles are sufficient for thread cutting.
Dimensions
| Diameter |
1 - 12 |
|---|---|
| Dimension |
GR. 1.1/2 | M 1-12 | 1/16-1/2 | G 1/8 |
| Length |
176 mm |
Characteristics
| Product group |
Operating tools |
|---|---|
| Product type |
Tap wrench |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Standard |
DIN 1814 |
| Material |
Premium die casting |
Applications
- for hand and single-cut taps in M and MF: M 1 - M12
- for hand and single-cut taps in UNC, UNF, BSW and BSF: 1/16 - 1/2
- for hand and single-cut taps in G (BSP): G 1/8
Technical drawing
| Diameter |
1 - 12 |
|---|---|
| Square |
2,1 - 8,0 mm |
| Length |
176 mm |
