BAER Adjustable Tap Wrench - Steel NO. 5 | M 13-32 | 1/2-1.1/4 | G (BSP) 1/4-1''

€73.30*

Prices incl. VAT plus shipping costs

In stock

Same-day shipping for orders placed by tomorrow 12:50 o'clock

Express shipping available

EAN 4058462011399
Item no 491724050
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

BAER Adjustable Tap Wrench - Steel NO. 5 | M 13-32 | 1/2-1.1/4 | G (BSP) 1/4-1''

The adjustable steel tap wrench is an operating tool made of tool steel for taps, with which internal thread can be cut by hand. An all-steel tap wrench is ideal when a larger diameter of the threaded hole and thus a higher torque is required. The reason for this is that the higher quality of the cast steel also allows higher forces to be absorbed.

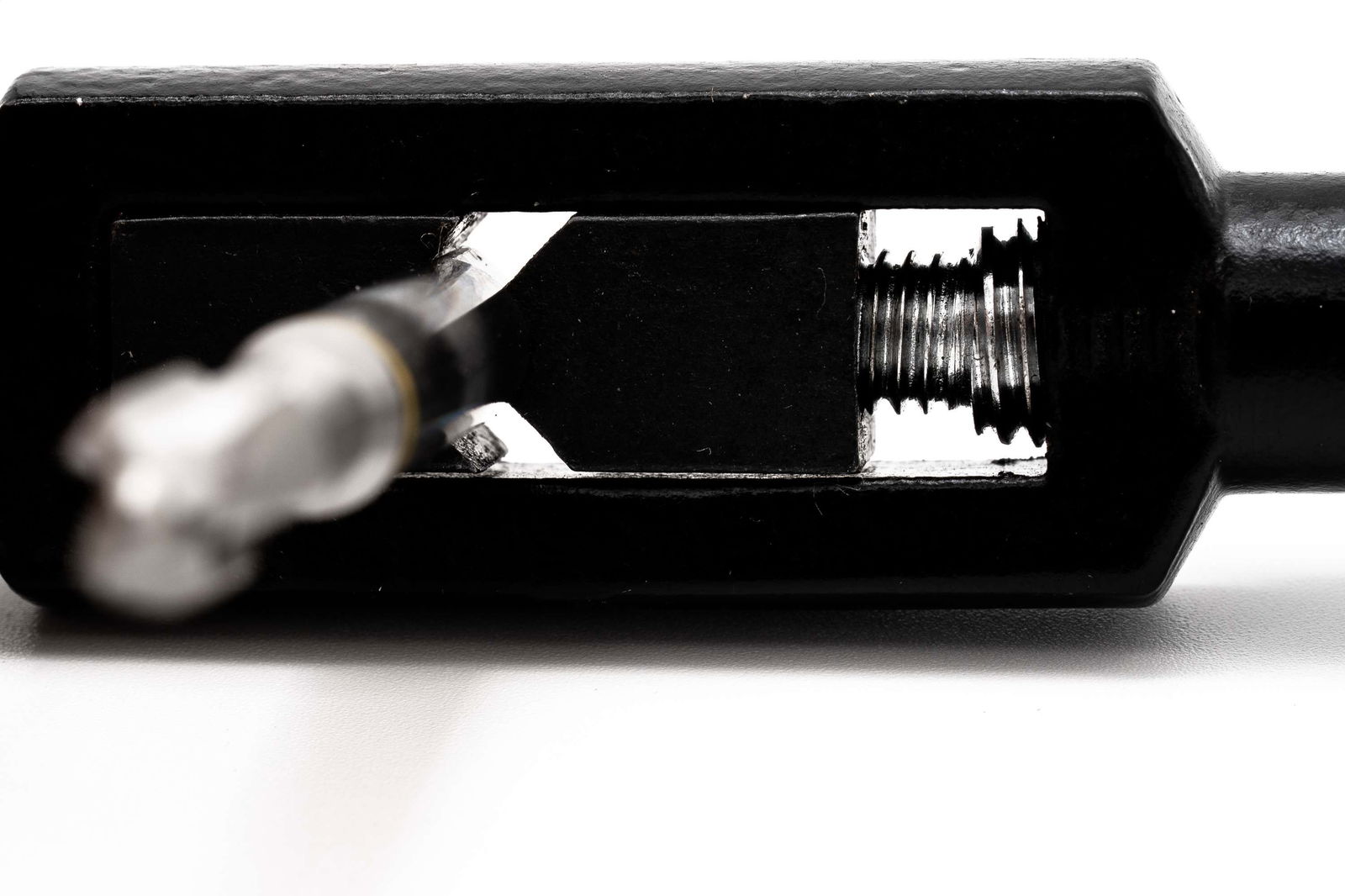

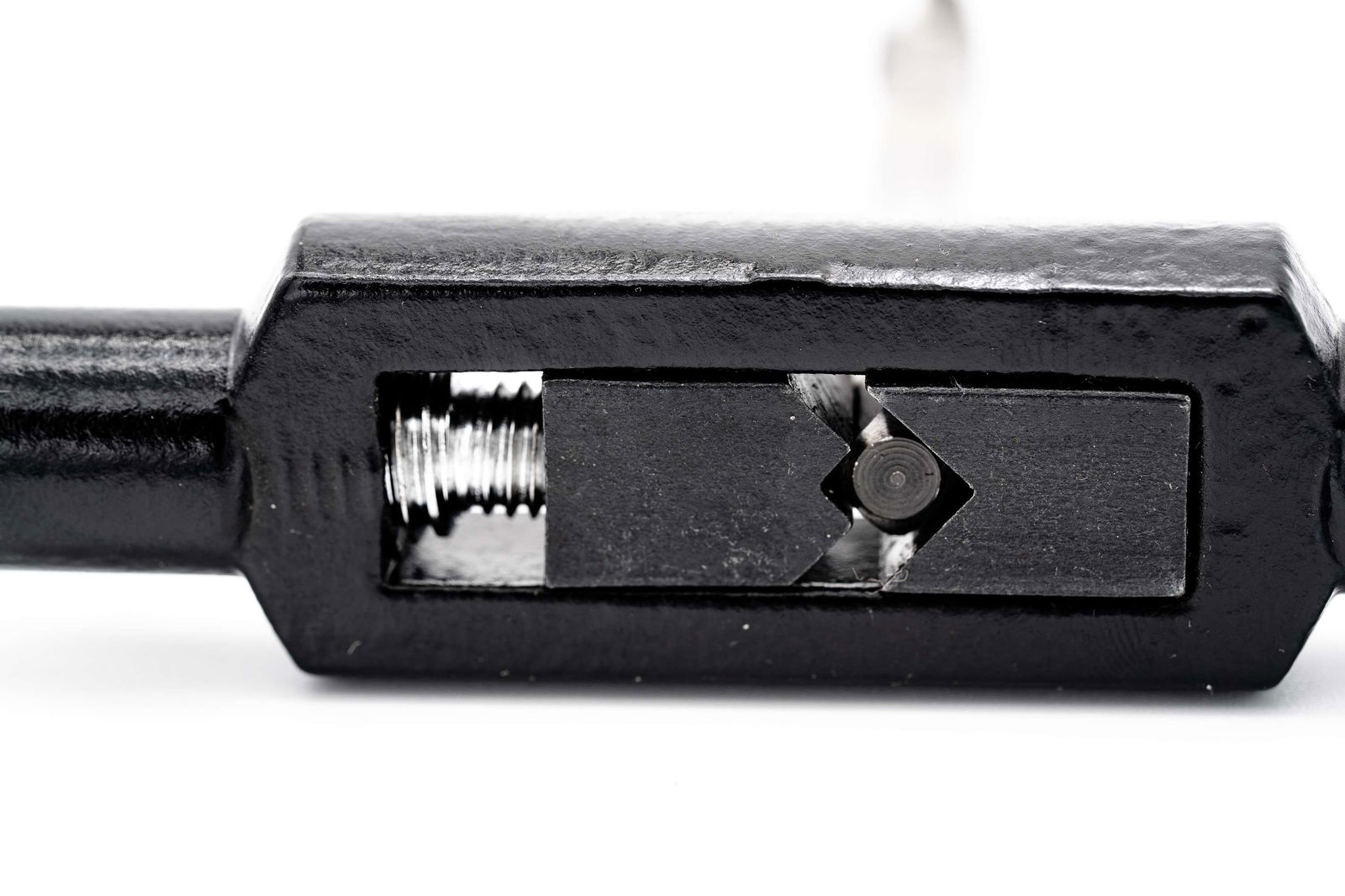

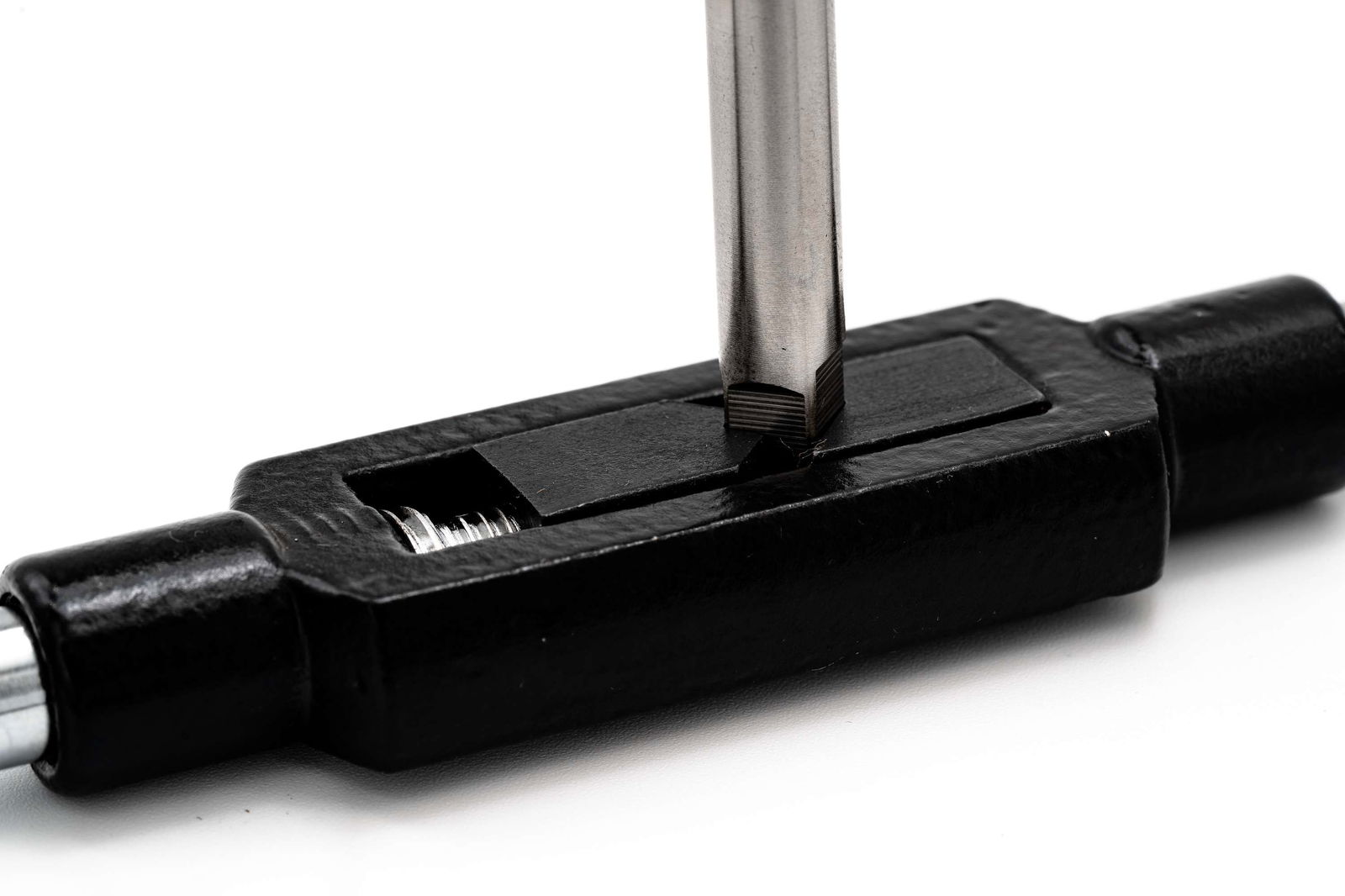

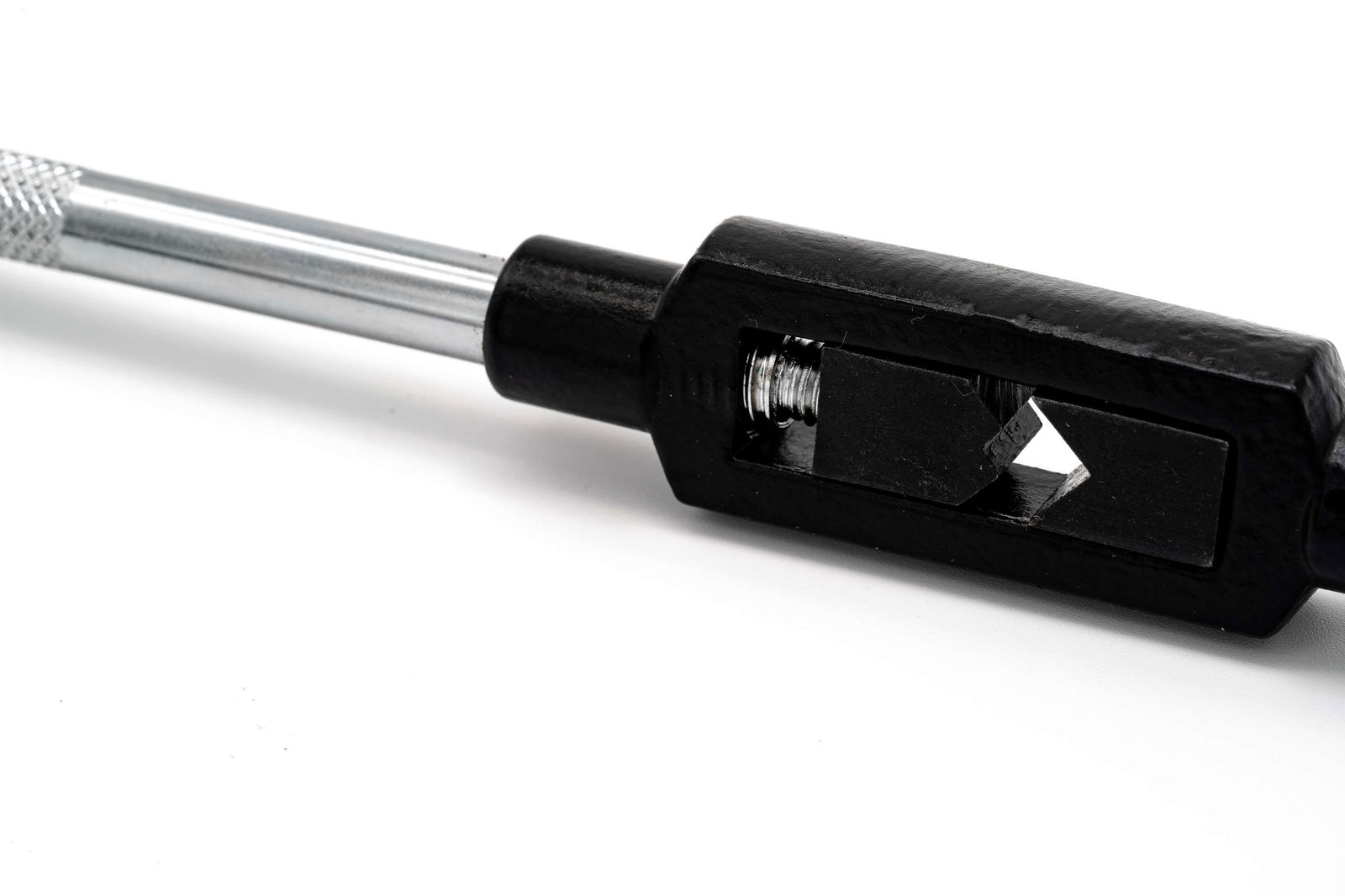

The outstanding quality of the tap wrench lies not only in the material, but also in the high-quality clamping jaws, handles and geometry, which make the tool extremely stable and very precise to use. They are standardised according to DIN 1814, equipped with hardened clamping jaws and can be adjusted. The term "Tap turning tool" is also used equivalently in everyday life. These holding tools are not only used for thread cutting, because they and are generally used to clamp tools with square ends. For example, screwdrivers, reamers or insertion tools for thread inserts can be clamped. The long levers on both sides support plumb cutting in the bore and easy application of the required torque. Another advantage is the easy handling and the short changing times. In order to be able to work in hard-to-reach places, one lever can be unscrewed on one side.


The most important at a glance:

  • BAERENSTARK - Our tap wrenchs impress with their resilience and durability. Hardened clamping jaws for a firm grip and high-quality all-steel bodies.
  • EXCELLENT QUALITY - At BAER you buy tested tools at bear-strong prices with outstanding precision for durable stability and force absorption!
  • EASY TO USE - The tap wrench is characterised by easy handling and good weight distribution.
  • APPLICATION - Tap wrenches are used for clamping hand and short machine taps. The adjustable tap wrench is made of tool steel.
  • NOTE - The handles of the tap wrench must never be extended. The forces achievable with the normal handles are sufficient for thread cutting.

Dimensions

Diameter 13 - 32
Dimension GR. 5 | M 13-32 | 1/2-1.1/4 | G 1/4-1''
Length 700 mm

Characteristics

Product group Operating tools
Product type Tap wrench
Thread standard M: Metric ISO standard thread according to DIN 13
Standard DIN 1814
Material Steel

Applications

  • for hand and single-cut taps in M and MF: M 13 - M32
  • for hand and single-cut taps in UNC, UNF, BSW and BSF: 1/2 - 1.1/4
  • for hand and single-cut taps in G (BSP): G 1/4 - G 1''

Technical drawing

Diameter 13 - 32
Square 7 - 20 mm
Length 700 mm
