BAER Die Guides Set M 3-12

€8.78*

Prices incl. VAT plus shipping costs

In stock

Same-day shipping for orders placed by tomorrow 12:50 o'clock

Express shipping available

EAN 4058462056321
Item no 492025312
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

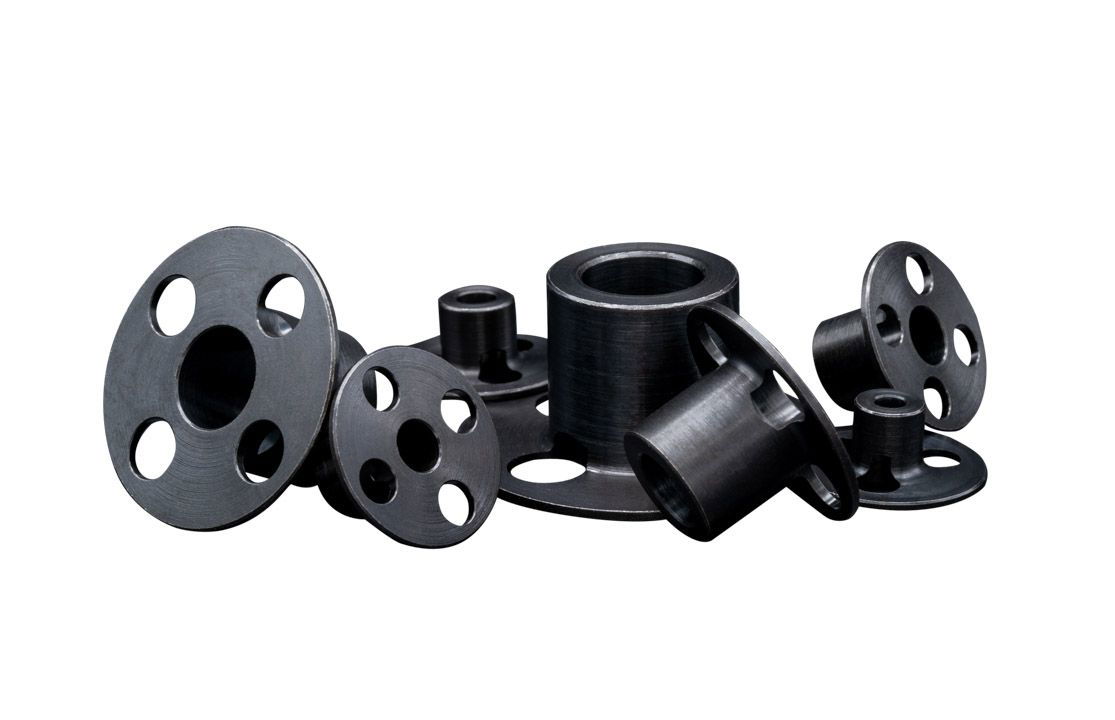

BAER Die Guides Set M 3-12

The BAER die guides are suitable for M 3 - M 12 dies according to DIN 223=EN 22568 and die holder according to DIN 225=EN 22568.
The challenge when cutting an external thread is to position the die perpendicular to the bolt. Before inserting the die, the die guide is inserted into the die holder. To ensure the chip transport, when using die guides, make sure that the holes in the guide match the holes in the die. This way the bolt can be guided through the hole and the thread behind it can be cut with the die. With the BAER- die guide a straight cutting direction is ensured and the thread flanks are cut exactly. The result is a perfect, right-angled external thread. BAER die guides are made entirely of turned steel. They clearly stand out from the zinc die-cast quality of the competitors. Additional holes in the die guides ensure good chip removal.

Dimensions

Diameter 3 - 12
Dimension M 3 - 12

Characteristics

Product group Operating tools
Product type Square drive extension
Thread standard M: Metric ISO standard thread according to DIN 13
Material Free-cutting steel
