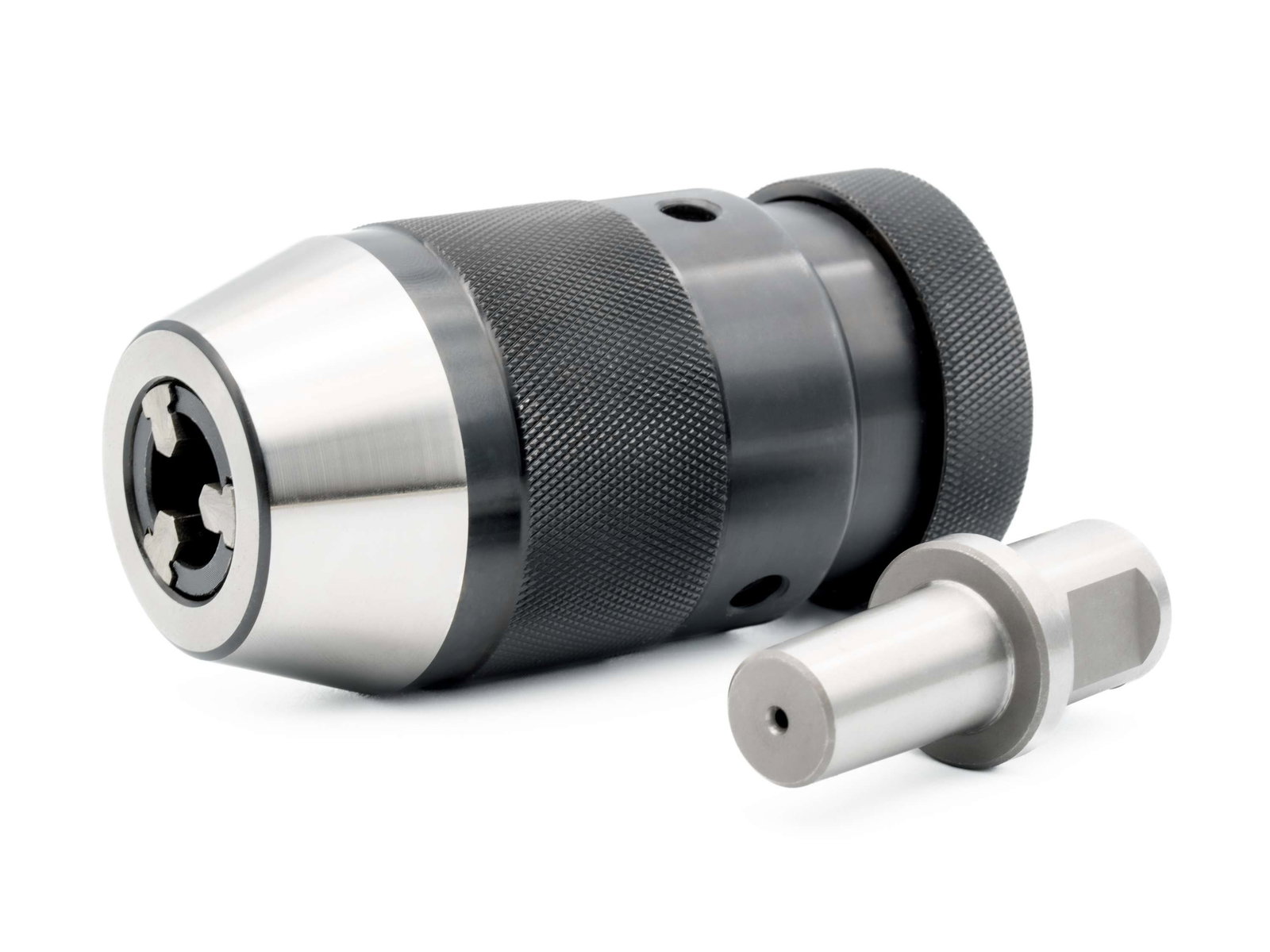

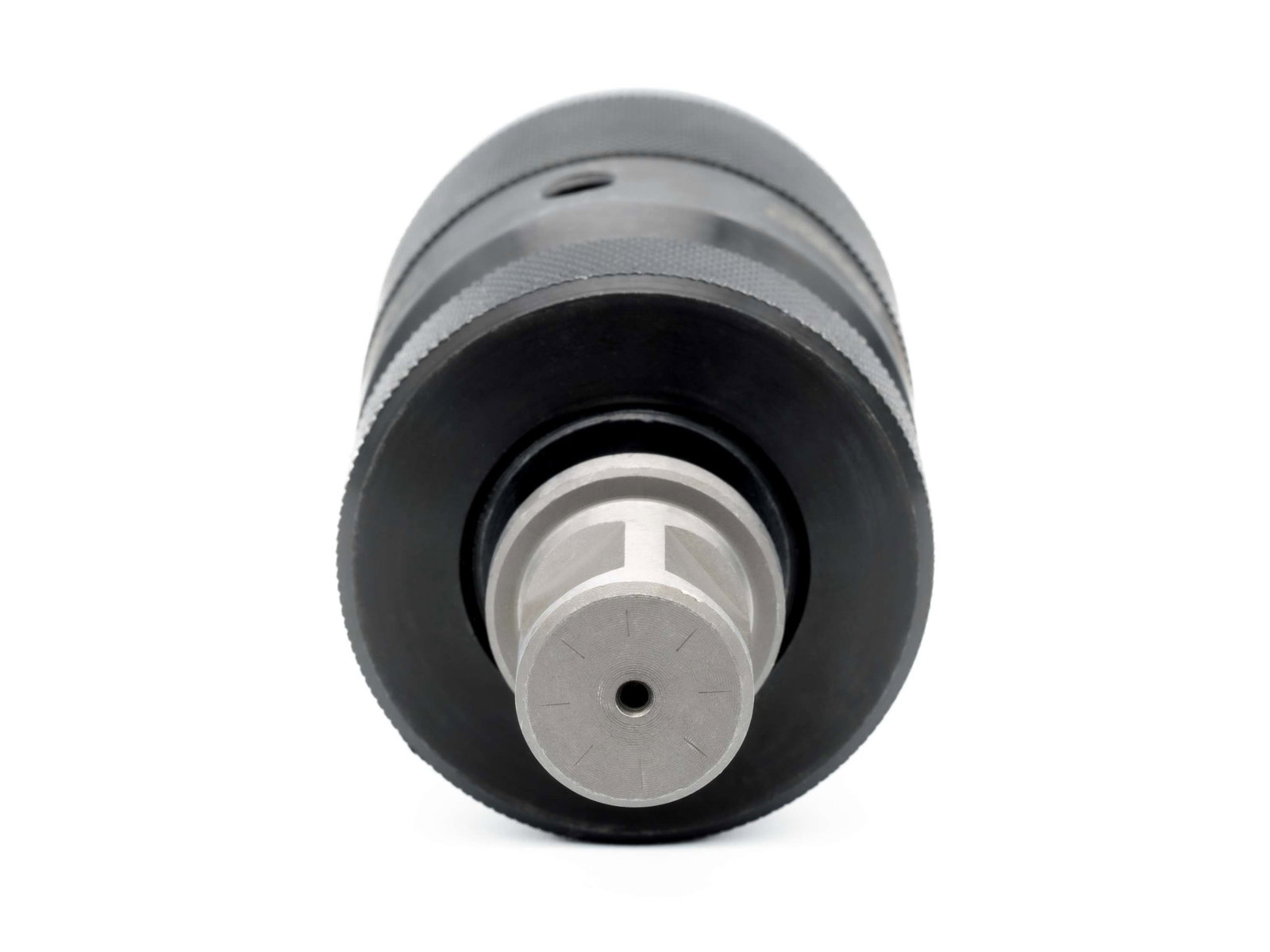

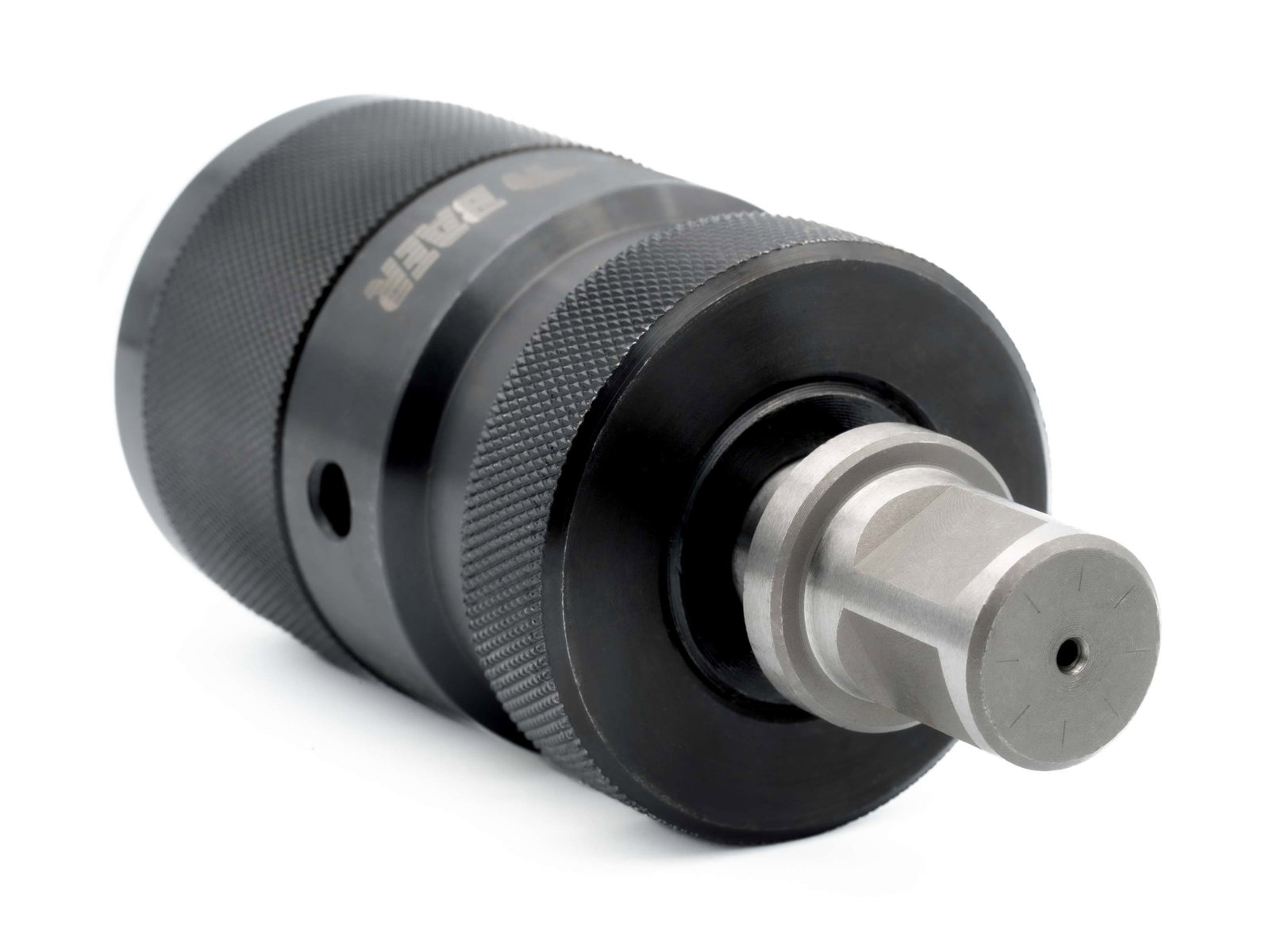

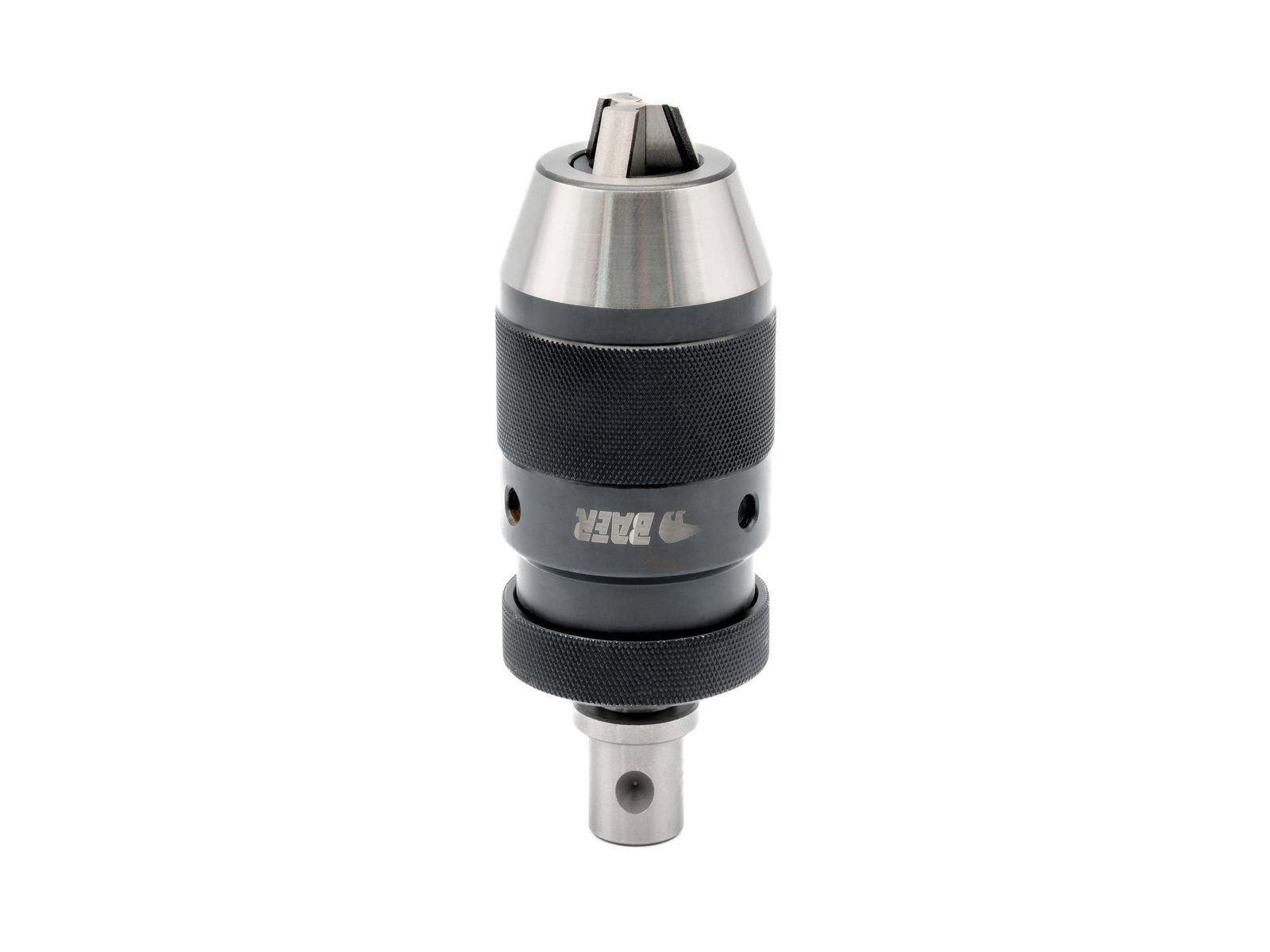

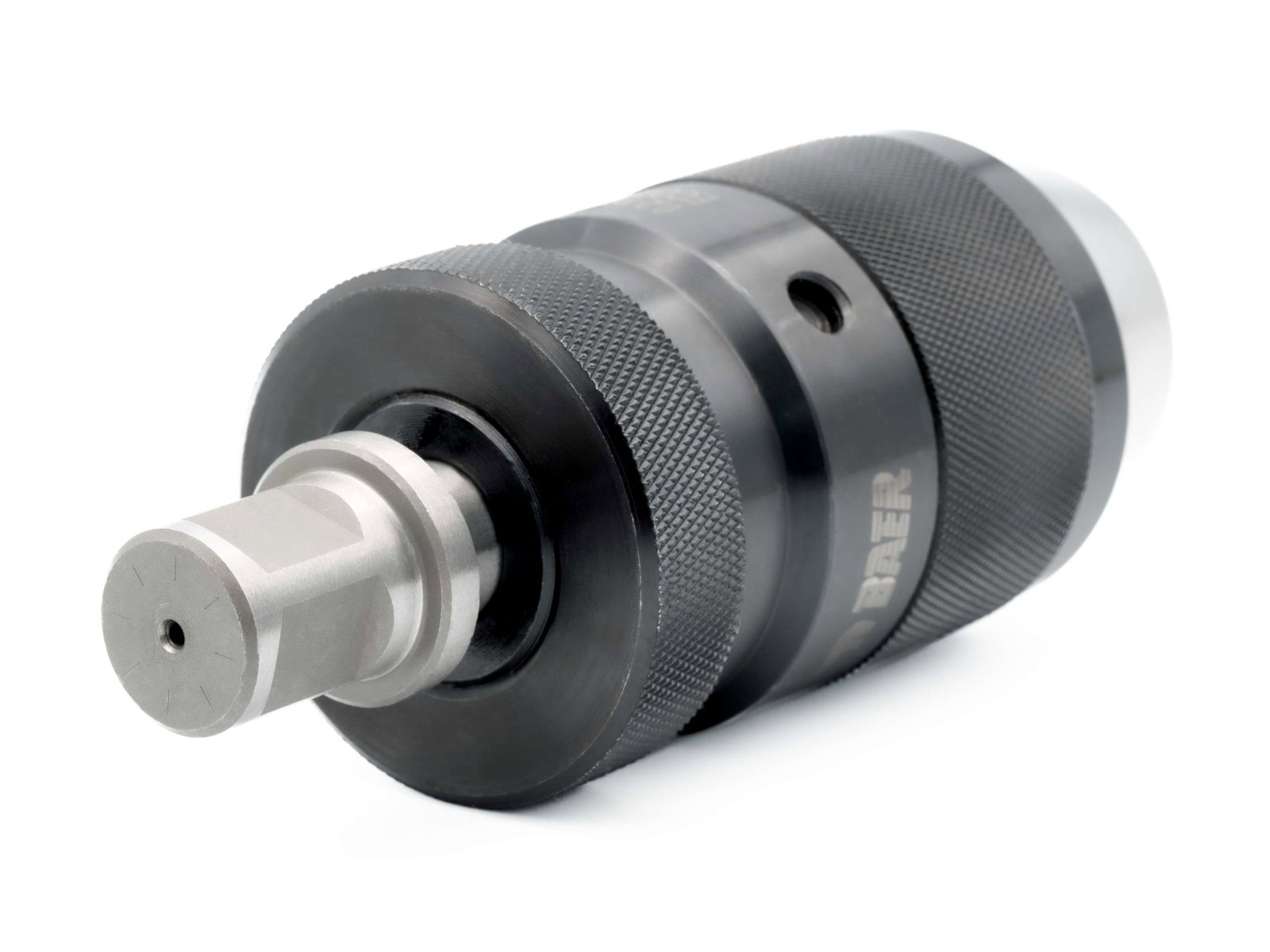

BAER Drill Chuck for core drilling machine 0.2 - 16 mm | taper: Weldon 19 mm | keyless drill chuck
BAER Drill Chuck for core drilling machine 0.2 - 16 mm | taper: Weldon 19 mm | keyless drill chuck
High-precision drill chuck - Premium quality for professionals
Ground from the best steel, high-precision elements, solid and stable design, ergonomic in the hand. This high-precision keyless drill chuck is a must for every craftsman. Unlike a keyed drill chuck, the keyless drill chuck can be opened and closed easily by hand. A clamping key is no longer needed. Thanks to its re-tightening characteristics, the drill bit sits firmly and securely in the drill chuck.
This self-clamping drill chuck is impressive not only because of its high clamping force, but also because of its feel and stability, as well as its long service life. The drill chuck is suitable for hammer drills, pillar drills, milling machines and lathes and is suitable for clockwise rotation.
Dimensions
| Weight drill chuck |
1290 g |
|---|---|
| Drill chuck clamping range |
0,2 - 16 mm |
| Machine mount |
Weldon 19 mm |
Characteristics
| Product group |
Drill chucks |
|---|---|
| Product type |
Drill chucks for standing drill machine |
Applications
The drill chuck is ideal for industrial applications in pillar drilling machines, milling machines, lathes etc. and is the perfect choice for industrial companies, metal construction companies and locksmiths.
Technical drawing
| D1 |
54 mm |
|---|---|
| L1 |
100,5 mm |
| L2 |
111,8 mm |
| L3 |
140 mm |
