BAER HSSE Hand Tap Finishing (No. 3) M 30 x 3.5
BAER HSSE Hand Tap Finishing (No. 3) M 30 x 3.5

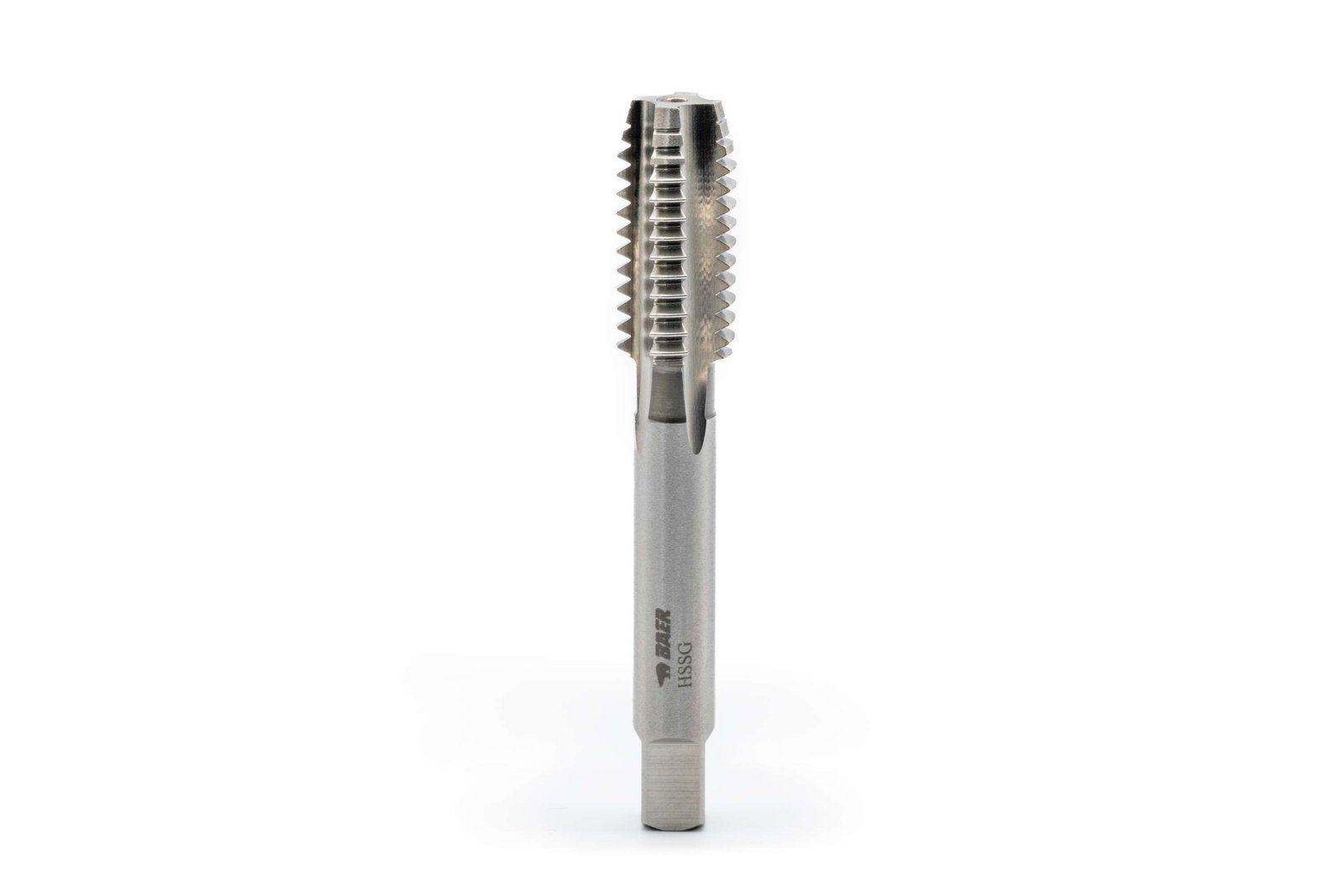

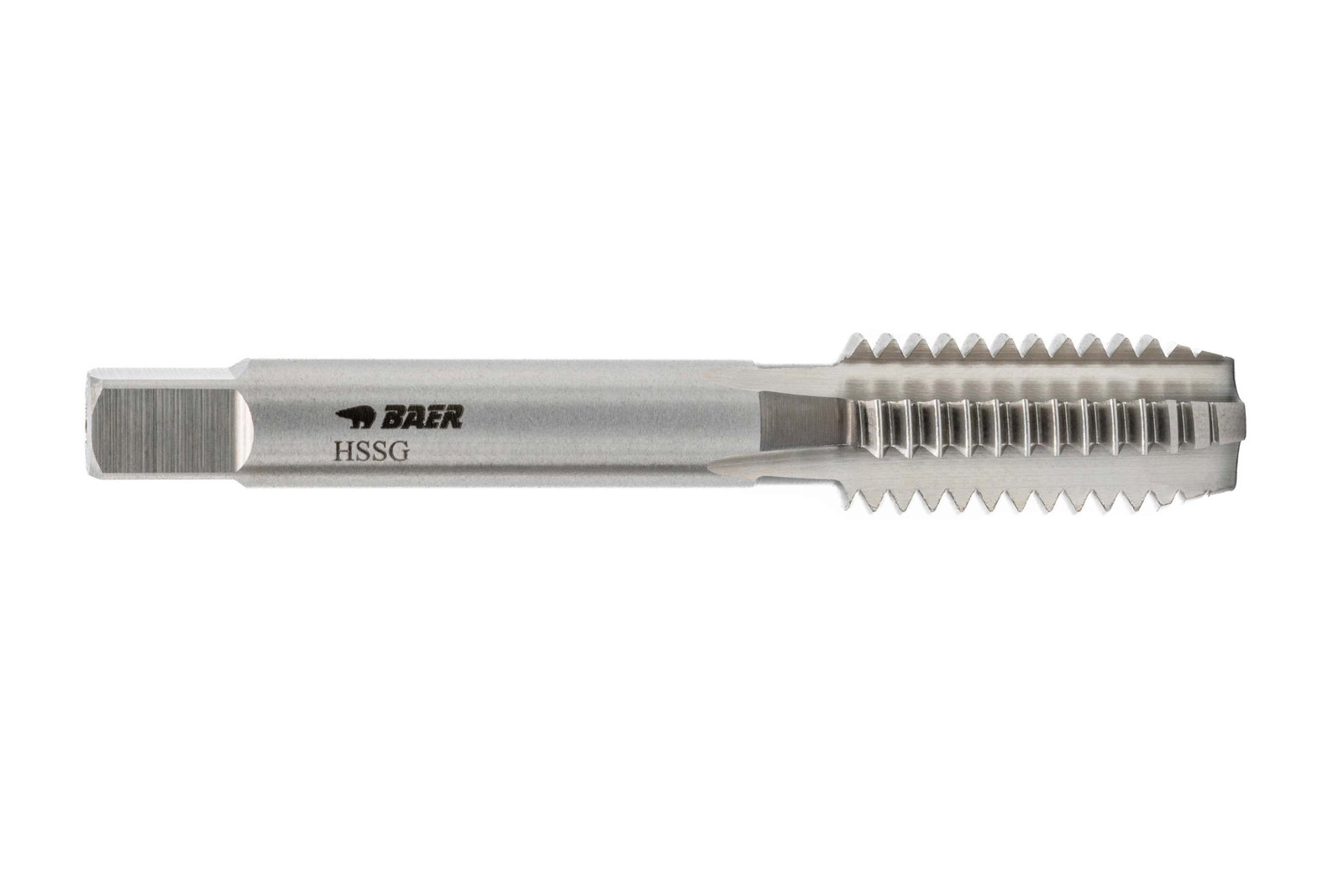

The hand tap finishing tap (No. 3) enables you to cut a finished thread. It is advantageous to shape the thread beforehand with a taper tap (No. 1) or intermediate tap (No. 2) in order to better distribute the cutting power.
The finishing tap (No. 3) can optionally also be used without a pre- or intermediate tap (No. 2) as it already cuts a fully usable thread. However, the short chamfer makes it more difficult to get straight into the hole and the tool life time is reduced compared to using multi-part hand tap sets
Compared to the machine tap, the hand tap has a short shank. This allows you to cut internal thread by hand without jamming and can be operated with tap wrenches, tool ratchets or other holding tools with square drive.
The thread can be cut into a pre-drilled core hole. Due to the short chamfer of the finish tap, it can be used universally for through holes and blind holes.
Dimensions
| Diameter |
30 |
|---|---|
| Nominal diameter in inches |
1,181 |
| Nominal diameter in mm |
30 |
| Pitch |
3,5 |
| Pitch in mm |
3,5 |
| Dimension |
M 30 x 3,5 |
Characteristics
| Product group |
Screw taps |
|---|---|
| Product type |
Hand tap sets |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Standard |
DIN 352 |
| Tensile strength at room temperature |
up to 1000 N/mm² | 32 HRC |
| Material |
HSSE bright |
26.5 mm
Through hole and blind hole up to 2 x D
Form C straight fluted
2-3 threads
Rarely occurs. Chips remain in flutes.
External cooling and lubrication
HSSE bright
up to 1000 N/mm² | 32 HRC
ISO2/6H
Applications
- General-purpose use
- Steels up to 1000 N/mm²
Technical drawing
| D1 |
M 30 x 3,5 |
|---|---|
| D2 |
22 mm |
| L1 |
125 mm |
| L2 |
56 mm |
| Diameter |
30 |
| Square |
18 mm |
Application – Sample materials
| General construction steels | |
|---|---|
| 1.0035 | S 185 (St 33) |
| 1.0036 | S 235 JRH |
| 1.0039 | S 235JRG1+CR |
| 1.0060 | E 335 (St 60-2) |
| Free-cutting steels | |
|---|---|
| 1.0718 | 11SMnPb30 |
| 1.0721 | 10S20 |
| 1.0726 | 35S20 |
| 1.0728 | 60S20 |
| Case-hardening steels | |
|---|---|
| 1.0401 | (C15) |
| 1.7016 | 17 CR3 |
| 1.7131 | 16MnCr5 |
| 1.5919 | 15CrNi6 |
| Quenched and tempered steels unalloyed | |
|---|---|
| 1.0402 | C 22 |
| 1.1151 | C22E (Ck 22) |
| 1.0503 | C 45 |
| 1.1191 | C45E (Ck 45) |
| Cast steel | |
|---|---|
| 1.5681 | GS-10 Ni 19 |
| 1.6760 | GS-22 NiMoCr 5 6 |
| Quenched and tempered steels alloyed | |
|---|---|
| 1.1133 | 20Mn5 |
| 1.5710 | 36NiCr6 |
