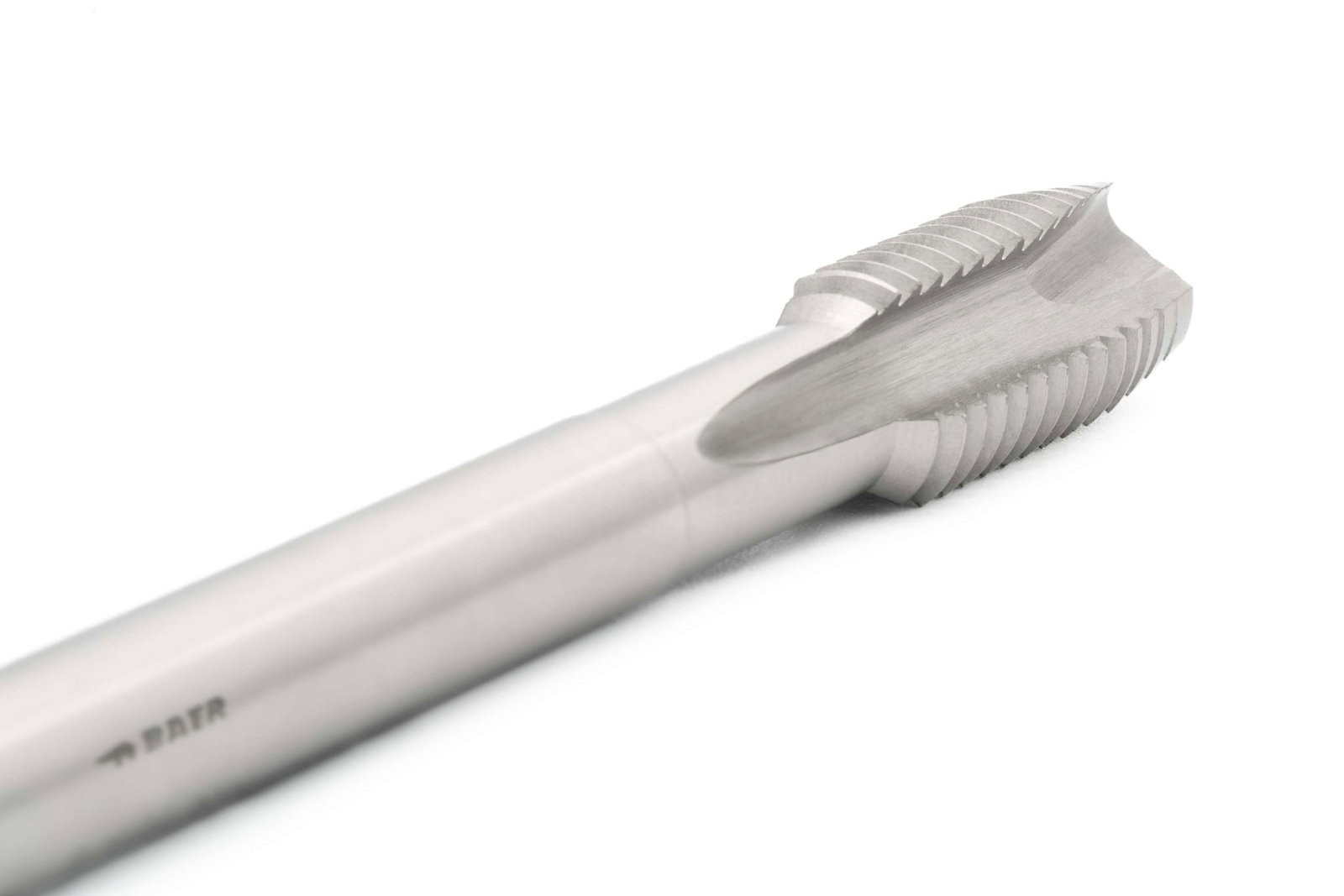

BAER HSSE Machine Tap Form B - MF 22 x 1.0 - DIN 374
In stock
Express shipping available
BAER HSSE Machine Tap Form B - MF 22 x 1.0 - DIN 374
Our machine taps are powerful and reliable taps for efficient machining in one step with the machine. Machine taps are used especially in industrial manufacturing. They can be used in CNC machines, thread cutting machines, cordless drills and pneumatic tapping arms, among others. As they are characterised by high efficiency and low production costs, they are often used in series production. The thread is cut by machine in one operation. Thus, although the BAER machine tap can basically be compared with short machine taps, it is designed for use with the machine.
The machine tap can be used for through holes, as the long chamfer-in, the straight flutes and the spiral point ensure that the chip is transported forward out of the hole.
Every material shows individual chip behaviour. Therefore, screw taps must have the correct rake angle and - for even better results - a specially treated surface. This is the only way to achieve a good chip transport and to produce a thread that is true to gauge.
The high quality of the cobalt-alloyed HSSE steel we use ensures that our tools are extremely durable and robust. Due to special hardening processes and repeated tempering the hardness structure is very homogeneous, which forms the ideal basis for a genuine BAER screw taps. This increases the toughness and stability of the screw taps, allowing them to remain in use for longer.
Dimensions
| Diameter |
22 |
|---|---|
| Nominal diameter in inches |
0,866 |
| Nominal diameter in mm |
22 |
| Pitch |
1,0 |
| Pitch in mm |
1 |
| Dimension |
MF 22 x 1,0 |
| Square |
14,5 mm |
Characteristics
| Product group |
Screw taps |
|---|---|
| Product type |
Machine taps |
| Thread standard |
MF: Metric ISO fine thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Standard |
DIN 374 |
| Tensile strength at room temperature |
up to 900 N/mm² | 27.1 HRC |
| Material |
HSSE bright |
21 mm
Through hole up to 4 x D
Form B with spiral point
4-5 threads
Chips are removed downwards in the direction of cutting
External cooling and lubrication
HSSE bright
up to 900 N/mm² | 27.1 HRC
ISO2/6H
Applications
- Materials with good machinability up to 900 N/mm²
- Unalloyed and low-alloy steels
Examples of applications
- Bicycle thread
- Bicycle bottom bracket thread
- Crank trigger thread
Technical drawing
| D1 |
MF 22 x 1,0 |
|---|---|
| D2 |
18 mm |
| L1 |
125 mm |
| L2 |
25 mm |
| Diameter |
22 |
| Square |
14,5 mm |
Application – Sample materials for taps
| Unalloyed construction steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.0037 | St 37-2 | 5 - 12 |
| 1.0044 | St 44-2 | 5 - 12 |
| 1.0039 | S 235JRG1+CR | 5 - 12 |
| 1.0060 | St 60-2 | 5 - 10 |
| Free-cutting steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.0718 | 9 SMnPb 28 | 5 - 12 |
| 1.0721 | 10 S 20 | 5 - 12 |
| 1.0736 | 9 SMn 36 | 5 - 12 |
| 1.0726 | 35 S 20 | 5 - 10 |
| Cast steel | Cutting speed vc in m/min | |
|---|---|---|
| 1.0420 | GS-38 | 8 - 15 |
| 1.1120 | GS-20 Mn 5 | 5 - 15 |
| 1.5633 | GS-24 Ni 8 | 5 - 12 |
| 1.7379 | GS-18 CrMo 9 10 | 5 - 12 |
| Alloyed construction steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.5415 | 15 Mo 3 | 5 - 12 |
| 1.5622 | 14 Ni 6 | 5 - 10 |
| 1.7335 | 13 CrMo 4 4 | 5 - 10 |
| 1.7715 | 14 MoV 6 3 | 5 - 10 |
Cutting speed vc [m/min] = (Outer diameter * π * speed) / 1000
Rotation speed n [1/min] = (Cutting speed in m/min * 1000) / (Outer diameter * π)
Feedrate programming [mm/min] = speed * pitch
Please note that the above cutting speeds are indicative and must be adjusted depending on lubrication and actuation.
