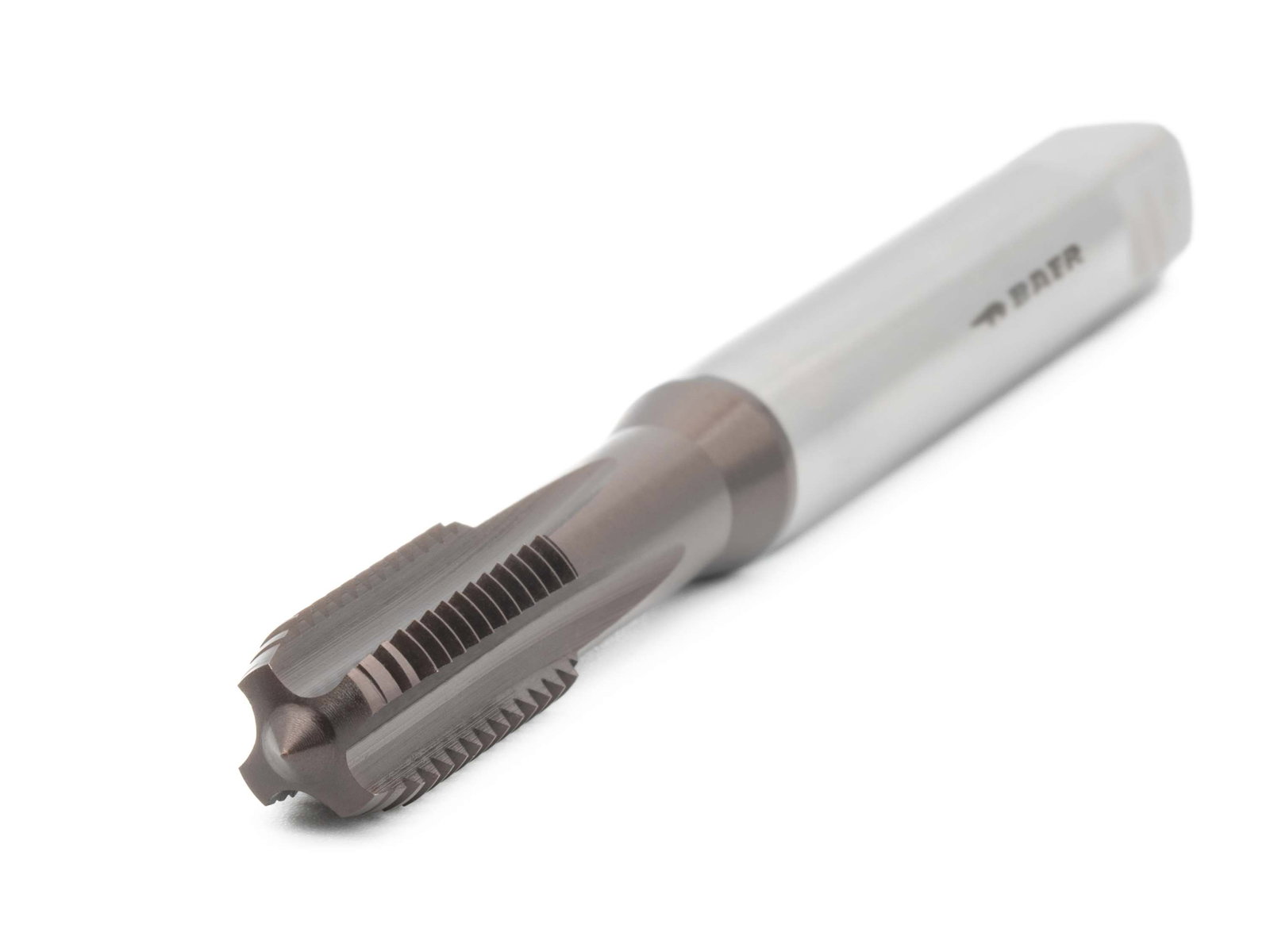

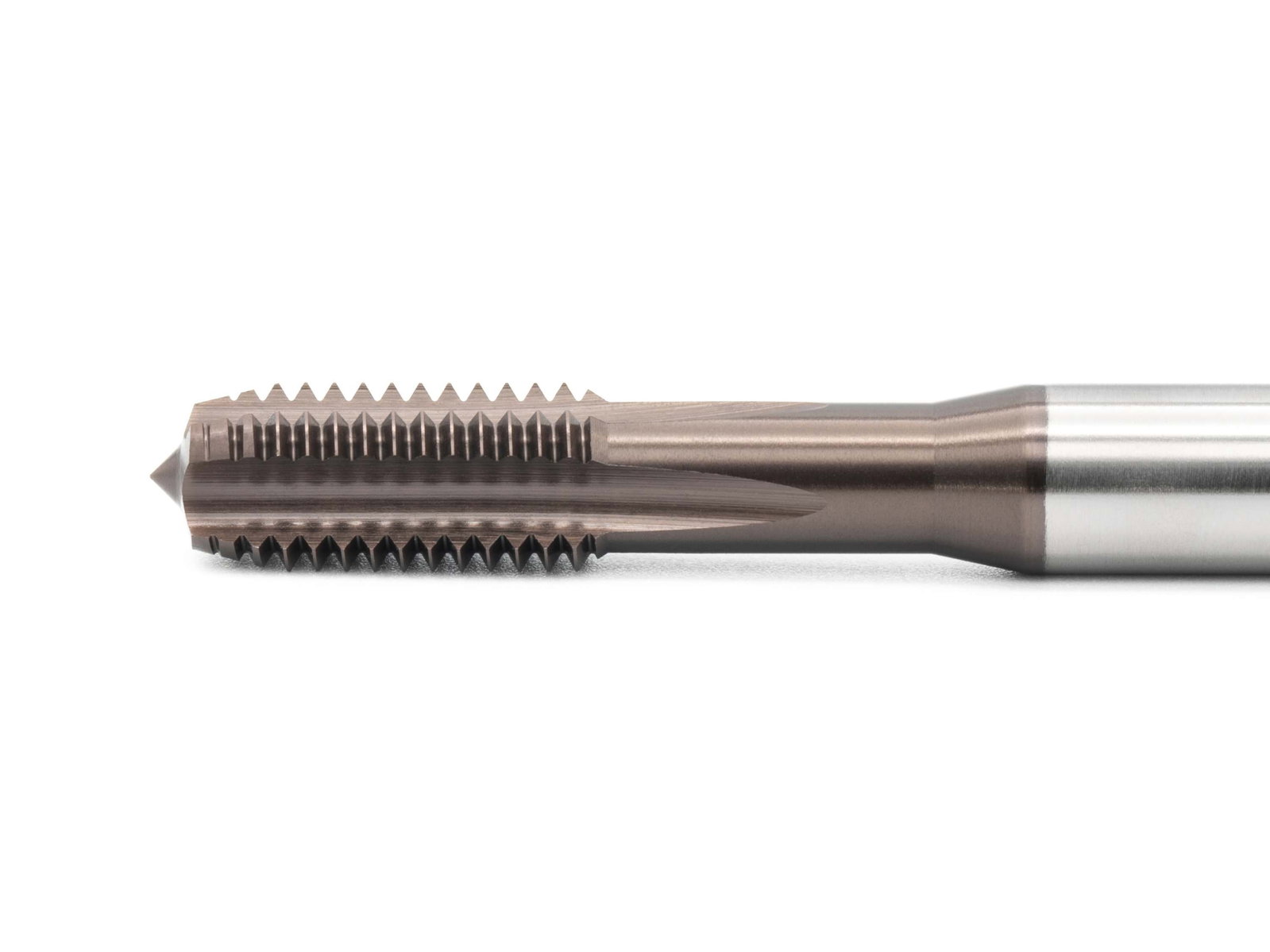

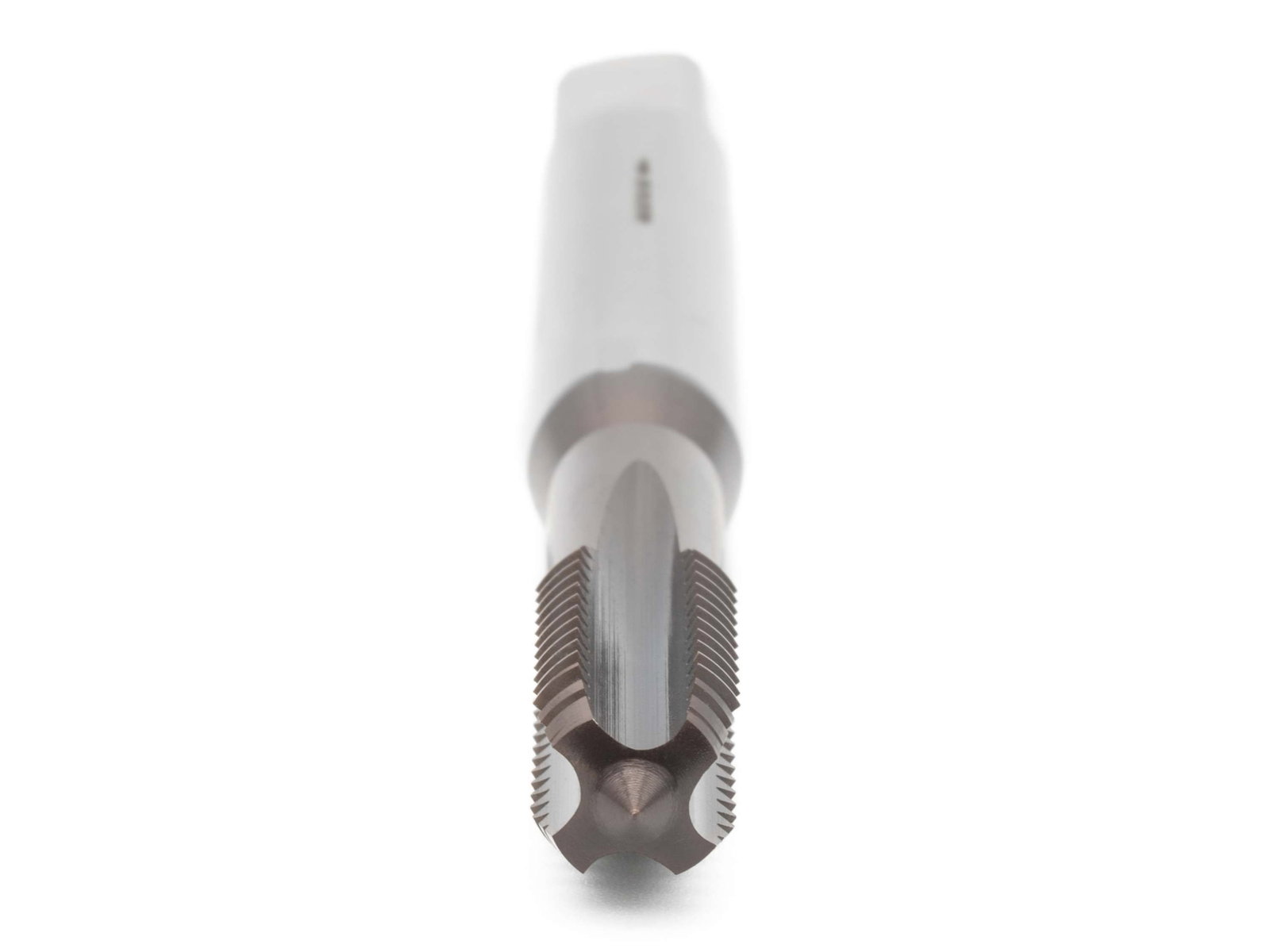

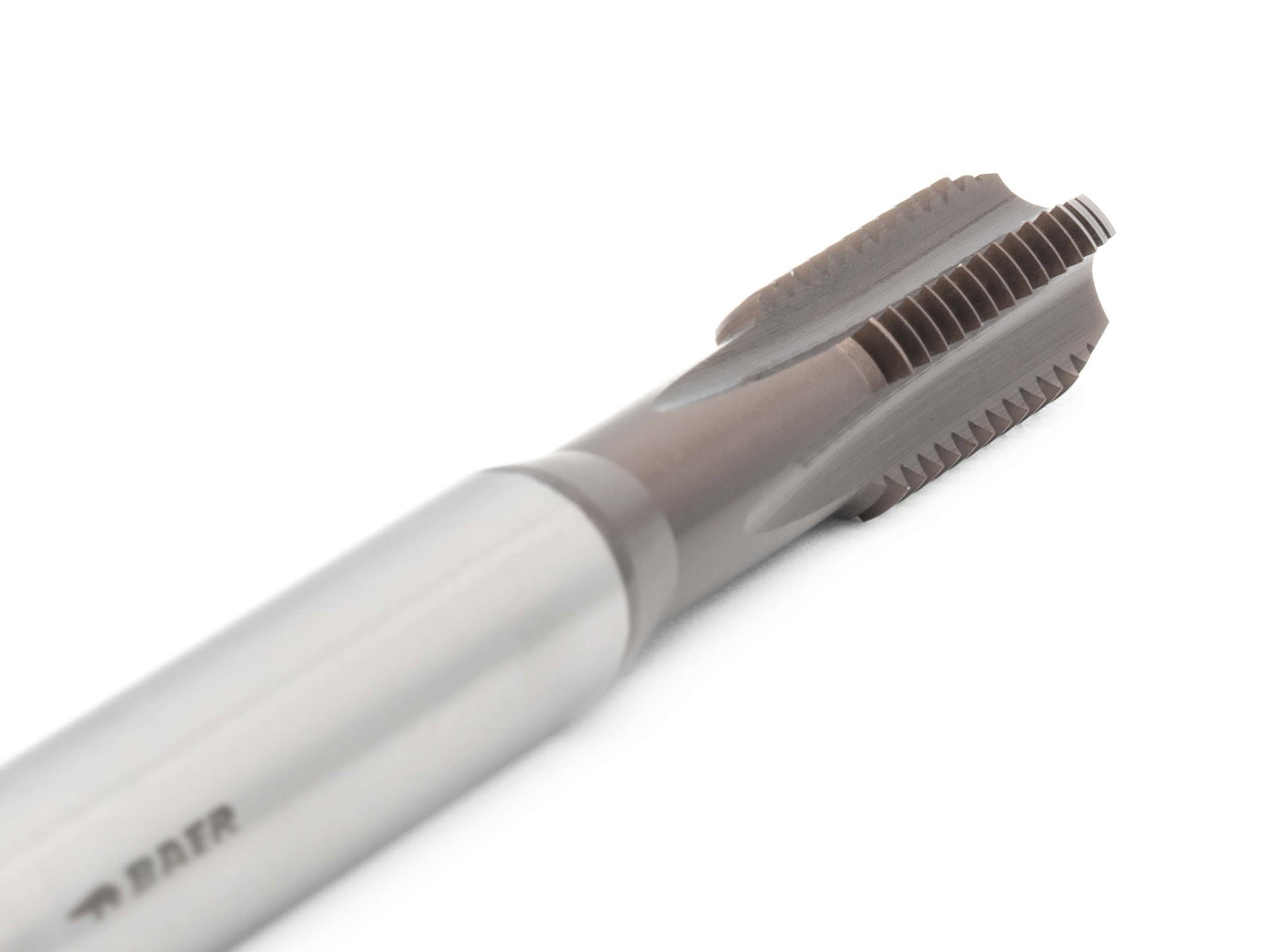

BAER HSSE-TiCN Machine Tap Form C for Cast Iron - M 3.5 x 0.6 - DIN 371

€15.49*

Prices incl. VAT plus shipping costs

In stock

Same-day shipping for orders placed within 1 hour 17 min

Express shipping available

EAN 4058462117916
Item no 110510002
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

BAER HSSE-TiCN Machine Tap Form C for Cast Iron - M 3.5 x 0.6 - DIN 371

Our machine taps are powerful and reliable taps for efficient machining in one step with the machine. Machine taps are used especially in industrial manufacturing. They can be used in CNC machines, thread cutting machines, cordless drills and pneumatic tapping arms, among others. As they are characterised by high efficiency and low production costs, they are often used in series production. The thread is cut by machine in one operation. Thus, although the BAER machine tap can basically be compared to short machine tap, it is designed for use with the machine.
The screw tap has a reinforced shank according to DIN 371. This means that the shank diameter is larger than the thread itself. This makes the screw tap run more stably. However, it limits the thread length that can be cut with it. It can be used for through holes and for blind holes, because the short chamfer and the straight flutes shape ensure that the chip stays in the flutes and is not carried away.
Every material shows individual chip behaviour. Therefore, screw taps must have the correct rake angle and - for even better results - a specially treated surface. This is the only way to achieve a good chip transport and to produce a thread that is true to gauge.
The high quality of the cobalt-alloyed HSSE steel we use ensures that our tools are extremely durable and robust. Due to special hardening processes and repeated tempering the hardness structure is very homogeneous, which forms the ideal basis for a genuine BAER screw taps. This increases the toughness and stability of the screw taps, allowing them to remain in use for longer.
The TiCN coating is particularly suitable for use with high-strength steels, abrasive materials and also interrupted cuts, as it is less sensitive to impact loads. TiN is often insufficient and increased demands are made on hardness and toughness, in which case TiCN is used. However, because of the lower heat resistance, a stronger cooling of the TiCN-coated tools is important.

Dimensions

Diameter 3,5
Nominal diameter in inches 0,138
Nominal diameter in mm 3,5
Pitch 0,6
Pitch in mm 0,6
Dimension M 3,5 x 0,6

Characteristics

Product group Screw taps
Product type Machine taps
Thread standard M: Metric ISO standard thread according to DIN 13
Tolerance ISO2/6H
Direction Right
Standard DIN 371
Tensile strength at room temperature up to 1000 N/mm² | 32 HRC
Material HSSE TiCN

Core hole diameter: 2.9 mm
Core hole diameter
2.9 mm
Bild Lochtyp: https://media.baer.tools/media/vector/19/52/9d/durchgangsloch_und_sackloch.svg
Hole type
Through hole and blind hole up to 2.5 x D
Bild Form: https://media.baer.tools/media/vector/3f/1d/45/gewindebohrer_gerade_nuten.svg
Form / Geometry
Form C straight fluted
Bild Anschnitt: https://media.baer.tools/media/vector/59/5d/26/gewindebohrer_anschnitt.svg
Chamfer
2-3 threads
Bild Spanabfuhr
Chip removal
Rarely occurs. Chips remain in flutes.
Bild Kühlung: https://media.baer.tools/media/vector/41/a7/9a/gewindebohrer_aussenkuehlung.svg
Cooling
External cooling and lubrication
Bild Material: https://media.baer.tools/media/vector/1c/ec/93/gewindebohrer_beschichtung_tialn.svg
Material
HSSE TiCN
Bild Zugfestigkeit: https://media.baer.tools/media/vector/c0/4a/39/zugfestigkeit.svg
Tensile strength at room temperature
up to 1000 N/mm² | 32 HRC
Tolerance: ISO2/6H
Tolerance
ISO2/6H

Applications

  • Grey cast iron < 1000 N/mm²
  • Aluminium casting alloys Si < 5% (short-chipping) < 600 N/mm²
  • Copper alloys (short-chipping)
  • Brass (short-chipping)

Technical drawing

D1 M 3.5 x 0.6
D2 4 mm
L1 56 mm
L2 11 mm
Diameter 3,5
Square 3 mm

Application – Sample materials

Grey cast iron Cutting speed vc in m/min
0.6010 GG10 40 - 45
0.6020 GG20 40 - 45
0.6030 GG30 40 - 45
0.6040 GG40 40 - 45
Aluminum cast alloys Si > 5% (medium and short-chipping) Cutting speed vc in m/min
3.2134 G-AlSi5Cu1Mg 30 - 40
3.2381 G-AlSi10Mg  27 - 30
3.2581 G-AlSi12 27 - 30
3.2583 G-AlSi12(Cu) 27 - 30
Copper alloys (short-chipping), brass (short-chipping) Cutting speed vc in m/min
2.0360 CuZn40 25 - 30
2.0410 CuZn44Pb2 25 - 30
2.0550 CuZn40Al2 25 - 30
2.1086 G-CuSn10Zn 25 - 30

Cutting speed vc [m/min] = (Outer diameter * π * speed) / 1000

Rotation speed n [1/min] = (Cutting speed in m/min * 1000) / (Outer diameter * π)

Feedrate programming [mm/min] = speed * pitch

Please note that the above cutting speeds are indicative and must be adjusted depending on lubrication and actuation.
