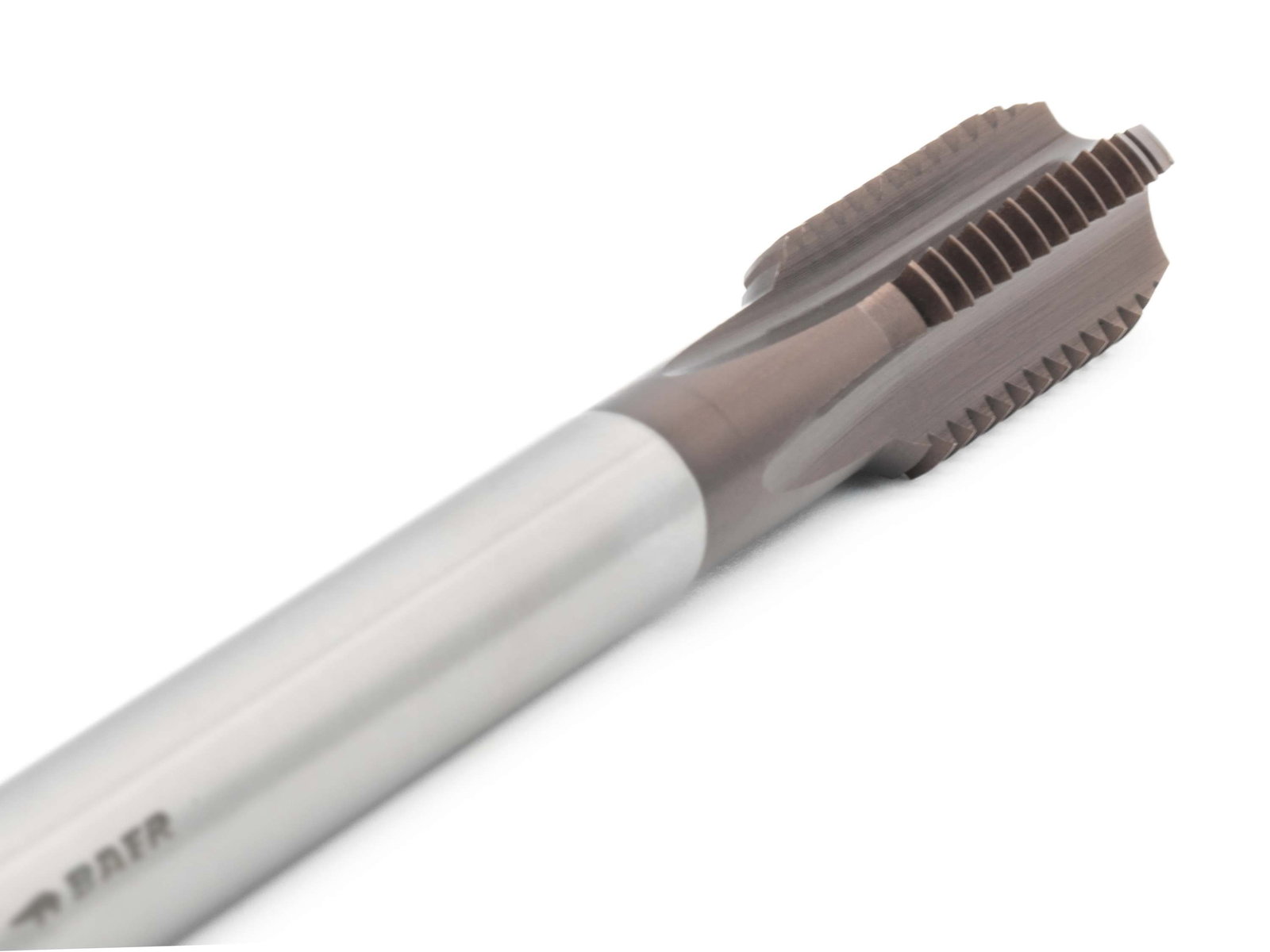

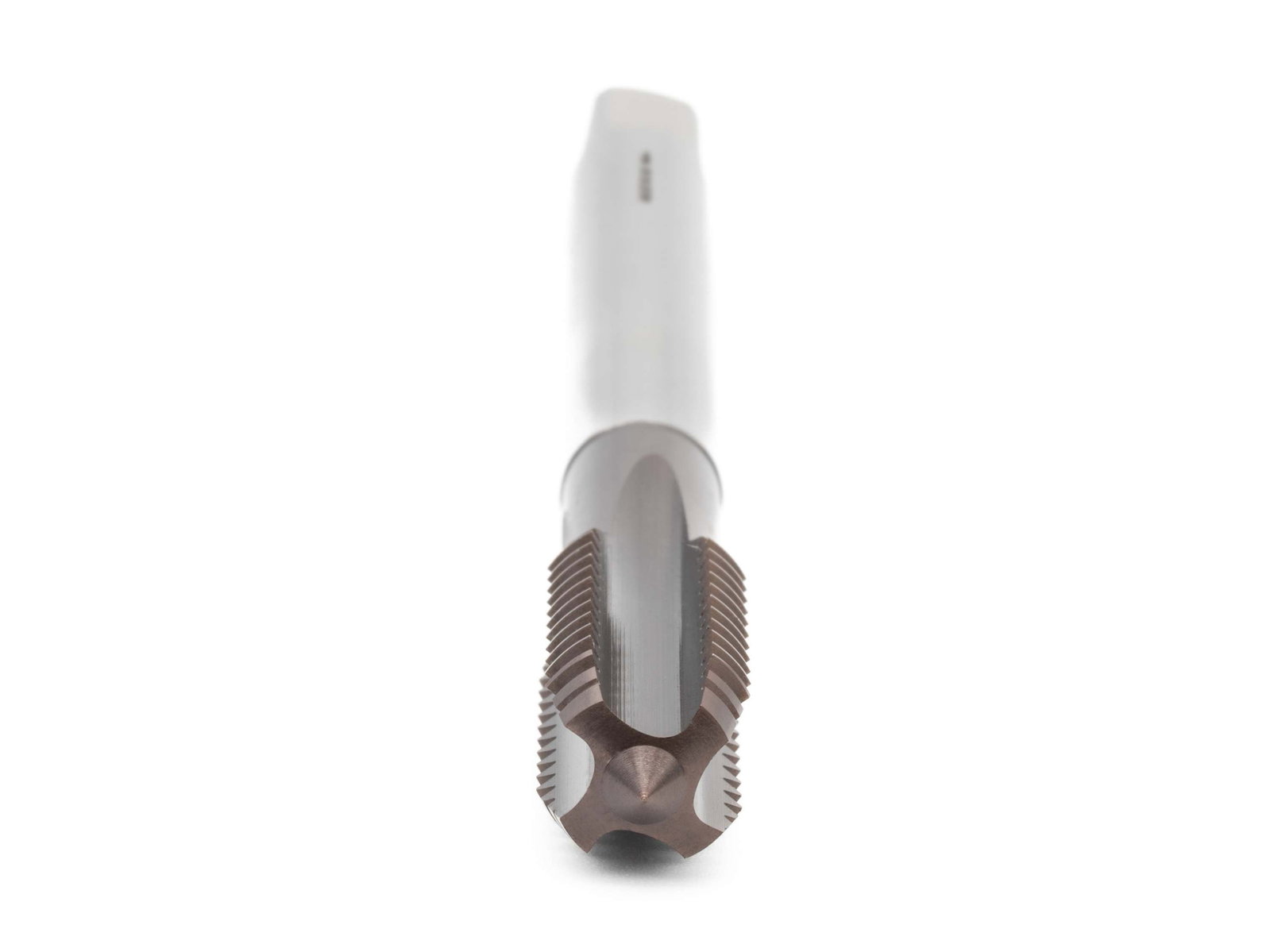

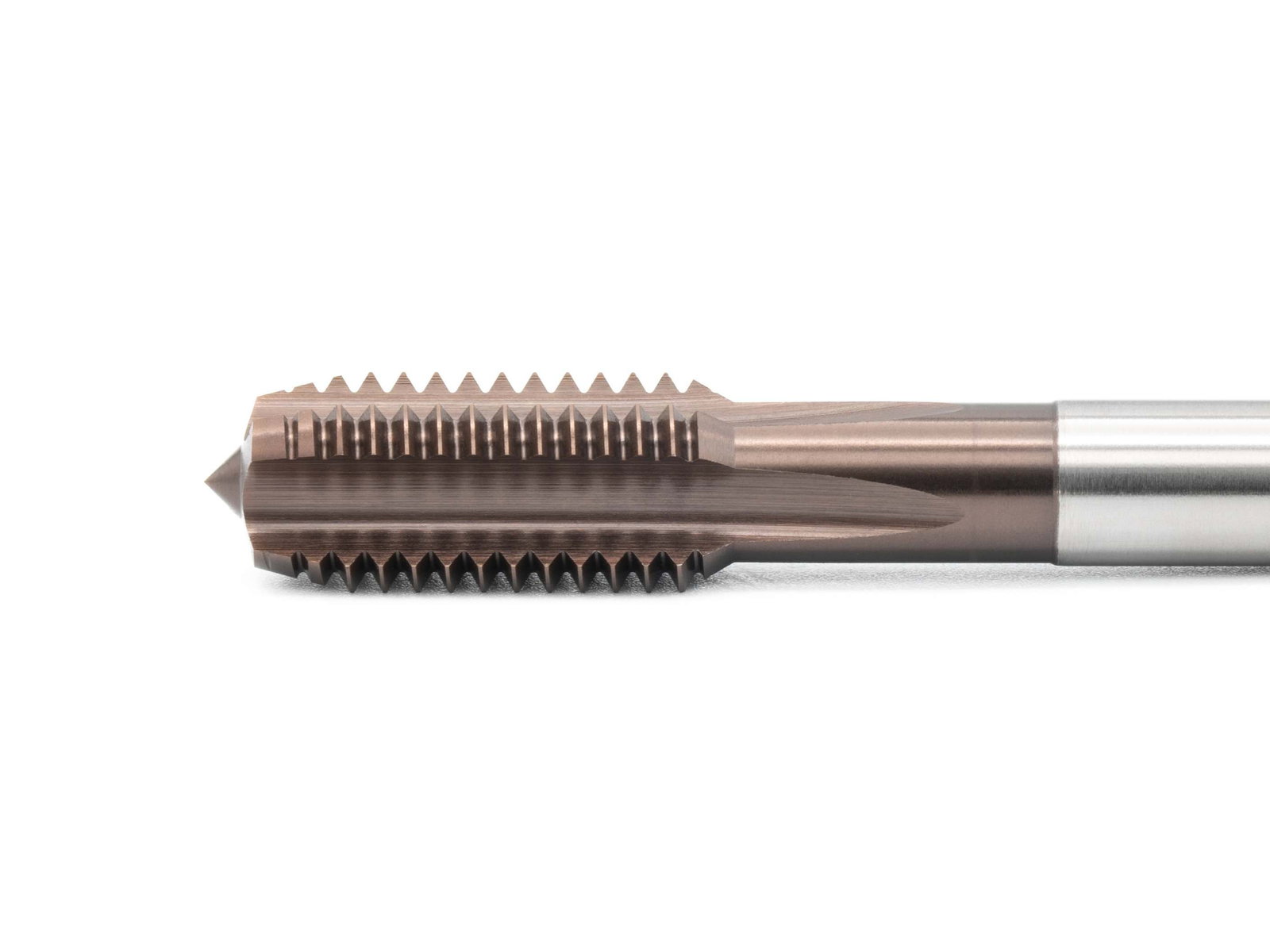

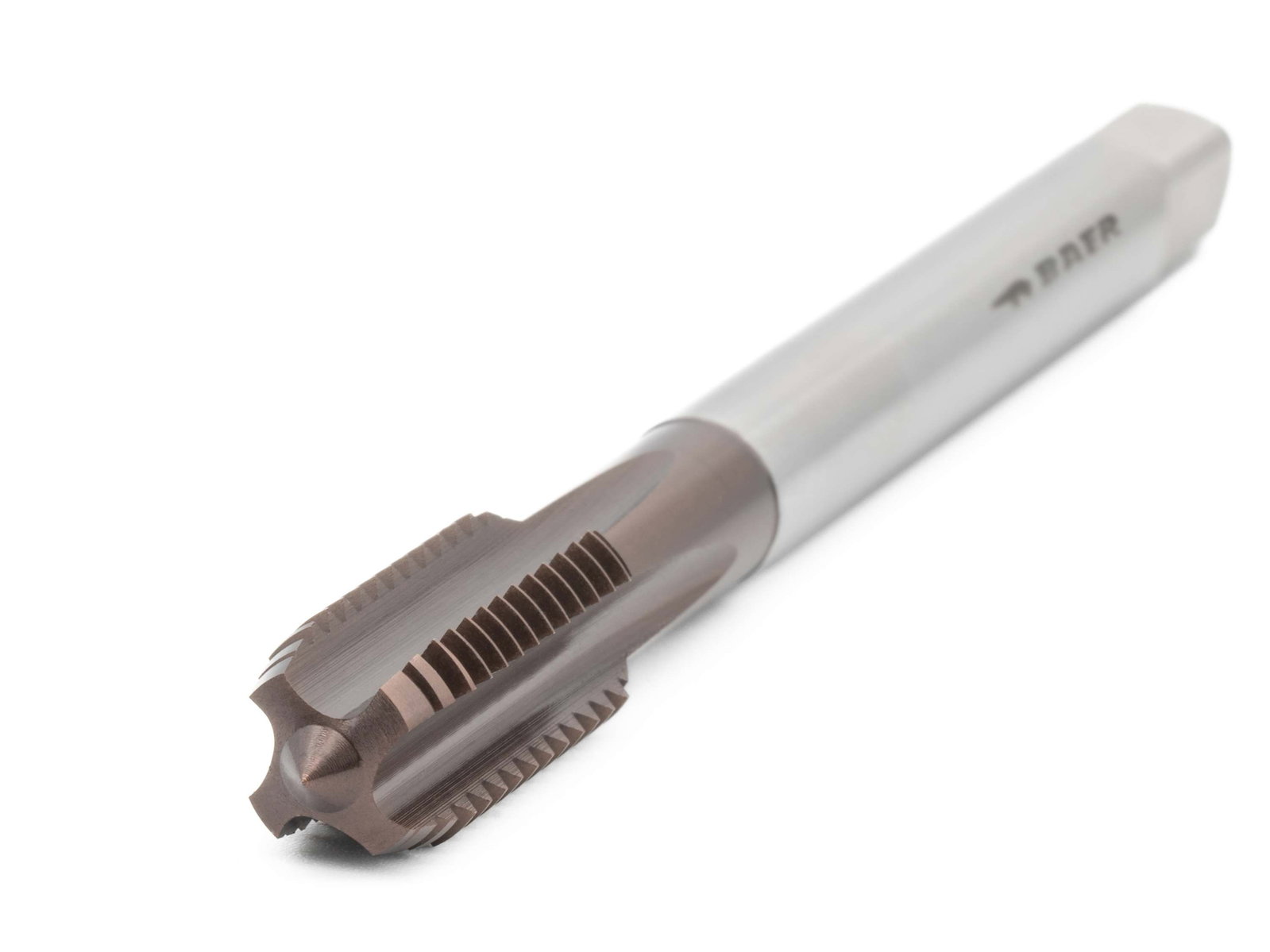

BAER HSSE-TiCN Machine Tap Form C for Cast Iron - M 33 x 3.5 - DIN 376

Name: BAER HSSE-TiCN Machine Tap Form C for Cast Iron - M 33 x 3.5 - DIN 376
Brand: BAER
SKU: 110510020
Price: 302.68 EUR
Availability: InStock

€302.68*

Prices incl. VAT plus shipping costs

In stock

EAN 4058462027611

Item no 110510020

PDF offer

Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.

Product information

BAER HSSE-TiCN Machine Tap Form C for Cast Iron - M 33 x 3.5 - DIN 376

Our machine taps are powerful and reliable taps for efficient machining in one step with the machine. Machine taps are used especially in industrial manufacturing. They can be used in CNC machines, thread cutting machines, cordless drills and pneumatic tapping arms, among others. As they are characterised by high efficiency and low production costs, they are often used in series production. The thread is cut by machine in one operation. Thus, although the BAER machine tap can basically be compared to short machine tap, it is designed for use with the machine.
The screw tap has an overflow shank according to DIN 376. This means that the shank has a smaller diameter than the thread. This means that the screw tap can also be used in deeper holes and longer thread lengths. It can also be used in through holes and for blind holes, as the short chamfer and the straight flutes ensure that the chip remains in the flutes and is not carried away.
Every material shows individual chip behaviour. Therefore, screw taps must have the correct rake angle and - for even better results - a specially treated surface. This is the only way to achieve a good chip transport and to produce a thread that is true to gauge.
The high quality of the cobalt-alloyed HSSE steel we use ensures that our tools are extremely durable and robust. Due to special hardening processes and repeated tempering the hardness structure is very homogeneous, which forms the ideal basis for a genuine BAER screw taps. This increases the toughness and stability of the screw taps, allowing them to remain in use for longer.
The TiCN coating is particularly suitable for use with high-strength steels, abrasive materials and also interrupted cuts, as it is less sensitive to impact loads. TiN is often insufficient and increased demands are made on hardness and toughness, in which case TiCN is used. However, because of the lower heat resistance, a stronger cooling of the TiCN-coated tools is important.

Dimensions

Diameter	33
Nominal diameter in inches	1,299
Nominal diameter in mm	33
Pitch	3,5
Pitch in mm	3,5
Dimension	M 33 x 3,5

Characteristics

Product group	Screw taps
Product type	Machine taps
Thread standard	M: Metric ISO standard thread according to DIN 13
Tolerance	ISO2/6H
Direction	Right
Standard	DIN 376
Tensile strength at room temperature	up to 1000 N/mm² \| 32 HRC
Material	HSSE TiCN
