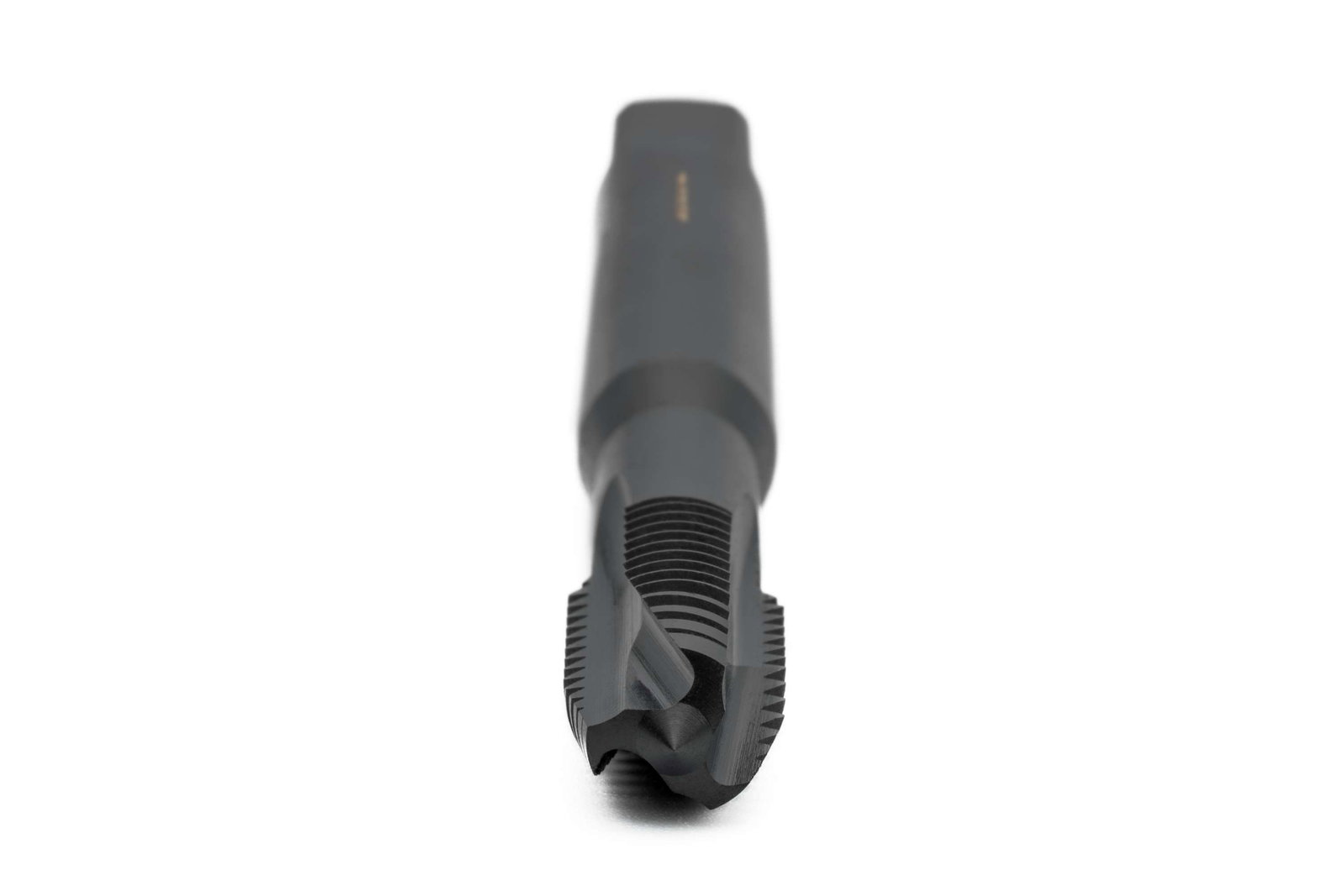

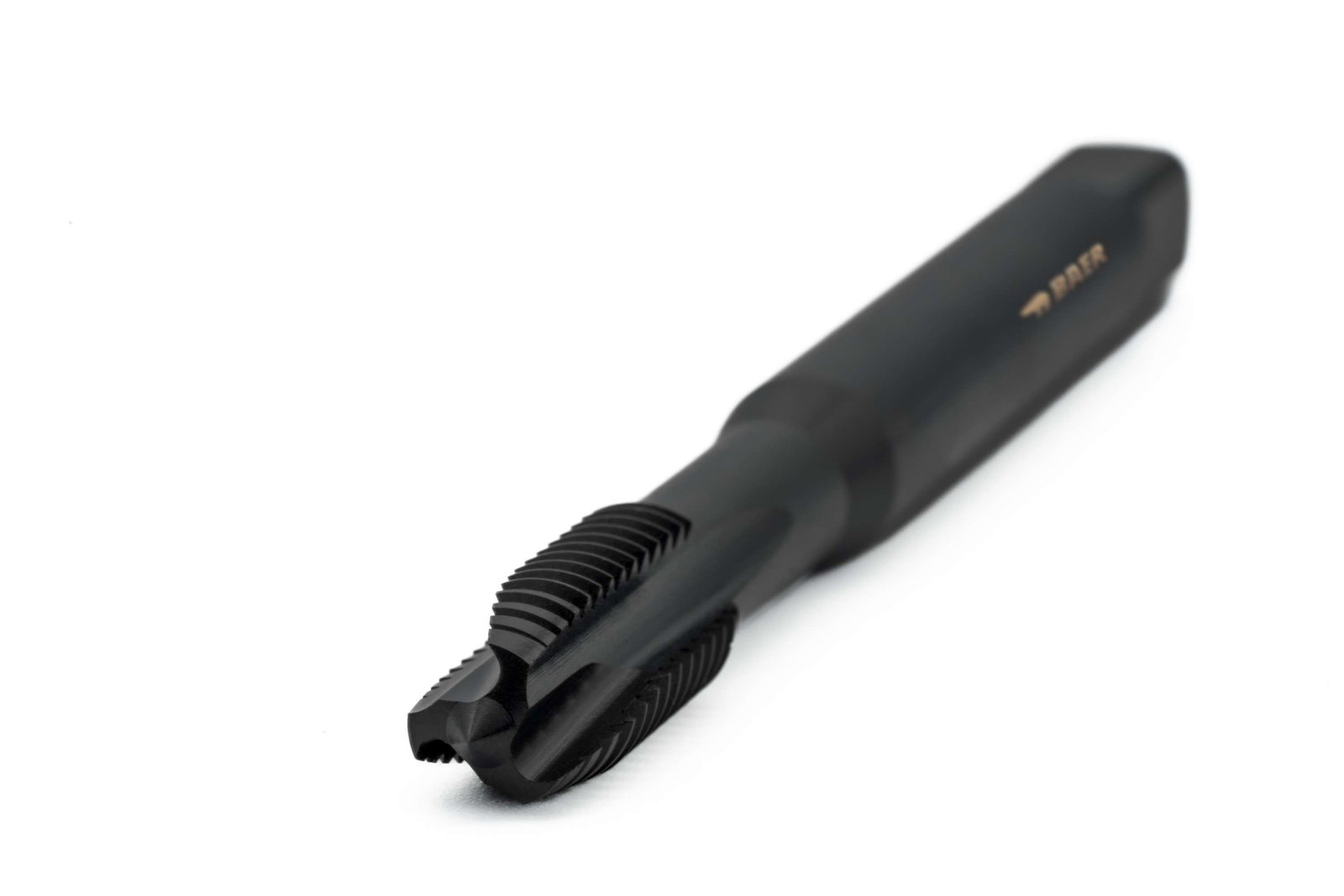

BAER HSSE-VAP Machine Tap Form B - M 10 x 1.5 - DIN 371 Stainless Steel
BAER HSSE-VAP Machine Tap Form B - M 10 x 1.5 - DIN 371 Stainless Steel
Our machine taps are powerful and reliable taps for efficient machining in one step with the machine. Machine taps are used especially in industrial manufacturing. They can be used in CNC machines, thread cutting machines, cordless drills and pneumatic tapping arms, among others. As they are characterised by high efficiency and low production costs, they are often used in series production. The thread is cut by machine in one operation. Thus, although the BAER machine tap can basically be compared to short machine tap, it is designed for use with the machine.

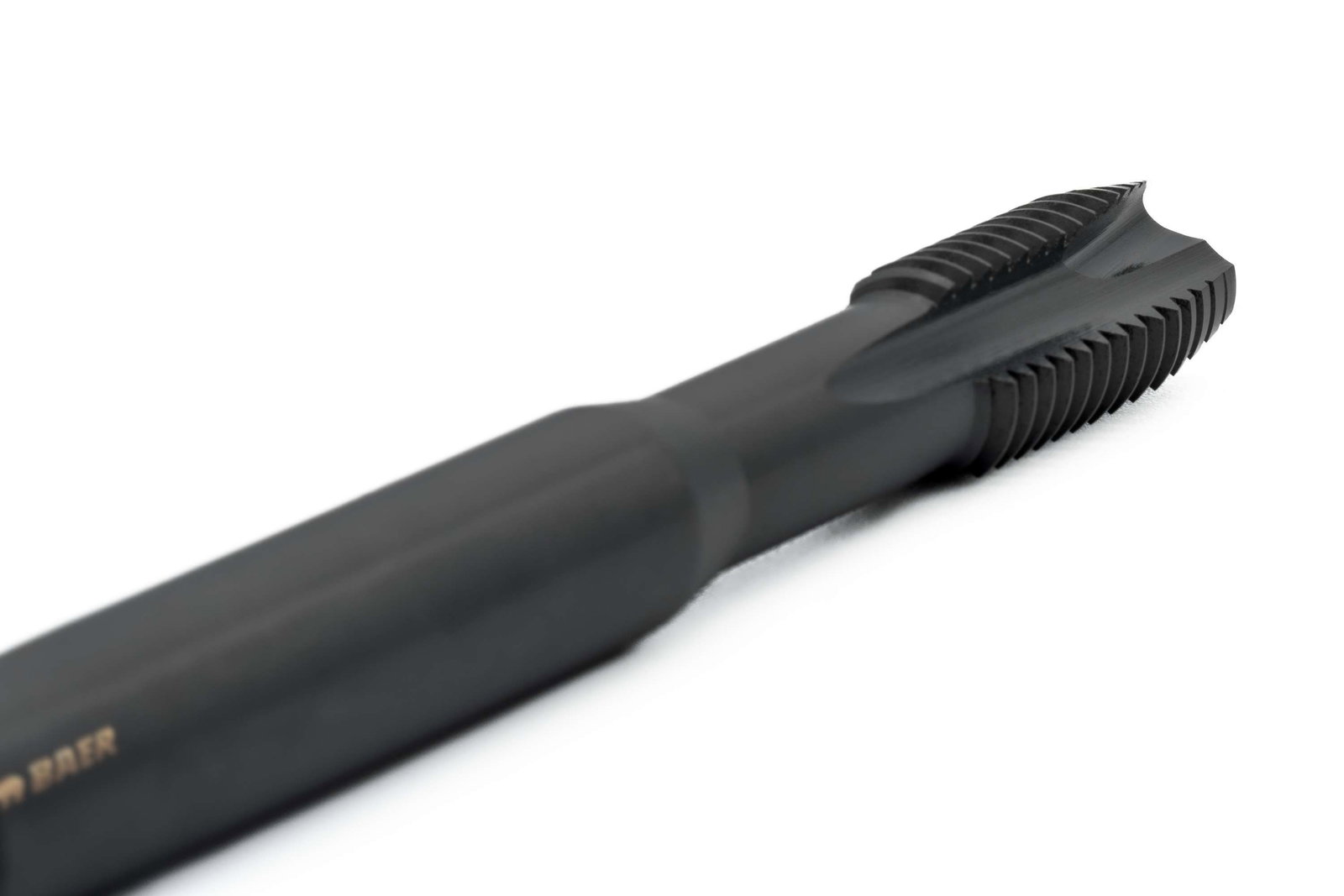

The screw tap has a reinforced shank according to DIN 371. This means that the shank diameter is larger than the thread itself. This makes the screw tap run more stably. However, it limits the thread length that can be cut with it. It can be used for through holes because the long chamfer, the straight flutes and the spiral point ensure that the chip is transported forward out of the hole.
Every material shows individual chip behaviour. Therefore, screw taps must have the correct rake angle and - for even better results - a specially treated surface. This is the only way to achieve a good chip transport and to produce a thread that is true to gauge.
The high quality of the cobalt-alloyed HSSE steel that we use ensures that our tools are extremely durable and robust. Due to special hardening processes and repeated tempering the hardness structure is very homogeneous, which forms the ideal basis for a genuine BAER screw taps. This increases the toughness and stability of the screw taps, allowing them to remain in use for longer.
The oxidised surface (vaporisation) reduces the sliding resistance and direct friction between the tap and the workpiece, thus ensuring a constant lubricating film. This prevents built-up edges and cold welding, i.e. adhesion of chip particles. The oxidised surface is only used for cutting ferrous materials.
Dimensions
| Diameter |
10 |
|---|---|
| Nominal diameter in inches |
0,394 |
| Nominal diameter in mm |
10 |
| Pitch |
1,5 |
| Pitch in mm |
1,5 |
| Dimension |
M 10 x 1,5 |
Characteristics
| Product group |
Screw taps |
|---|---|
| Product type |
Machine taps |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Standard |
DIN 371 |
| Tensile strength at room temperature |
up to 900 N/mm² | 27.1 HRC |
| Material |
HSSE VAP |
8.5 mm
Through hole up to 3 x D

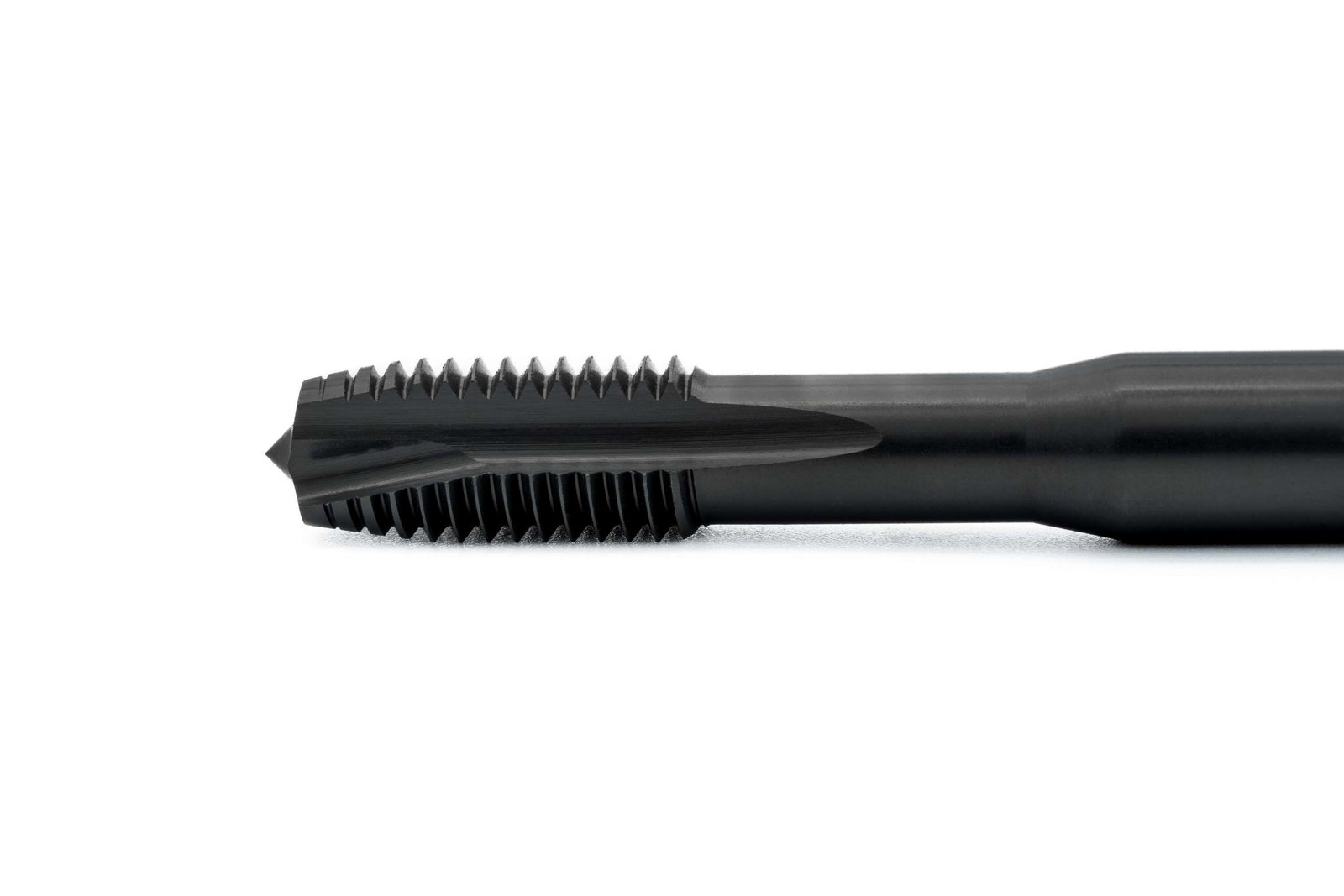

Form B with spiral point
4-5 threads
Chips are removed downwards in the direction of cutting
External cooling and lubrication
HSSE VAP
up to 900 N/mm² | 27.1 HRC
ISO2/6H
Applications
- Stainless steels, INOX, V2A, V4A
- Steels up to a maximum of 900 N/mm²
- Copper alloys and brass (long-chipping)
Technical drawing
| D1 |
M 10 x 1,5 |
|---|---|
| D2 |
10 mm |
| L1 |
100 mm |
| L2 |
20 mm |
| Diameter |
10 |
| Square |
8 mm |
Application – Sample materials
| Stainless steels (ferritic, austenitic, martensitic) | Cutting speed vc in m/min | |
|---|---|---|
| 1.4104 | X14CrMoS17 | 5 - 12 |
| 1.4301 | X5CrNi18-10 (V2A) | 5 - 12 |
| 1.4571 | X6CrNiMoTi17-12-2 (V4A) | 5 - 12 |
| 1.4005 | X12CrS13 | 5 - 12 |
| Construction steels, case-hardening steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.0050 | St50-2 | 6 - 15 |
| 1.0401 | C15 | 6 - 15 |
| 1.7147 | 20MnCr5 | 6 - 15 |
| 1.5919 | 15CrNi6 | 6 - 15 |
| Alloyed steels, quenched and tempered steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.8515 | 31CrMo12 | 5 - 10 |
| 1.0503 | C45 | 6 - 15 |
| 1.7218 | 25CrMo4 | 6 - 15 |
| 1.6511 | 36CrNiMo4 | 6 - 15 |
| Copper alloys, brass (long-chipping) | Cutting speed vc in m/min | |
|---|---|---|
| E-Cu 57 | EN CW400A | 10 - 20 |
| CuZn37 | EN CW 508 L (Ms58) | 10 - 20 |
Cutting speed vc [m/min] = (Outer diameter * π * speed) / 1000
Rotation speed n [1/min] = (Cutting speed in m/min * 1000) / (Outer diameter * π)
Feedrate programming [mm/min] = speed * pitch
Please note that the above cutting speeds are indicative and must be adjusted depending on lubrication and actuation.
Further information
- M - Metric ISO thread DIN 13
- Designations, geometries and definitions on taps
- Thread tolerances of the internal thread
- Internal thread and core hole dimensions
- Tap Chamfer forms
- Comparison inch-mm
- Surface treatments on tapping tools
- Cutting speeds and lubrication/cooling
- Information about tapping
- Material table
