BAER HSSE/Co5 TurboCentrix drill bit set (0.5 mm incremental) 1 - 13 mm
In stock
Express shipping available

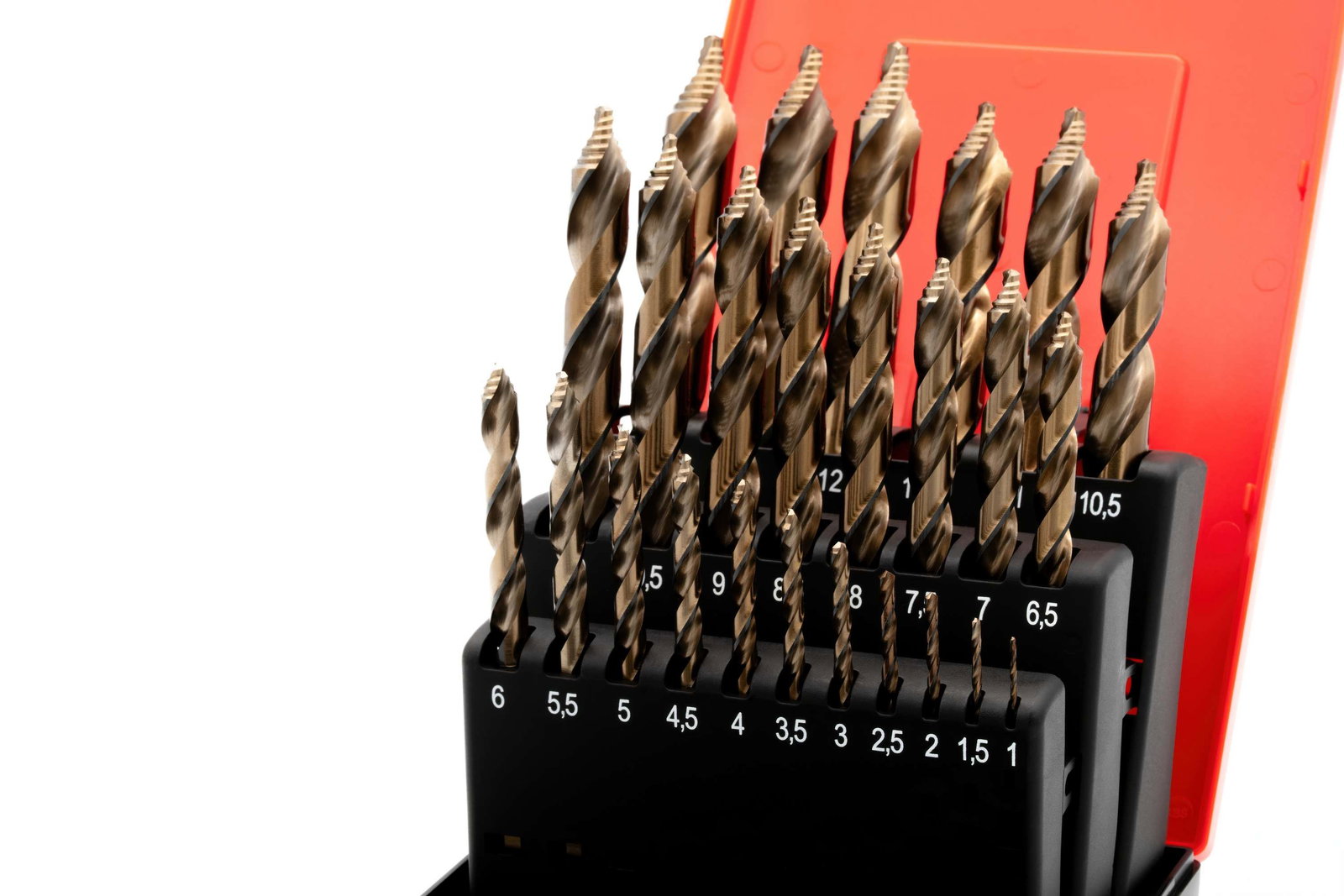

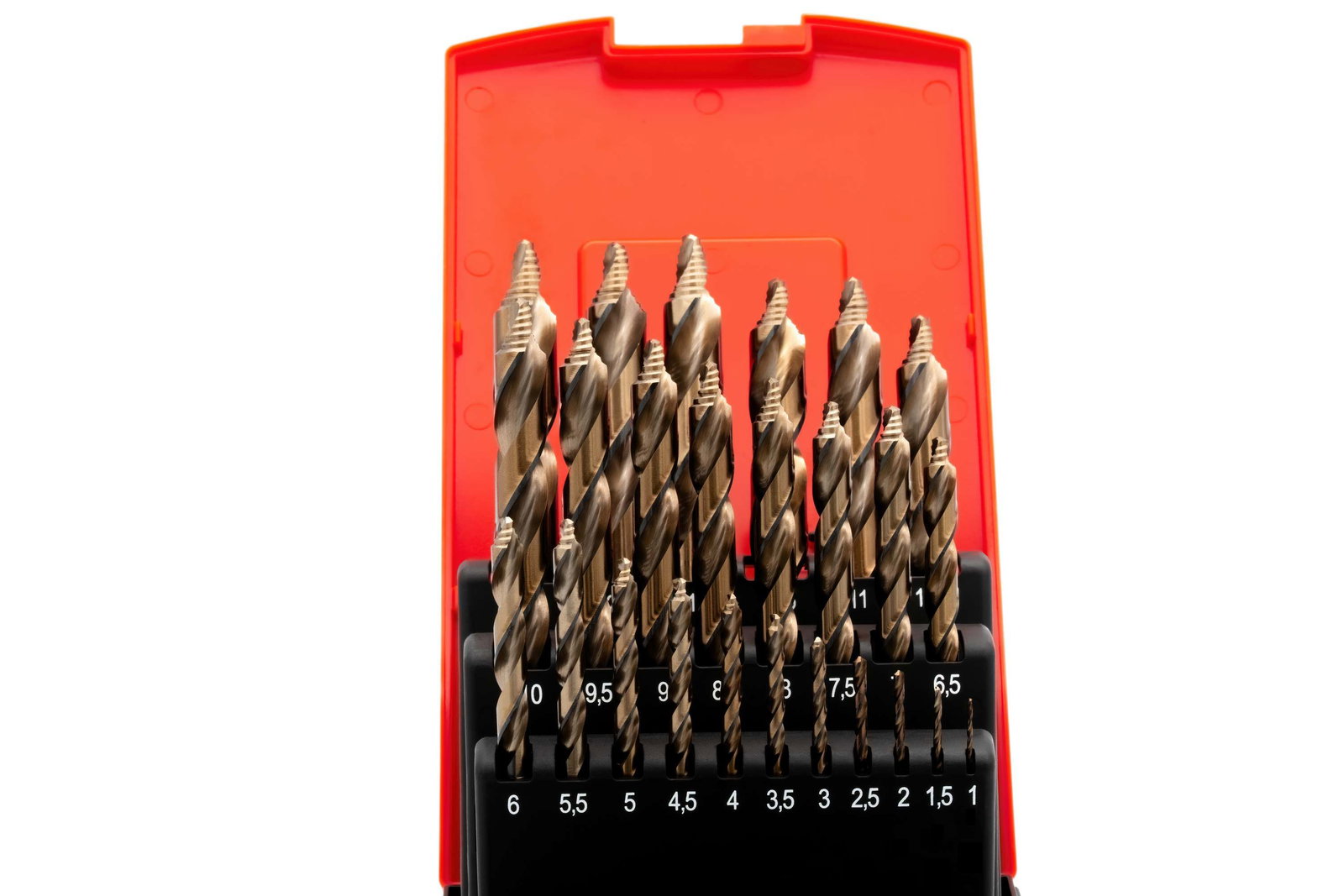

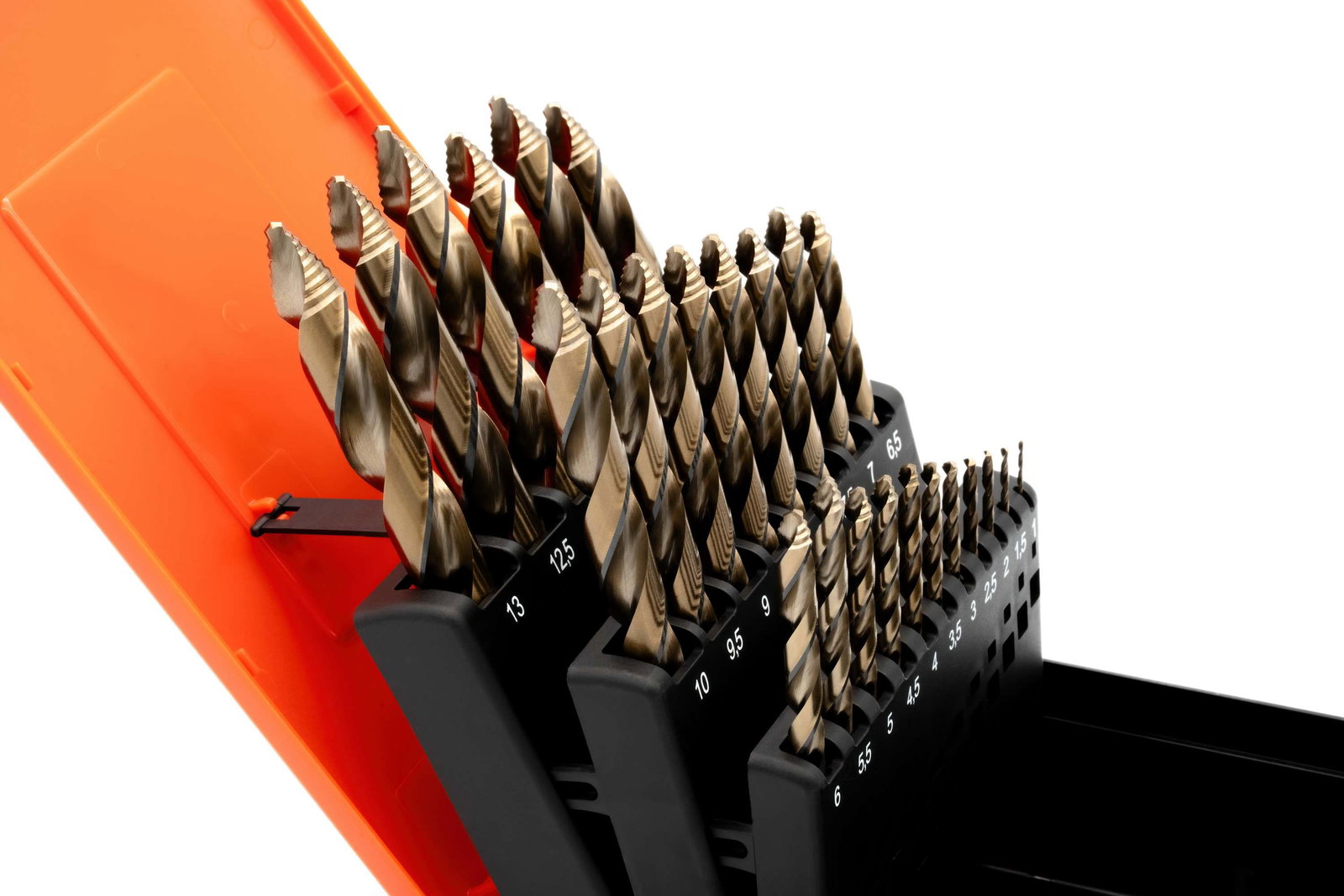

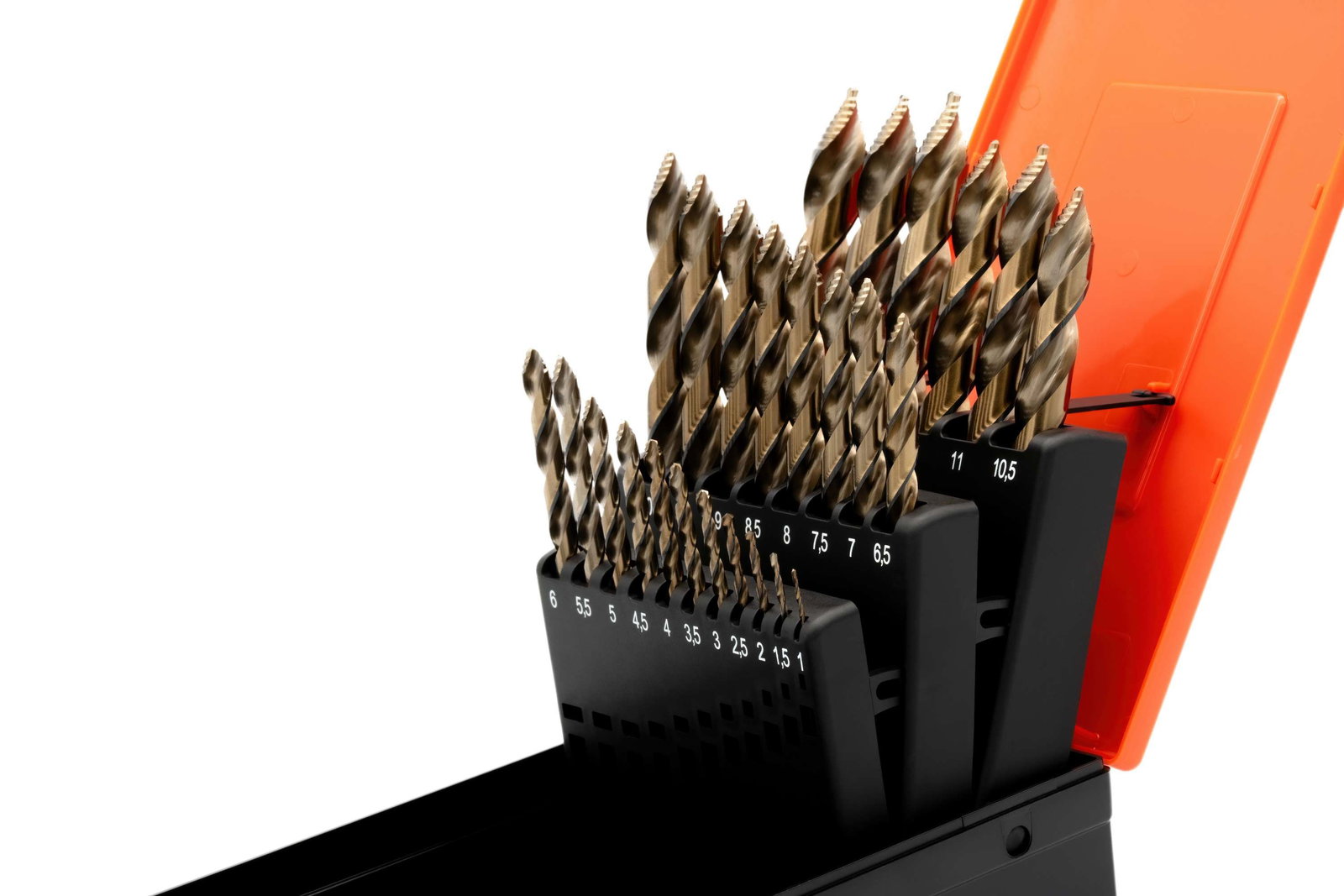

BAER HSSE/Co5 TurboCentrix drill bit set (0.5 mm incremental) 1 - 13 mm
The comprehensive 25-piece TurboCentrix drill bit set offers you the highest precision and maximum versatility in the diameter range from 1 to 13 mm in precise 0.5 mm increments. Made from first-class HSSECo5, these drill bits are exceptionally robust and reliable, specially developed for stainless steel and hard steels, but also ideal for plastics, wood and acrylic. The special stepped tip, available from a diameter of 3 mm, enables immediate, precise drilling without prior centring. Whether flat, angled or curved surfaces - every drilling approach is a success. The drill bits are also characterised by significantly less effort when drilling, allowing you to work particularly gently and efficiently. The innovative 3-face shank from 5 mm diameter also ensures a stable fit in the chuck and minimises the risk of slipping or vibrations during use. This comprehensive set therefore combines all the advantages of modern drilling technology and is ideal for professional use in maintenance, assembly and repairs in industry, trade and demanding DIY projects.
Dimensions
| Diameter |
1 - 13 mm |
|---|---|
| Dimension |
1 - 13 mm |
| Machine mount |
cylindrical shank |
Characteristics
| Product group |
Twist drill bits |
|---|---|
| Product type |
Twist drill bit sets |
| Direction |
Right |
| Standard |
DIN 338 |
| Type |
N |
| Material |
5% cobalt alloyed HSSE high speed steel |
Applications
Suitable for iron, steels, bronze up to 1300 N/mm², high-strength alloys based on CrNi, rust-resistant steels, acid-resistant steels, heat-resistant steels, wood, aluminium, stainless steels, high-strength materials, carbon steel, sheet metal, tool steel, aluminium alloys, plastic sheets, alloy steel, non-ferrous metals, cast iron, heat-treated steels up to 1200 N/mm², case-hardening steels up to 1200 N/mm², copper
Technical drawing
| L1 |
34 - 151 mm |
|---|---|
| L2 |
12 - 101 mm |
| Diameter |
1 - 13 mm |
Content
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 1 | 34 | 12,0 |
| 1x | 1,5 | 40 | 18,0 |
| 1x | 2 | 49 | 24,0 |
| 1x | 2,5 | 57 | 30,0 |
| 1x | 3 | 61 | 33,0 |
| 1x | 3,5 | 70 | 39,0 |
| 1x | 4 | 75 | 43,0 |
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 4,5 | 80 | 47,0 |
| 1x | 5 | 86 | 52,0 |
| 1x | 5,5 | 93 | 57,0 |
| 1x | 6 | 93 | 57,0 |
| 1x | 6,5 | 101 | 63,0 |
| 1x | 7 | 109 | 69,0 |
| 1x | 7,5 | 109 | 69,0 |
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 8 | 117 | 75,0 |
| 1x | 8,5 | 117 | 75,0 |
| 1x | 9 | 125 | 81,0 |
| 1x | 9,5 | 125 | 81,0 |
| 1x | 10 | 133 | 87,0 |
| 1x | 10,5 | 133 | 87,0 |
| 1x | 11 | 142 | 94,0 |
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 11,5 | 142 | 94,0 |
| 1x | 12 | 151 | 101,0 |
| 1x | 12,5 | 151 | 101,0 |
| 1x | 13 | 151 | 101,0 |
Safety instructions

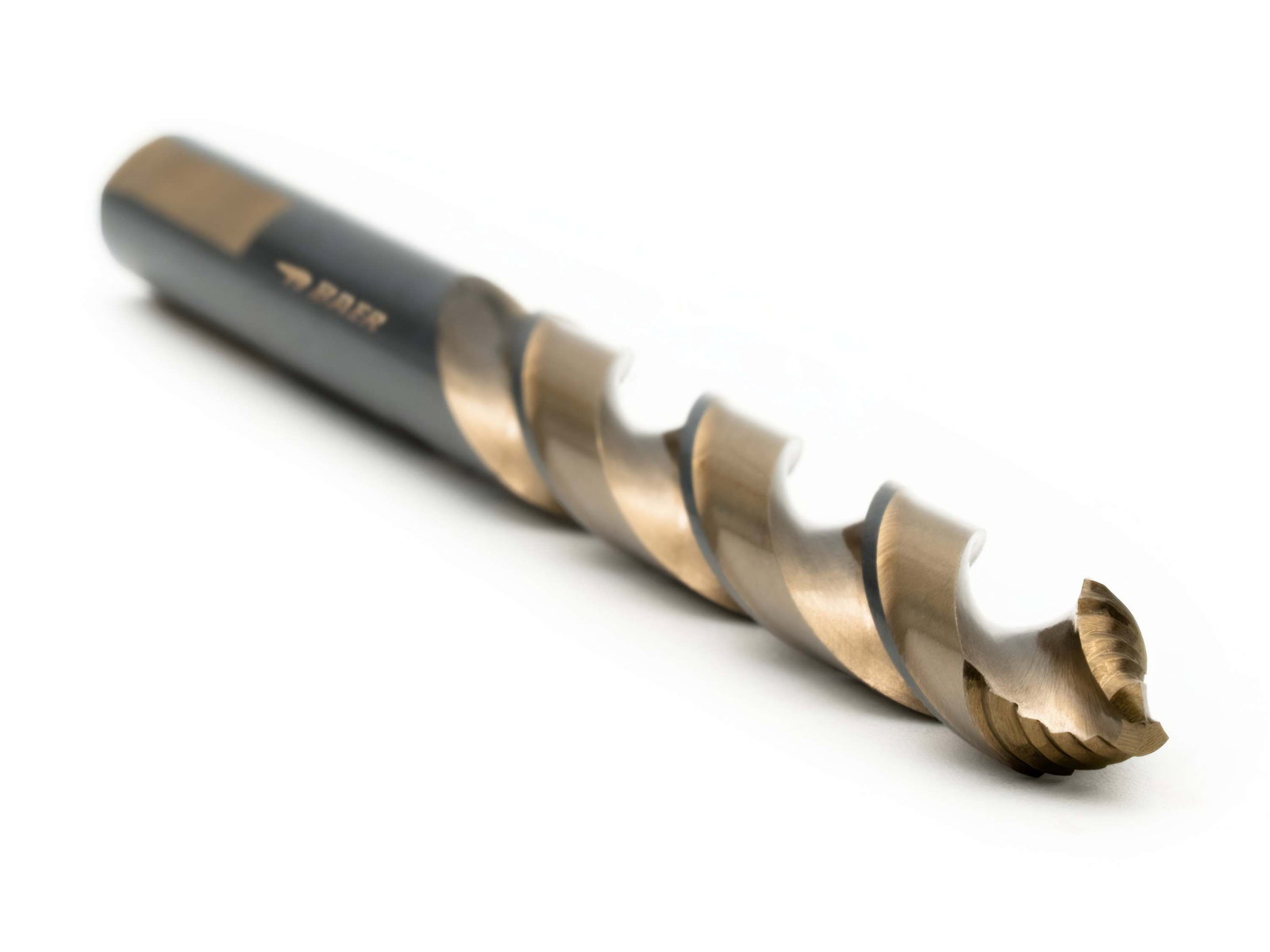

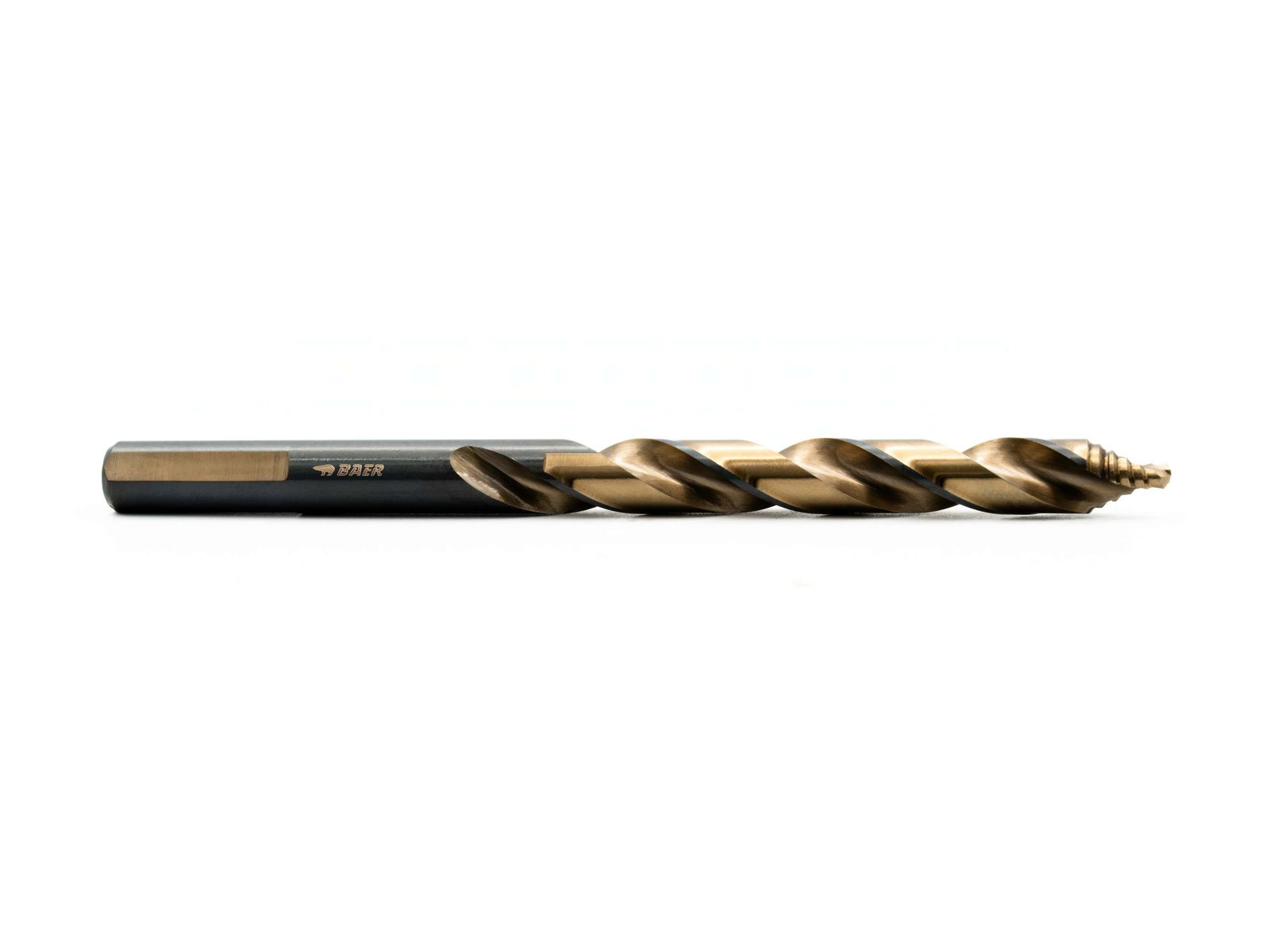

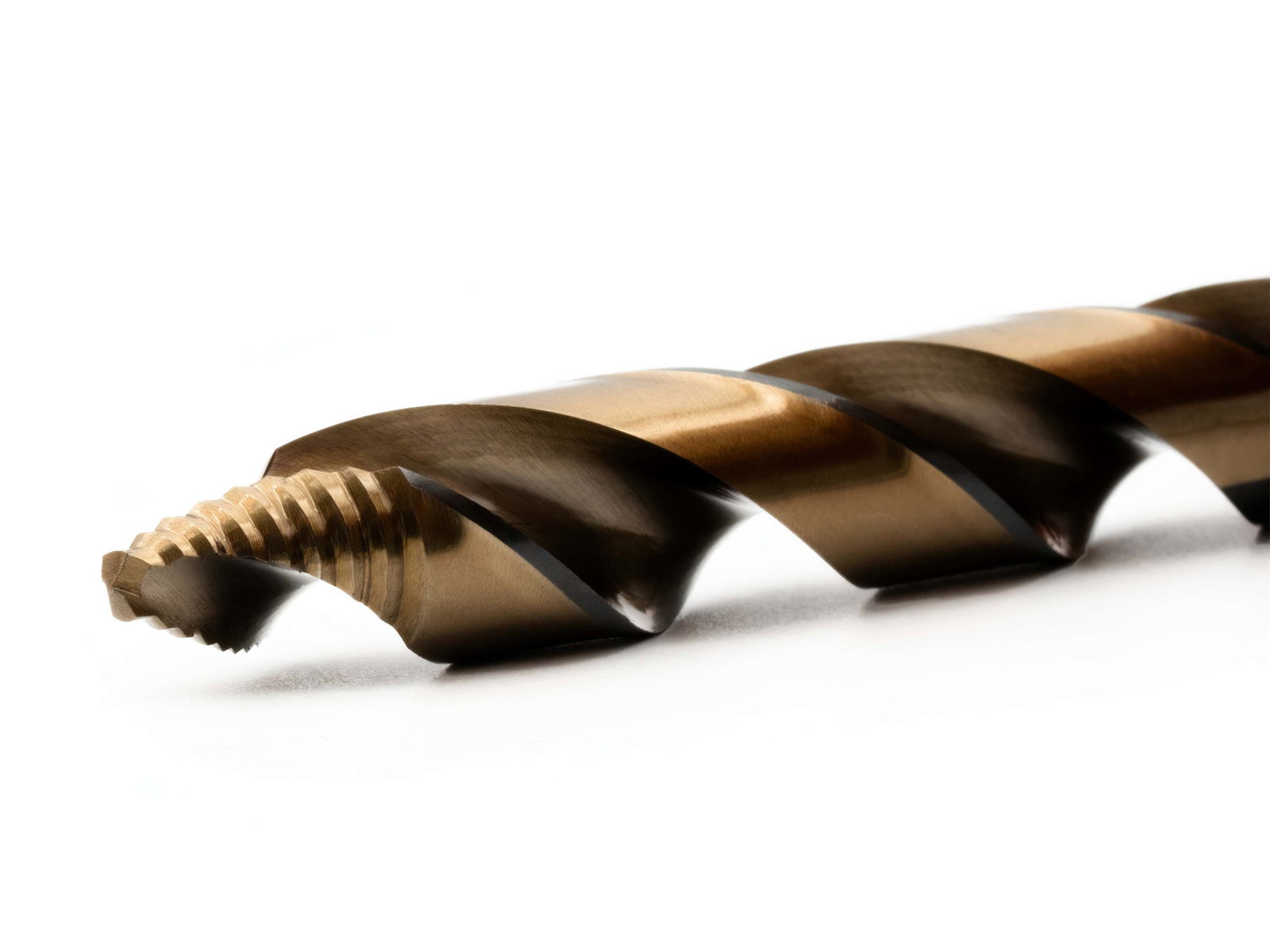

Innovative stepped tip (from ⌀ 3.0 mm)
Thanks to the innovative stepped tip, you can start drilling directly without centring or centre punching. Perfectly suited for angled, curved and uneven surfaces - with these drill bits you can work precisely and quickly without losing control. The particularly sharp, stepped tip ensures up to 5x faster drilling than conventional drill bits and delivers burr-free results.
The advantages at a glance:
- no centring or centre punching required
- perfect hold even on inclined and curved surfaces
- 5x faster drilling
- burr-free, clean drill holes

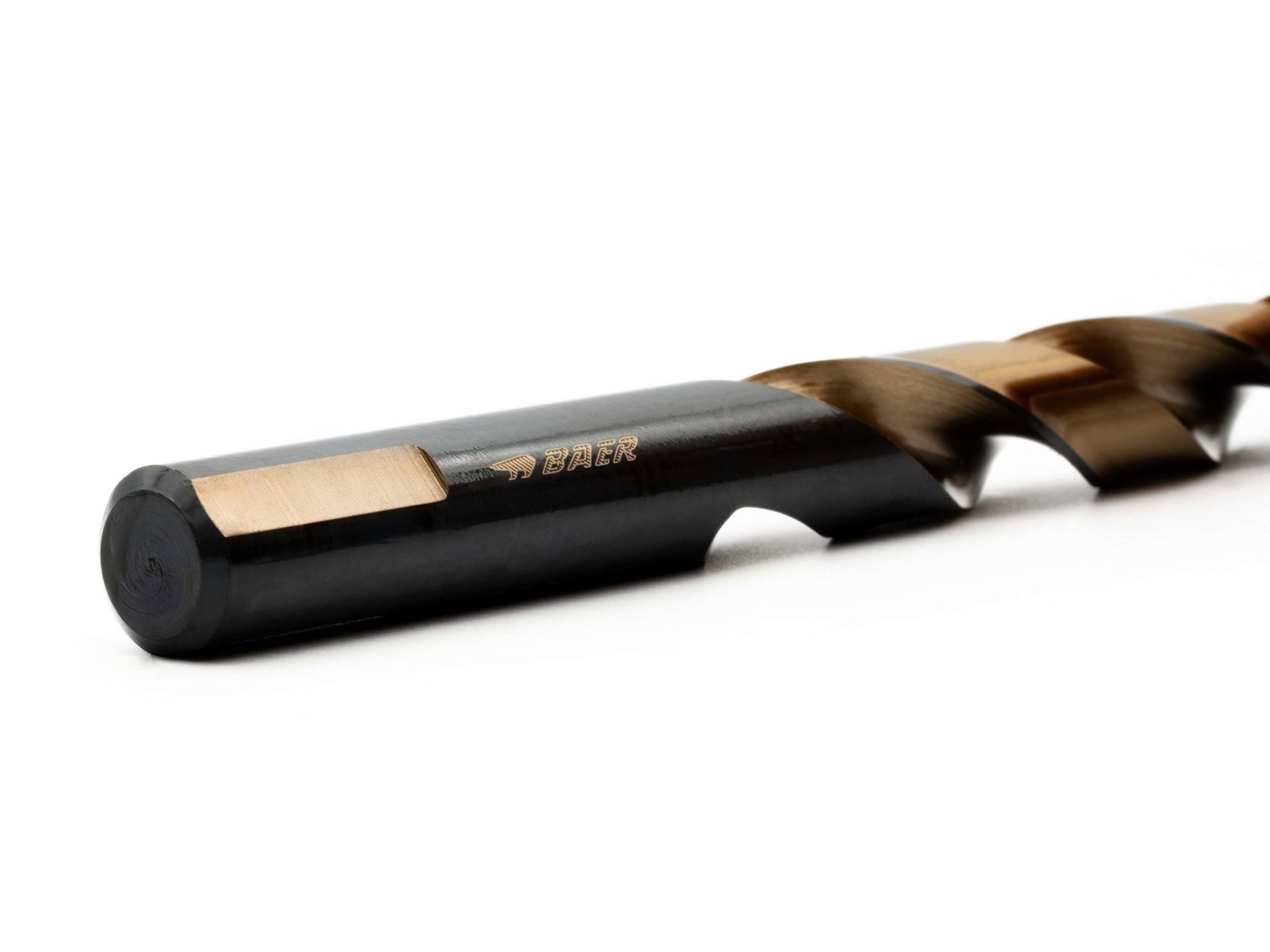

3-face shank for optimum power transmission (from ⌀ 5.0 mm)
The 3-face shank of the TurboCentrix drill bits ensures maximum stability in the chuck. It reliably prevents the drill bit from slipping and enables ideal power transmission, meaning you need significantly less force when drilling. Also ideal for use in cordless tools, as the lower power consumption protects the battery.
The advantages at a glance:
- secure hold and no slipping in the drill chuck
- optimum power transmission
- power-saving drilling
- battery-friendly due to reduced power consumption
Wear-resistant HSSE high-performance steel with cobalt alloy
Manufactured from high-quality HSSE Co5 steel with 5% cobalt alloy, TurboCentrix drill bits are characterised by particularly high wear resistance and excellent heat resistance. Even the most demanding materials such as stainless steel, hard steels or CrNi alloys can be machined with ease. The spiral shape ensures rapid chip removal, reduces burr formation and significantly increases the service life.
The advantages at a glance:
- extremely high wear resistance and tool life
- excellent heat resistance up to 650°C
- fast chip removal and less burr formation
- ideal for hard and high-strength materials
Maximum precision and versatile application
TurboCentrix drill bits combine maximum precision with universal usability. Whether in industry, trade or demanding DIY projects - you will always achieve optimum results thanks to precise positioning, outstanding concentricity and low vibration. Ideal for CNC machines, pillar drills, cordless screwdrivers and hand drills.
The TurboCentrix advantages at a glance:
- universal use in industry and trade
- very high concentricity
- low vibrations and very smooth running
- ideal for CNC and hand-held machines
