BAER Set HSS LEFT: Round Dies | Die Stocks| Guides: M 3 - 12

€153.41*

Prices incl. VAT plus shipping costs

In stock

EAN 4058462005954
Item no 26495981
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

BAER Set HSS LEFT: Round Dies | Die Stocks| Guides: M 3 - 12

This tap set is a high quality set for all external thread cutting needs. The metric taps from M3 to M12 enable the cutting of external threads.

The set contains round dies made of HSS steel (High Speed Steel), which ensures long durability and high precision when cutting threads. The thread cutting assortment is supplied in a sturdy metal case. The dies are fixed in the box with their own recess.

The tools themselves are characterised by the highest quality. They are optimally processed and guarantee long durability as well as high precision at thread cutting. The die holder and die guides complete the set and you always have everything ready to hand from a high-quality metal box. And all this at an unbeatable price-performance ratio in well-known BAER quality. At BAER you buy this set ex works in tested BAER industrial quality. Especially when it comes to tools, it is always worth spending a few euros more. The set is suitable for the following materials: for easily machinable materials up to 750 N/mm², such as unalloyed structural steels, alloyed structural steels, free-cutting steels and cast steel.

Whether you are a professional or a do-it-yourselfer, you can cut your external thread effortlessly with this set. Invest in quality and experience the benefits of a professional tap. A tap set that no workshop should be without.

Dimensions

Diameter 3 - 12
Dimension M 3 - 12

Characteristics

Product group threading tool sets
Product type Threading tool sets
Thread standard M: Metric ISO standard thread according to DIN 13
Direction Left

Technical information - Cutting dies

Cutting die chamfer
1,5
Cutting die tolerance
ISO-6g

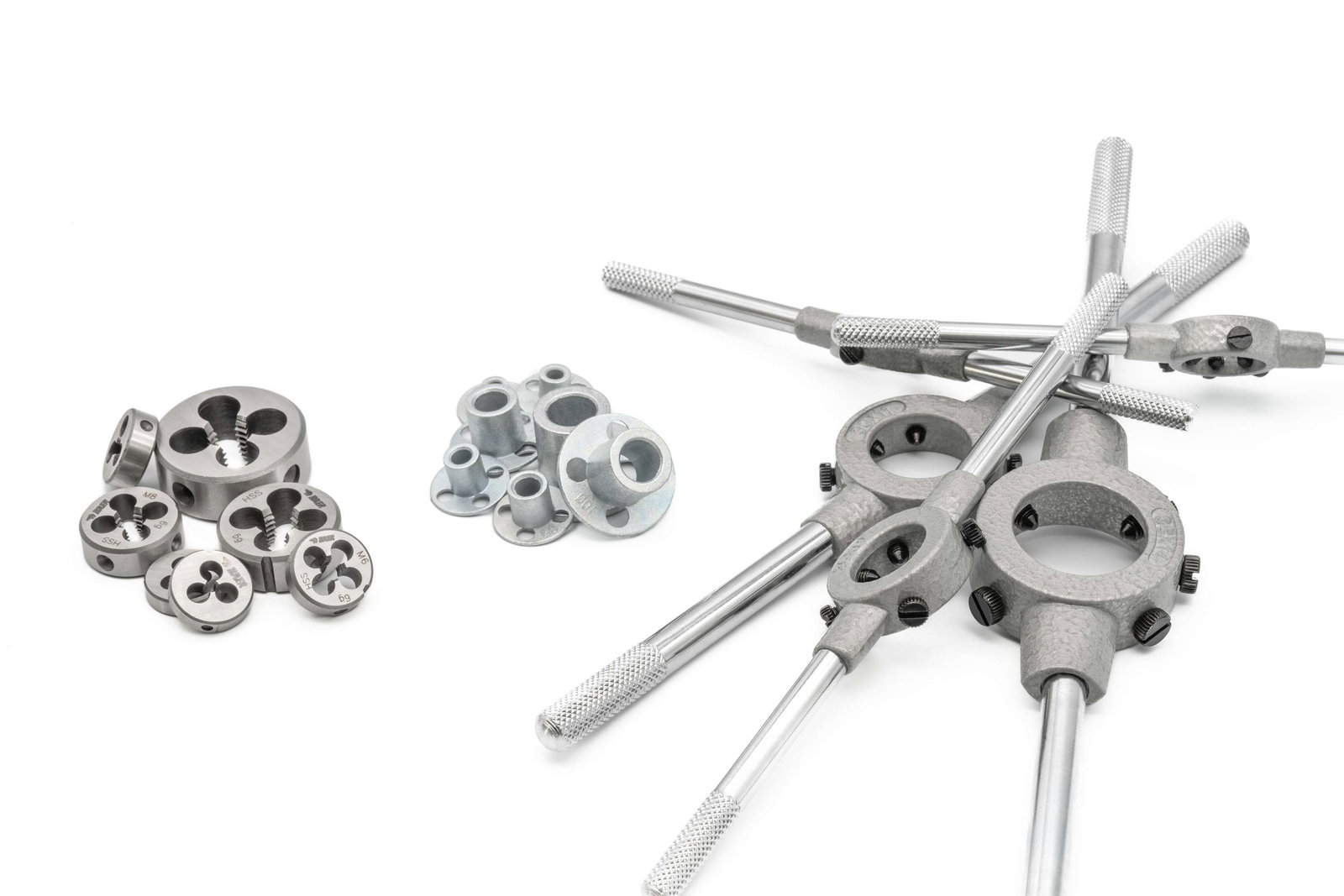

Set content

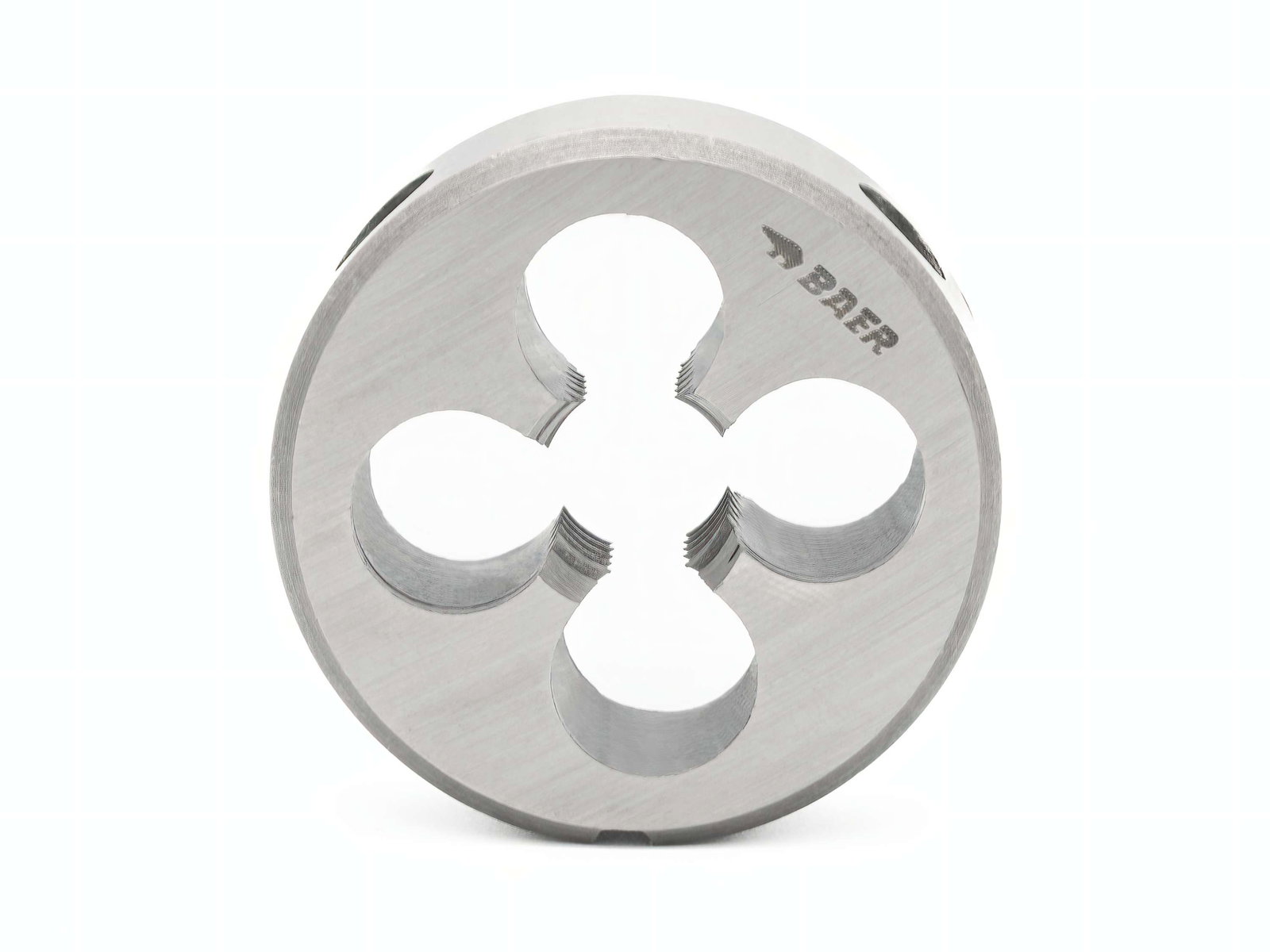

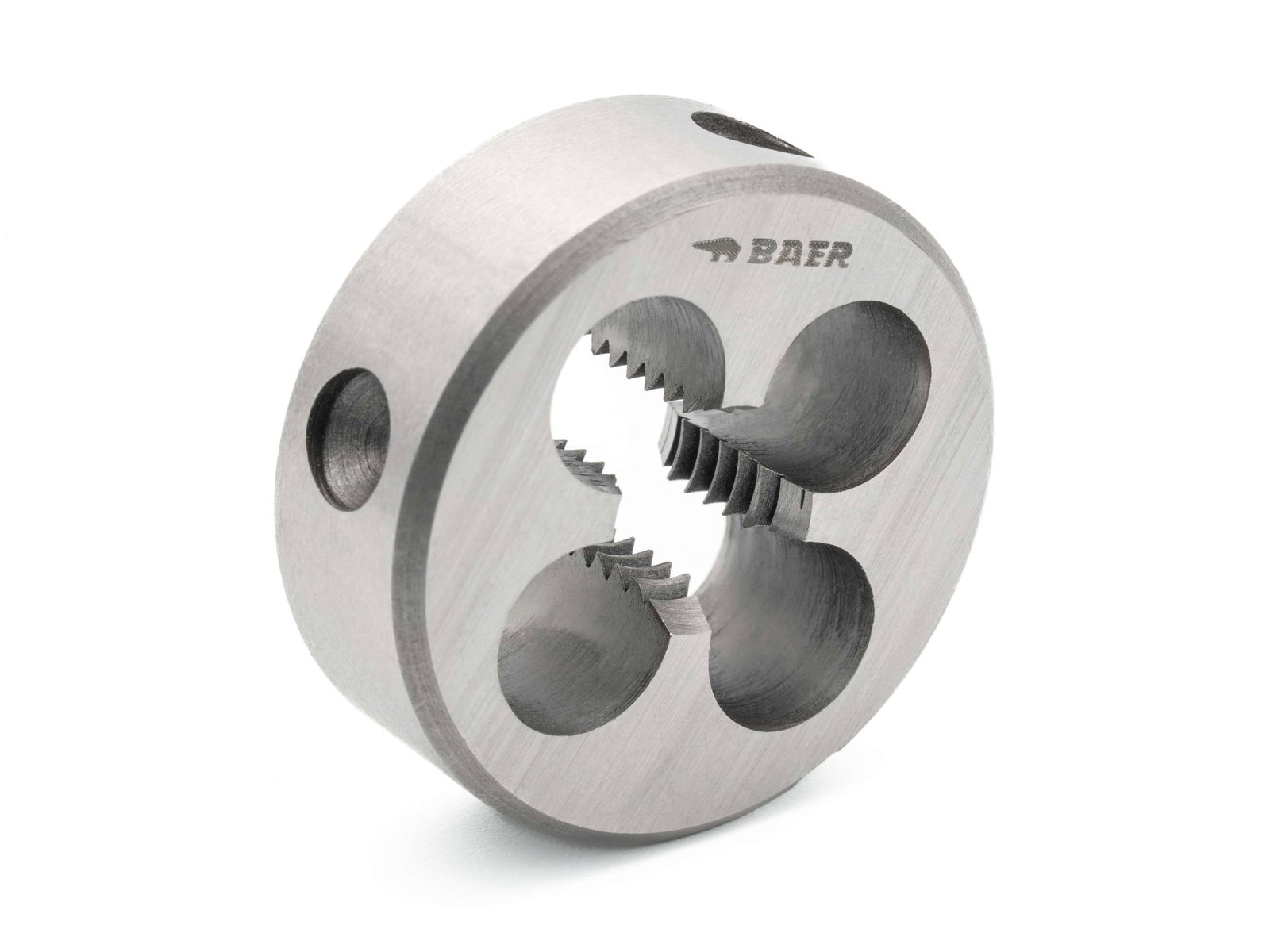

BAER HSS round die for left-hand thread M 3 x 0,5  LH | M 4 x 0,7 LH | M 5 x 0,8 LH
M 6 x 1,0 LH | M 8 x 1,25 LH | M 10 x 1,5 LH
M 12 x 1,75 LH
BAER round die holder (diameter x height in mm) 20 x 5 | 20 x 7 | 25 x 9
30 x 11 | 38 x 14

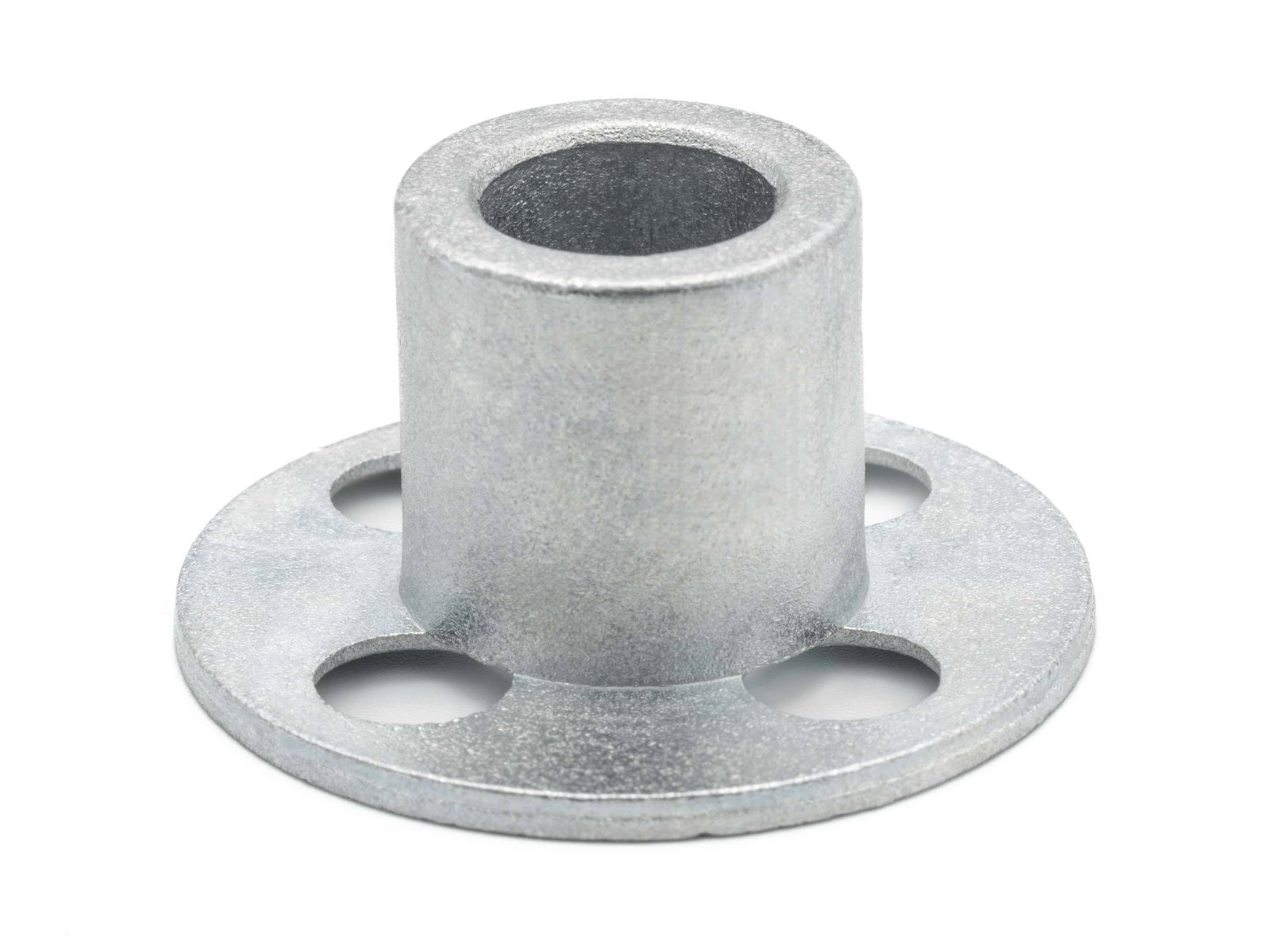

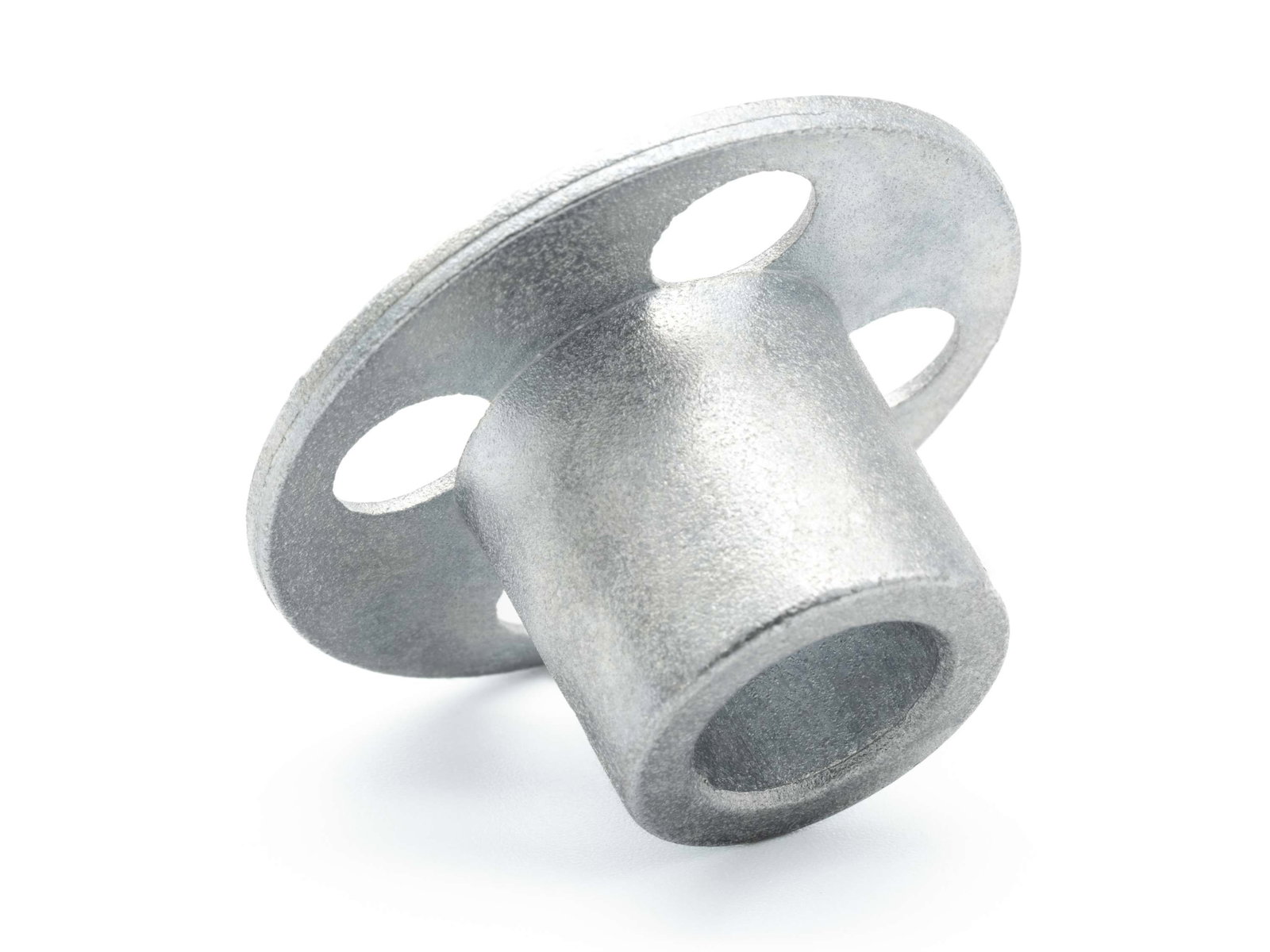

BAER round die guide M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8
M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5
M 12 x 1,75

Applications

  • General-purpose use
  • Left-hand thread
  • Materials with good machinability up to 900 N/mm²
  • Unalloyed and low-alloy steels
  • for hand or machine use

HSS hexagonal cutting nuts - for perfect external threads
#with corners and edges to the round thread

The hexagonal cutting nut is particularly advantageous for repairs, as it can be moved with ring spanners or open-end spanners, making it easier to reach inaccessible places. BAER hexagonal cutting nuts are taps that are perfect for external threads. This metal-cutting tap has an external hexagon and - depending on the size - has three or more cutting edges on the inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. The tap is made of the high-speed steel HSS, which has better toughness and is less susceptible to breakage than HSSE steel. HSS steel is also a popular material for making tools that are subjected to high stresses. HSS cutting nuts can be used for structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloyed copper and short-chipping copper-tin alloys. Also plastics such as POM, PVC etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

The advantages at a glance:

  • little space required
  • Adjustment without effort
  • Can be used with ring or open-end spanners
  • simple tool assembly
  • Use from both sides

Technical information:

  • DIN 382
  • Thread tolerance: ISO-6g
  • Gate: 1,5

HSS thread cutting dies DIN 223 :

M 3 x 0,5 LH | M 4 x 0,7 LH | M 5 x 0,8 LH | M 6 x 1,0 LH | M 8 x 1,25 LH | M 10 x 1,5 LH | M 12 x 1,75 LH

Die stocks with die guides - it couldn't be easier
##TappingEasyMade

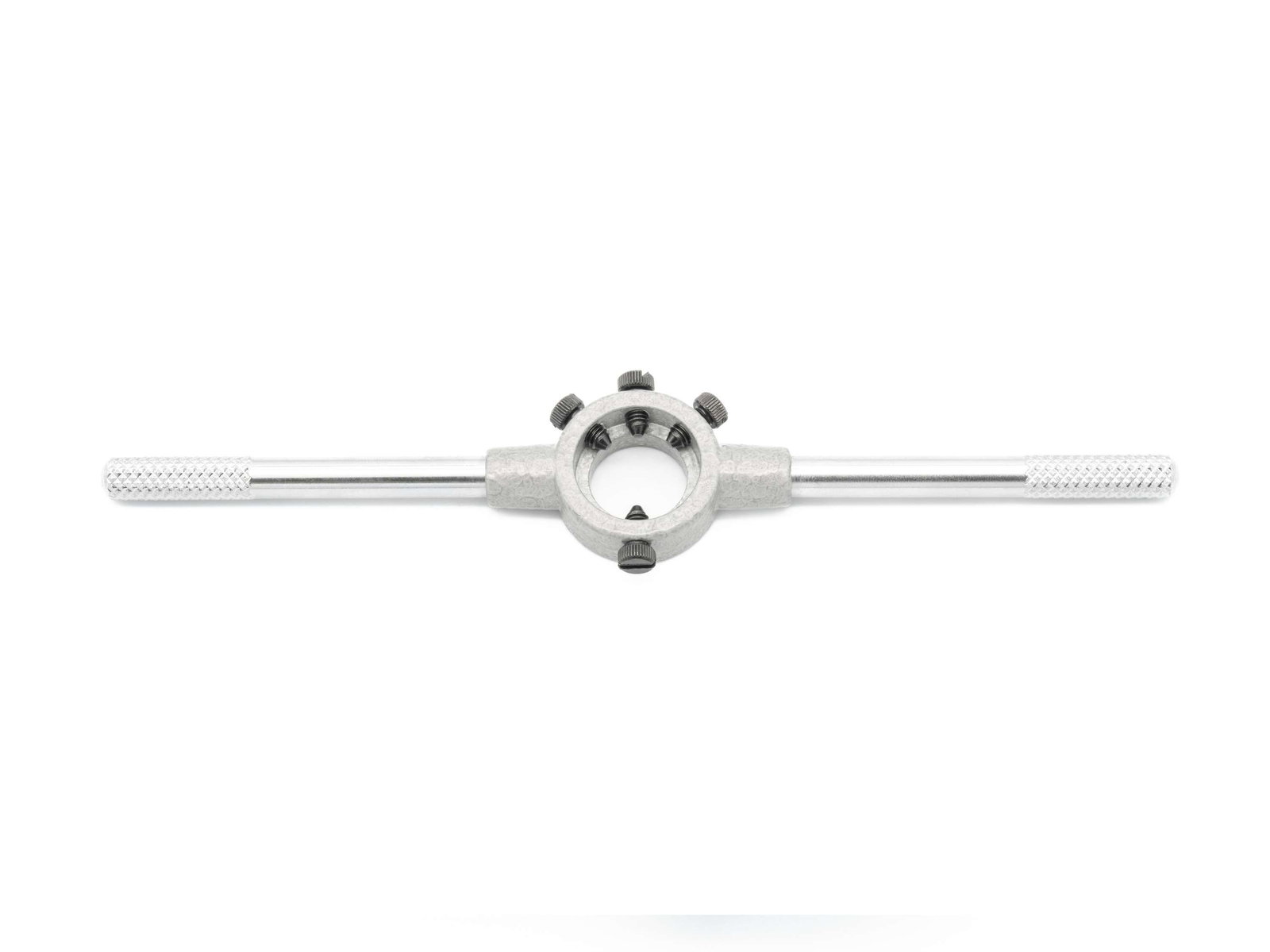

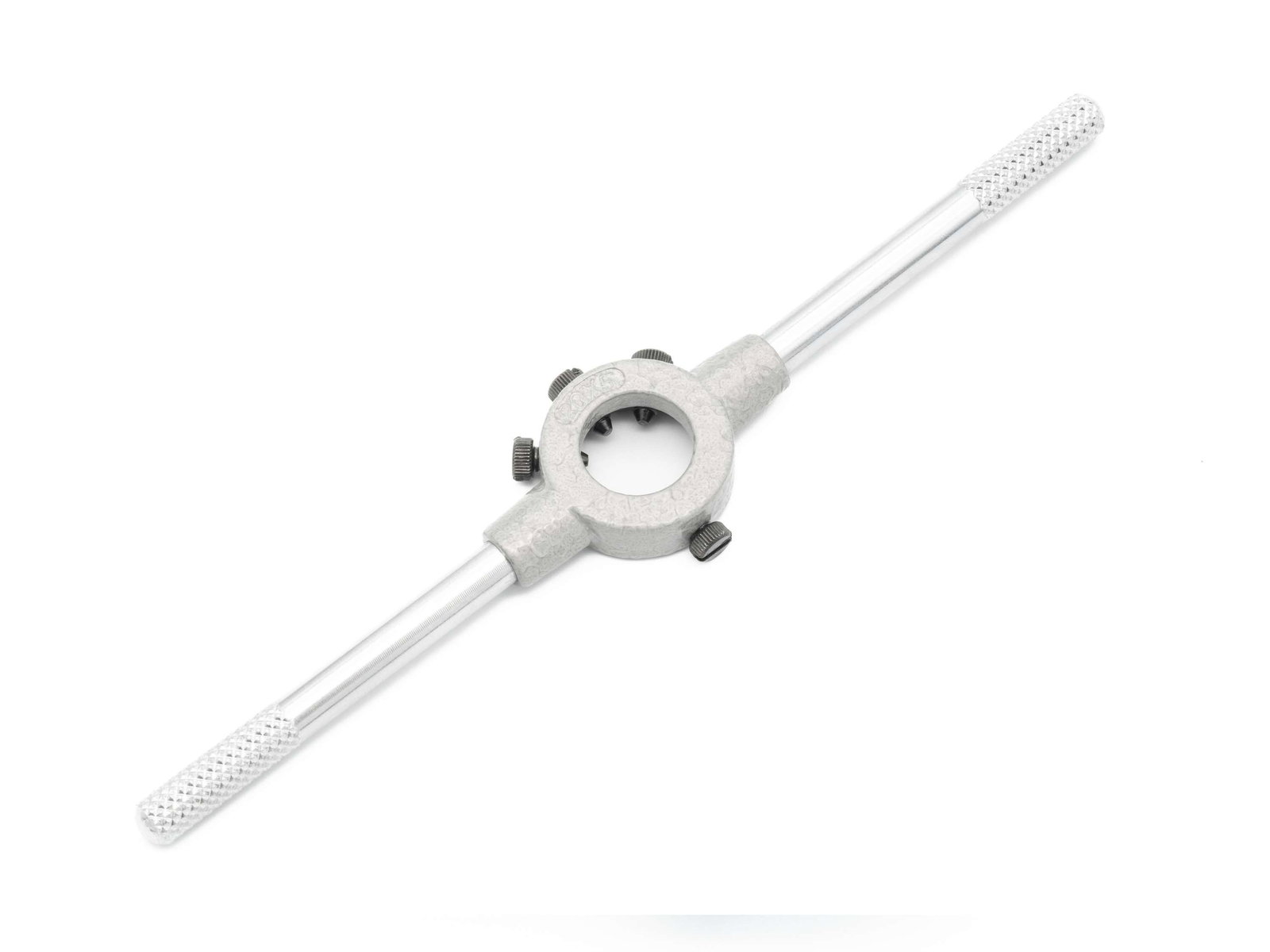

Our die stocks are made of zinc die casting. With the screws you fix the die in the matching holder and thus prevent it from twisting during use. In addition, the design allows the use of the included die guides. The die guides provide optimal guidance, iand reduce the risk of cutting a crooked thread. It is also easier to hold and turn the die. It is important that the holes of the guide overlap with the holes of the thread cutting die in order to ensure chip removal.

Die-cast die stocks DIN 22568

20 x 5 mm (M 3 - M 4) | 20 x 7 mm (M 5 - M 6) | 25 x 9 mm (M 8) | 30 x 11 mm (M 10) | 38 x 14 mm (M 12)

Die-cast die stocks DIN 22568

20 x 5 mm (M 3 - M 4) | 20 x 7 mm (M 5 - M 6) | 25 x 9 mm (M 8) | 30 x 11 mm (M 10) | 38 x 14 mm (M 12)
