This tap set is a high-quality set for cutting external threads. The metric taps from M3 to M12 allow you to cut external threads.

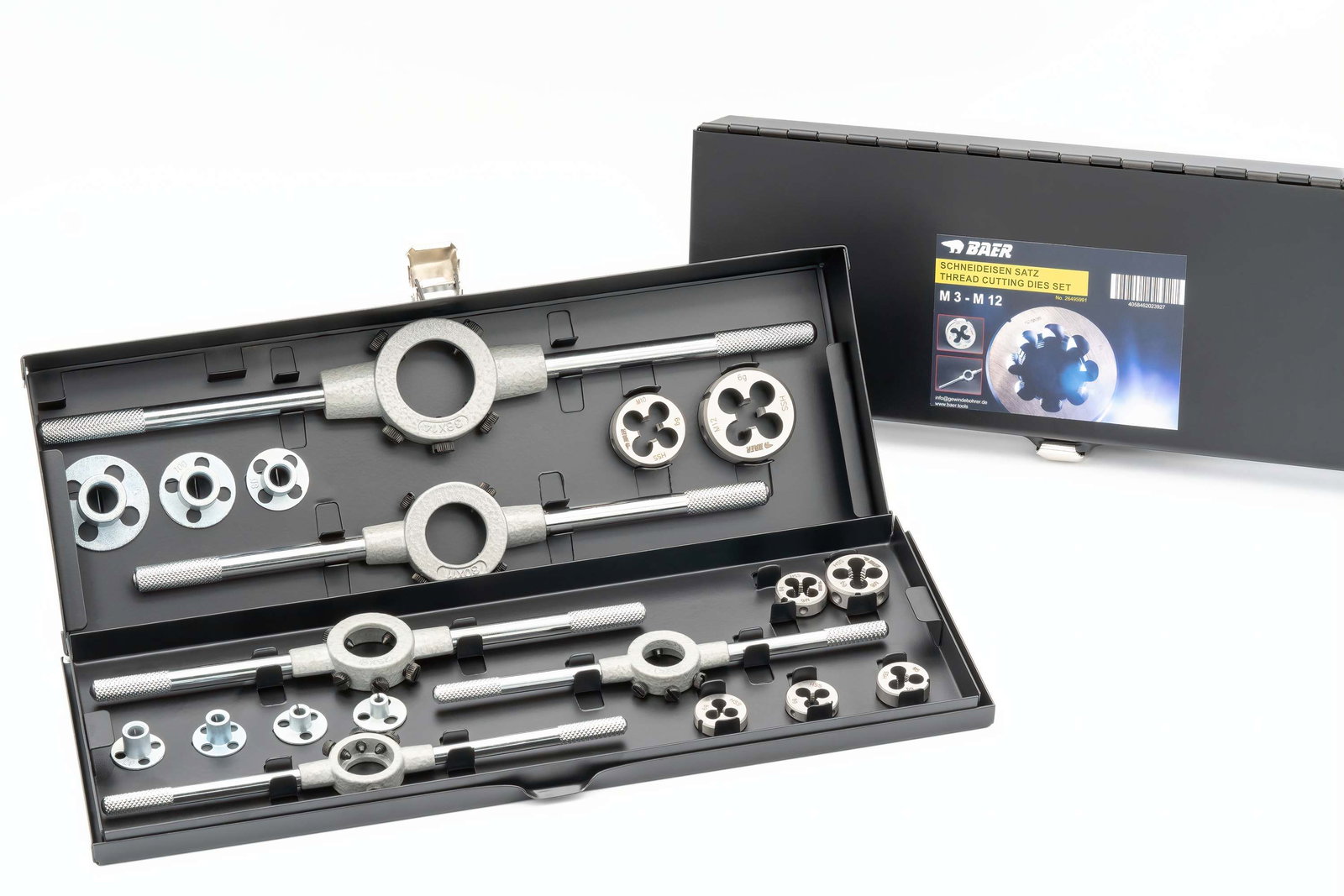

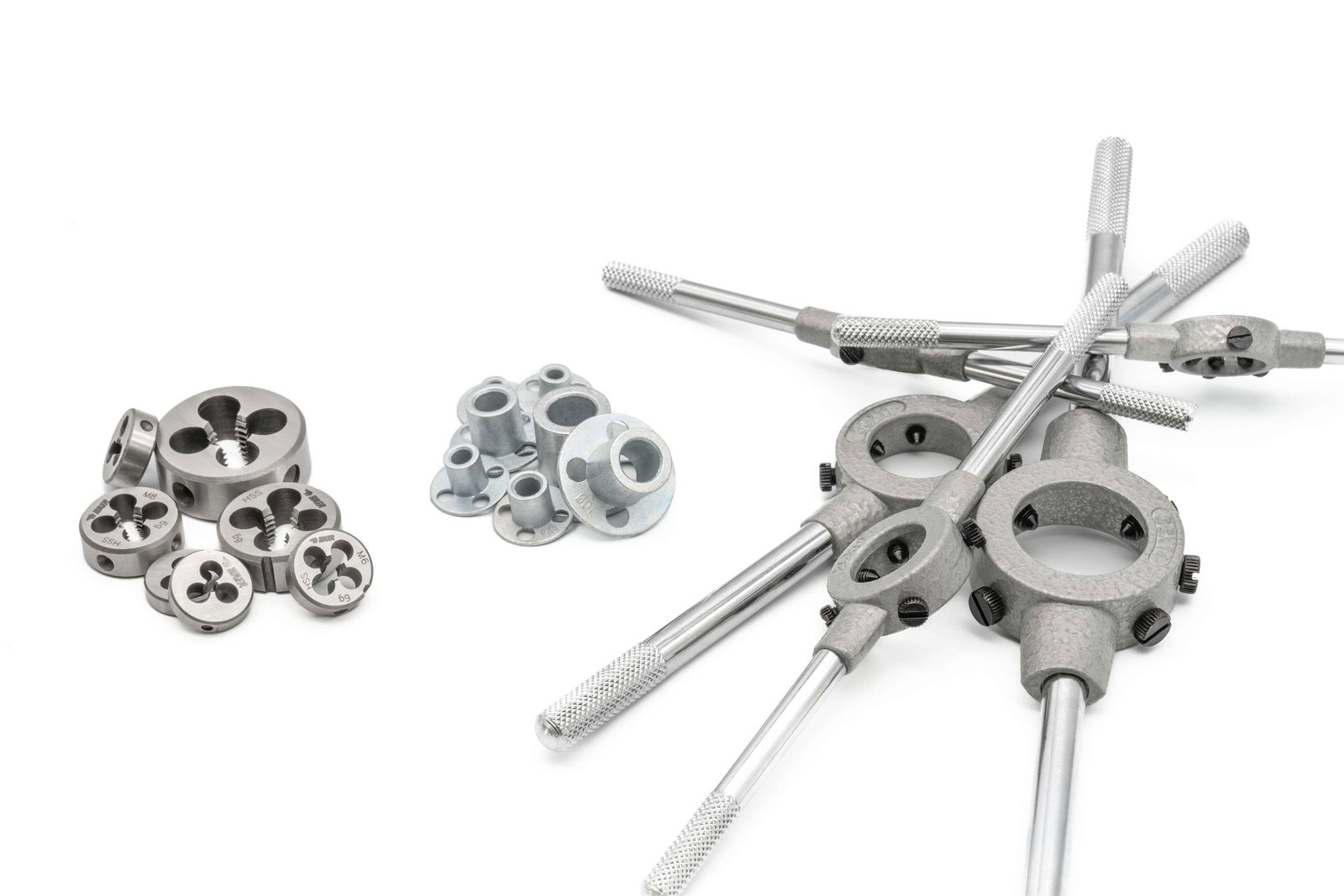

The set contains round dies made of HSS steel (High Speed Steel), which ensures long durability and high precision when cutting threads. The thread cutting assortment is supplied in a sturdy metal case. The dies are fixed in the box with their own recess.
The tools themselves are characterised by the highest quality. They are optimally processed and guarantee long durability as well as high precision at thread cutting. The die holder and die guides complete the set and you always have everything ready to hand from a high-quality metal box. And all this at an unbeatable price-performance ratio in well-known BAER quality. At BAER you buy this set ex works in tested BAER industrial quality. Especially when it comes to tools, it is always worth spending a few euros more. The set is suitable for the following materials: for easily machinable materials up to 750 N/mm², such as unalloyed structural steels, alloyed structural steels, free-cutting steels and cast steel.
Whether you are a professional or a do-it-yourselfer, you can cut your external thread effortlessly with this set. Invest in quality and experience the benefits of a professional tap. A tap set that no workshop should be without.
Dimensions
| Diameter |
3 - 12 |
|---|---|
| Dimension |
M 3 - 12 |
Characteristics
| Product group |
threading tool sets |
|---|---|
| Product type |
Threading tool sets |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Direction |
Right |
Technical information - Cutting dies
1,5
ISO-6g
Set content
| BAER HSS round die | M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8 M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5 M 12 x 1,75 |
|---|---|
| BAER round die holder (diameter x height in mm) | 20 x 5 | 20 x 7 | 25 x 9 30 x 11 | 38 x 14 |
| BAER round die guide | M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8 M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5 M 12 x 1,75 |
Applications
- General-purpose use
- Materials with good machinability up to 900 N/mm²
- Unalloyed and low-alloy steels
- for hand or machine use
HSS thread cutting dies - for perfect external threads
#runs round

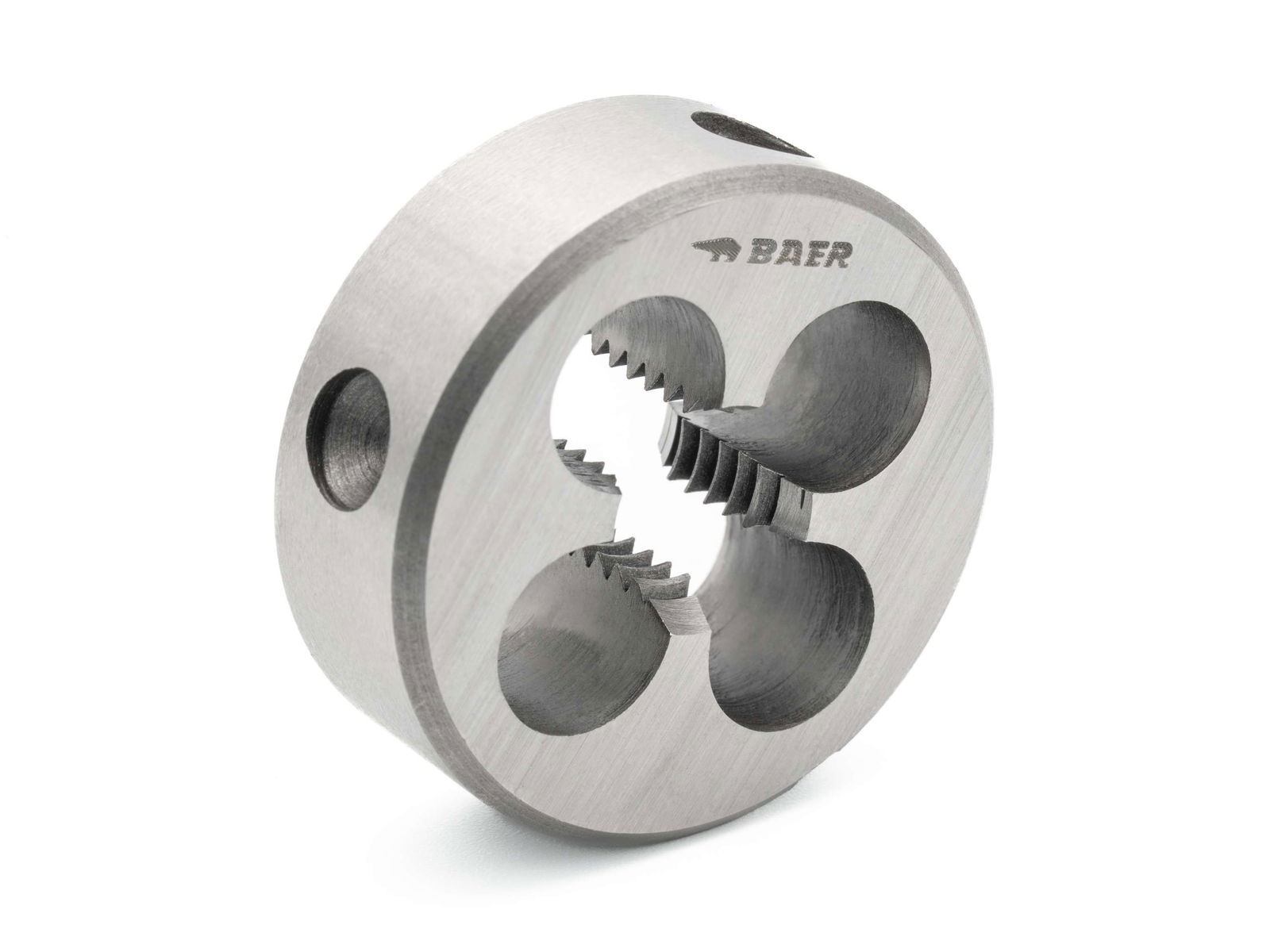

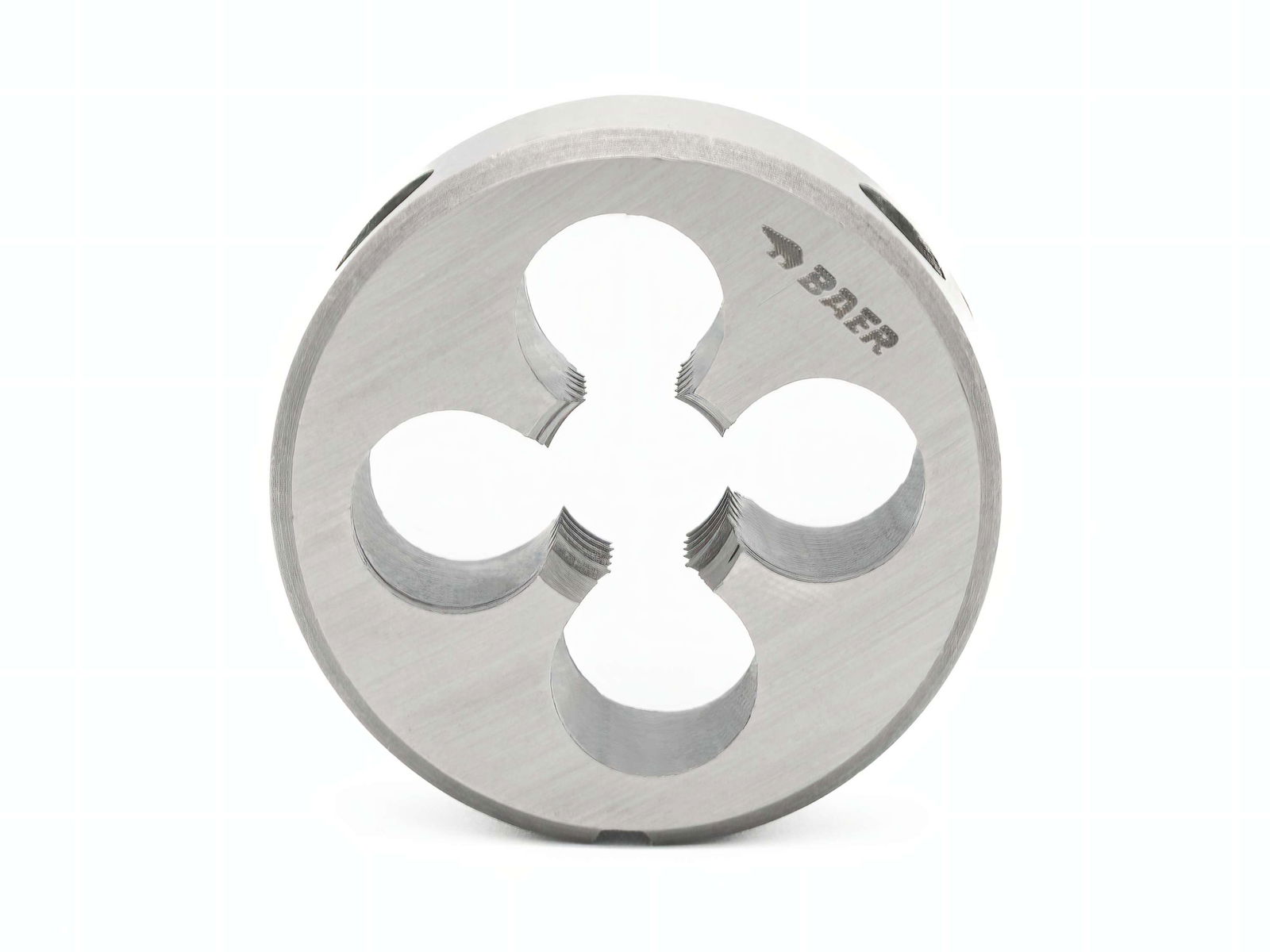

BAER thread cutting dies are perfect for anyone who wants to cut external threads. Basically, this cutting tool is cylindrical and - depending on the size - has three or more cutting edges inside. The holes between the cutting edges receive the chips, roll them and discharge them. Thread cutting dies are used to cut screws, nuts and threaded rods in everyday use. Round thread cutting dies are cylindrical and are used for making external threads in one operation. There are four holes and a groove on the outer casing of the round thread cutting die, which are used to fix the die in suitable die stock and holders using retaining screws. External threads are cut by hand with die stocks. Special die holders are used for the tailstock on a lathe or for the chuck of a drill. The thread cutting die is made of high speed steel (HSS). HSS steel has a higher toughness and a lower susceptibility to breakage compared to HSSE steel. HSS steel is known for its exceptional cutting performance and durability. HSS round thread cutting dies can be used for a wide range of applications, such as structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloy copper, as well as short-chipping copper-tin alloys, plastics such as POM, PVC, etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.
The advantages at a glance:
- little space required
- Adjustment without effort
- Use on simple and multi-spindle machines
- simple tool assembly
- Use from both sides
Technical information:
- DIN EN 22568 (formerly DIN 223 B)
- Thread tolerance: ISO-6g
- Gate: 1,5
HSS thread cutting dies DIN 223 :
M 3 x 0.5 | M 4 x 0.7 | M 5 x 0.8 | M 6 x 1.0 | M 8 x 1.25 | M 10 x 1.5 | M 12 x 1.75
Die stocks with die guides - it couldn't be easier
##TappingEasyMade

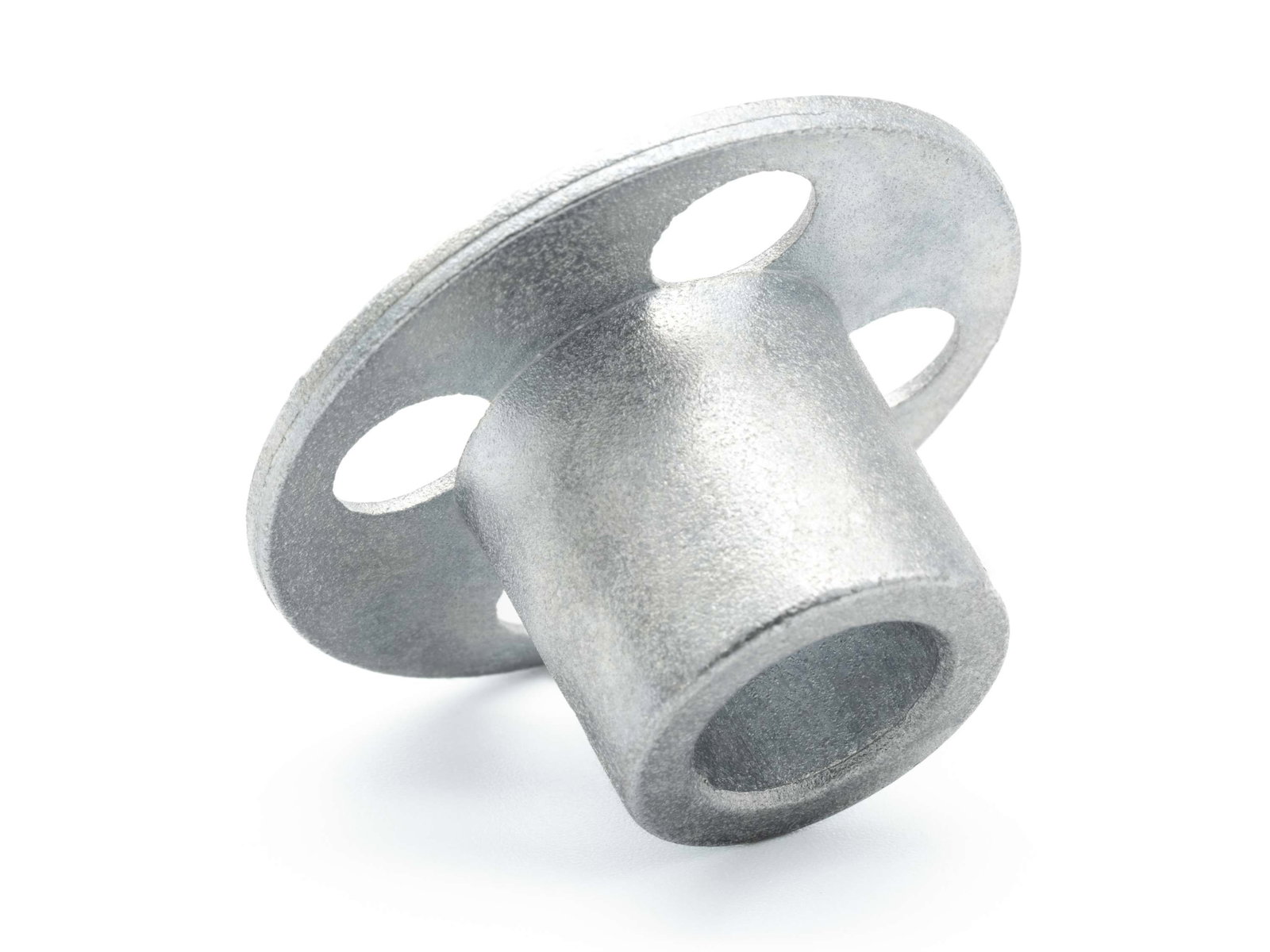

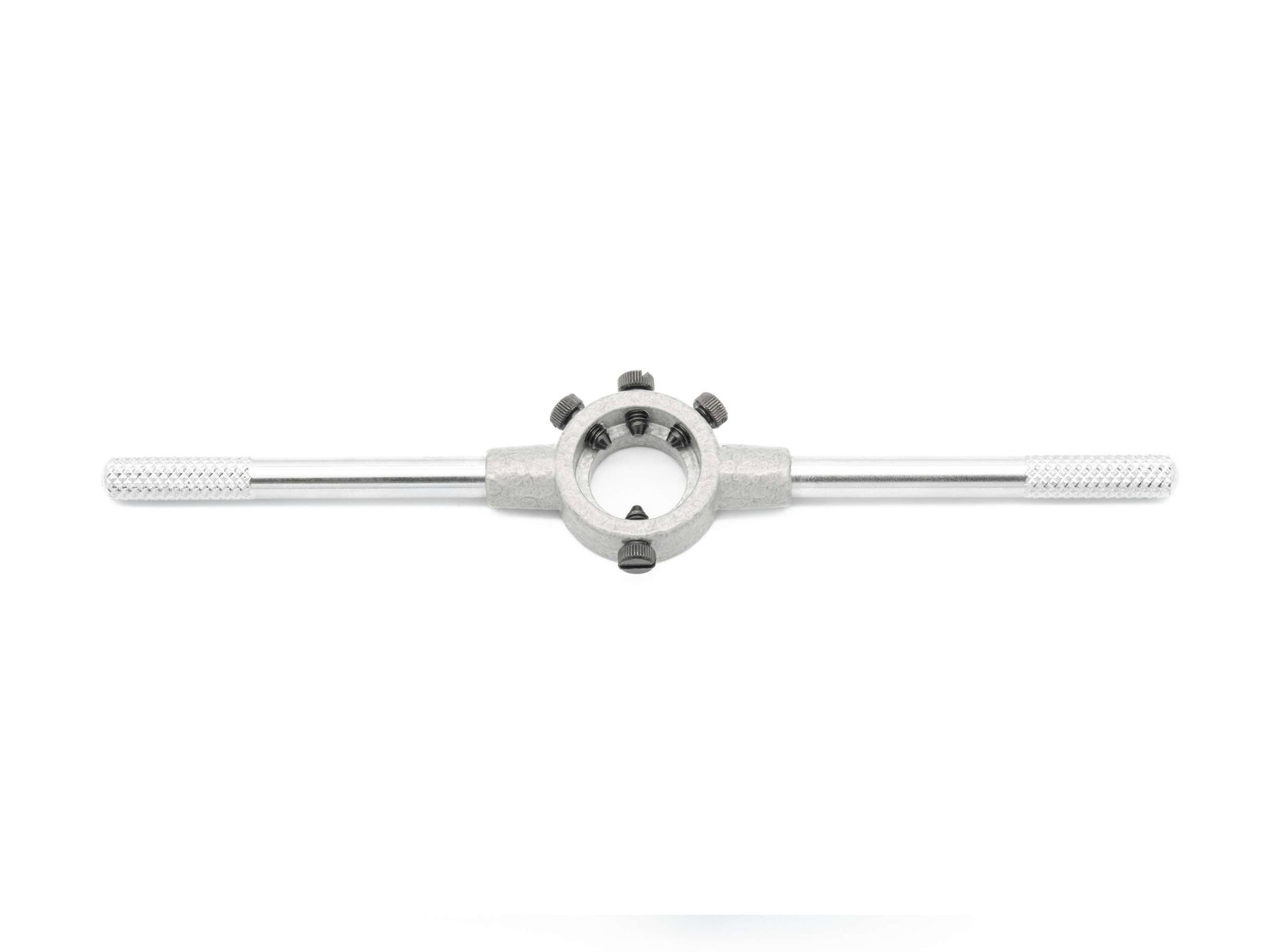

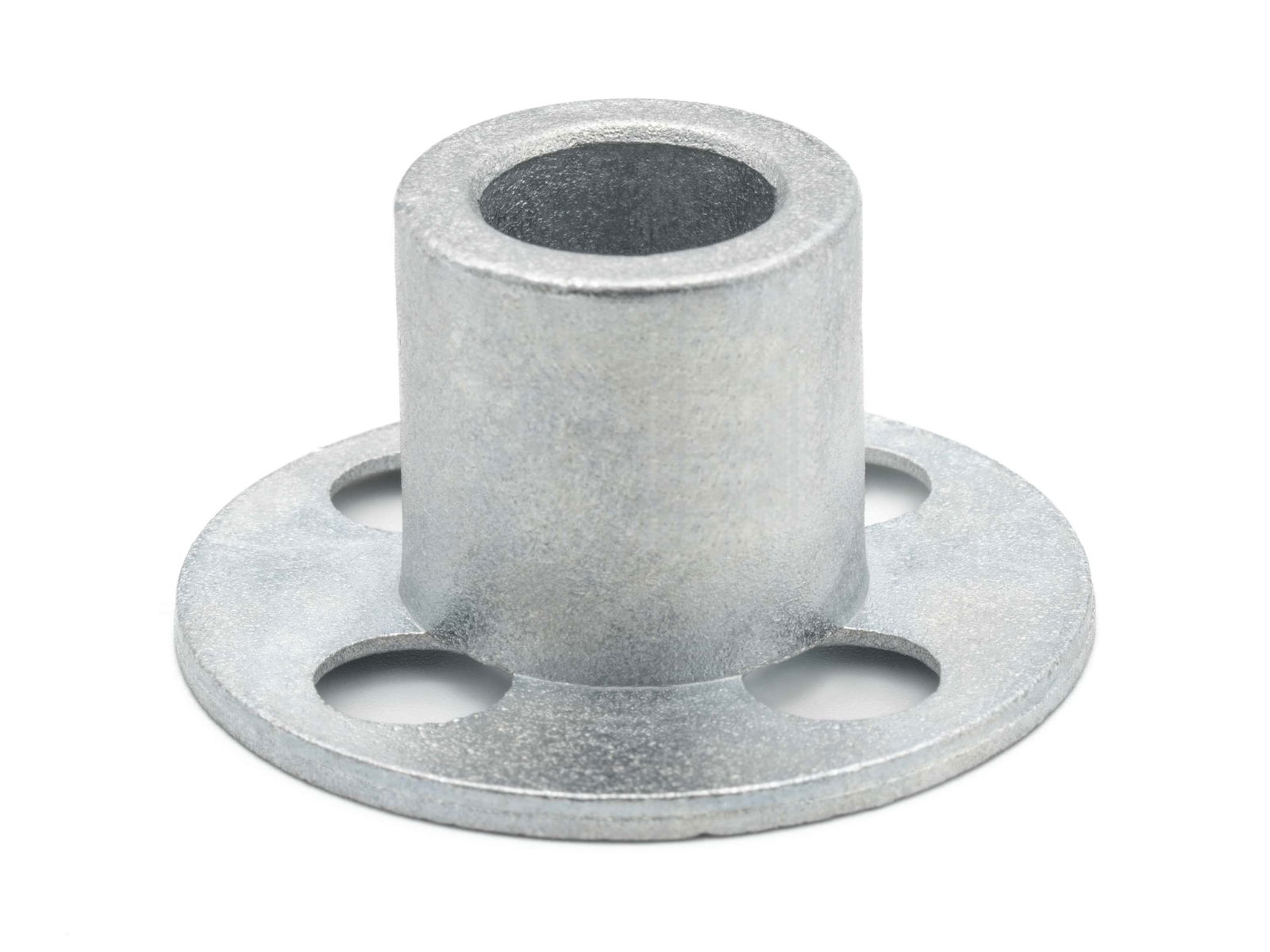

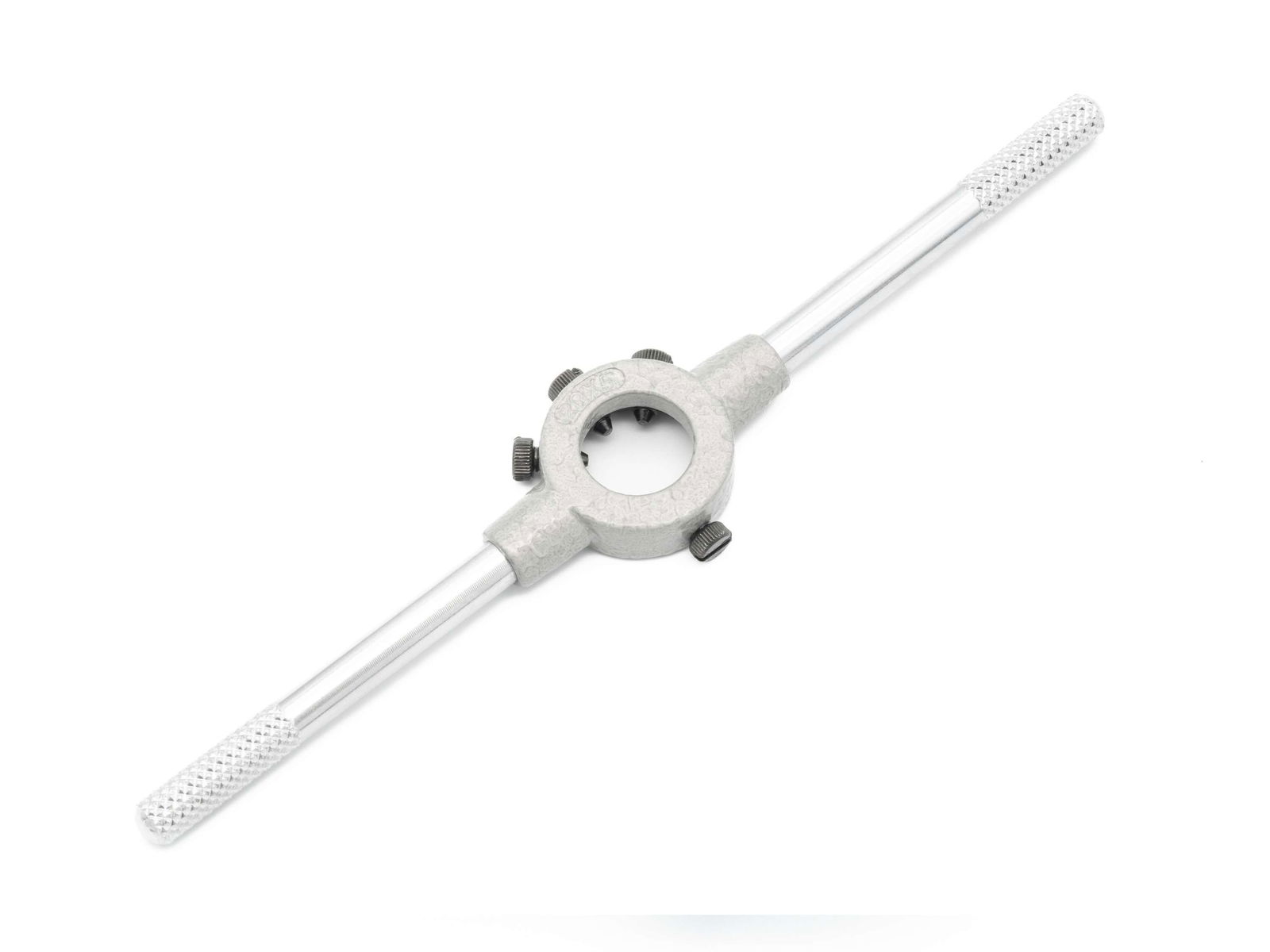

Our die stocks are made of zinc die casting. With the screws you fix the die in the matching holder and thus prevent it from twisting during use. In addition, the design allows the use of the included die guides. The die guides provide optimal guidance, iand reduce the risk of cutting a crooked thread. It is also easier to hold and turn the die. It is important that the holes of the guide overlap with the holes of the thread cutting die in order to ensure chip removal.
Die-cast die stocks DIN 22568
20 x 5 mm (M 3 - M 4) | 20 x 7 mm (M 5 - M 6) | 25 x 9 mm (M 8) | 30 x 11 mm (M 10) | 38 x 14 mm (M 12)
Die-cast die stocks DIN 22568
20 x 5 mm (M 3 - M 4) | 20 x 7 mm (M 5 - M 6) | 25 x 9 mm (M 8) | 30 x 11 mm (M 10) | 38 x 14 mm (M 12)
