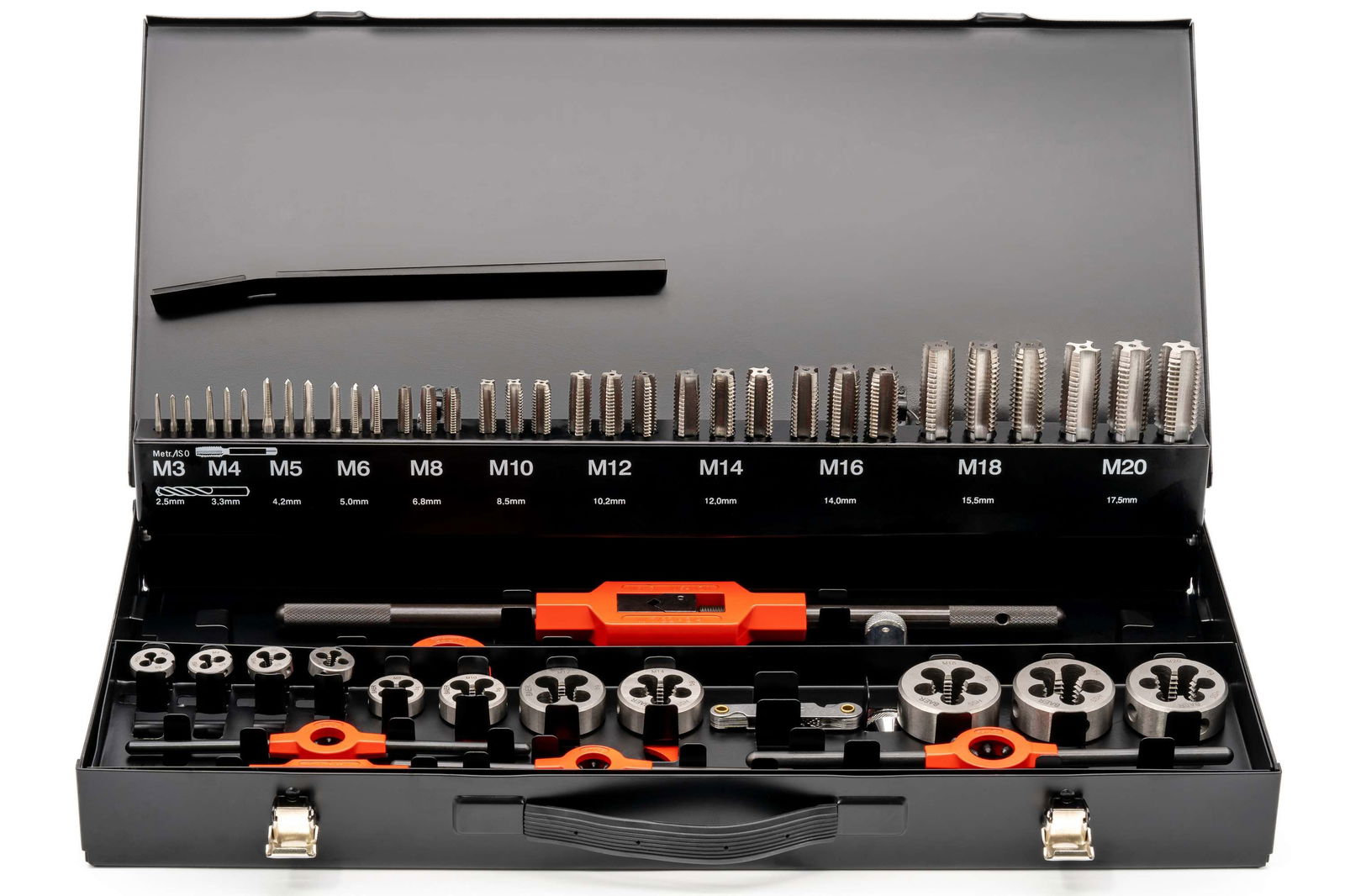

This tap set is a high quality and versatile set for all thread cutting needs. The metric taps from M3 to M20 allow you to cut internal and external threads even in difficult-to-machine materials such as stainless steels.
The set contains three-piece hand taps- sets made of ground cobalt alloyed HSSE steel (High Speed Steel), which ensures long durability, greater temperature resistance and high precision. Also included in the set are nitrided HSSE taps so you can cut any thread with ease.

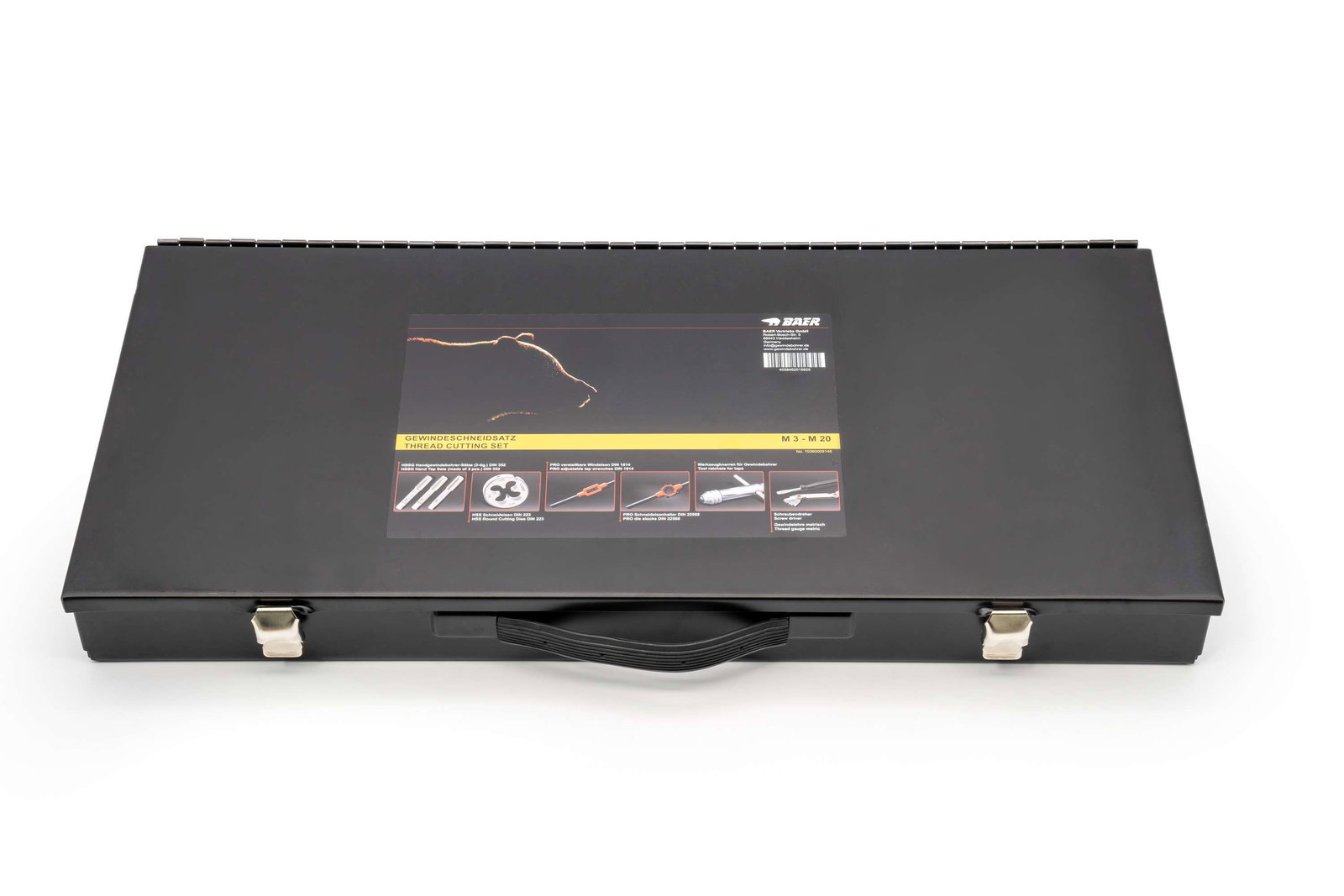

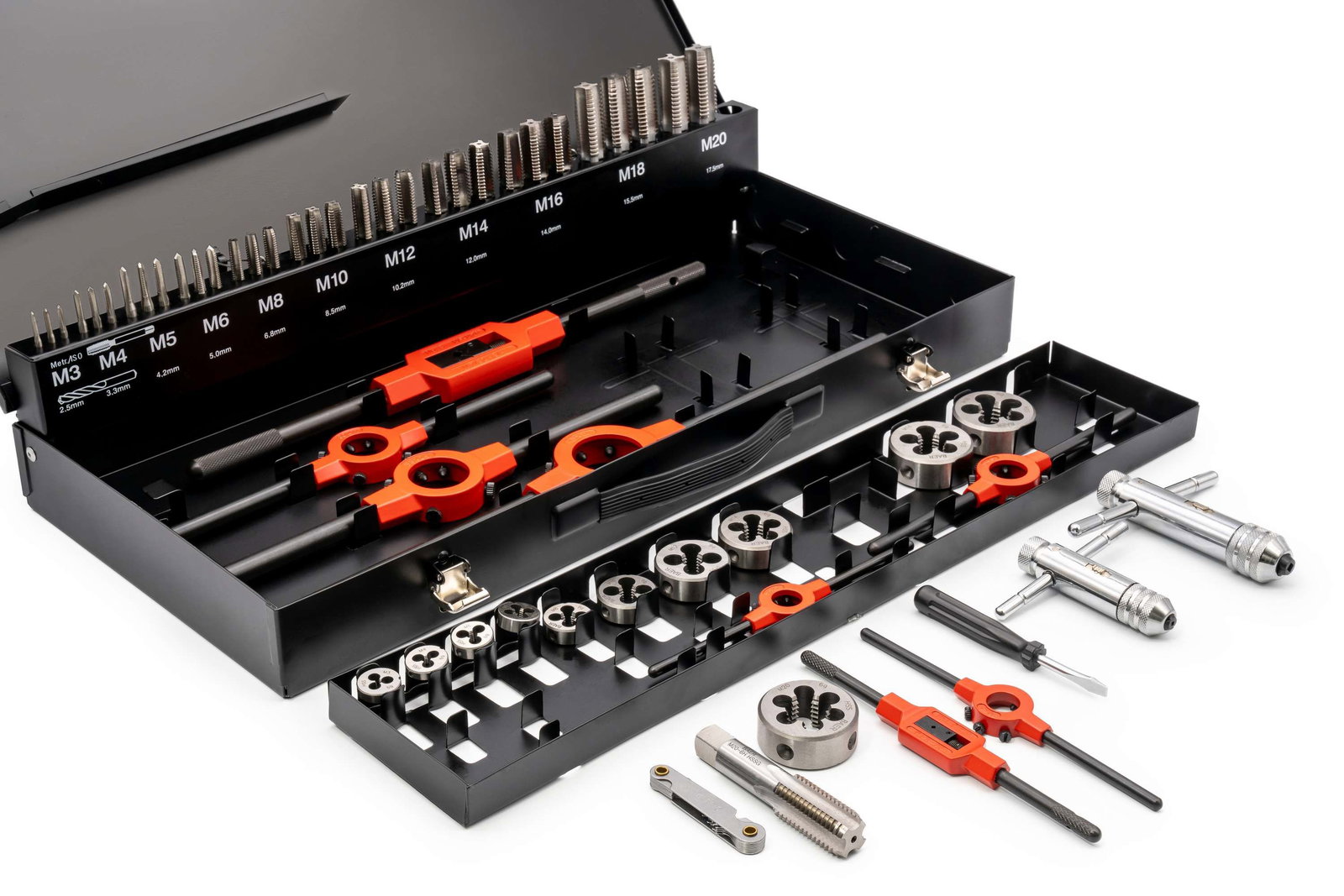

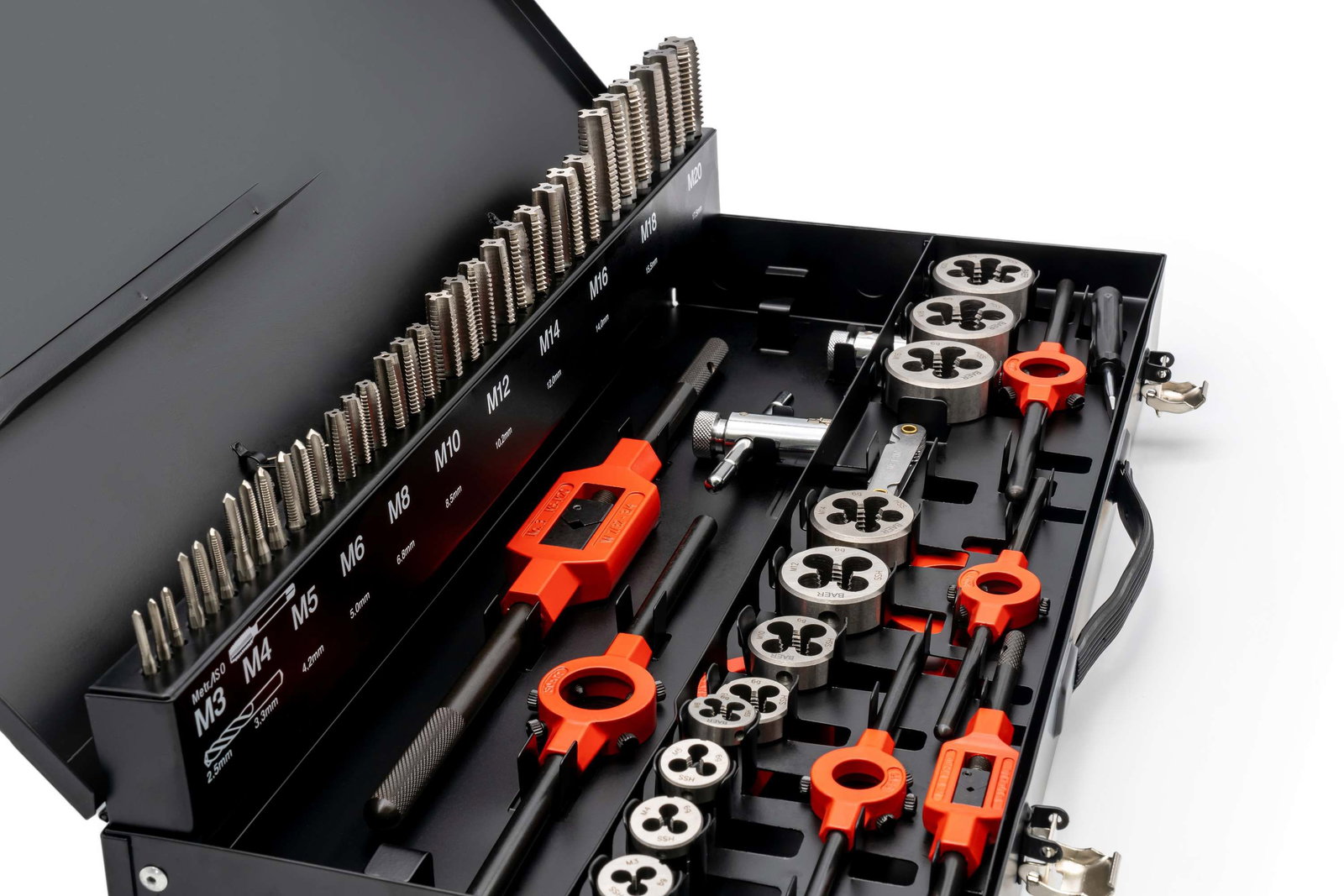

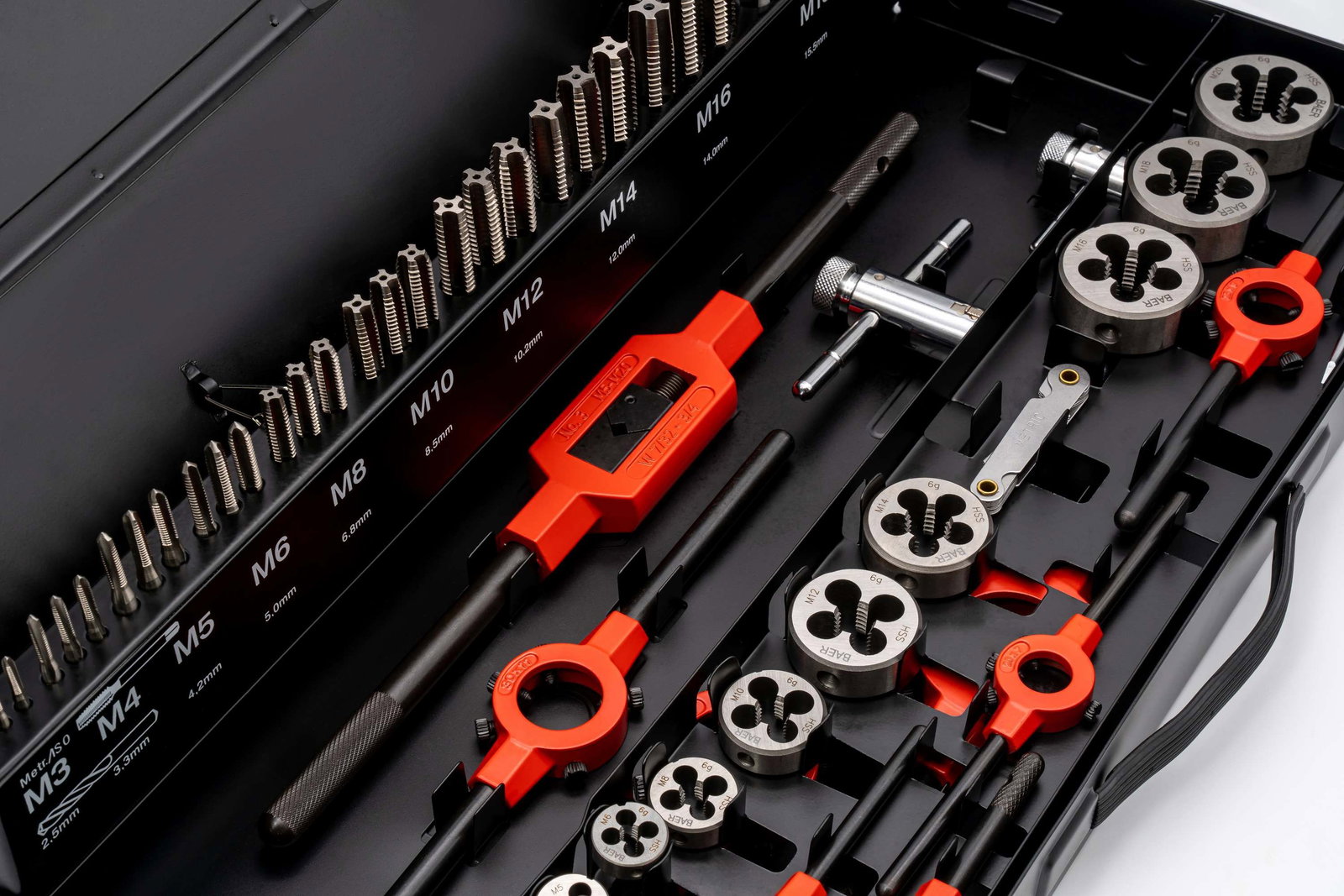

The thread cutting assortment is supplied in a sturdy metal case. The taps and accessories are secured in the box with their own holder.
The tools themselves are characterised by the highest quality. They are optimally processed and guarantee long durability as well as high precision at thread cutting. Whether you are a professional or a do-it-yourselfer, with this set you can cut any internal thread effortlessly.
In summary, this tap set offers an excellent solution for anyone who wants to cut threads. The combination of high quality tools and a sturdy metal case makes it an ideal choice for professionals and DIY enthusiasts alike. Invest in quality and experience the benefits of a professional tap set. A tap set that everyone needs in their workshop.
Dimensions
| Diameter |
3 - 20 |
|---|---|
| Dimension |
M 3 - 20 |
Characteristics
| Product group |
threading tool sets |
|---|---|
| Product type |
Threading tool sets |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Tensile strength at room temperature |
up to 900 N/mm² | 27.1 HRC |
| Material |
HSSE VAP |
Technical information – Screw taps
Through hole and blind hole up to 2 x D
Form C straight fluted
2-3 threads
see illustration
External cooling and lubrication
HSSE VAP
up to 900 N/mm² | 27.1 HRC
ISO2/6H
Technical information - Cutting dies
1,5
ISO-6g

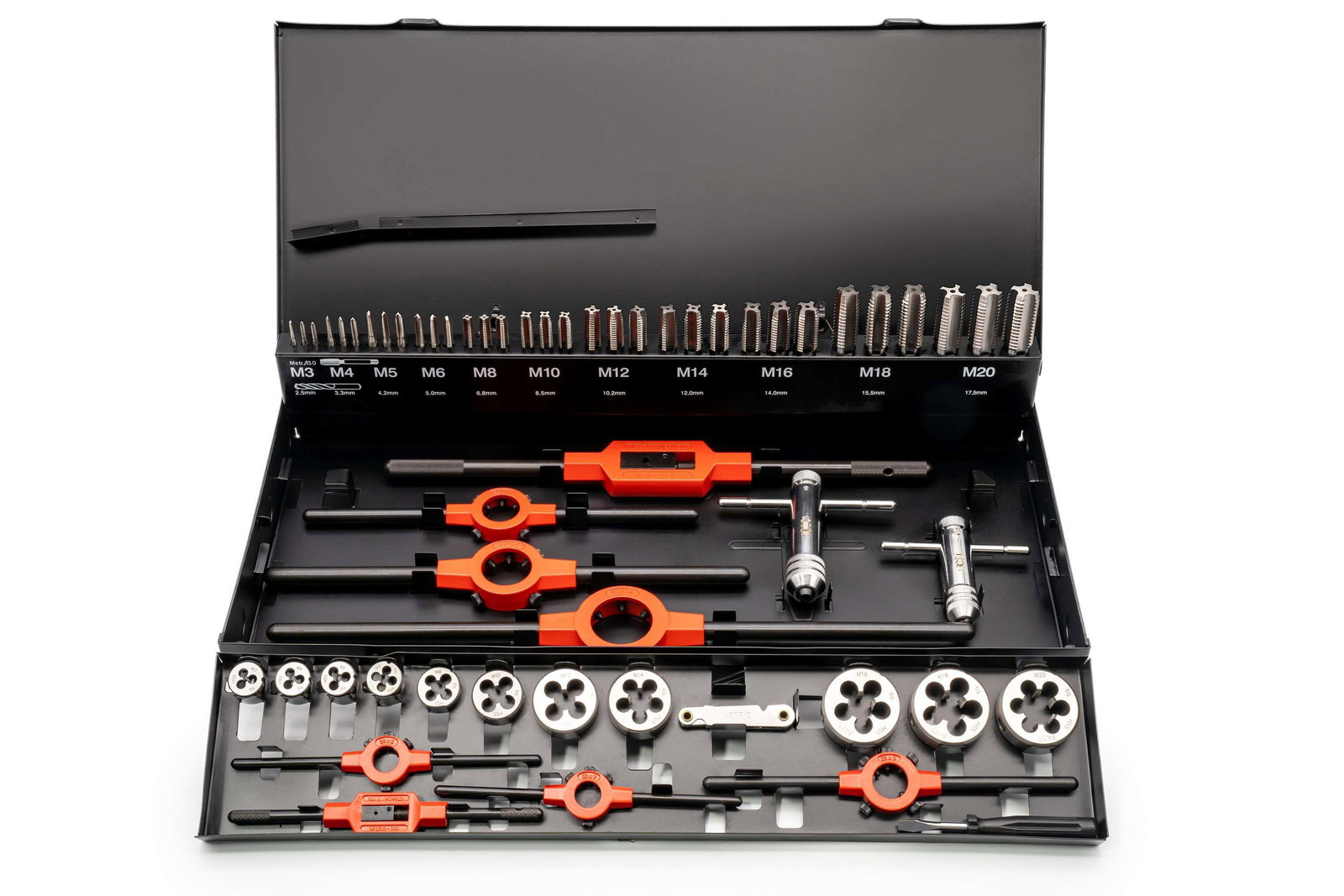

Set content
| BAER HSSE-VAP hand tap set, 3-piece for stainless steels | M 3 x 0,5 LH | M 4 x 0,7 LH | M 5 x 0,8 LH M 6 x 1,0 LH | M 8 x 1,25 LH | M 10 x 1,5 LH M 12 x 1,75 LH | M 14 x 2,0 LH | M 16 x 2,0 LH M 18 x 2,5 LH | M 20 x 2,5 LH |
|---|---|
| BAER HSSE round threading dies for stainless steels | M 3 x 0,5 LH | M 4 x 0,7 LH | M 5 x 0,8 LH M 6 x 1,0 LH | M 8 x 1,25 LH | M 10 x 1,5 LH M 12 x 1,75 LH | M 14 x 2,0 LH | M 16 x 2,0 LH M 18 x 2,5 LH | M 20 x 2,5 LH |
| BAER adjustable die-cast tap wrench | No. 1: M 1-10 | 1/16-3/8 | G 1/8 No. 3: M 5-20 | 7/32-3/4" | G 1/8-G 1/2 |
| BAER round die holder (diameter x height in mm) | 20 x 5 | 20 x 7 | 25 x 9 | 30 x 11 38 x 14 | 45 x 18 |
| BAER short tool holder with ratchet | M 3-10 M 5-12 |
Applications
- Rust / acid resistant steels
- Case-hardening steels
- Unalloyed heat-treatable steels
- Pure titanium
- Alloyed heat-treatable steels
- wear-resistant steels up to 1400 N/mm²
- high alloy steels
Application – Sample materials for taps
| Rost- / Säurebeständige Stähle | |
|---|---|
| 1.4105 | X 6 CrMo S 17 |
| 1.4305 | X 8 CrNi S 18-9 |
| 1.4301 | X 5 CrNi 18-10 |
| 1.4541 | X 6 CrNiTi 18-10 |
| Rost- / Säurebeständige Stähle | |
|---|---|
| 1.4057 | X 17 CrNi 16-2 |
| 1.4112 | X90 CrMoV 18 |
| 1.4006 | X 12 Cr 13 |
| Case-hardening steels | |
|---|---|
| 1.0401 | (C15) |
| 1.7016 | 17 CR3 |
| 1.7131 | 16MnCr5 |
| 1.5919 | 15CrNi6 |
| Quenched and tempered steels unalloyed | |
|---|---|
| 1.0402 | C 22 |
| 1.1151 | C22E (Ck 22) |
| 1.0503 | C 45 |
| 1.1191 | C45E (Ck 45) |
| Pure titanium | |
|---|---|
| 3.7035 | Ti 99.4 / Ti Gr.2 |
| 3.7065 | Ti 99.2 / Ti Gr.4 |
| Vergütungsstähle legiert | |
|---|---|
| 1.1133 | 20Mn5 |
| 1.5710 | 36NiCr6 |
Further information
- M - Metric ISO thread DIN 13
- Information about tapping
- Designations, geometries and definitions on taps
- Thread tolerances of the internal thread
- Internal thread and core hole dimensions
- Tap Chamfer forms
- Surface treatments on tapping tools
- Cutting speeds, lubrication and cooling for taps
- Thread tolerances of external threads
- Bolt pre-machining diameter
Safety instructions
ULTRA-VA hand taps - nothing goes wrong even in stainless steel
#unbreakable
The taper tap (No. 1) with guide nose of the 3-part hand tap sets are a real speciality. They ensure that perpendicular threads are always cut, even in the trickiest places. Crooked thread cutting is one of the most common causes of tool breakage. With these sets, that no longer happens. The geometries and surface of the screw tap are designed for cutting stainless steel. The advantage of multi-part hand taps is that the respective parts of a set share the cutting power: The taper tap (No. 1) takes 65 per cent of the thread profile, the intermediate Tap (No. 2) 85 per cent and the finishing tap (No. 3) 100 per cent. This makes it easier to cut a straight and clean thread by hand.
Ultra HSSE-VAP hand tap- sets (3-piece) DIN 352 for stainless steel - taper tap (No. 1) with guide tang
M 3 x 0.5 | M 4 x 0.7 | M 5 x 0.8 | M 6 x 1.0 | M 8 x 1.25 | M 10 x 1.5 | M 12 x 1.75 | M 14 x 2.0 | M 16 x 2.0 | M 18 x 2.5 | M 20 x 2.5
HSSE-NT dies - for perfect external threads
#runs round
These high-performance dies are made of cobalt alloyed high speed steel HSSE. The dies provide improved chip removal with their spiral point (spiral entry) and are lapped to smooth the cutting edges and reduce thread friction. The surface hardness is additionally increased by nitriding (1100-1200 HV). The geometry of this cutting tool is specially designed for machining stainless steels. The holes between the cutting edges take up the chips, roll them and carry them away. The cutting iron has outer and inner teeth. The flattened outer teeth make it easier to cut, reduce wear and thus increase the tool life time. Each tooth takes a chip of the same width with it when cutting. The inner teeth have no cutting function: in the cut part of the thread they serve as straight guides. The symmetrical design allows cutting in both axial directions.
HSSE-NT thread cutting dies DIN 223 for stainless steel
M 3 x 0.5 | M 4 x 0.7 | M 5 x 0.8 | M 6 x 1.0 | M 8 x 1.25 | M 10 x 1.5 | M 12 x 1.75 | M 14 x 2.0 | M 16 x 2.0 | M 18 x 2.5 | M 20 x 2.5
PRO adjustable tap wrench - custom-fit holding tools for screw tap
#fits like a glove

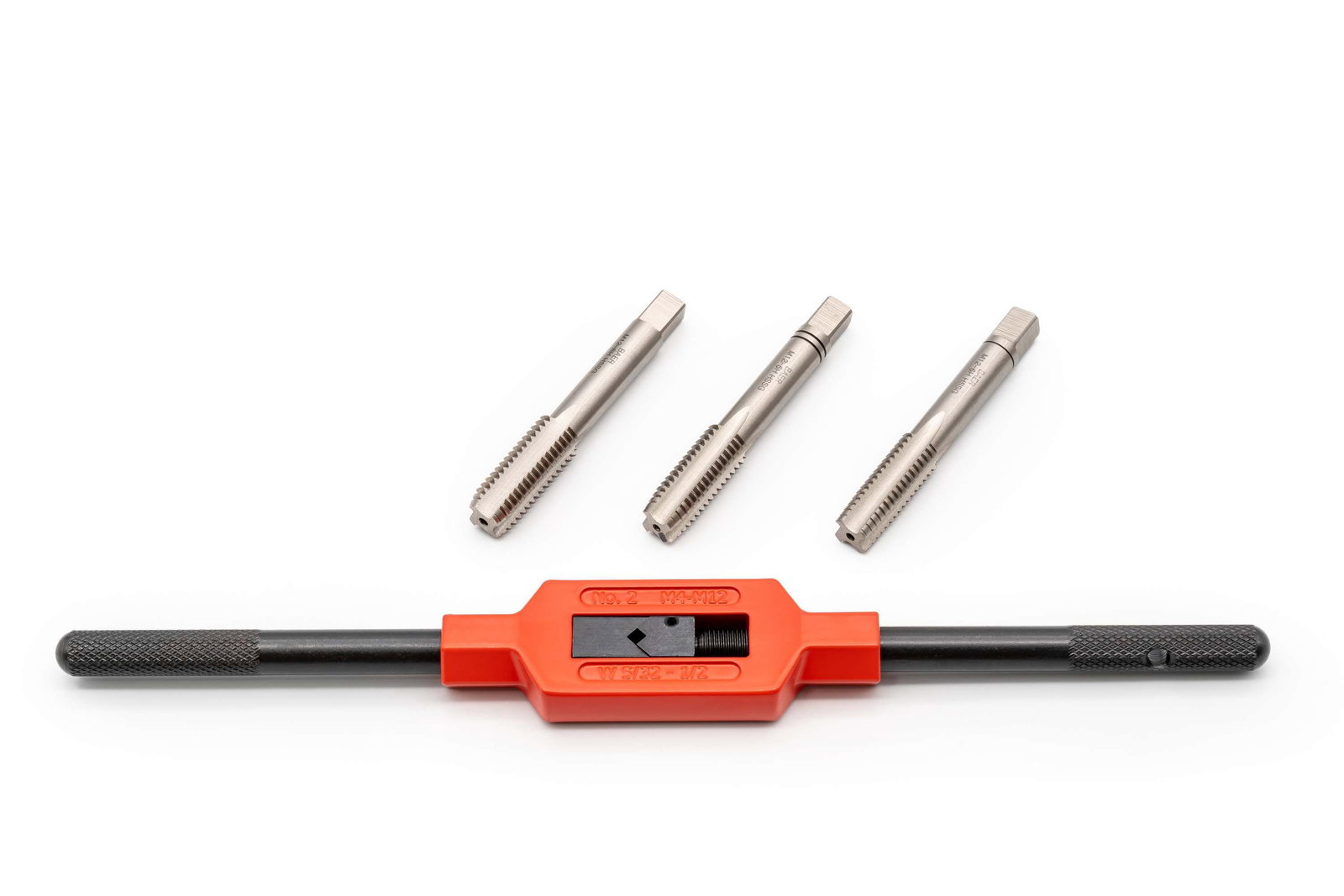

The PRO adjustable tap wrench is an actuating tool for screw tap made from a high-end zinc die casting body, with which internal thread can be cut by hand. The outstanding quality of the tap wrench is not only in the material, but also in the premium clamping jaws, the handles and the geometry, which make the tool extremely stable and very precise to use. The long levers on the right and left help to cut plumb into the hole and easily apply the required torque. Another advantage is the easy handling and the short changing times. A lever can be turned off on one side to be able to work in hard-to-reach situations.
PRO adjustable tap wrenches DIN 18140
No. 1: M 1 - M 10 | 1/16-3/8 | NPT 1/8
No. 3: M 5 - M 20 | 7/32-3/4" | NPT 1/8-1/2
PRO die stock with die guides - it doesn't get any better than this
#tool perfectionists

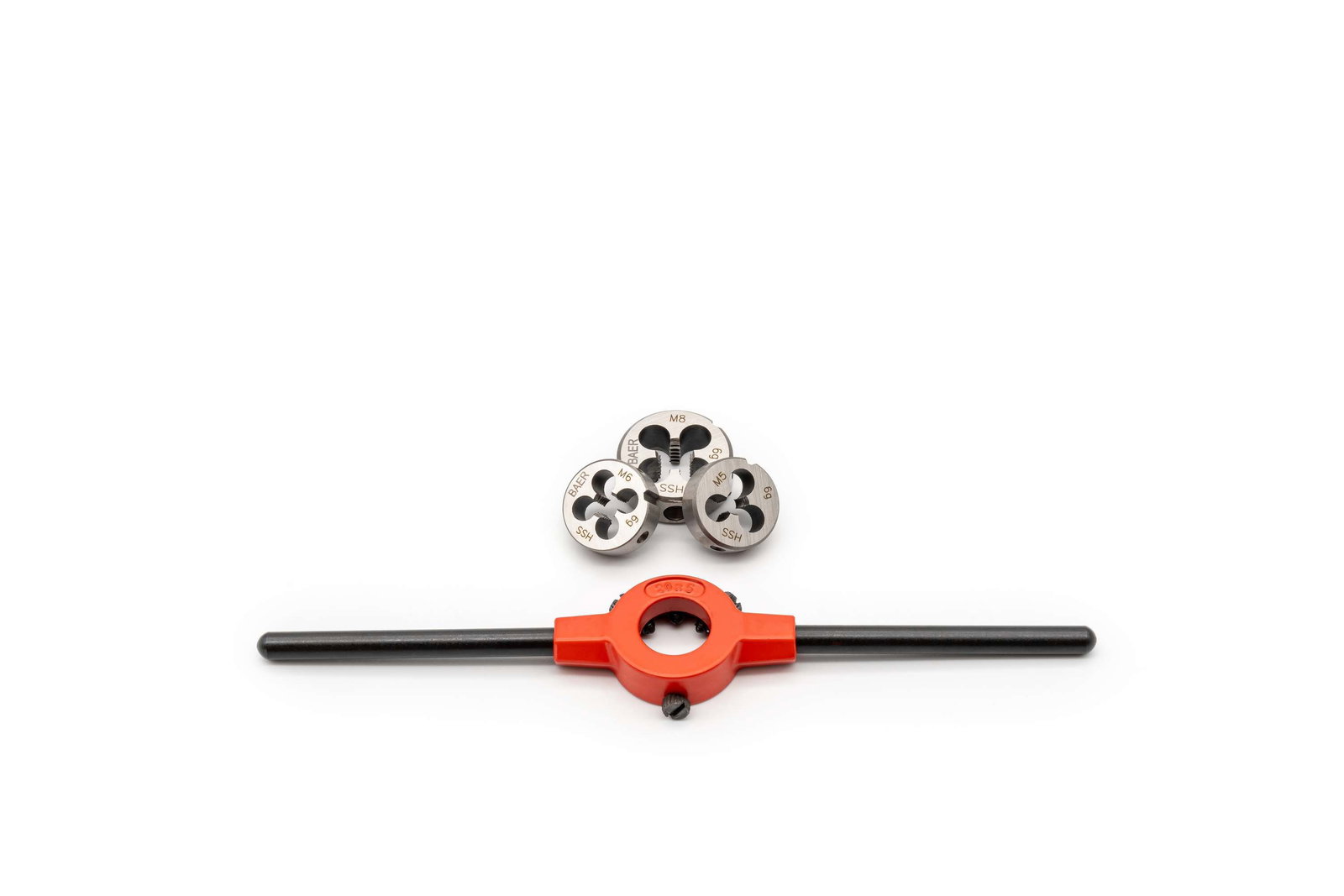

Our PRO die stocks are made of high-end zinc die casting. They have a very stable design and are therefore very resilient, wear-resistant and accurate. With screws you fix the die in a suitable holder and thus prevent it from twisting during use. In addition, the design allows the use of the included die guides. The PRO die guides are made of free-cutting steel with an oxidised surface. This makes them a better fit, more stable and more durable than ever before. They provide optimum guidance for cutting a plumb external thread. When using them, it is important that the holes in the guide overlap with the holes in the die to ensure chip removal.
PRO die stocks DIN 22568
20 x 5 mm | 20 x 7 mm | 25 x 9 mm | 30 x 11 mm | 38 x 14 mm | 45 x 18 mm
Tool ratchets - thread cutting with ratchet
#as in no time at all

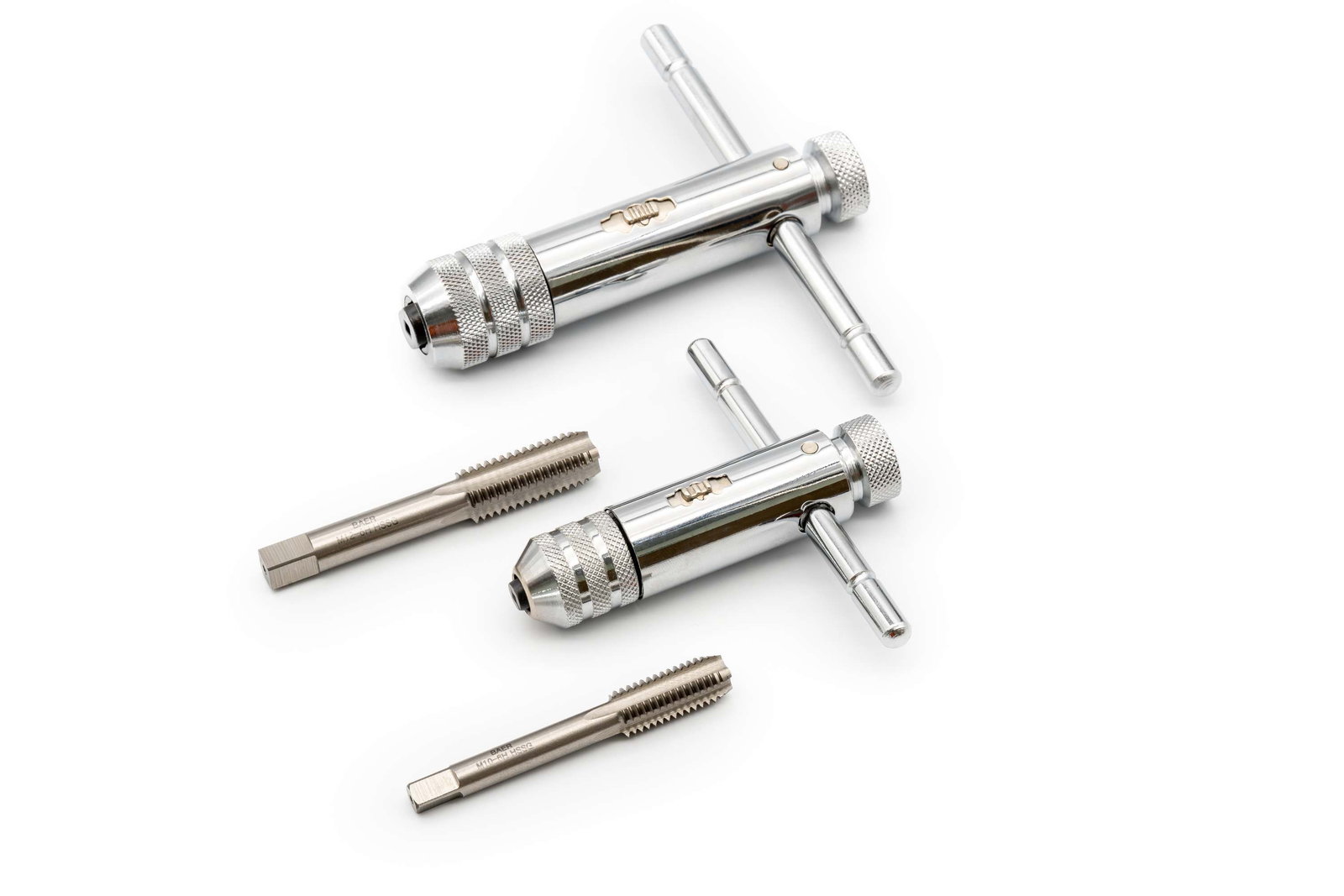

We offer you the operating tool with ratchet in proven BAER quality. To clamp the screw tap, the chuck can be easily turned open and closed. With the lever you can set the chuck to clockwise or anti-clockwise rotation. The ratchet function of the tool ratchet is particularly practical when you need to cut the thread in tight situations. Tapping is a breeze with it.
Tool ratchets with ratchet function for screw tap
No. 1: M 1 - M 10
No. 2: M 4 - M 12
Accessories - like a car without a radio
#toollove
Who would want to do without valuable accessories? A tool lover certainly not. With the perfect accessories, this threading set becomes what it is: a masterpiece and all-rounder for tool lovers. If you try it once, you will never want to work with anything else again. With the thread template, you can determine the pitch of an existing external thread (e.g. a screw) and then cut a suitable internal thread with the correct screw tap. The included screwdriver can be used to tighten and loosen the screws of the die guides. Everything you need in one place, immediately to hand, clearly sorted in an environmentally friendly box.
