BAER Set HSSE STAINLESS STEEL: Round Dies | Die Stocks | Guides: M 3 - 12
BAER Set HSSE STAINLESS STEEL: Round Dies | Die Stocks | Guides: M 3 - 12
This tap set is a high quality set for all external thread cutting needs. The metric taps from M3 to M12 allow external threads to be cut even in materials that are difficult to machine, such as stainless steels.
The set contains nitrided dies made of cobalt alloyed HSSE steel (High Speed Steel), which ensures long durability and high precision when cutting threads. The thread cutting assortment is supplied in a sturdy metal case. The dies are fixed in the box with their own recess.
The tools themselves are characterised by the highest quality. They are optimally processed and guarantee long durability as well as high precision at thread cutting. The die holder and die guides complete the set and you always have everything ready to hand from a high-quality metal box. And all this at an unbeatable price-performance ratio in well-known BAER quality. At BAER you buy this set ex works in tested BAER industrial quality. Especially when it comes to tools, it is always worth spending a few euros more. The set is suitable for the following materials: for tempering and case-hardening steels up to 1200 N/mm², as well as stainless and acid-resistant steels, heat-resistant structural steels and malleable cast iron.
Whether you are a professional or a do-it-yourselfer, with this set you can cut your external thread effortlessly. Invest in quality and experience the benefits of a professional tap. A tap set that no workshop should be without.
Dimensions
| Diameter |
3 - 12 |
|---|---|
| Dimension |
M 3 - 12 |
Characteristics
| Product group |
threading tool sets |
|---|---|
| Product type |
Threading tool sets |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Direction |
Right |
Technical information - Cutting dies
1,5
ISO-6g

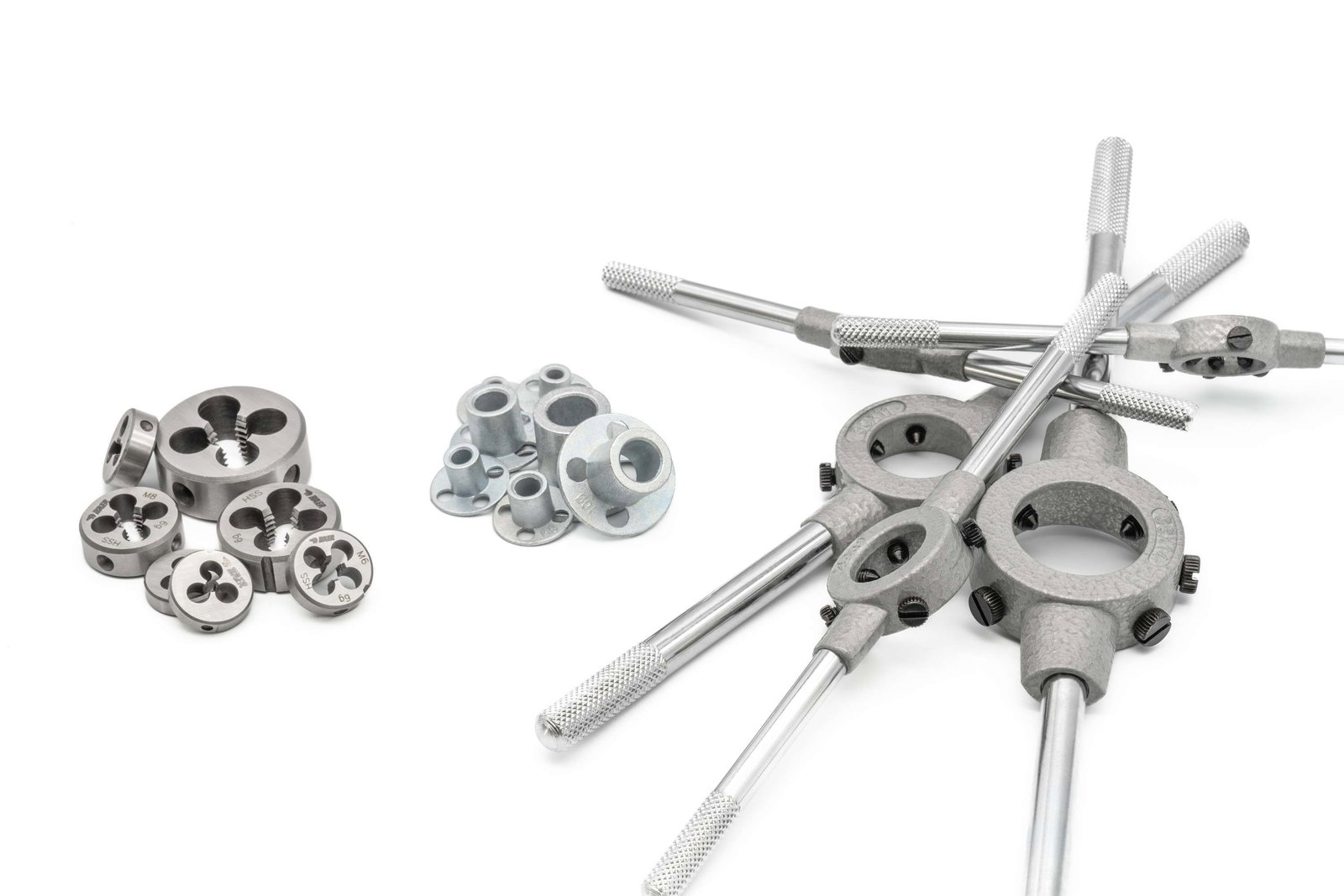

Set content
| BAER HSSE round threading dies for stainless steel | M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8 M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5 M 12 x 1,75 |
|---|---|
| BAER round die holder (diameter x height in mm) | 20 x 5 | 20 x 7 | 25 x 9 30 x 11 | 38 x 14 |
| BAER round die guide | M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8 M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5 M 12 x 1,75 |
Applications
- Rust / acid resistant steels
- Case-hardening steels
- Unalloyed heat-treatable steels
- Pure titanium
- Alloyed heat-treatable steels
- wear-resistant steels up to 1400 N/mm²
- high alloy steels
HSSE-NT thread cutting dies - for perfect external threads
#runs round

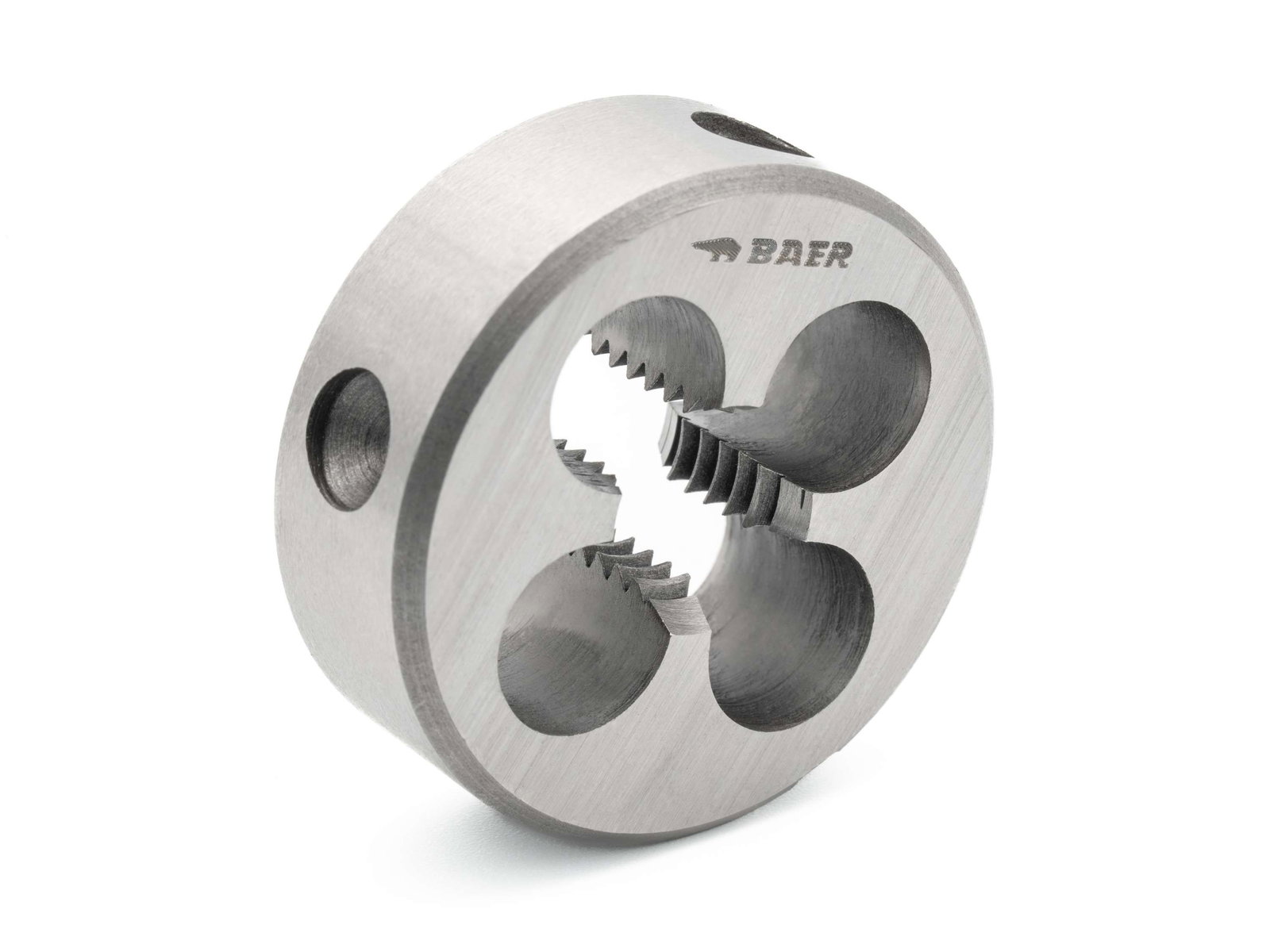

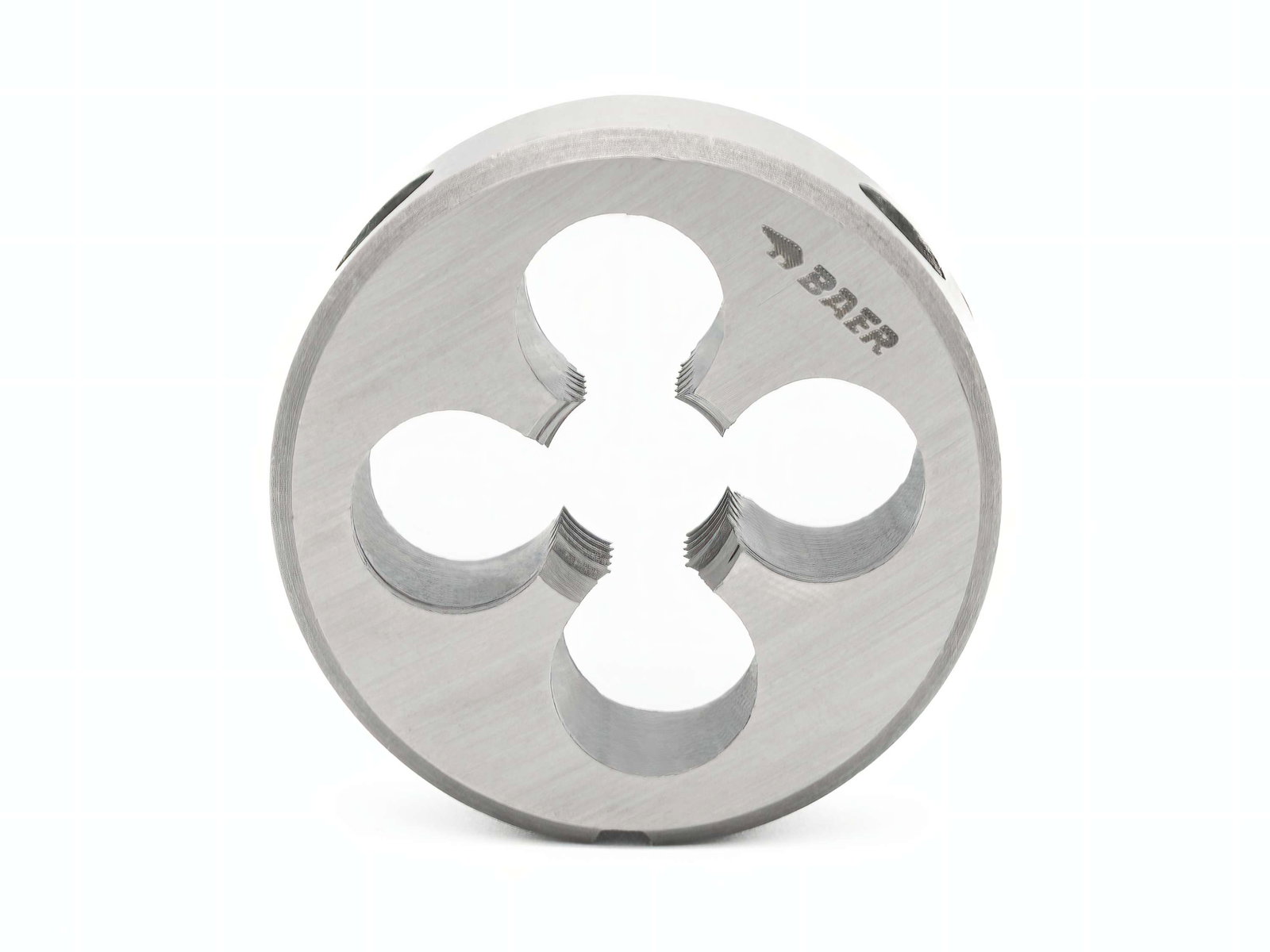

The thread cutting die is a reliable and durable tool that helps you produce precise external threads in one operation. It is equipped with four holes and a V-groove that secure the die in matching die stocks and holders. This allows you to handle the die safely and comfortably. The BAER round thread cutting die is also perfect for use in a tailstock or chuck of a drill press. Dies are tools used for cutting screws, nuts and threaded rods in everyday life. The die stock is used to cut the threads by hand and with the special die holders you can also attach the round thread cutting die to a tailstock or drill press. The thread cutting dies can usually be used on both sides and have a perfect cut. The thread cutting die is made of the high-quality high-speed steel HSSE. HSSE is more heat-resistant, more wear-resistant and has a slightly higher hardness than HSS steel. The round thread cutting die is therefore more durable and can also be used for demanding tasks. The improved surface finish, the spiral point (spiral entry) and the basic material HSSE give you the necessary strength for working with difficult-to-cut materials and stainless steels. The round thread cutting die also has a special cutting edge geometry so that it can be used in metalworking for stainless and acid-resistant steels, stainless steels, INOX, case-hardening steels, heat-resistant structural steels and malleable cast iron, among other things. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.
HSSE-NT round thread cutting dies DIN 223 for stainless steel
M 3 x 0.5 | M 4 x 0.7 | M 5 x 0.8 | M 6 x 1.0 | M 8 x 1.25 |M 10 x 1.5 | M 12 x 1.75
Die stocks with die guides - it couldn't be easier
##TappingEasyMade

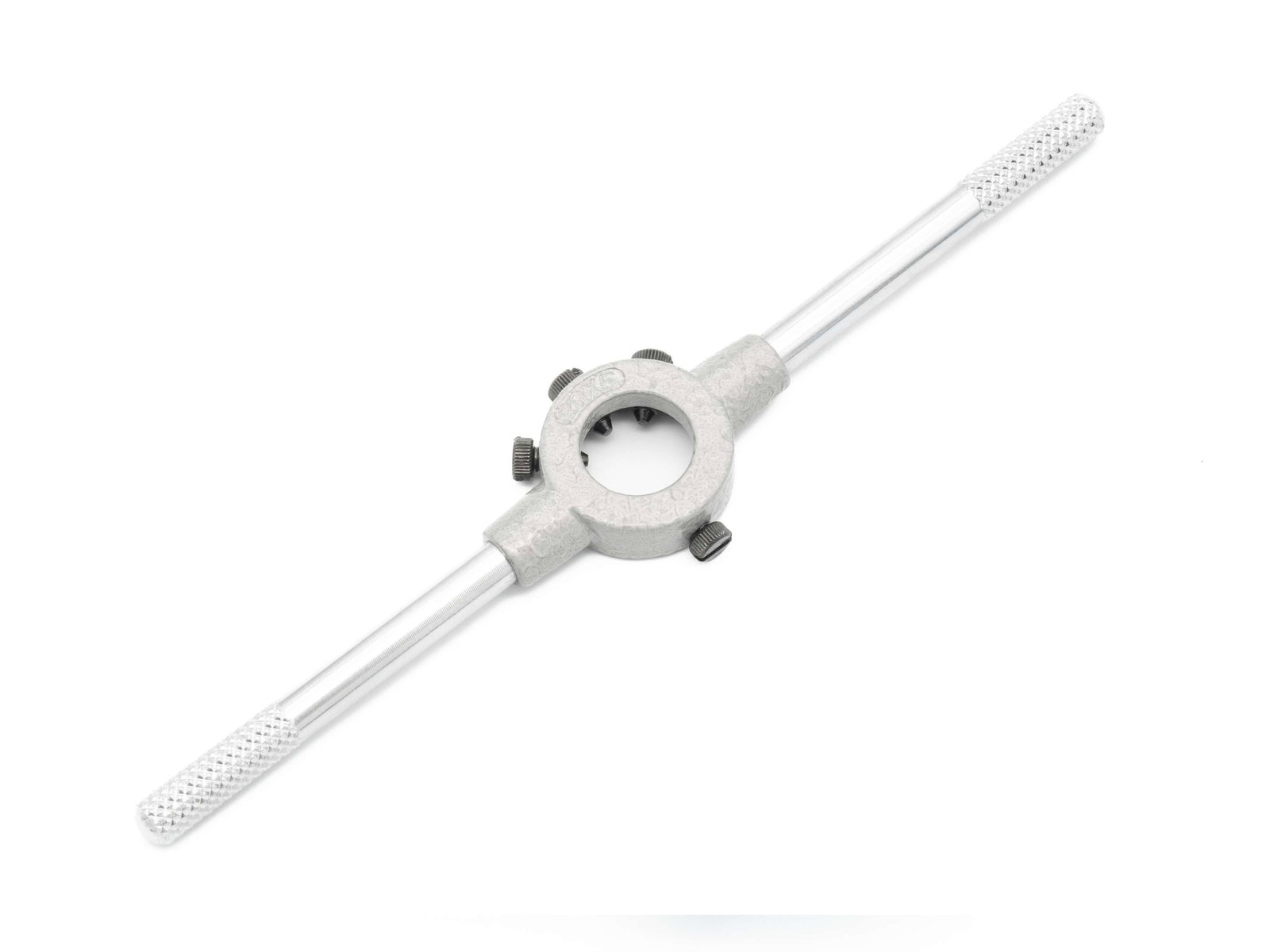

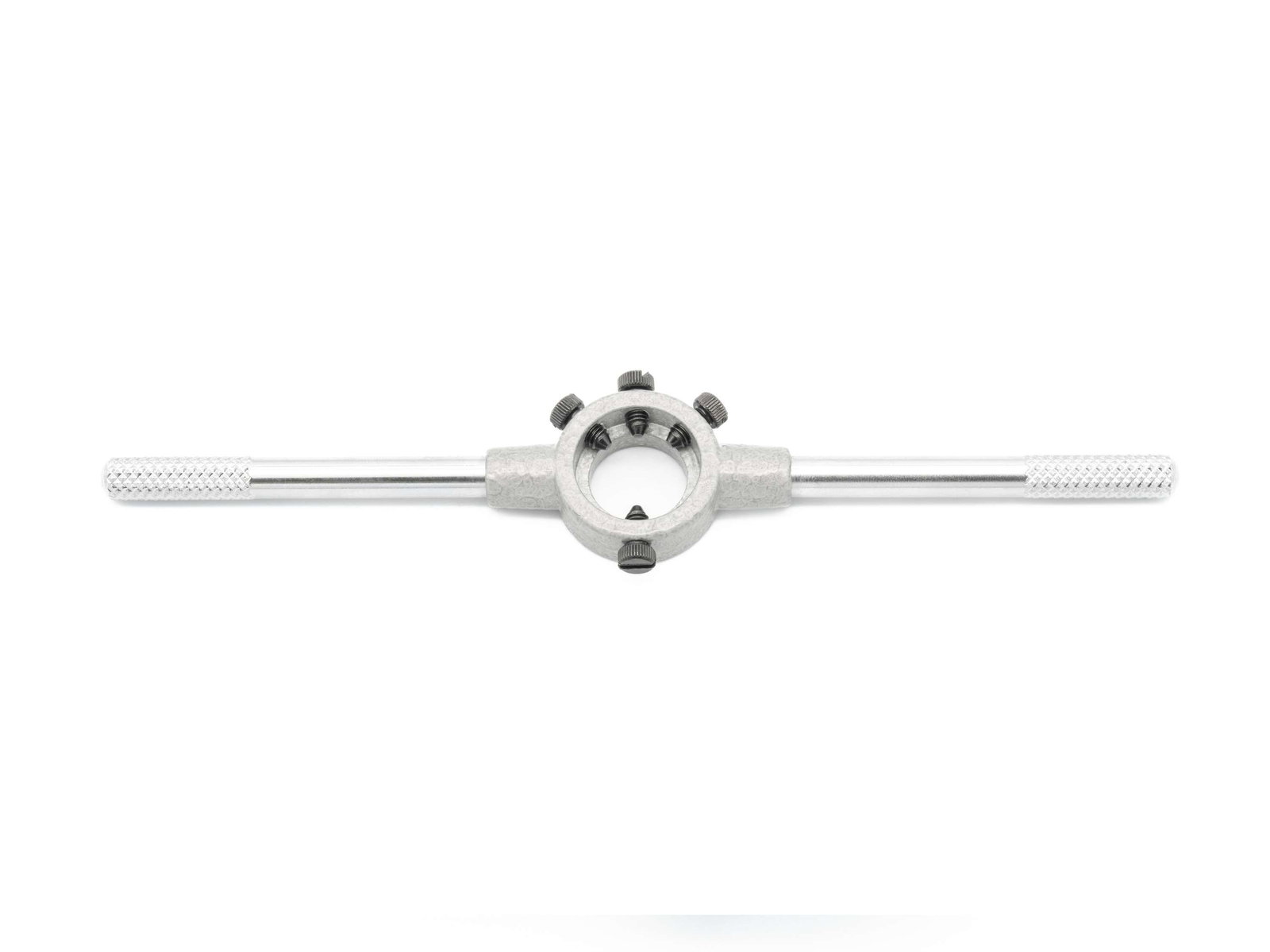

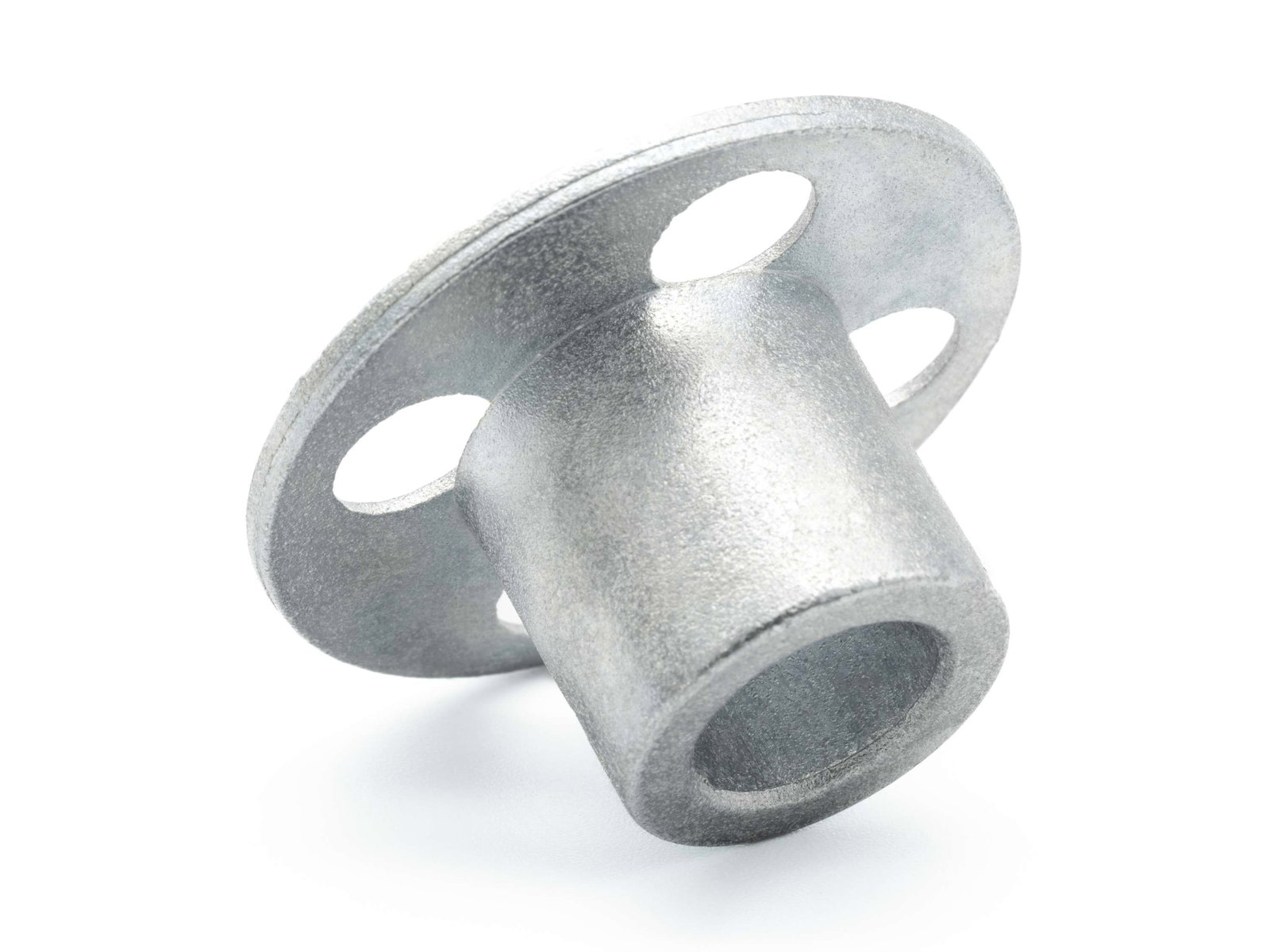

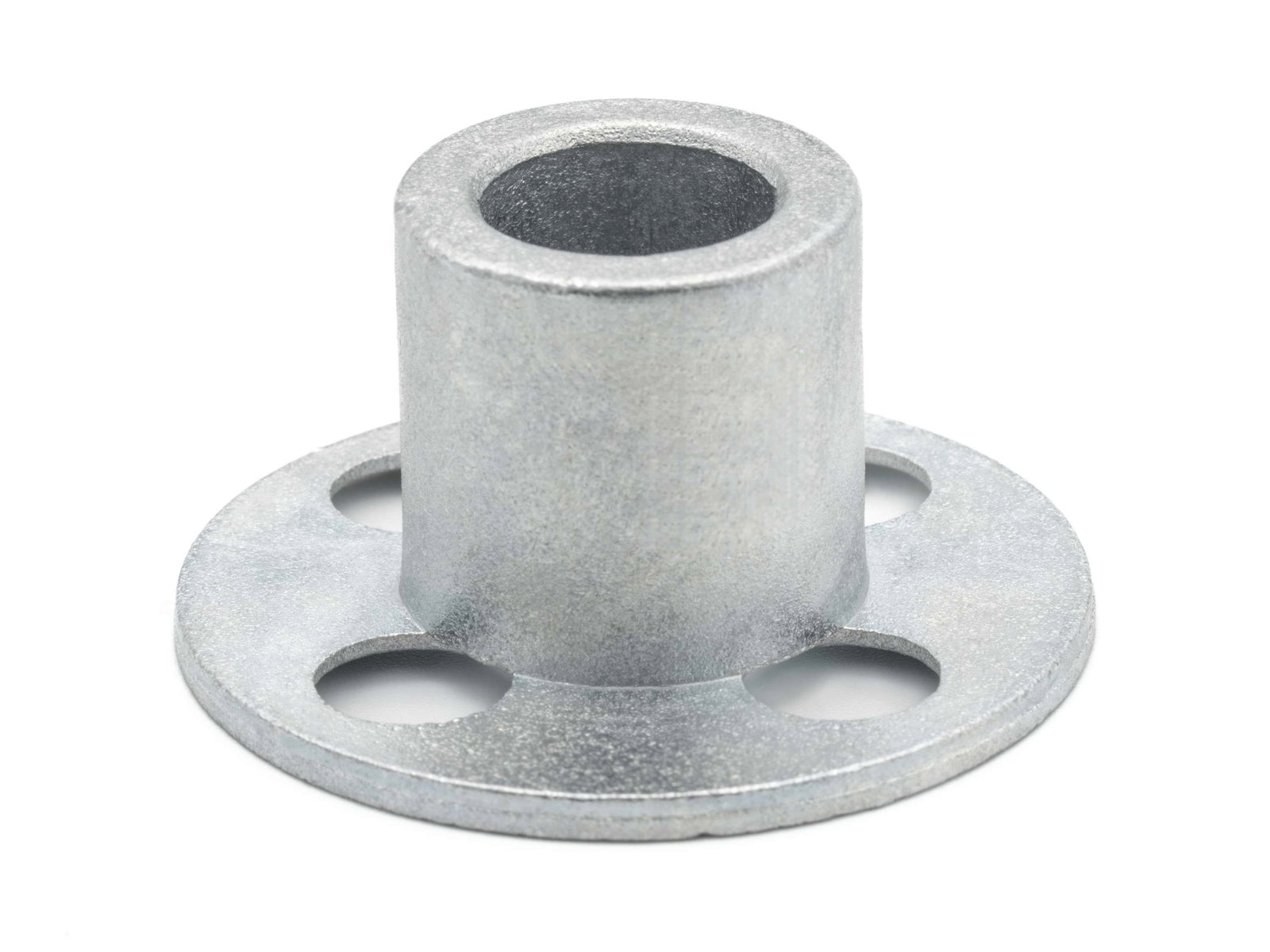

Our die stocks are made of zinc die casting. With the screws you fix the die in the matching holder and thus prevent it from twisting during use. In addition, the design allows the use of the included die guides. The die guides provide optimal guidance, iand reduce the risk of cutting a crooked thread. It is also easier to hold and turn the die. It is important that the holes of the guide overlap with the holes of the thread cutting die in order to ensure chip removal.
Die-cast die stocks DIN 22568
20 x 5 mm (M 3 - M 4) | 20 x 7 mm (M 5 - M 6) | 25 x 9 mm (M 8) | 30 x 11 mm (M 10) | 38 x 14 mm (M 12)
Die-cast die stocks DIN 22568
20 x 5 mm (M 3 - M 4) | 20 x 7 mm (M 5 - M 6) | 25 x 9 mm (M 8) | 30 x 11 mm (M 10) | 38 x 14 mm (M 12)
