BAER Set HSSG: Machine Taps blind holes | drill bits: M 3 - 12
BAER Set HSSG: Machine Taps blind holes | drill bits: M 3 - 12
This tap set is a high quality and versatile set for all thread cutting needs. The metric taps from M3 to M12 enable the cutting of internal threads.
The set includes core drill bit and machine taps for blind holes made of ground HSS steel (High Speed Steel), which ensures long durability and high precision. Machine taps are used for machine applications and are a commonly used tool in industrial manufacturing to produce internal thread.
The thread cutting assortment is supplied in a sturdy plastic box. The compartments for the taps provide a secure hold and transport protection and at the same time all the tools are clearly within reach.
The tools themselves are characterised by the highest quality. They are optimally processed and guarantee long durability as well as high precision at thread cutting. In summary, this tap set offers an excellent solution for anyone who wants to cut threads. The combination of high-quality tools and a sturdy plastic box makes it an optimal choice for professionals and DIY enthusiasts alike. Invest in quality and experience the benefits of a professional tap set. A tap set that everyone needs in their workshop.
Dimensions
| Diameter |
3 - 12 |
|---|---|
| Dimension |
M 3 - 12 |
Characteristics
| Product group |
threading tool sets |
|---|---|
| Product type |
Threading tool sets |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Tensile strength at room temperature |
up to 800 N/mm² | 22.2 HRC |
| Material |
HSSG bright |
Technical information – Screw taps
Blind hole up to 3 x D
Form C 35° RSP
4-5 threads
see illustration
External cooling and lubrication
HSSG bright
up to 800 N/mm² | 22.2 HRC
ISO2/6H

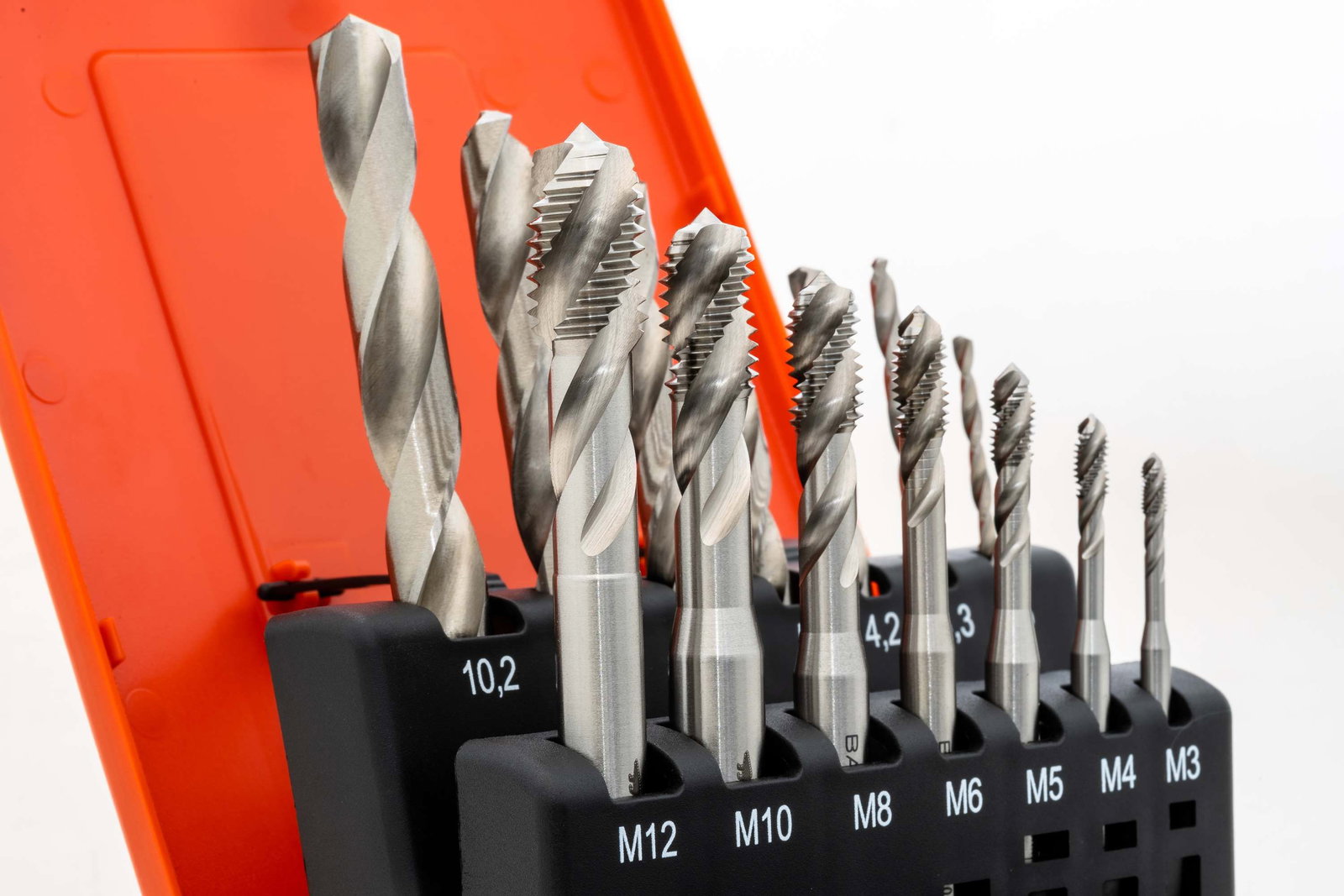

Set content
| BAER HSSG machine tap for blind hole | M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8 M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5 M 12 x 1,75 |
|---|---|
| BAER HSSG core drill bit | 2,5 mm | 3,3 mm | 4,2 mm | 5,0 mm 6,8 mm | 8,5 mm | 10,2 mm |
Applications
- General-purpose use
- Materials with good machinability up to 900 N/mm²
- Unalloyed and low-alloy steels
- for blind hole
- for machine use
Application – Sample materials for taps
| Unalloyed construction steels | |
|---|---|
| 1.0035 | S185 (St33) |
| 1.0036 | S235JRH |
| 1.0038 | RSt37-2 |
| 1.0039 | S235JRG1+CR |
| 1.0044 | St44-2 |
| 1.0060 | E335 (St60-2) |
| 1.0116 | St37-3 |
| 1.0570 | St 52-3 |
| Alloyed construction steels | |
|---|---|
| 1.5415 | 15Mo3 |
| 1.5423 | 16Mo5 |
| 1.5622 | 14Ni6 |
| 1.7335 | 13CrMo44 |
| 1.7337 | 16CrMo44 |
| 1.7715 | 14MoV63 |
| Free-cutting steels | |
|---|---|
| 1.0711 | 9S20 |
| 1.0715 | 9SMn28 |
| 1.0718 | 11SMnPb30 |
| 1.0721 | 10S20 |
| 1.0723 | 15S20 |
| 1.0726 | 35S20 |
| 1.0737 | 9SMnPb36 |
| 1.0758 | 60SPb20 |
| Case-hardening steels | |
|---|---|
| 1.0401 | (C15) |
| 1.7016 | 17CR3 |
| 1.7131 | 16MnCr5 |
| 1.5919 | 15CrNi6 |
| Quenched and tempered steels unalloyed | |
|---|---|
| 1.0402 | C 22 |
| 1.1151 | C22E (Ck22) |
| 1.0503 | C 45 |
| 1.1191 | C45E (Ck45) |
| Cast steel | |
|---|---|
| 1.0420 | GS-38 |
| 1.5419 | GS-22 Mo 4 |
| 1.6750 | GS-20 NiCrMo3 7 |
| 1.7357 | GS-17 CrMo 5 5 |
| Malleable cast iron | |
|---|---|
| 0.8145 | EN-GJMB 450-6 |
| 0.8170 | EN-GJMB 700-2 |
| 0.8045 | EN-GJMW-450-7 |
| 0.8055 | EN-GJMW-550-4 |
| Pure copper low-alloyed | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
| Brass short-chipping | |
|---|---|
| 2.0401 | CuZn39Pb3 |
| Brass long-chipping | |
|---|---|
| 2.0321 | CuZn37 |
| 2.0335 | CuZn36 |
| 2.0360 | CuZn40 |
| Aluminum cast Si > 5-12 % | |
|---|---|
| 3.2161 | G-AlSi8Cu3 |
| 3.2163 | G-AlSi9Cu3 |
| 3.2381 | G-AlSi10Mg |
| 3.2583 | G-AlSi12(Cu) |
| Lamellar graphite cast iron | |
|---|---|
| 0.6010 | EN-GJL 100 (GG-10) |
| 0.6020 | EN-GJL 200 (GG -20) |
| 0.6025 | EN-GJL 250 (GG-25) |
| 0.6030 | EN-GJL 300 (GG -30) |
| Copper-tin alloy (bronze) short-chipping | |
|---|---|
| 2.1090.01 | G-CuSn7ZnPb |
| 2.1086.01 | G-CuSn10Zn |
| 2.1097 | G-CuSn5ZnPb |
| Pure copper, low-alloyed copper | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
Further information
Safety instructions
Machine taps - fast and precise tapping
#Efficiency
The precision of BAER machine taps and the relief-ground thread ensure that there is less friction and temperature at thread cutting. To prevent the thread profile from completely rubbing against the workpiece, the thread is already cut over the entire thread profile clearance angle. This means that the tap has to apply less force and chip jamming can be avoided. The result: tool life is increased and the tap needs to be replaced less frequently.
Our machine taps are powerful and reliable taps for efficient machining in one step with the machine. Machine taps are used especially in industrial production. They can be used in CNC machines, thread cutting machines, cordless drills and pneumatic tapping arms, among others. As they are characterised by high efficiency and low production costs, they are often used in series production. The thread is cut by machine in one operation. Thus, although the BAER machine tap can basically be compared to single-cut taps, it is designed for use with the machine.
The machine taps can be used for blind holes, as the short lead and the twisted flute shape ensure that the chip is discharged to the rear of the hole.
Every material shows individual chip behaviour. Therefore, screw tap must have the correct rake angle and - for even better results - a specially treated surface. This is the only way to achieve a good chip transport and to produce a thread that is true to gauge.
The high quality of the ground HSS steel we use ensures that our tools are extremely durable and robust. Due to special hardening processes and repeated tempering the hardness structure is very homogeneous, which forms the ideal basis for a genuine BAER screw tap. This increases the toughness and stability of the screw tap, allowing them to remain in use for longer.
The advantages at a glance:
- Spiral flutes for blind holes
- Less friction and temperature due to clearance angle in thread
- Efficient machining in one step
- For use in CNC machines, thread cutting machines, tapping arms etc.

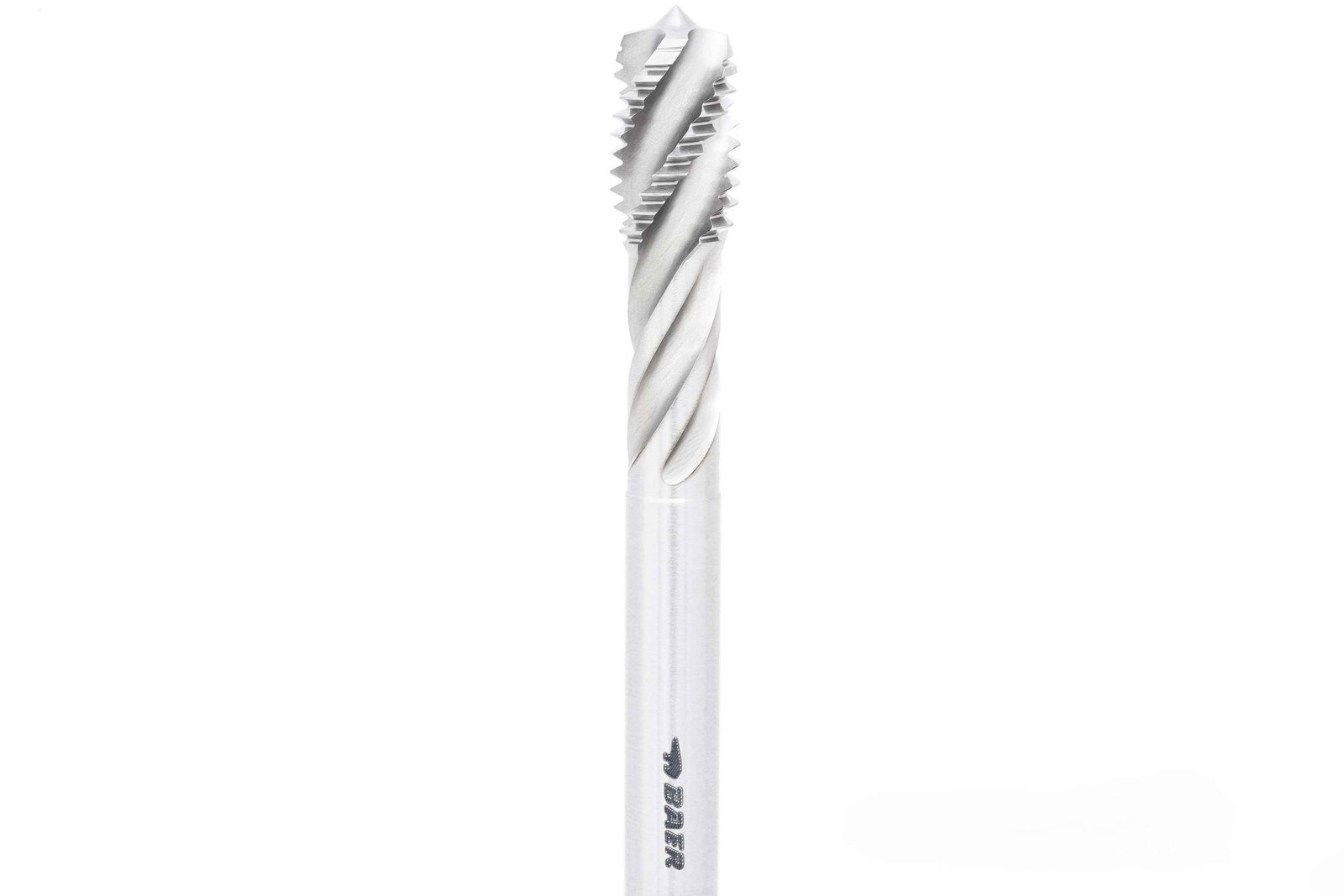

BAER HSSG machine tap - Form C35° RSP:
M 3 x 0.5 | M 4 x 0.7 | M 5 x 0.8 | M 6 x 1.0 | M 8 x 1.25 | M 10 x 1.5 | M 12 x 1.75

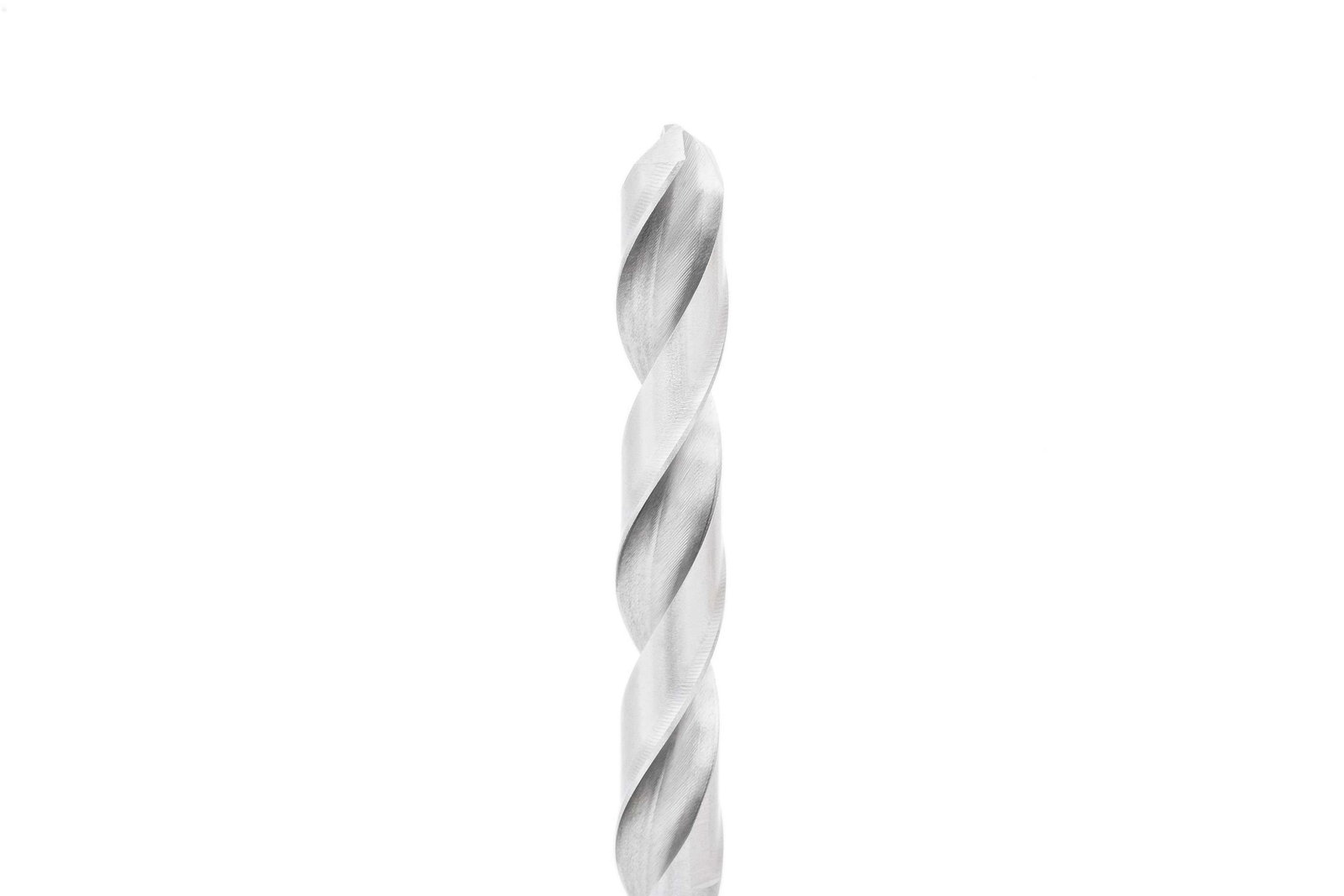

HSSG twist drill bit for core hole drilling
#You can't do without it
Almost every do-it-yourselfer has worked with them: the classic drilling tools for cordless screwdrivers, drills, impact drills or hammer drills. Decisive for the field of application of the drill is not only the material, but also the cutting edge geometry, the rake angle and the spiral angle, the so-called twist. The drills are suitable for steel, cast steel, grey cast iron, malleable cast iron, nodular cast iron, sintered iron, nickel silver and graphite and are also suitable for precise and fast work due to their ground drill point. The core hole drillings are essential for cutting a internal thread afterwards.
HSSG core drill bit DIN 338 for M 3 - M 12:
Ø 2.5 mm (M 3) | Ø 3.3 mm (M 4) | Ø 4.2 mm (M 5)| Ø 5.0 mm (M 6) | Ø 6.8 mm (M 8) | Ø 8.5 mm (M 10) | Ø 10.2 mm (M 12)
