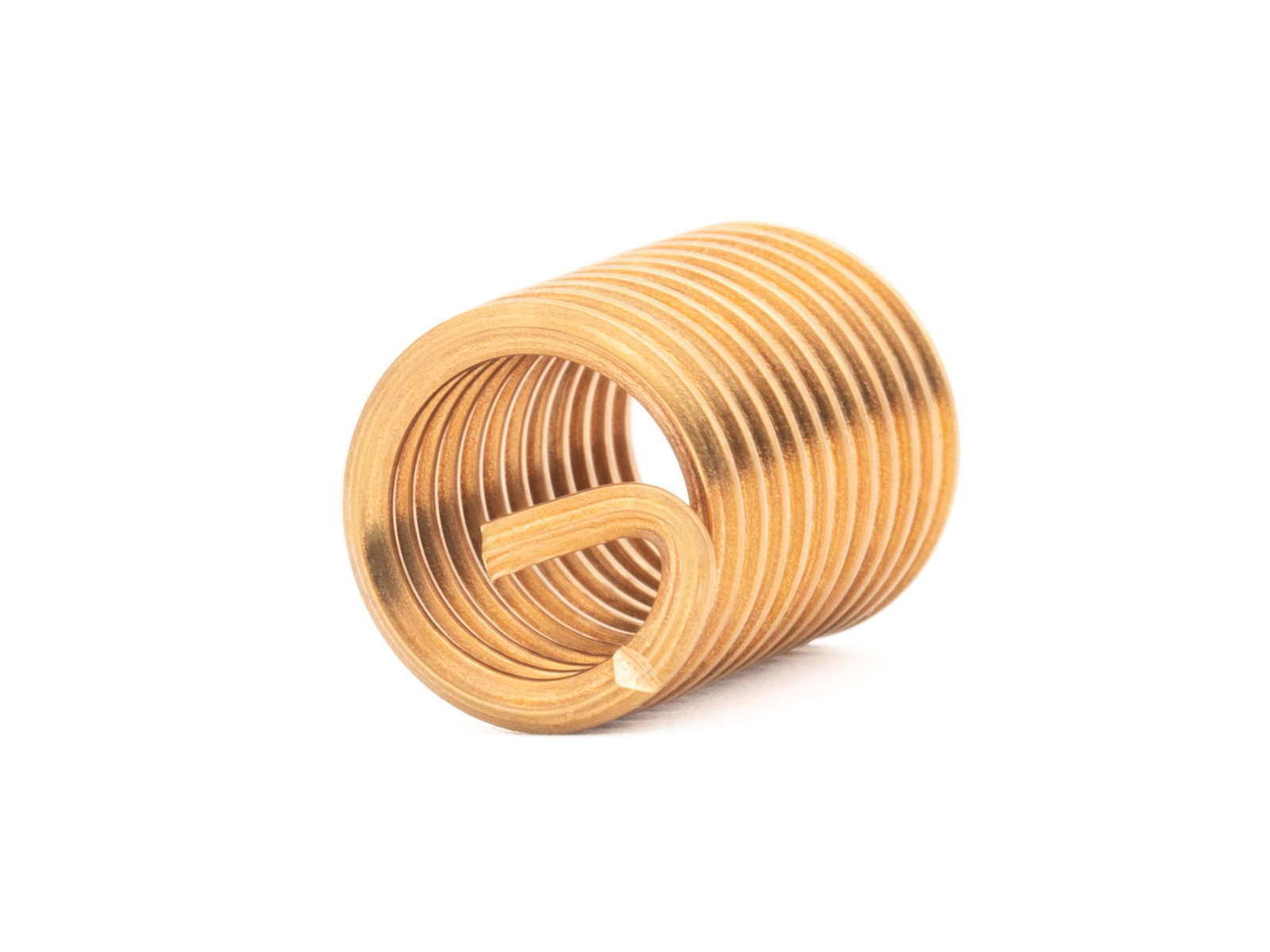

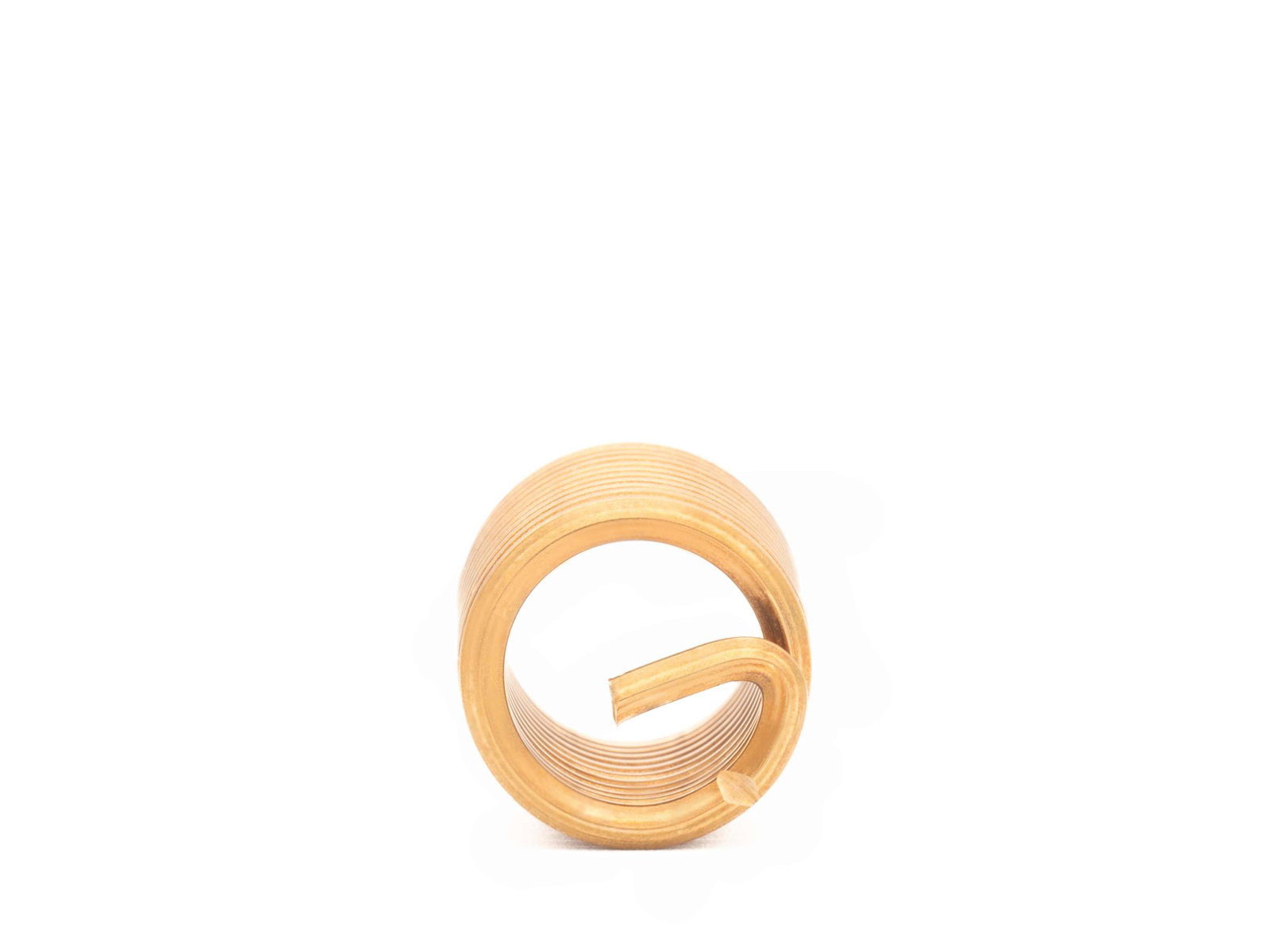

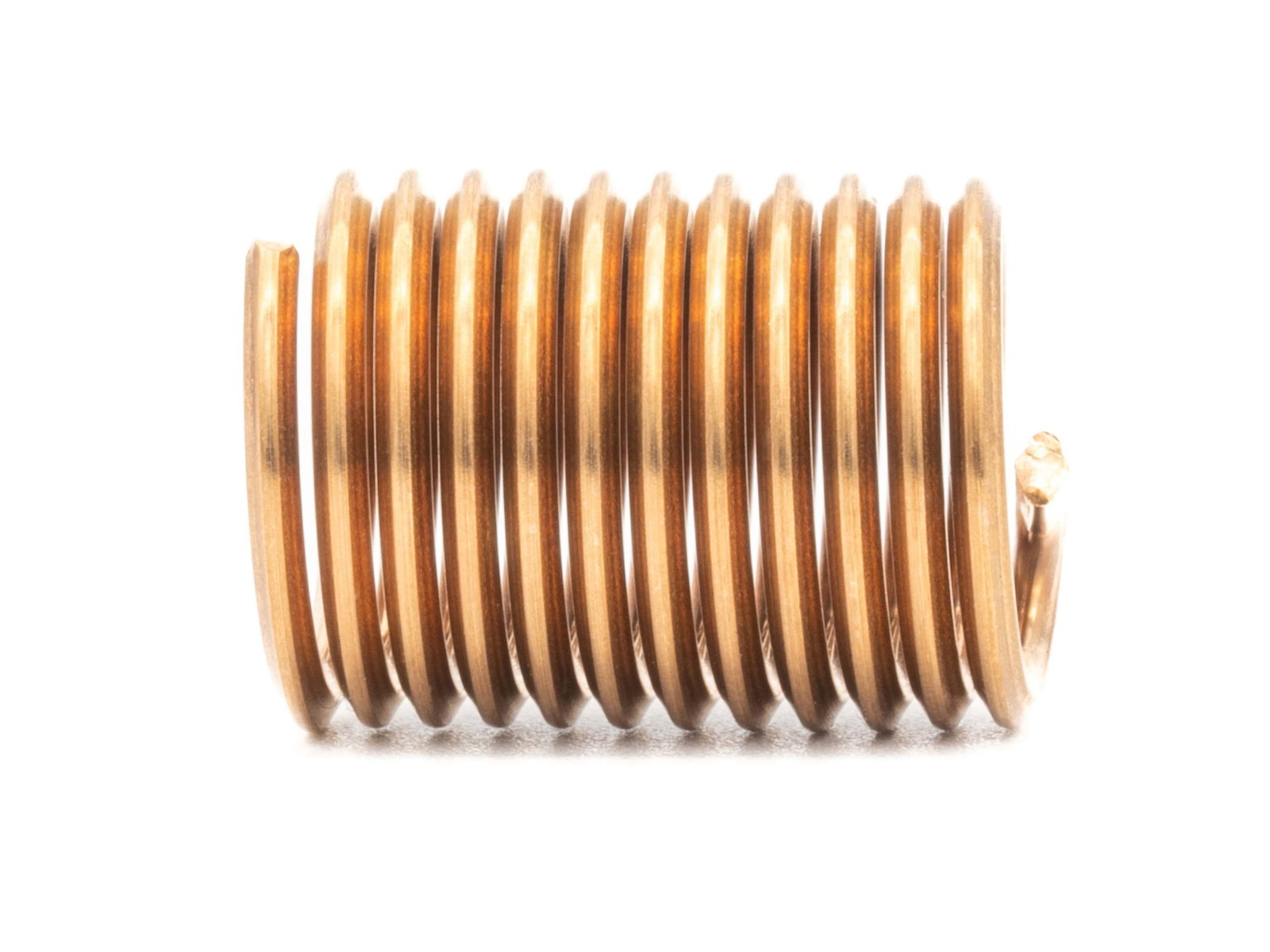

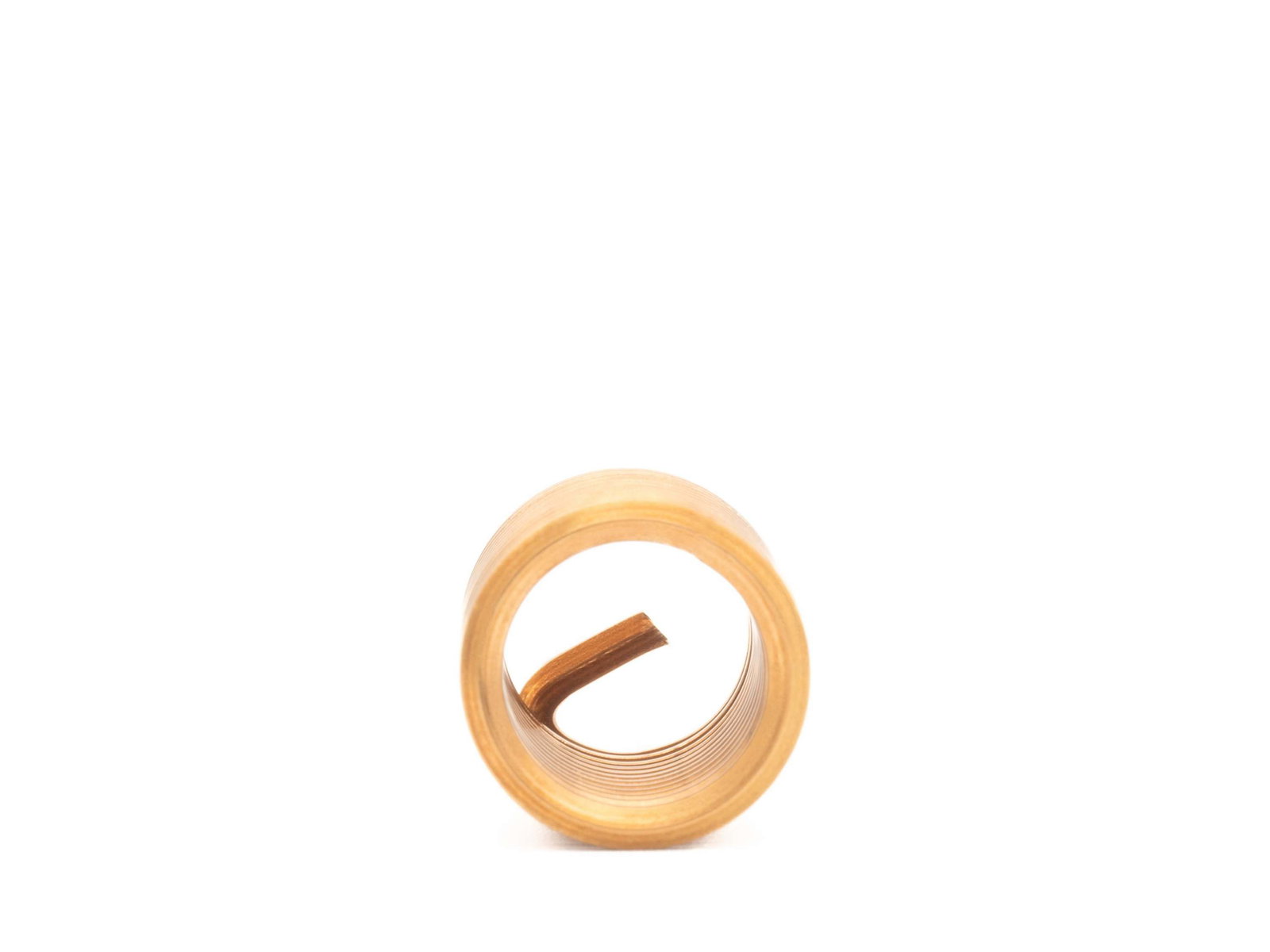

BaerCoil Wire Thread Inserts M 8 x 1.25 - 2.0 D (16 mm) - free running - Bronze - 100 pcs.
BaerCoil Wire Thread Inserts M 8 x 1.25 - 2.0 D (16 mm) - free running - Bronze - 100 pcs.
BaerCoil® thread inserts are the perfect solution for your thread repair needs! These inserts provide a long lasting and powerful thread connection and scrap recovery.
The BaerCoil® thread insert is the perfect solution for damaged threads while maintaining nominal diameter. With BaerCoil® thread inserts, the thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts are an indispensable component in aviation and vehicle construction. They ensure that both static and dynamic work loads are distributed in a balanced manner over the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angular errors, so that an optimal power transmission from the bolt to the nut thread is achieved. Particularly in lightweight constructions, BaerCoil® thread inserts helps to reduce the carrier material and to use smaller or shorter screw connections. Thanks to their versatility and reliability, BaerCoil® thread inserts are now an indispensable component in many industries.
BaerCoil thread inserts can be shortened to the required length with a side cutter or similar.
Dimensions
| Diameter |
8 |
|---|---|
| Pitch |
1,25 |
| Dimension |
M 8 x 1,25 |
| Length |
2,0 D |
| T (Length when installed) |
16 mm |
| Thread length calculation |
2.0 D means 2 times the diameter: 2 times 8 mm=16 mm The nominal diameter for M 8 is 8 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
> 900 N/mm² |
| Material |
from Bronze (CuSn6, CW452K, material no.: 2.1020) |
| Temperature resistance |
250°C long-term 300°C short-term |
Applications
- Applications in seawater
- Best electrical conductivity
Attributes
- Movement thread
- Cr-Ni screws
- Cu workpieces
- Non-magnetic
Technical drawing
| Diameter |
8 |
|---|---|
| Length |
2,0 D |
| T (Length when installed) |
16 mm |
| F (Min. - Max. outside diameter of thread insert) |
9,45 mm - 10,35 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
20,38 mm |
| D (minimum depth of the core hole, without tip) |
21,63 mm |
