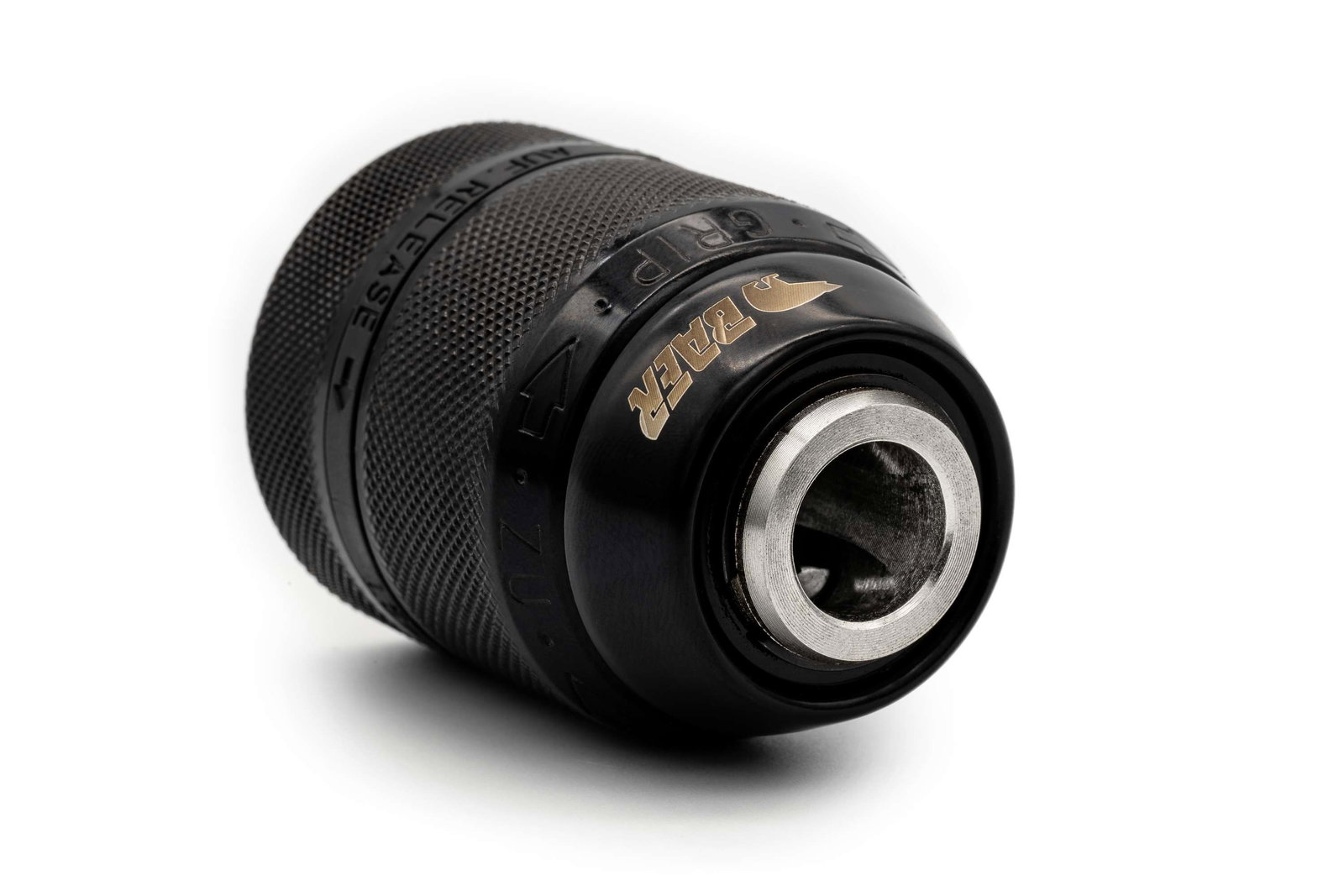

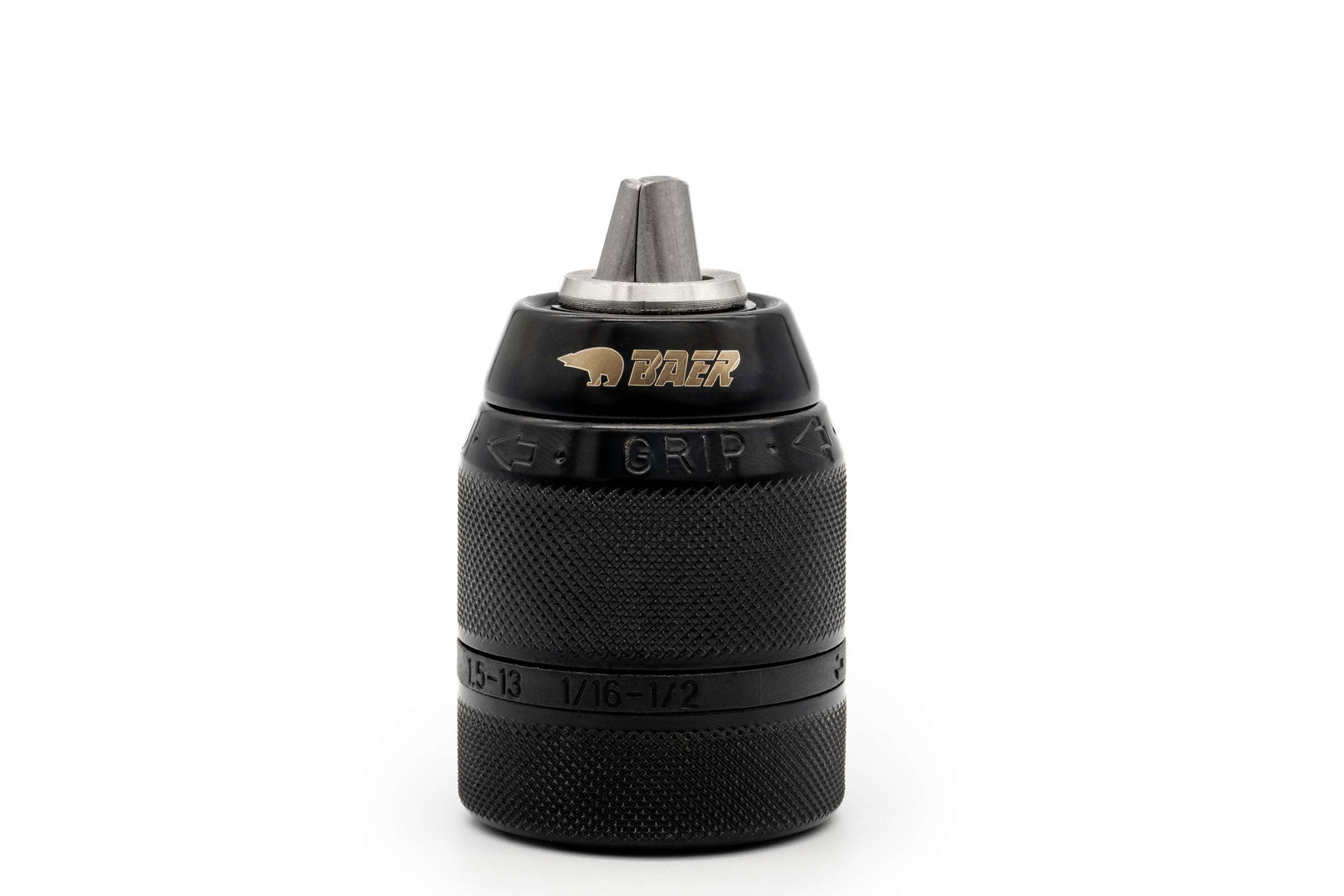

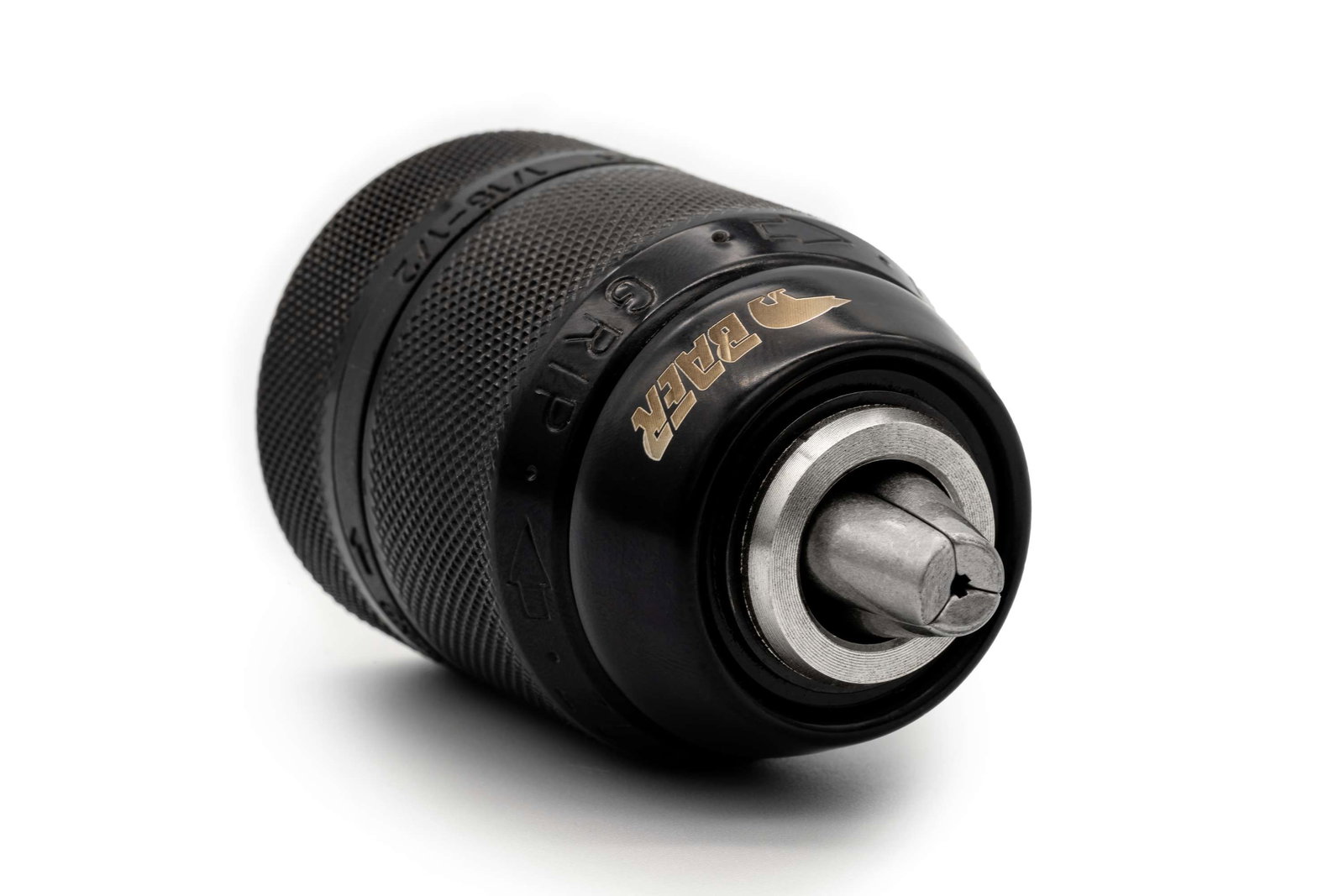

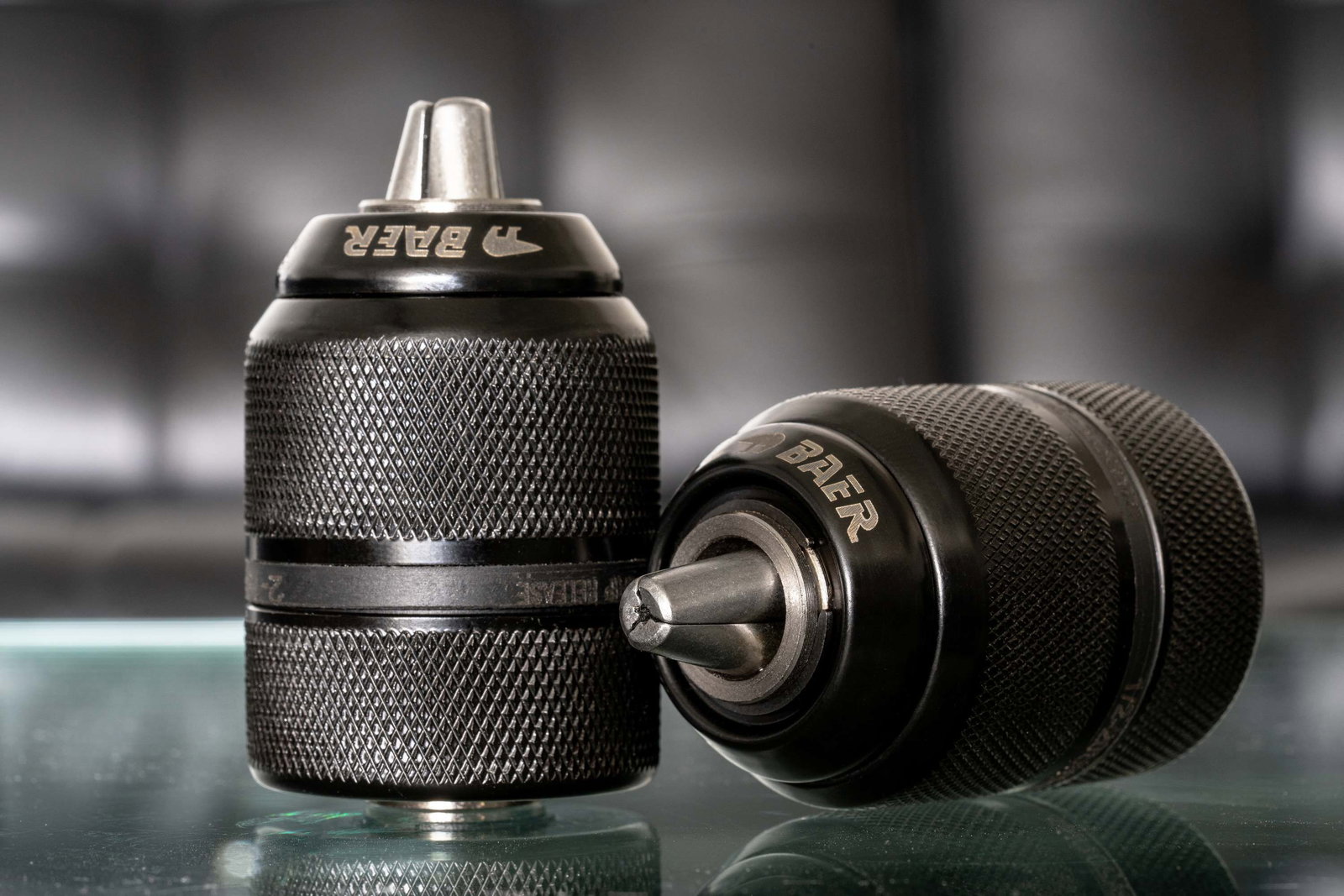

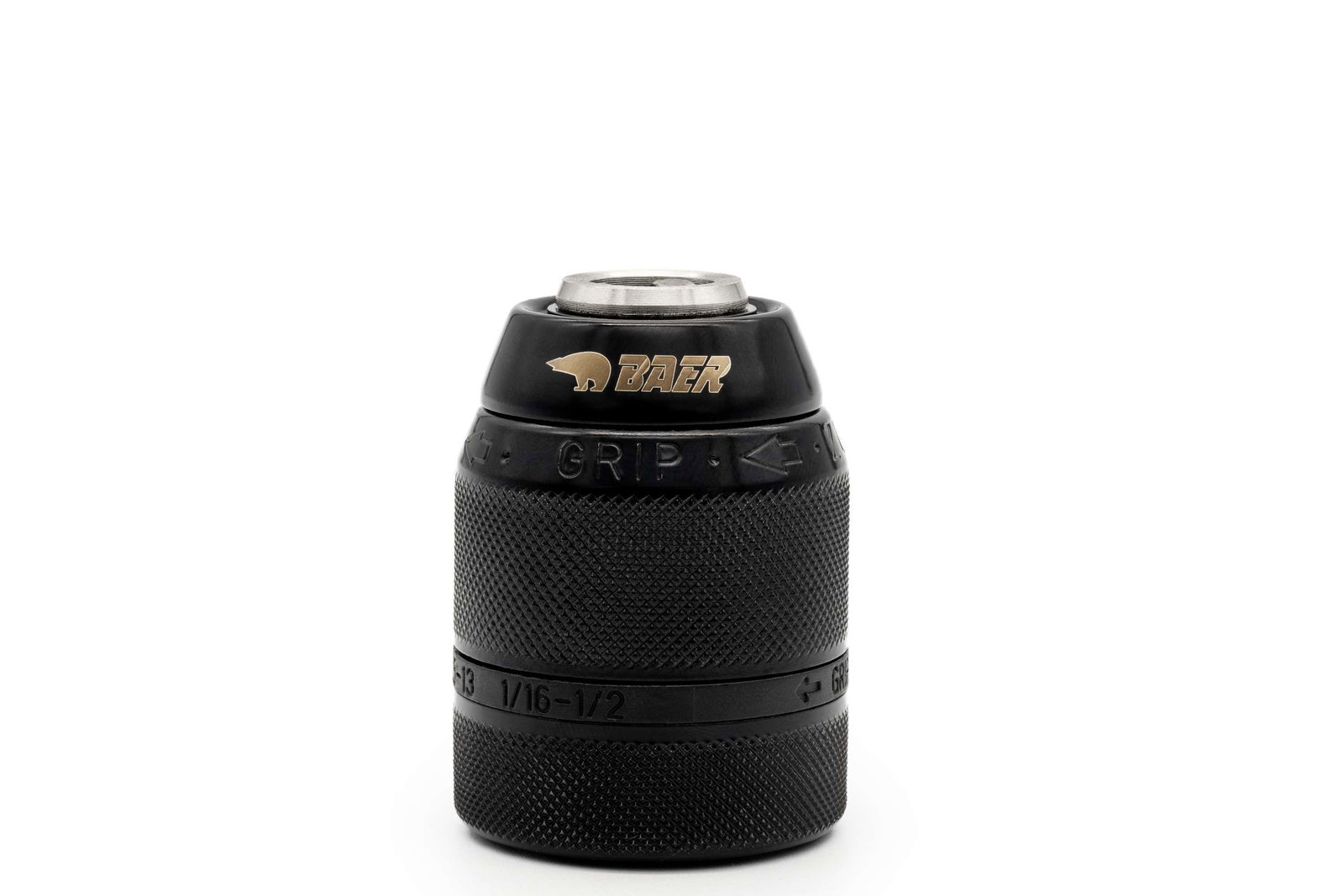

MULTI Quick-release Drill Chuck 1.5 - 13.0 mm 3/8-24UNF
MULTI Quick-release Drill Chuck 1.5 - 13.0 mm 3/8-24UNF
Keyless drill chuck for hand dr ills - premium quality for professionals
High-precision all-metal drill chuck with clamping force safety device, high-precision elements, stable design, ergonomic in the hand. This high-precision keyless drill chuck has beastly strong forces and is a must for every craftsman. Unlike a keyed drill chuck, the keyless drill chuck can be opened and closed easily by hand. A clamping key is no longer needed. Thanks to its re-tightening characteristics, the drill bit sits firmly and securely in the drill chuck.
This self-clamping drill chuck not only impresses with its high clamping force, but also with its feel and stability, as well as its long service life. The drill chuck is suitable for hand drills, mains or cordless drills, as well as hammer drills with a UNF 1/2" thread.
Dimensions
| Concentricity |
0,35 mm |
|---|---|
| Weight drill chuck |
256 g |
| Drill chuck clamping range |
1,5 - 13 mm |
| Drill chuck mount |
UNF 3/8 x 24 |
Characteristics
| Product group |
Drill chucks |
|---|---|
| Product type |
Drill chucks for hand machines |
Applications
The drill chuck is ideal for applications with mains or cordless drills as well as hammer drills of all makes (Bosch, Hilti, Metabo, Kress, Makita, Fein, Dewalt and all others). The perfect choice for private households, industrial companies, metal workers, locksmiths, etc.
Technical drawing
| D1 |
42,5 mm |
|---|---|
| L1 |
62 mm |
| L2 |
75 mm |
Safety instructions

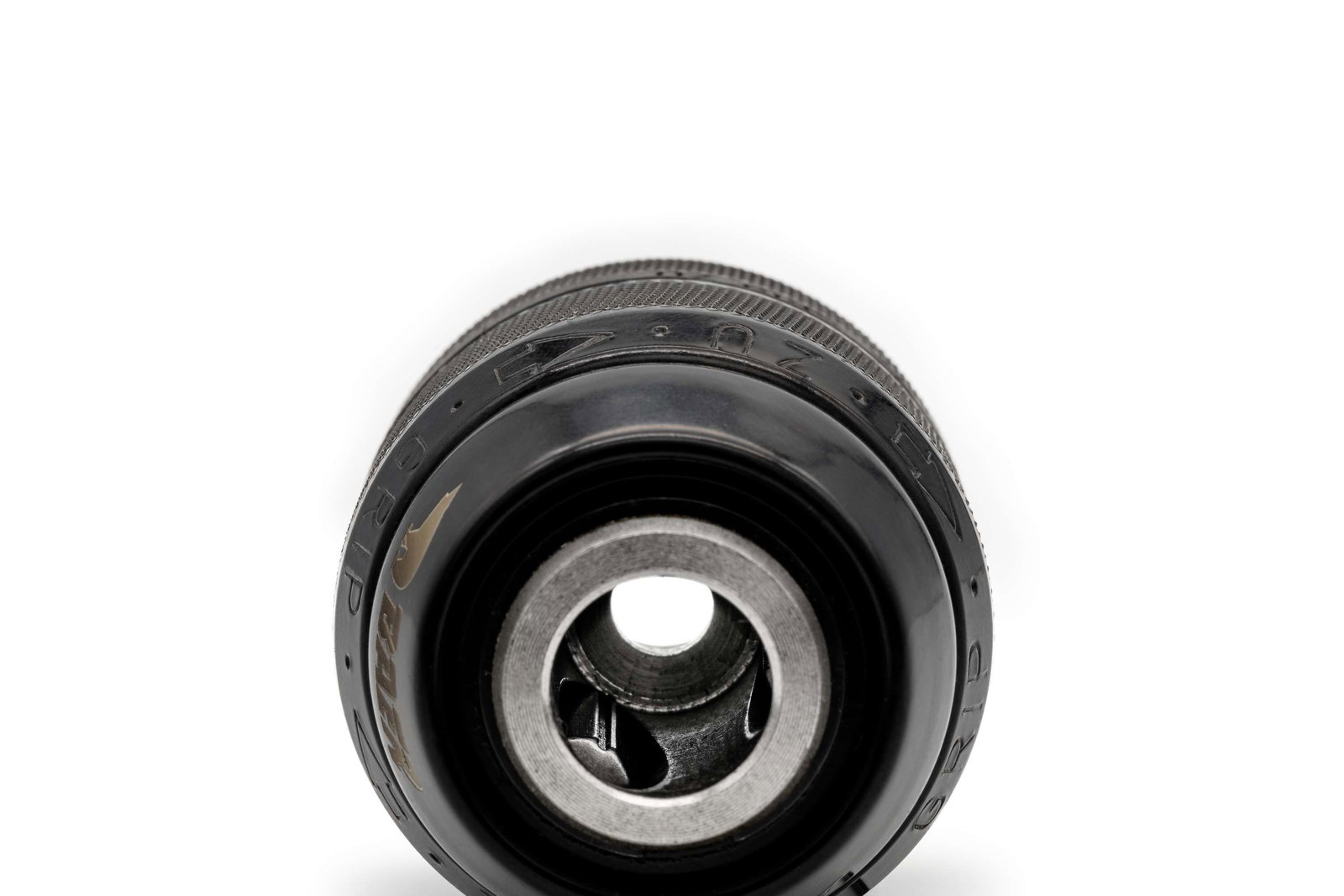

Hardened clamping jawsfor constant stability when drilling
The three clamping jaws of the chuck are hardened to enable a high clamping force and long service life. Insert tools can thus be clamped in a centred manner to which high clamping forces can be transmitted. Thanks to state-of-the-art technology, the drill bit can be clamped firmly and securely by itself, with little effort, and can also be changed again quickly. Clamping and reopening by hand without the need for keys.
Whether for craftsmen, professionals, industrial companies or DIY fans - a drill chuck that should not be missing from any cordless screwdriver.
Anti-lock function for a secure hold
When closing the drill chuck, a clear "click" sound of the anti-lock function can be heard. This clamping force lock prevents the twist drill from loosening and spinning.
The chuck has a through-hole for tightening the chuck with a counter screw. This also allows counterclockwise rotation without the drill chuck loosening from the mounting thread.
Replace the standard drill chuck supplied with your cordless screwdriver and discover the bear power of an original BAER quick-action drill chuck.
Solid metal body for stability and performance
With its solid body, you feel the high value and quality of the drill chuck not only in your hand. In use, this drill chuck is a true all-rounder.
In the metal version, this drill chuck can be used universally with its durability and wear resistance. The ergonomic design and the precisely coordinated interior are convincing all along the line.

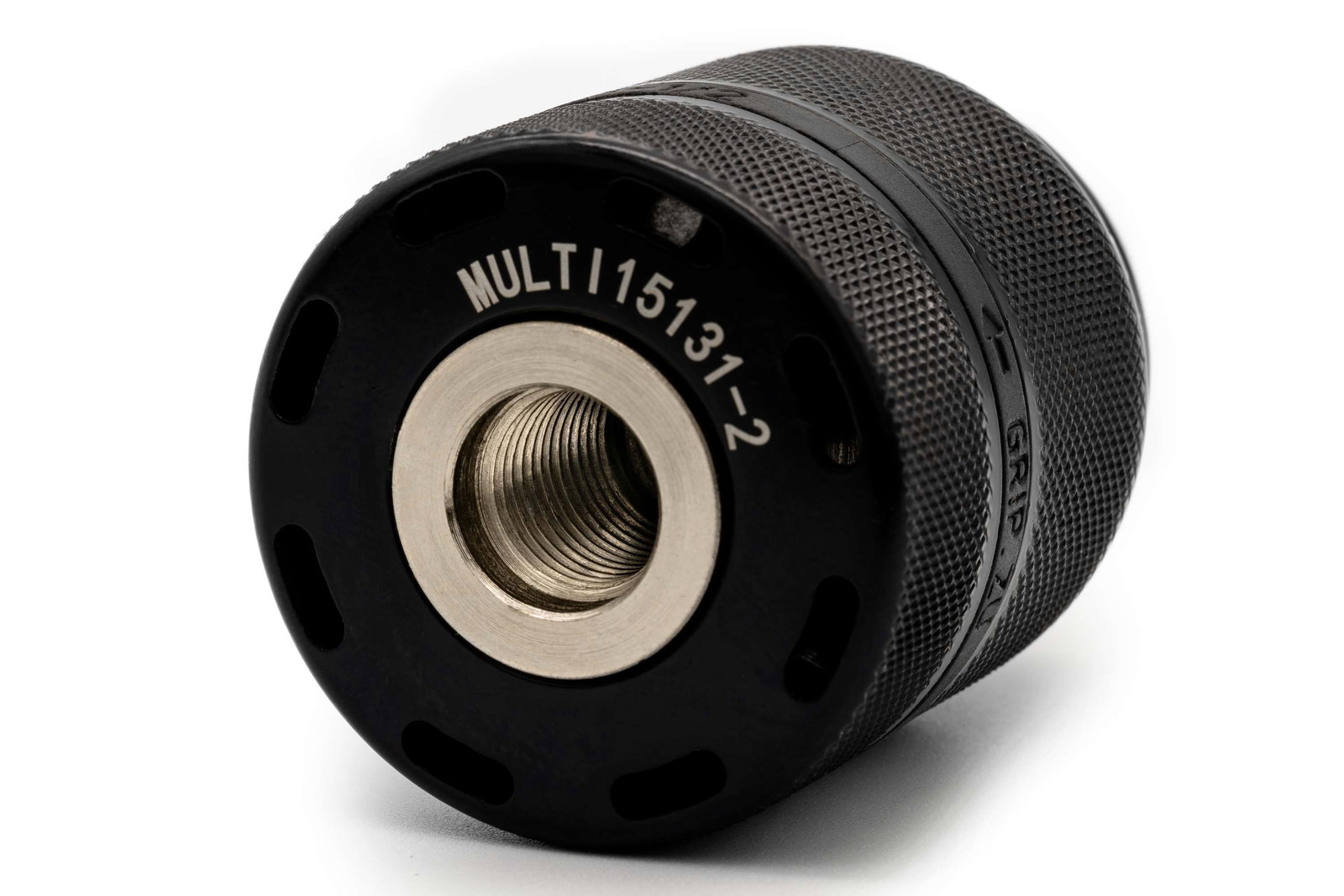

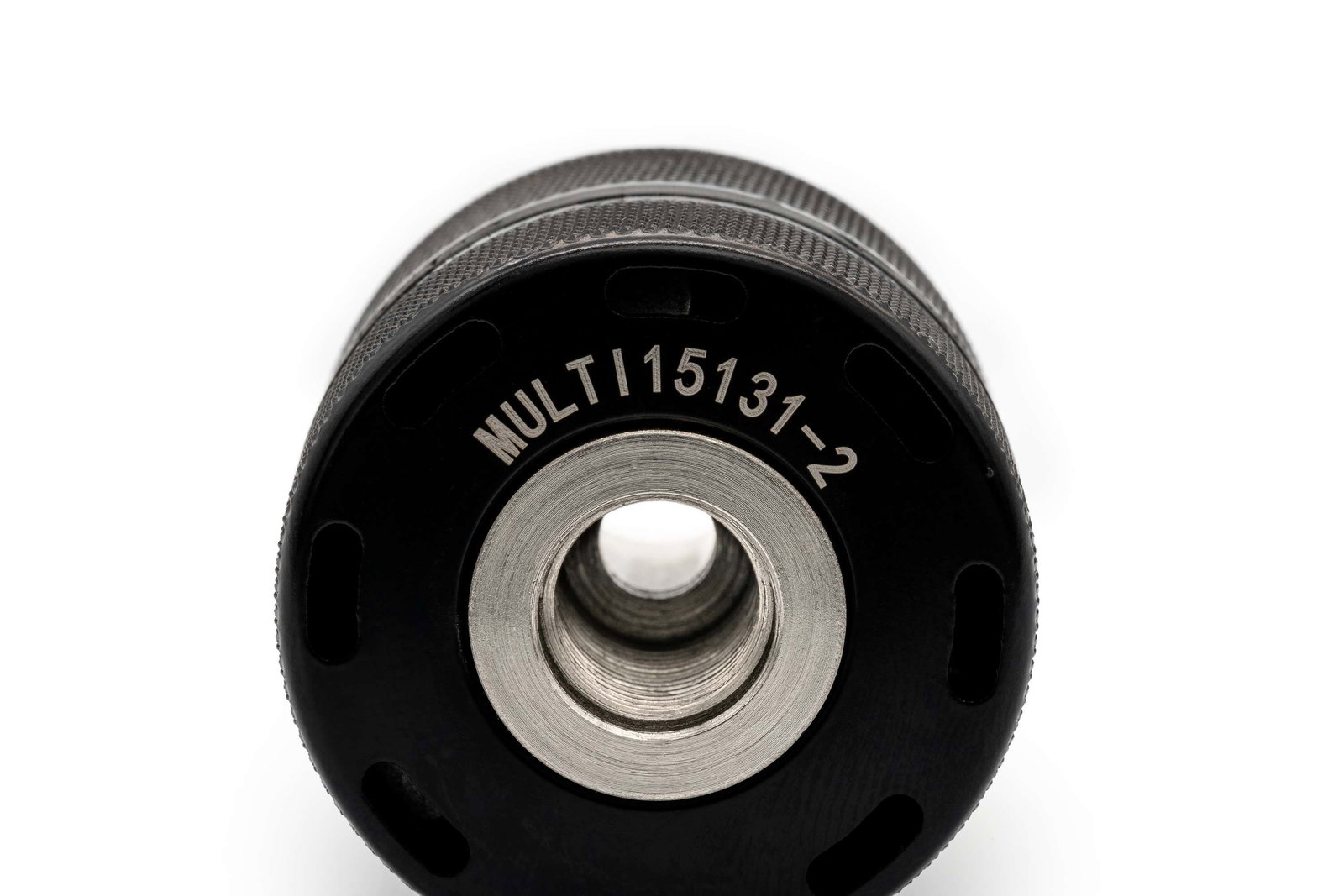

Precise threaded mounting for a strong connection
With the BAER drill chuck you have definitely made the right choice!
Now you only have to check the mounting thread so that the quick-change drill chuck fits on the machine. You can determine this by measuring the outer diameter of the threaded bolt on your machine.
This drill chuck has a 1/2" mounting thread. It is a UNF 1/2 x 20 thread with an outer diameter of approx. 12.7 mm.
The threaded connection between the chuck and the drill allows the chuck to be firmly attached to your machine and high driving forces to be transmitted to the chuck. The UNF 1/2" thread is the most common connection between hand drill and drill chuck. Some drills have the slightly smaller UNF 3/8" thread. In our shop you will find a thread reduction and 1/2" to 3/8" or you can buy a drill chuck with reduction.
Always the right choice - all-rounder for every do-it-yourselfer
Whether cordless screwdriver or impact hammer. This drill chuck has it all.
With a matching SDS Plus adapter, this chuck can also be used with impact drills. The drill chuck is not suitable for impact drilling! It is used so that an SDS-Plus drill can also clamp normal twist drill bit with a cylindrical shaft through the drill chuck in order to drill into metal, wood or similar. For impact drilling we recommend using SDS-Plus drill bits that are designed for this purpose.
Cordless screwdriver with a 1/4" bit adapter and just not the right twist drill bit with bit shank available? Twist drill bit with a cylindrical shank comes in a number of variants, types and dimensions. With the help of a 1/4" bit adapter, this drill chuck can also be used with your cordless screwdriver and offers you unlimited drilling possibilities. Now you can finally use normal twist drill bit in numerous dimensions for your projects.
Please note that the adapters are plug-in connections. They have high tolerances that affect the runout accuracy. For precise work, we recommend using the drill chuck on a drill with a threaded connection.
You can find suitable SDS-Plus adapters or 1/4" bit adapters in our shop. Or buy a multi drill chuck with matching adapter.
