SDS-Plus Hammer Drill Set (7 pcs.) 5 - 12 mm
SDS-Plus Hammer Drill Set (7 pcs.) 5 - 12 mm
You see the new wall cupboards that are to be hung on an outside wall and the beads of sweat roll down your forehead just looking at them? You just hope you don't hit reinforcement of concrete? Does this sound familiar? It won't happen to you with these hammer drills in tested BAER industrial quality. The professional BAER hammer drills have a particularly high-quality and resistant, four-edged drill head for extreme situations that require fast and precise drilling, even through reinforced concrete. The SDS-Plus shank and the extra strong drill body have excellent centring properties. You will be thrilled with this drilling result! The extraordinarily high performance and tool life time will convince you. Our BAER hammer drills are ideal for deep and professional drilling in solid rock such as building granite, natural stone, reinforced concrete and other hard building materials. All common sizes are included in this hammer drill set. Especially when it comes to tools, it is always worth spending a few euros more. Our hammer drills are perfect for drilling an exact hole particularly quickly, confirmed by the PGM certificate. This makes DIY fun again.
Dimensions
| Diameter |
5 - 12 mm |
|---|---|
| Dimension |
5 - 12 mm |
| Machine mount |
SDS-Plus |
Characteristics
| Product group |
Twist drill bits |
|---|---|
| Product type |
Twist drill bit sets |
| Direction |
Right |
| Material |
Heat-treatable steel 42CrMo4 with tungsten carbide cobalt tip |
Applications
Suitable for building granite, natural stone, reinforced concrete, hard building materials, masonry, concrete, reinforced concrete, reinforced concrete, brick, lightweight bricks, limestone
Technical drawing
| L1 |
160 mm |
|---|---|
| L2 |
86,5 - 92,5 mm |
| Diameter |
5 - 12 mm |

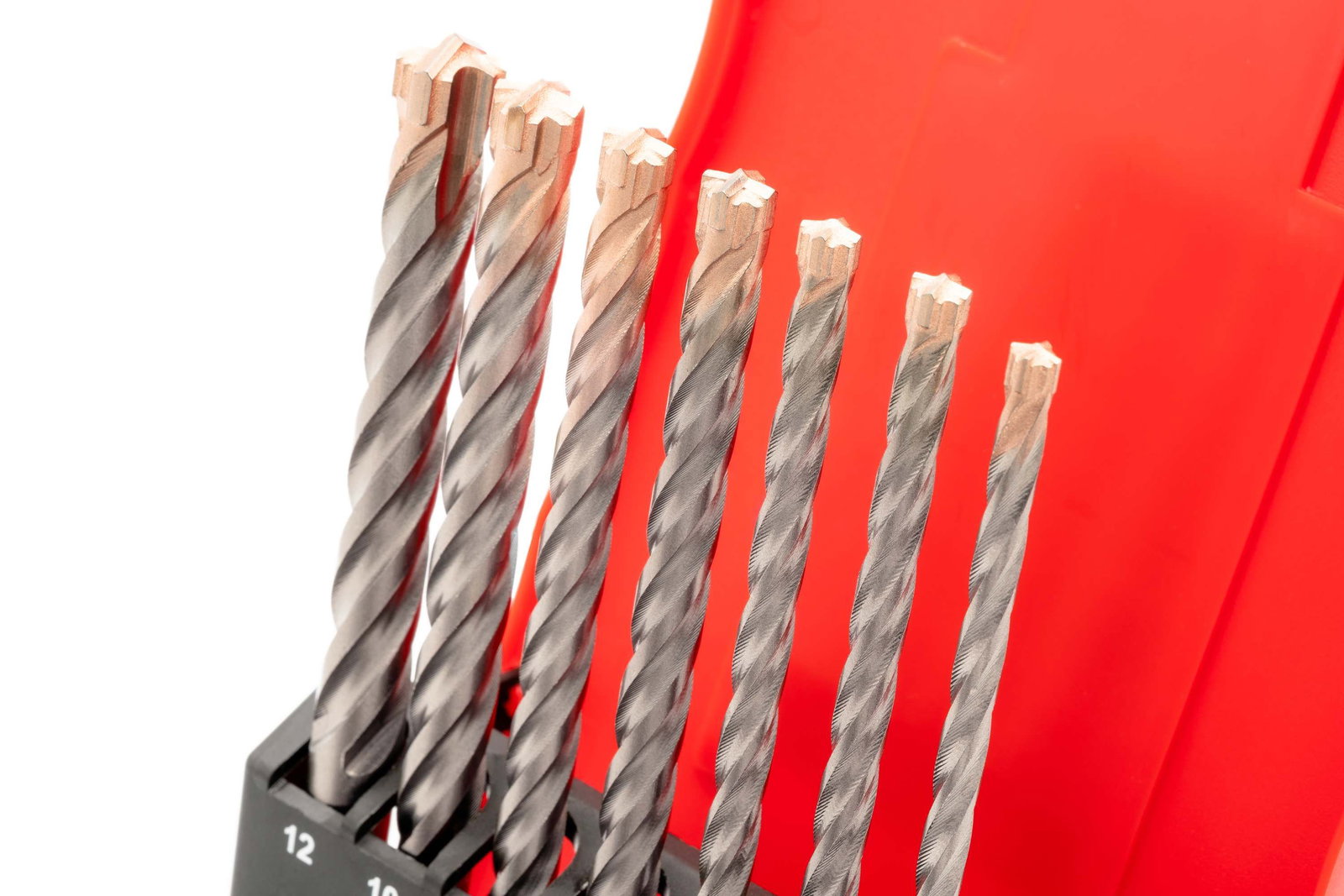

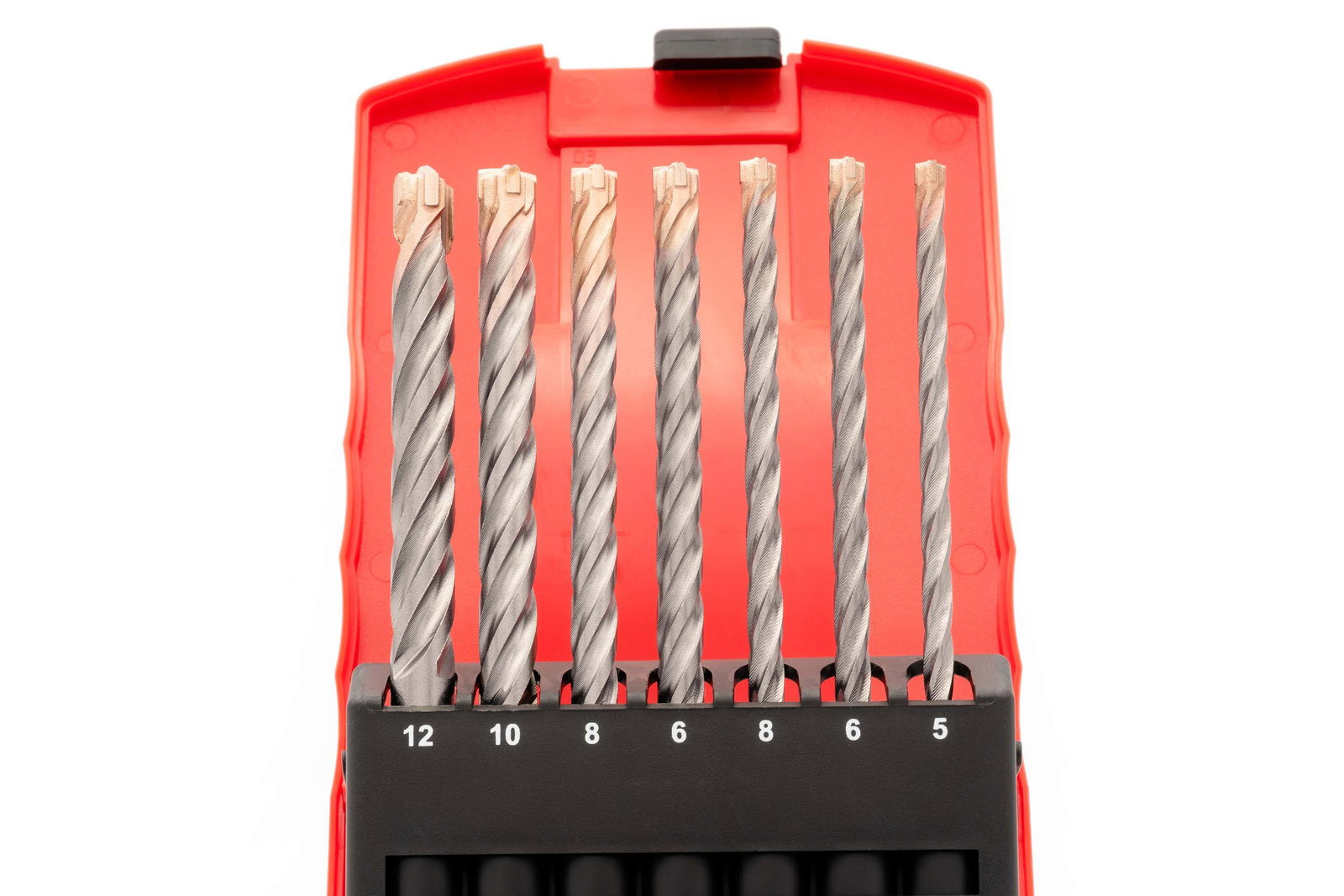

Content
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 5 | 160 | 92,5 |
| 2x | 6 | 160 | 94,0 |
| 2x | 8 | 160 | 94,0 |
| 1x | 10 | 160 | 95,0 |
| 1x | 12 | 160 | 86,5 |
Safety instructions
#Like through butter

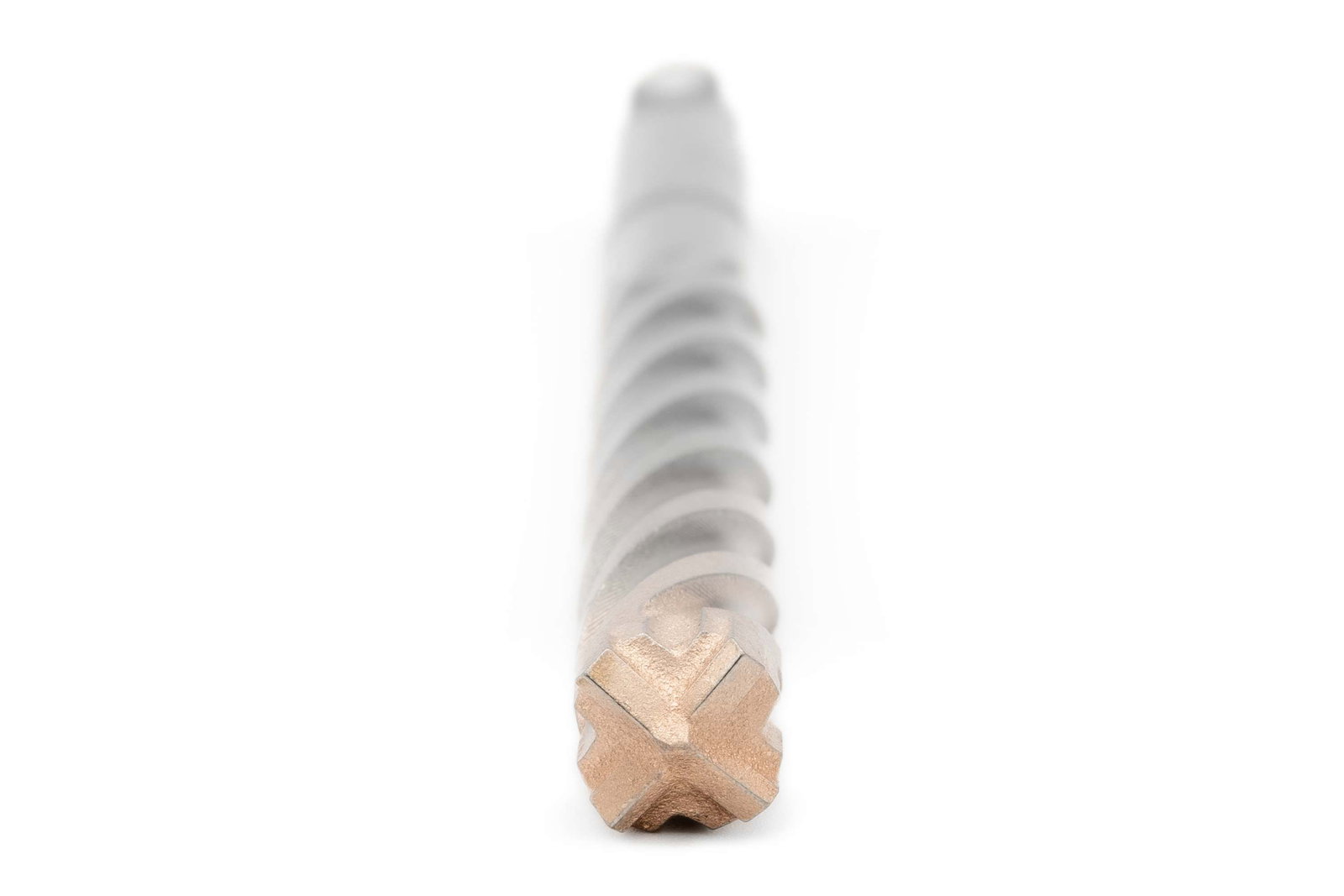

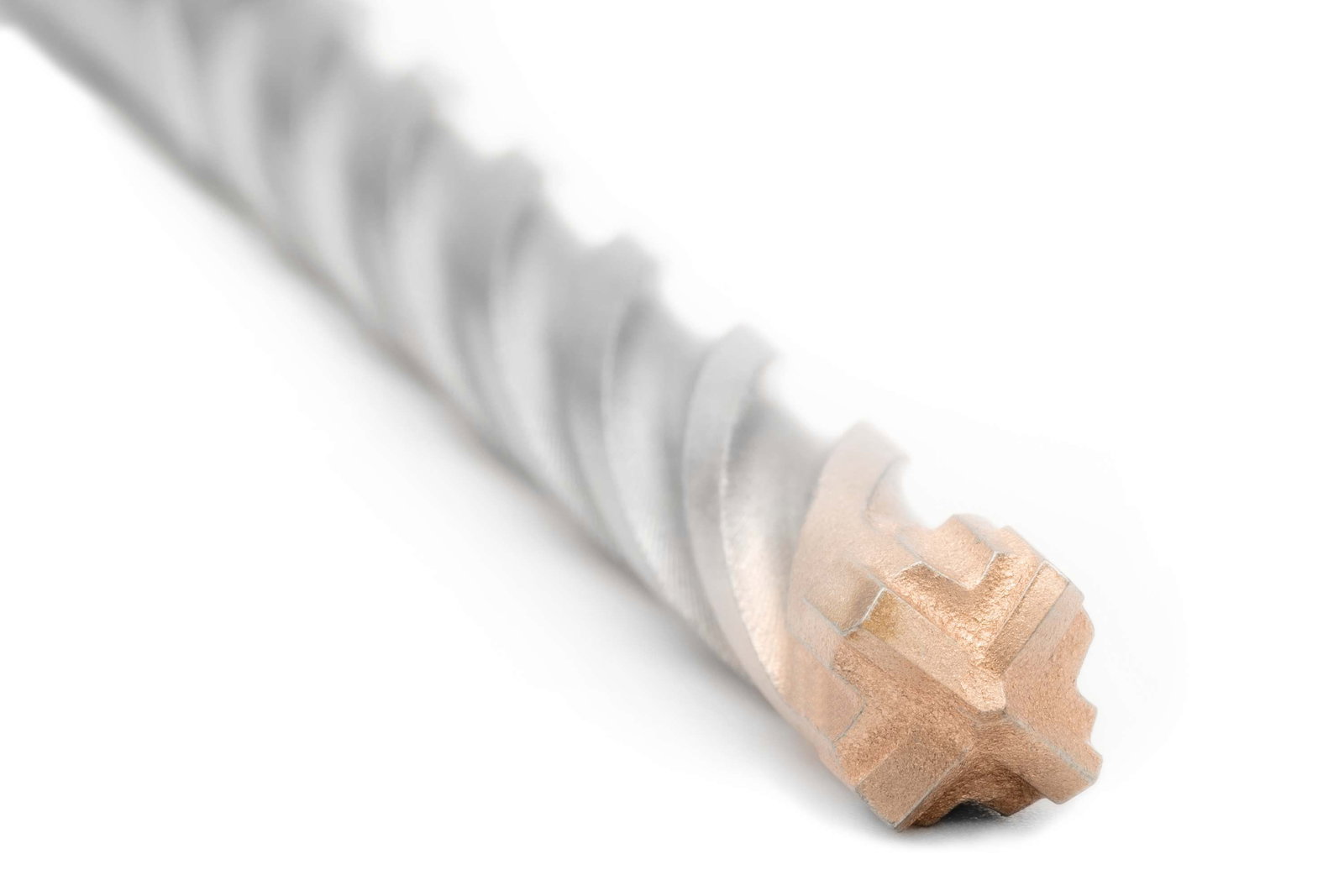

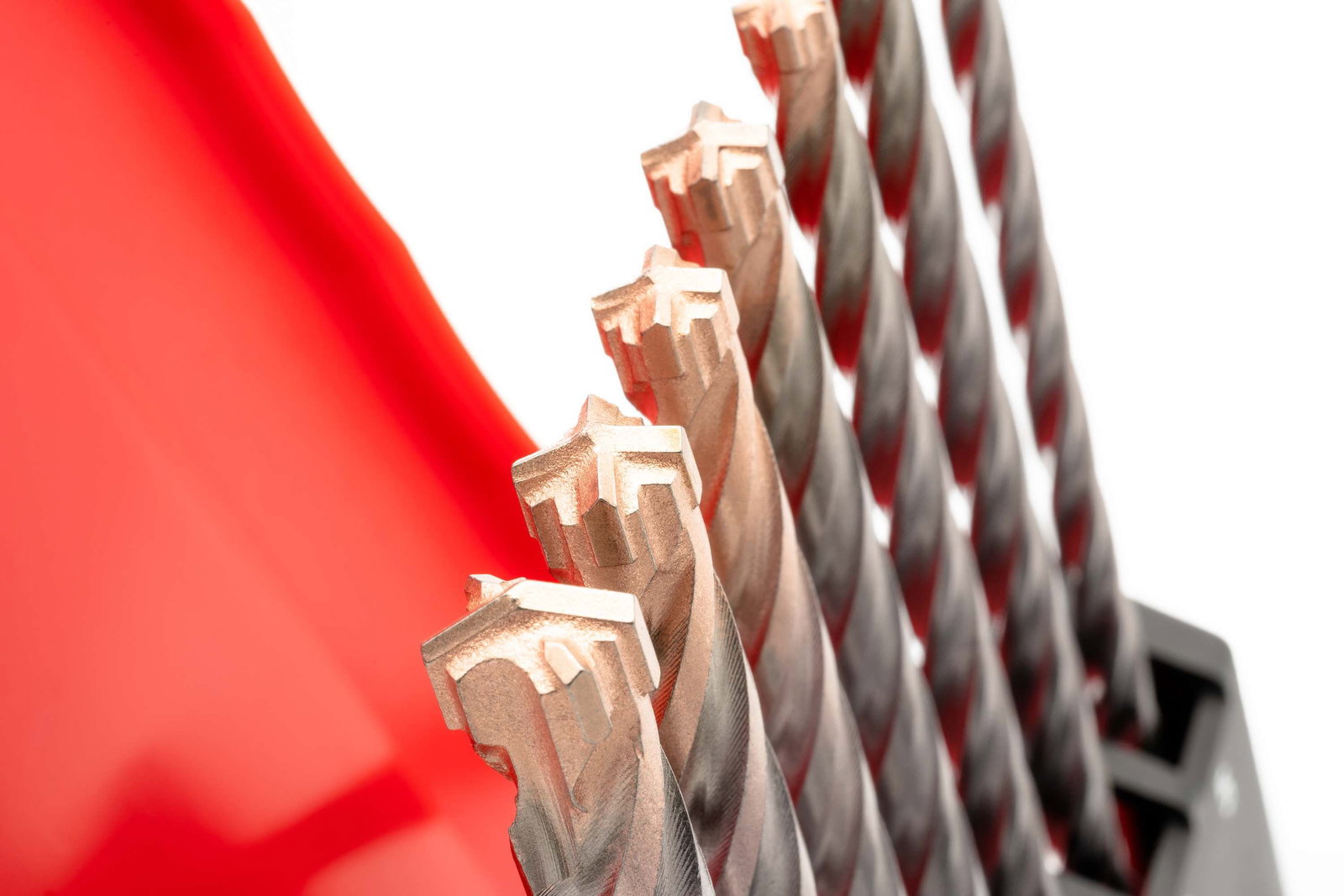

Four-edged tungsten carbide cobalt tip
The special drill head has a tip that looks like a hammer. The tip first cuts into the stone and the small wingtips on the tip smash the stone in the drill hole. The tip has four solid carbide cutting edges and is made of tungsten carbide cobalt. This makes it extremely hard, non-flexible and able to withstand the highest temperatures. The four cutting edges of the SDS-Plus drill bits guarantee a high smooth running and enable highly precise drilling. The symmetrical drill head offers maximum safety. When hitting a reinforcement of concrete the drill bit does not jam. With the extremely robust and sharp drill head, very fast and highly precise drilling progress can be achieved in very hard materials (building granite, natural stone, reinforced concrete).
The advantages at a glance:
- extremely robust and sharp drill head
- high smooth running due to 4 cutting edges
- no jamming with reinforcement hits
- very fast and precise drilling progress in very hard materials
- ideally suited for professional drilling

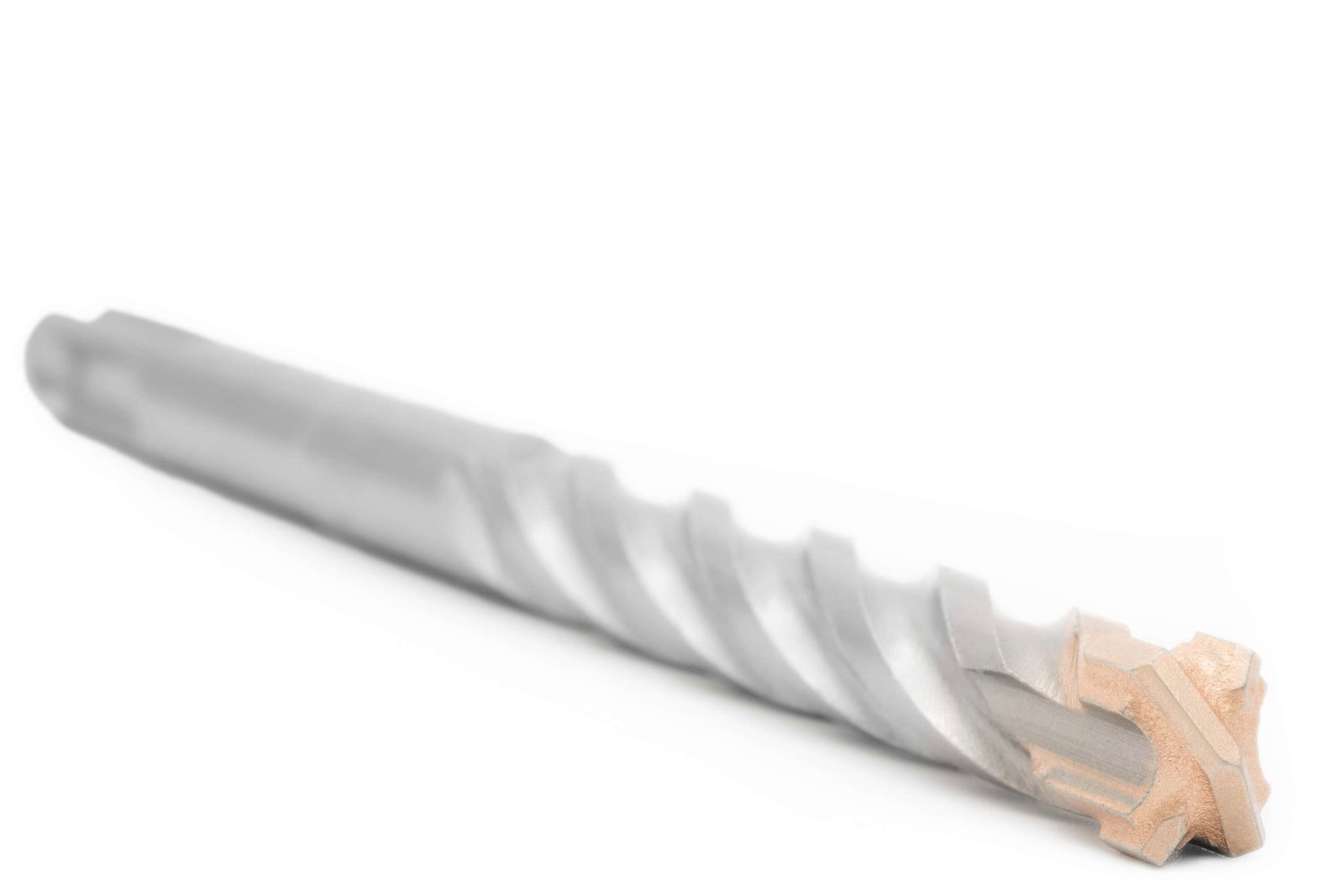

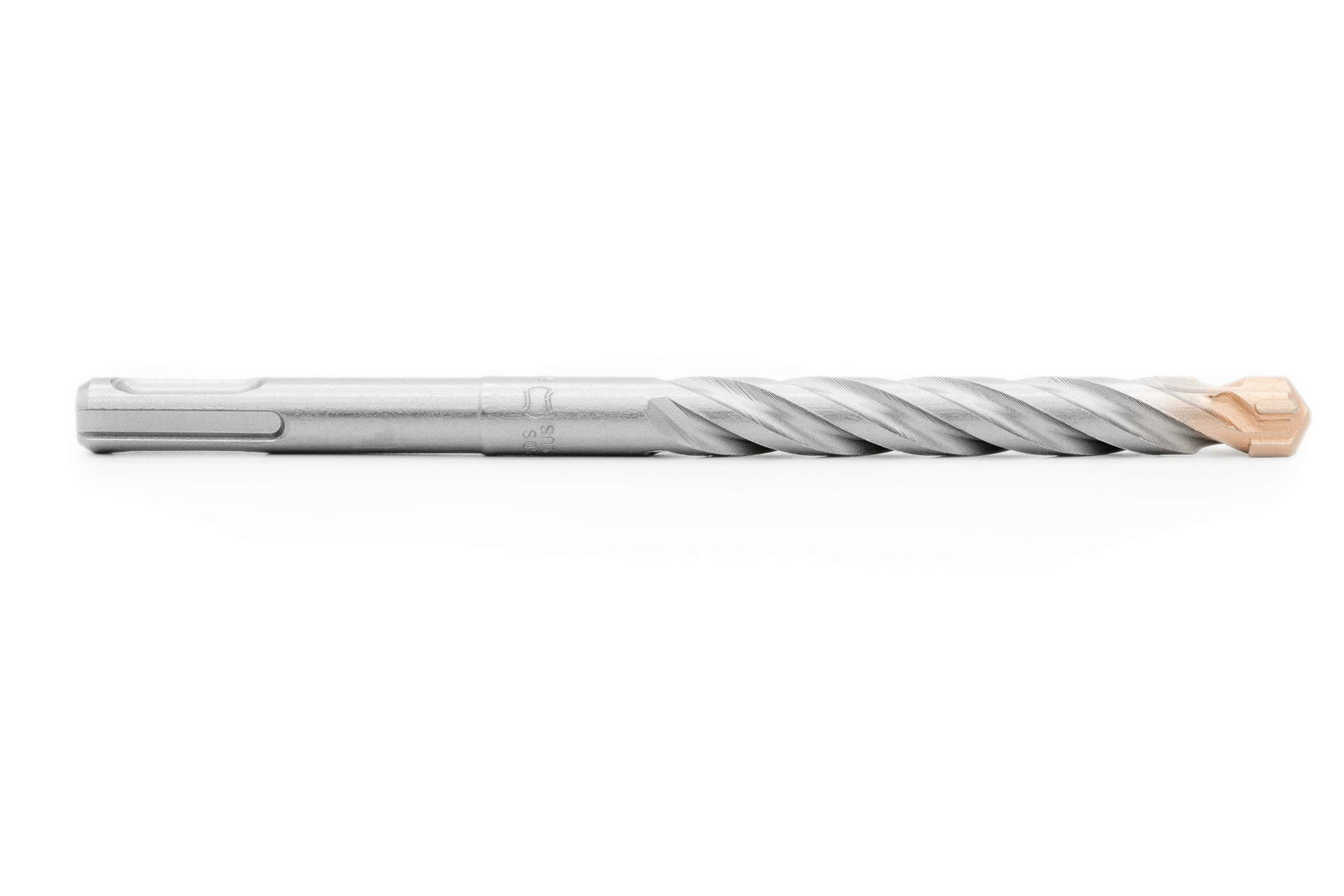

Hammer drill

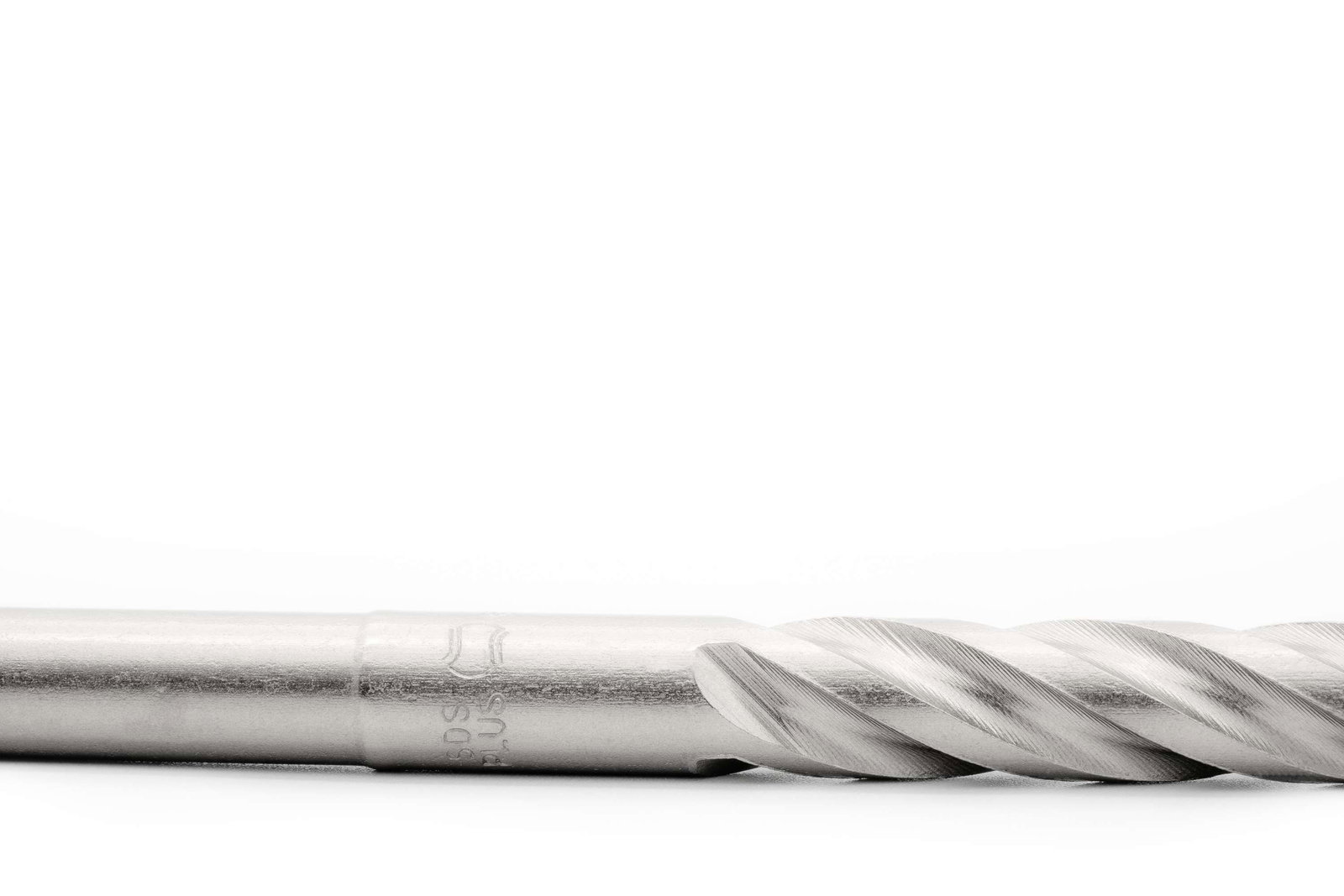

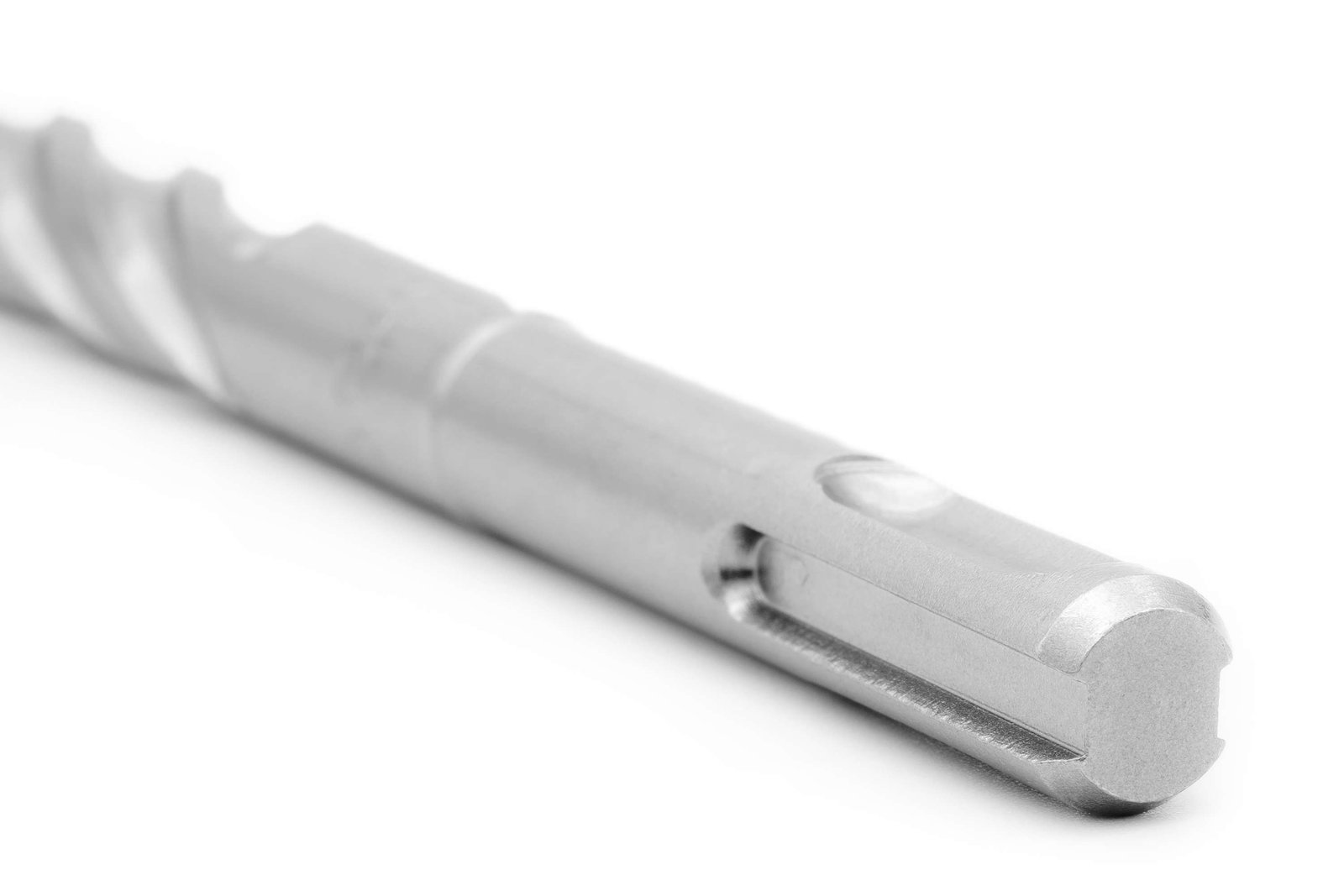

long drill body, SDS-Plus shaft
The so-called drill body is 160 mm long in all sizes for the highest possible flexibility in all DIY and industrial projects. The 4 cutting edges run in a spiral from the tip and merge into the drill shank. The main task of the distinctive and long cutting edges is to remove the drill dust from the drill hole, which is why they are not particularly sharp compared to the drill tip. The SDS Plus mount is suitable for all common manufacturers of percussion drills and ensure fast and safe clamping. SDS-Plus allows the impact of the hammer mill to be transferred directly to the drill bit without the machine itself vibrating. Work is made easier because it is no longer necessary to use your own strength to push against the drill.
The advantages at a glance:
- high flexibility → all drills are 160 mm long
- four long cutting edges → very good removal of drill dust and debris
- SDS-Plus shaft → enables extremely high power transmission
PGM-certified, for the highest quality and demands
Advantages of the PGM test mark for anchor fitters:
- PGM → Prüfgemeinschaft Mauerbohrer e. V.
- suitable drills are easy to recognise by the PGM test mark
- no need to check the diameter on the construction site
- Drill bits with PGM test mark come from a monitored production facility
- Compliance with the drill tolerances according to the anchor ETA and installation instructions
- no binding to a specific drill make
This means that BAER hammer drills can cope with many hard stone materials. Precise work and long-term cost savings are added to this.
Quality for a long service life
The hammer drills from BAER are characterised by:
- high temperature resistance
- Wear resistance
- Cutting edge stability
- very high smooth running due to 4 cutting edges
- PGM-certified drill bits
This means that BAER hammer drills can cope with many very hard stone materials, including reinforced concrete. Precise work and long-term cost savings are added to this.
