Taper Shank Arbor DIN 238 | MT 3 | B 10
Taper Shank Arbor DIN 238 | MT 3 | B 10

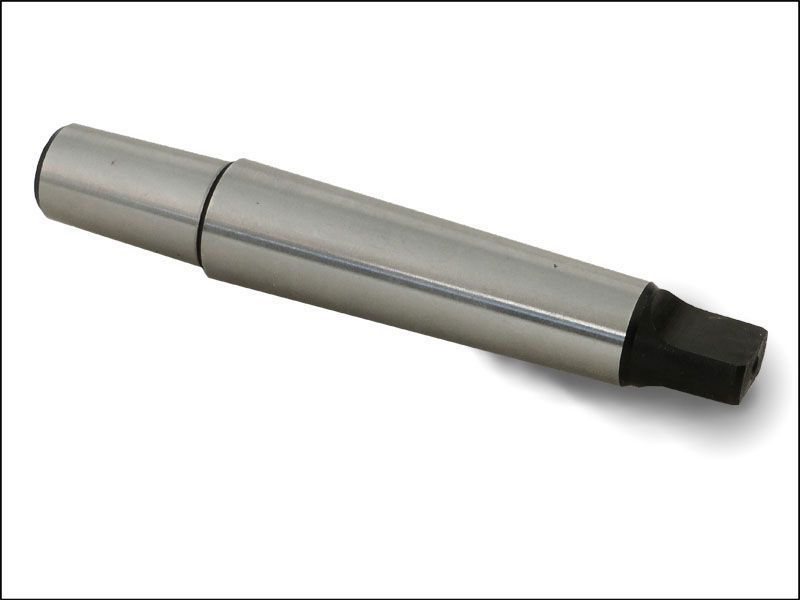

The taper shank arbor according to DIN 238 connects the machine spindle with the tool clamping head (e.g. drill chuck). It has a Morse taper MT3 with flat tang (ejector tang), which can be picked up by the machine (e.g. drill press) and a taper B10 which can be picked up by the drill chuck. At the end of the Morse taper is a flat tang (ejector tang) (standardised according to DIN 228 part 1) through which the taper shank arbor can be easily removed from the spindle without damaging the machine spindle.Our taper mandrels are fully hardened and precision-ground to enable high precision, strength and long tool life time.
BAER taper arbours enable efficient and precise machining of workpieces through their connection to the drill chuck and are indispensable in the metalworking industry.
Dimensions
| Drill chuck mount |
B 10 |
|---|---|
| Machine mount |
MK 3 |
Characteristics
| Product group |
Drill chucks - morse taper shanks |
|---|---|
| Product type |
Taper shanks |
| Standard |
DIN 238 |
| Material |
Fully hardened steel, precision-grinded |
Applications
The taper shank arbor is perfect for high-precision and centric clamping of drill chucks on pillar drilling machines and pillar drilling machines. It is therefore the ideal choice for industrial companies, metal construction companies, locksmiths and do-it-yourselfers.
Safety instructions
| MK0 | MK1 | MK2 | MK3 | MK4 | MK5 | MK6 | |
|---|---|---|---|---|---|---|---|
| ø A in mm | 6,40 | 9,37 | 14,53 | 19,76 | 25,91 | 37,47 | 53,75 |
| ø B in mm | 9,21 | 12,24 | 17,98 | 24,05 | 31,54 | 44,73 | 63,73 |
Morse taper dimensions
With the BAER taper shank arbor you have already made the right choice.
Now you just have to choose the right dimension for the Morse taper that fits into your machine. By measuring the thinnest and thickest part of your Morse taper, you can determine this dimension.
This taper shank arbor MK 3 has a diameter of 19.76 mm at the thinnest point and 24.05 mm at the thickest point. The taper shank arbor has a flat tang (ejector tang) and is therefore ideal for use on bench drills or pillar drills.
If this measurement does not fit, you can use the table to determine the correct Morse taper and call up the matching item in our shop.
Taper dimensions
To ensure that your taper shank arbor fits into your drill chuck, you only need to find the correct taper dimension. This can be determined by measuring the thinnest and thickest point of the taper. This B10 taper shank arbor has a diameter of 9.40 mm at the thinnest point and a diameter of 10.09 mm at the thickest point. If this measurement does not fit, you can use the table to determine the correct taper and call up the matching item in our shop.
| B6 | B10 | B12 | B16 | B18 | B22 | B24 | |
|---|---|---|---|---|---|---|---|
| ø D1 in mm | 6,35 | 10,09 | 12,07 | 15,73 | 17,78 | 21,79 | 23,83 |
| ø D2 in mm | 5,85 | 9,40 | 11,14 | 14,53 | 16,20 | 19,80 | 50,50 |
