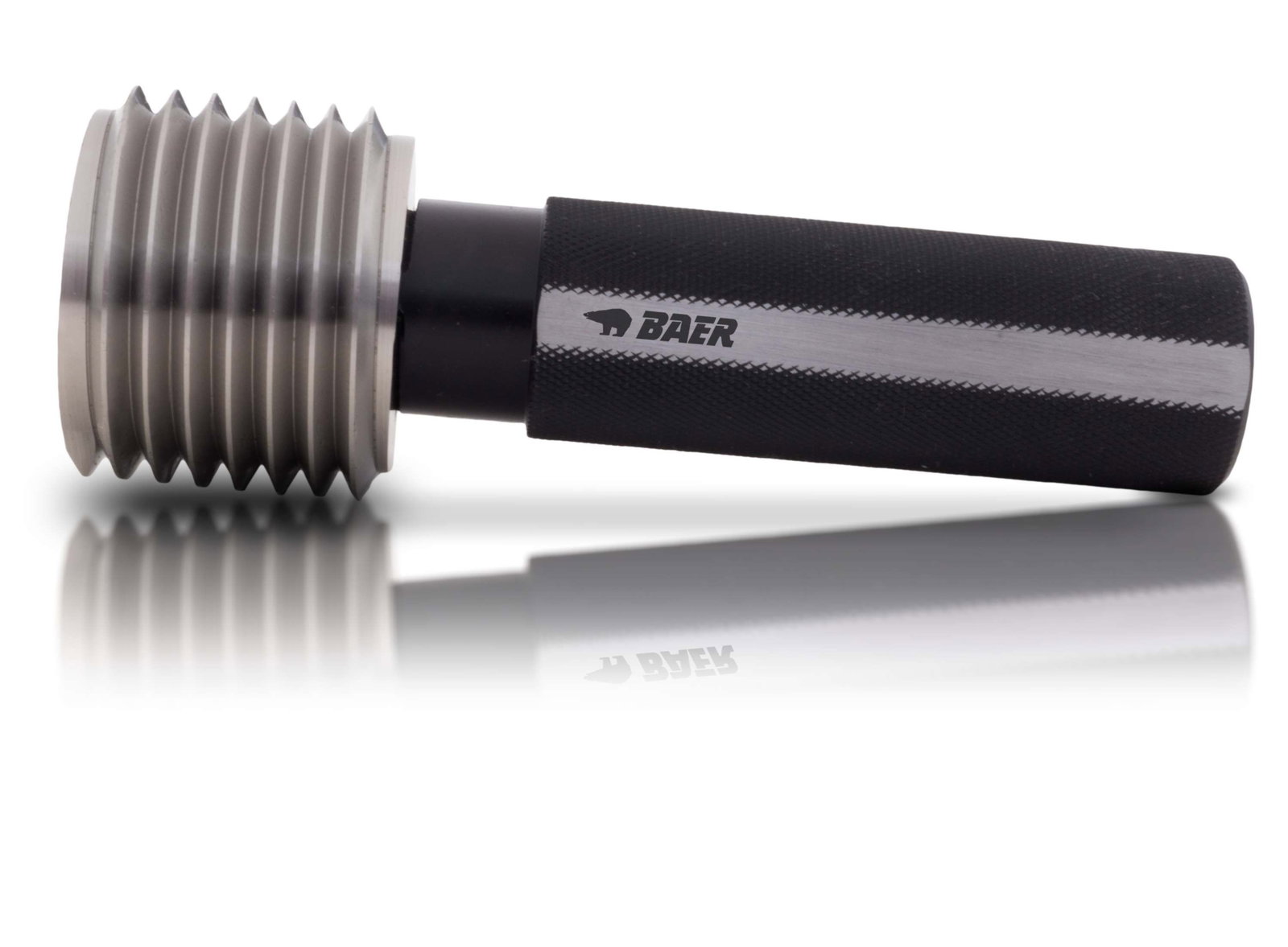

Thread plug gauge NO-GO G (BSP) 2.1/2 x 11 - tolerance Medium
EAN
4058462127373
Item no
132301004
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information
Thread plug gauge NO-GO G (BSP) 2.1/2 x 11 - tolerance Medium
Does the actual flank diameter of the internal thread exceed the prescribed maximum dimension? You can reliably determine this with the calibrated thread NO-GO gauge plug. If you can screw the thread NO-GO gauge plug into the thread from both sides by hand by no more than two turns, your thread is dimensionally accurate. The internal thread-outer diameter and internal thread-core diameter are not checked.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
2.1/2" |
|---|---|
| Pitch |
11 |
| Dimension |
G (BSP) 2.1/2" x 11 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread plug gauges |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Tolerance |
medium |
| Direction |
Right |
| Material |
Special gauge steel |
