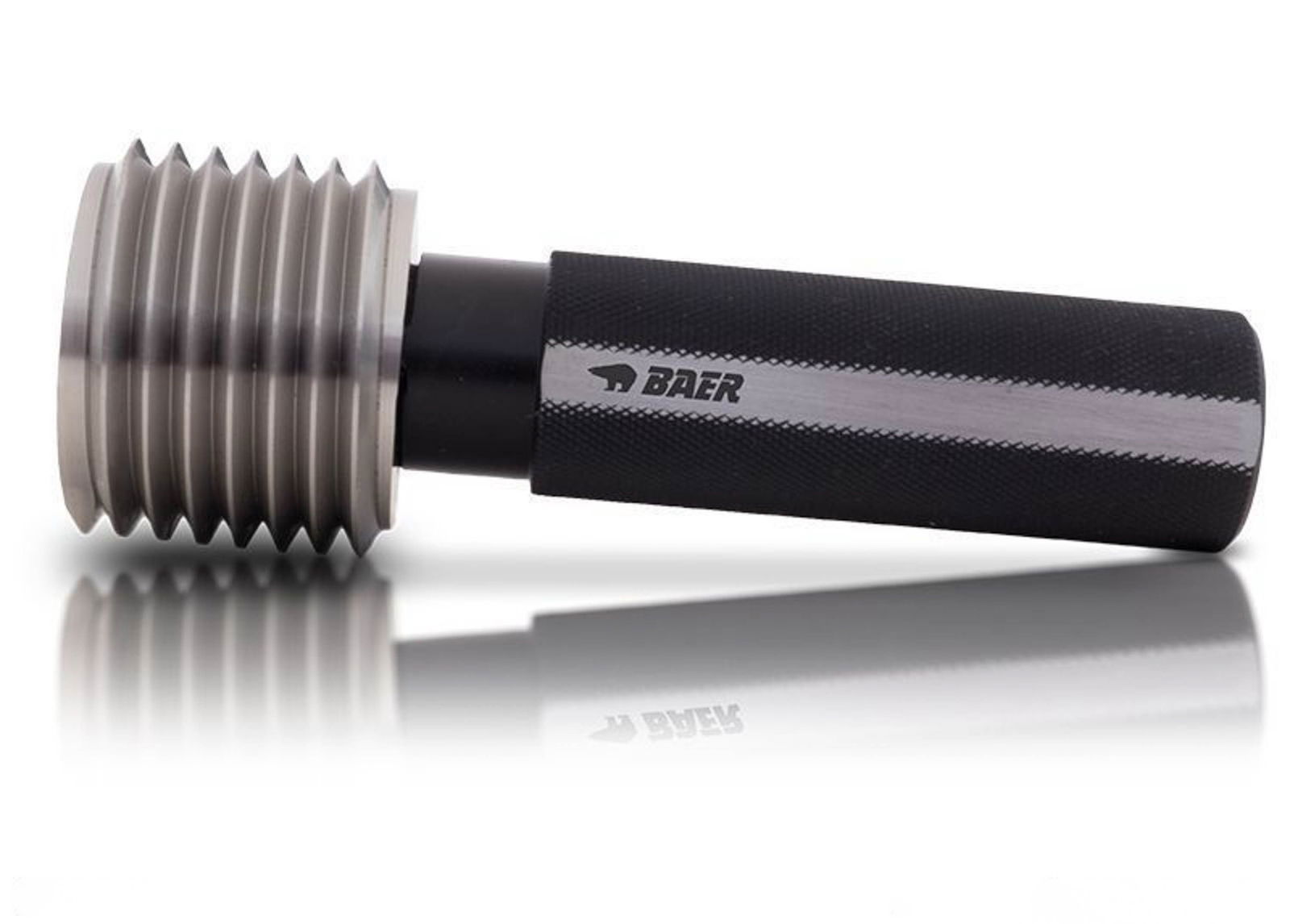

Thread Plug Gauge NO-GO MF 50 x 1.5 - tolerance 6H
In stock
Thread Plug Gauge NO-GO MF 50 x 1.5 - tolerance 6H
The thread NO-GO gauge plug is a calibrated testing device with which you can reliably check the actual flank diameter of internal threads to the prescribed maximum dimension. If you can screw the thread NO-GO gauge plug into the thread from both sides by hand no more than two turns, your thread is dimensionally accurate. The internal thread-outer diameter and internal thread-core diameter are not checked.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
50 |
|---|---|
| Pitch |
1,5 |
| Dimension |
MF 50 x 1,5 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread plug gauges |
| Thread standard |
MF: Metric ISO fine thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Material |
Special gauge steel |
