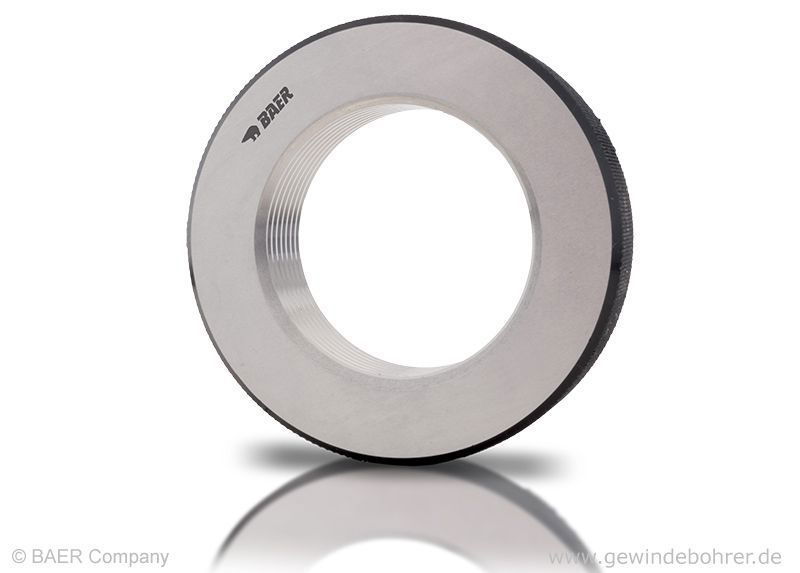

Thread ring gauge GO G (BSP) 1/8 x 28 - tolerance A
EAN
4058462127458
Item no
132501003
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information
Thread ring gauge GO G (BSP) 1/8 x 28 - tolerance A
The good ring gauges are made of high-quality special gauge steel and therefore enable reliable thread testing. The BAER good ring gauge checks the so-called mating dimension as well as the screw-on capability and is therefore particularly durable. The thread limit ring gauge, also called gauge nut, checks the flank and core diameter of external threads.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
1/8 |
|---|---|
| Pitch |
28 |
| Dimension |
G (BSP) 1/8 x 28 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread ring gauges |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Tolerance |
A |
| Direction |
Right |
| Material |
Special gauge steel |
