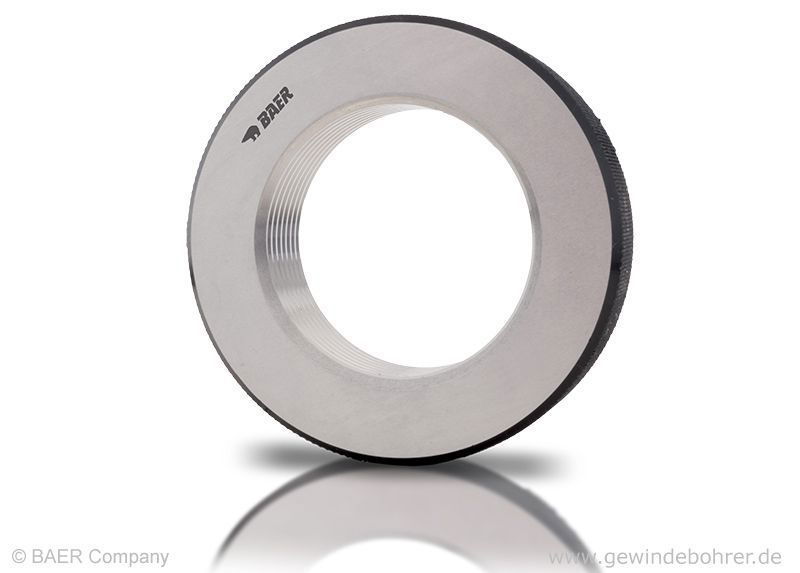

Thread ring gauge GO PG 7 x 20 - tolerance Medium
In stock
Thread ring gauge GO PG 7 x 20 - tolerance Medium

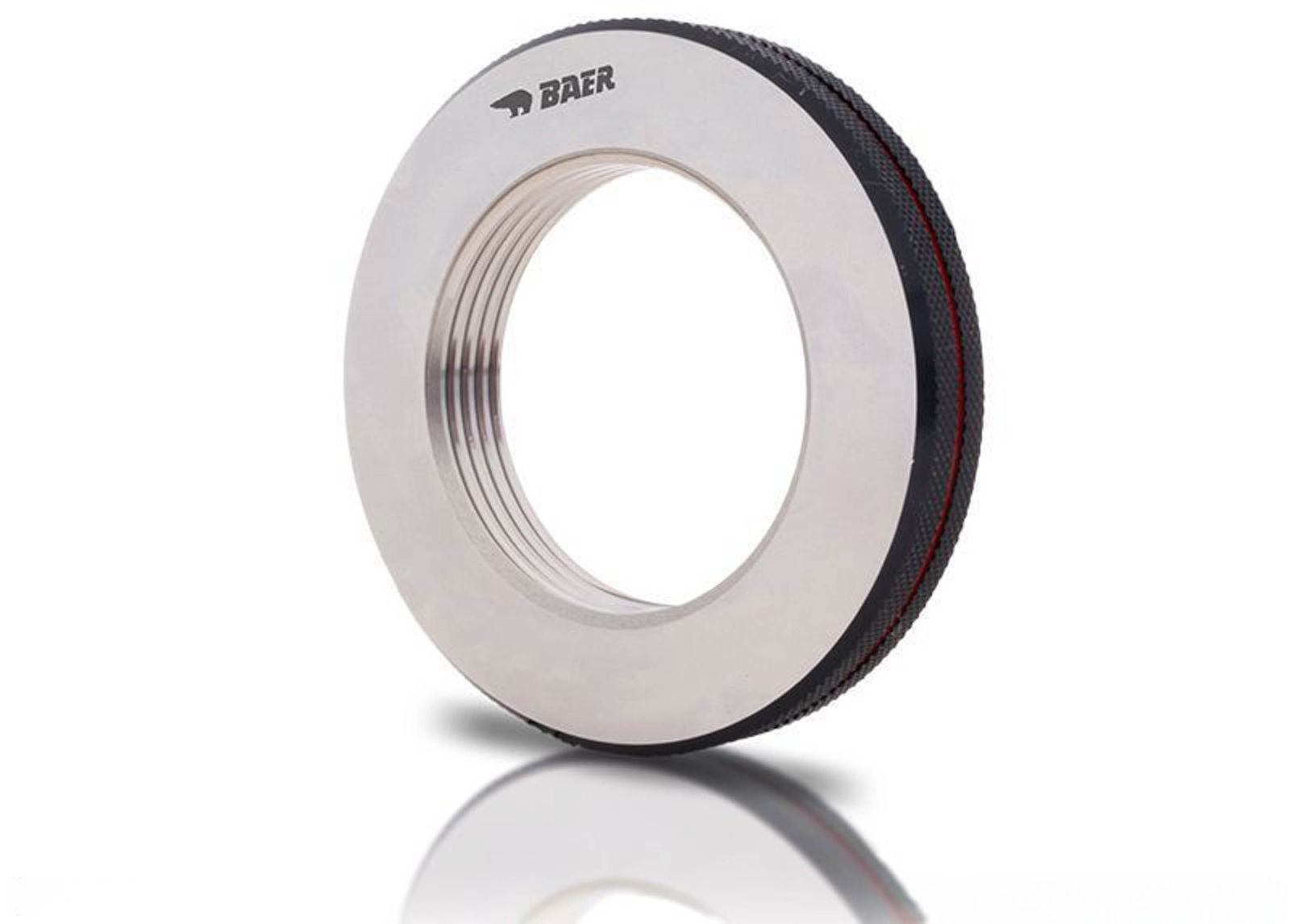

BAER good ring gauges are high-quality precision tools that check the so-called mating dimension as well as the screw-on capability of external threads. As the threaded good ring gauge wears out more quickly, it should be checked again and again with the wear test mandrel. With the thread limit ring gauge, also called a ring gauge nut, you check the flank and core diameter of external threads. The material of the thread limit ring gauges consists of high-quality special gauge steel. This allows you to use your ring gauges for a long time for reliable thread testing.
Calibration
In the section accessories you can purchase a calibration for your gauge.
For this purpose, please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further ordering process, you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
7 |
|---|---|
| Pitch |
20 |
| Dimension |
PG 7 x 20 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread ring gauges |
| Thread standard |
PG: Armored conduit thread according to DIN 40430 |
| Tolerance |
medium |
| Direction |
Right |
| Material |
Special gauge steel |
