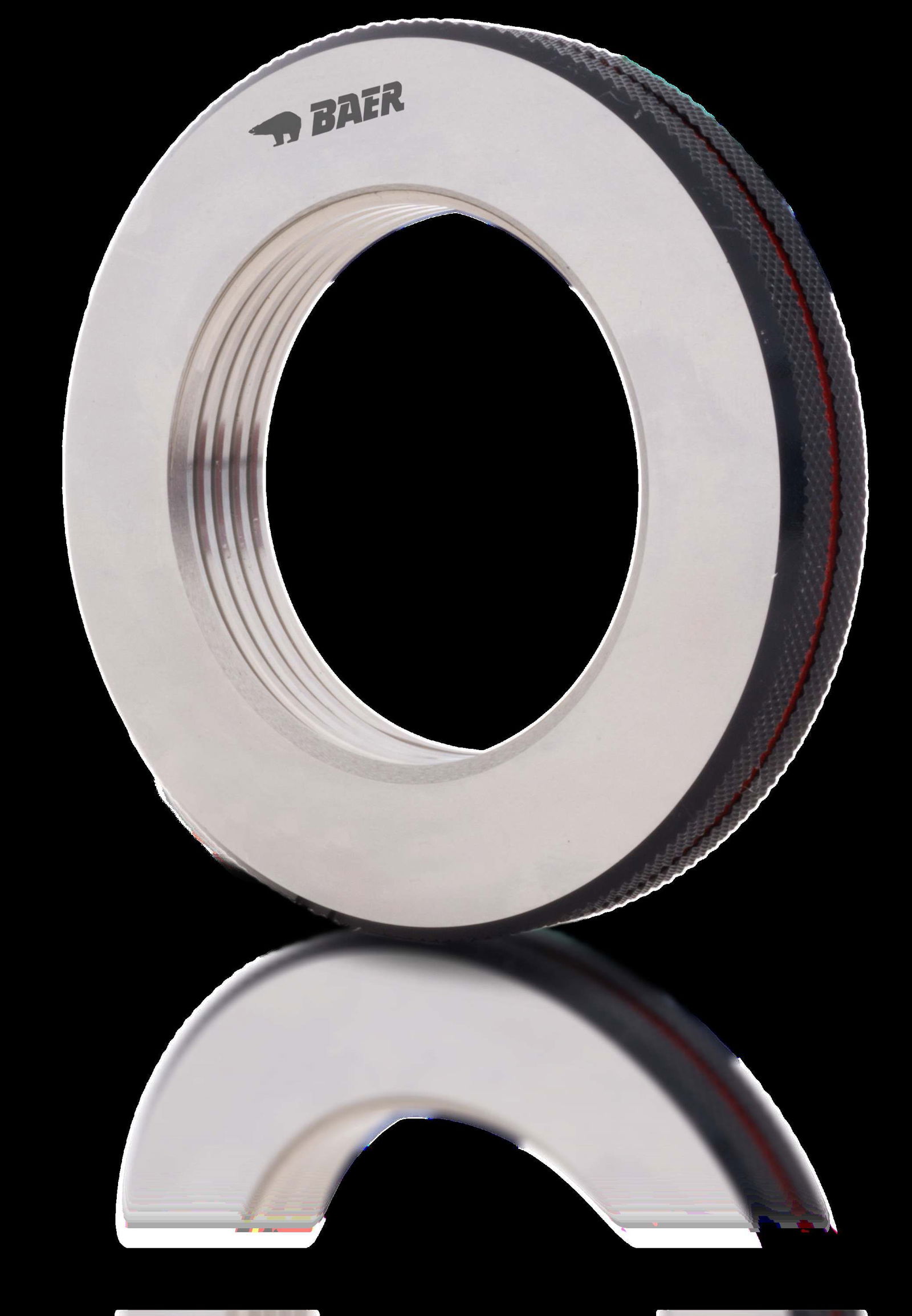

Thread ring gauge NO-GO UNEF 3/4 x 20 - tolerance 2A
In stock
Thread ring gauge NO-GO UNEF 3/4 x 20 - tolerance 2A
BAER thread reject ring gauges are the perfect solution for anyone who needs to check the actual flank diameter of the external thread. These reject ring gauges have shortened threads and must not be able to be unscrewed completely. A maximum of two turns is a guide value here. Only the outer diameter of the thread is measured during the inspection, which makes the BAER thread reject ring gauges particularly efficient.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
3/4 |
|---|---|
| Pitch |
20 |
| Dimension |
UNEF 3/4 x 20 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread ring gauges |
| Thread standard |
UNEF: American Extra Fine Unified National thread according to ANSI B1.1 |
| Tolerance |
2A |
| Direction |
Right |
| Material |
Special gauge steel |
