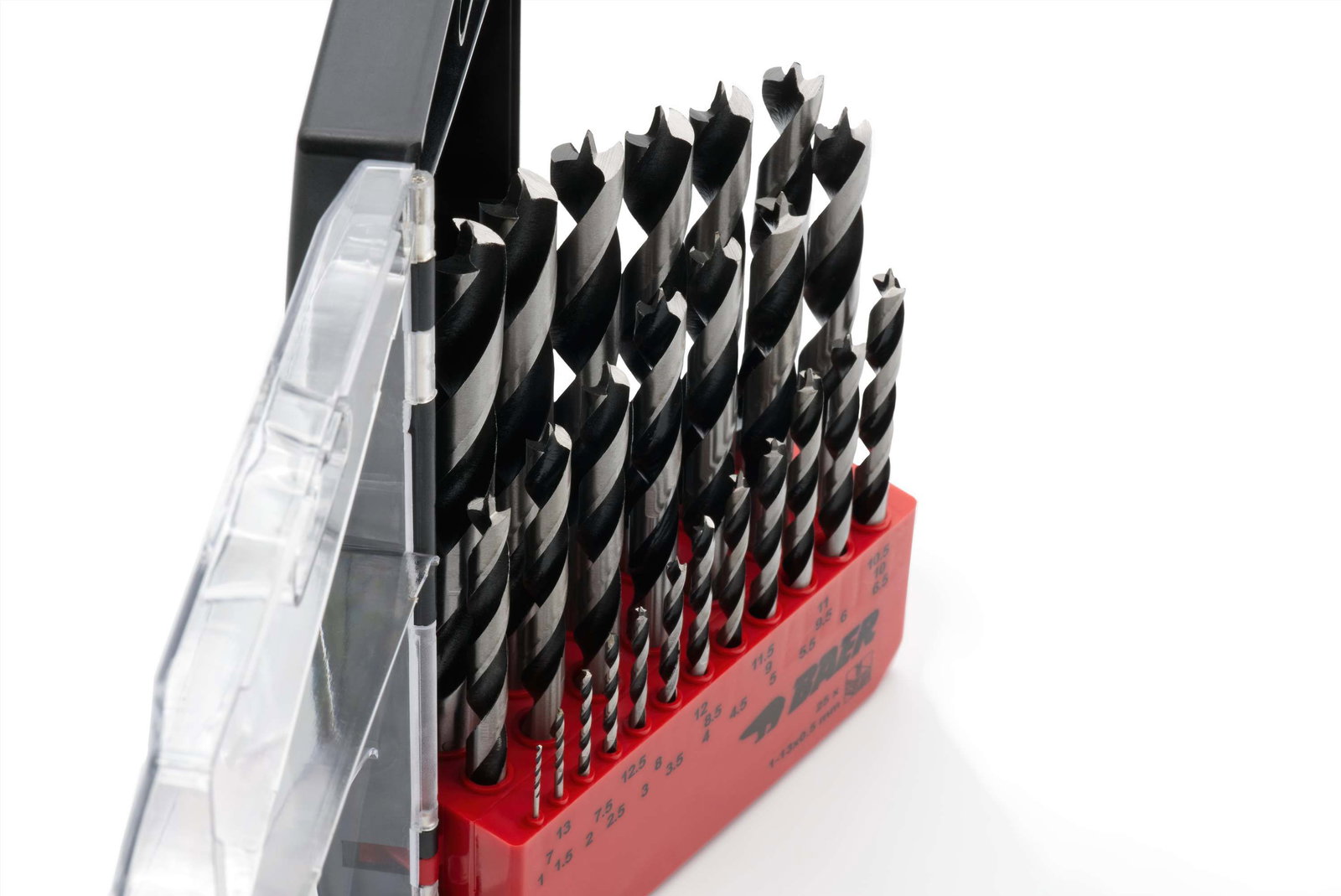

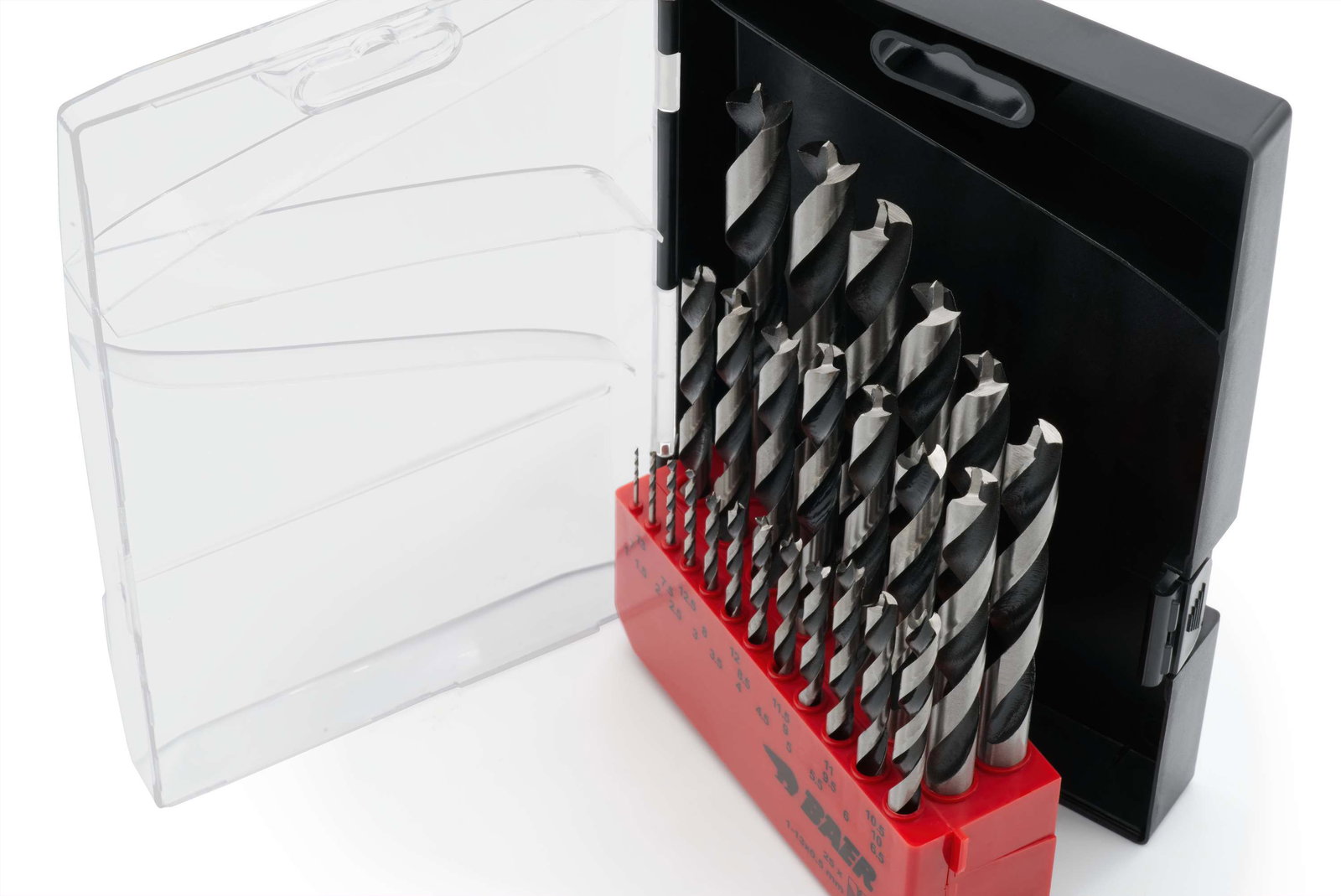

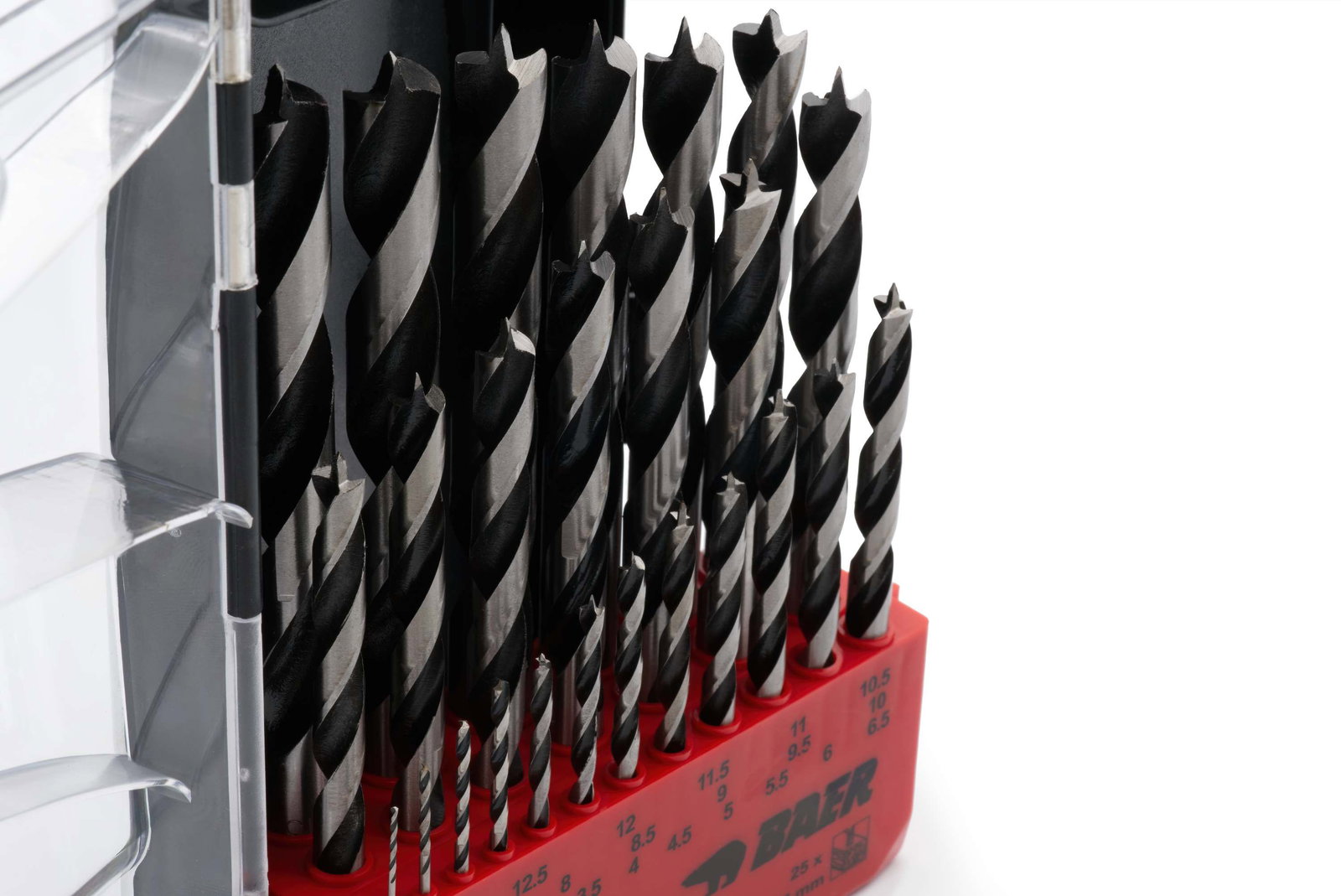

Wood Drill Bit Set (25 pcs.) 1 - 13 mm
Wood Drill Bit Set (25 pcs.) 1 - 13 mm
You finally have the time and desire to dedicate yourself to your DIY project? You drill your first hole full of anticipation and then - it slips and frays. How annoying! This won't happen to you with BAER wood drills in tested industrial quality. All common sizes are included in this wood drill bits set. Especially when it comes to tools, it is always worth spending a few euros more. Our professional wood drill bits are perfect for drilling a particularly even hole with pinpoint accuracy and without fraying. This makes DIY fun again.
These professional wood drill bits have a precise centre point. The drill body is made of durable C45 tool steel and has a particularly high tool life time. The wood drill bits have a straight shank and are suitable for use in all standard drilling machines and cordless drill bits. Our wood drill bits are ideal for drilling in hard and soft wood or MDF boards, even glued or coated boards are no longer a problem. The professional wood drill bits set from BAER contains all drill bit sizes from 1 to 13 mm diameter in 0.5 mm steps.
Dimensions
| Diameter |
3 - 10 mm |
|---|---|
| Dimension |
3 - 10 mm |
| Machine mount |
cylindrical shank |
Characteristics
| Product group |
Twist drill bits |
|---|---|
| Product type |
Twist drill bit sets |
| Direction |
Right |
| Material |
Tool steel C45 |
Applications
Suitable for hardwood, softwood, MDF panels, glued wood panels, coated wood panels, plywood, parquet, wood
Technical drawing
| L1 |
34 - 151 mm |
|---|---|
| L2 |
12 - 101 mm |
| Diameter |
3 - 10 mm |
Content
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 1 | 34 | 12,0 |
| 1x | 1,5 | 40 | 18,0 |
| 1x | 2 | 49 | 24,0 |
| 1x | 2,5 | 57 | 30,0 |
| 1x | 3 | 61 | 33,0 |
| 1x | 3,5 | 70 | 39,0 |
| 1x | 4 | 75 | 43,0 |
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 4,5 | 80 | 47,0 |
| 1x | 5 | 86 | 52,0 |
| 1x | 5,5 | 93 | 57,0 |
| 1x | 6 | 93 | 57,0 |
| 1x | 6,5 | 101 | 63,0 |
| 1x | 7 | 109 | 69,0 |
| 1x | 7,5 | 109 | 69,0 |
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 8 | 117 | 75,0 |
| 1x | 8,5 | 117 | 75,0 |
| 1x | 9 | 125 | 81,0 |
| 1x | 9,5 | 125 | 81,0 |
| 1x | 10 | 133 | 87,0 |
| 1x | 10,5 | 133 | 87,0 |
| 1x | 11 | 142 | 94,0 |
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 11,5 | 142 | 94,0 |
| 1x | 12 | 151 | 101,0 |
| 1x | 12,5 | 151 | 101,0 |
| 1x | 13 | 151 | 101,0 |
Safety instructions
Wood drill bits
precise centre point
Goodbye pre-graining... Each drill has a precise centre point and helps to position the hole with pinpoint accuracy. The two extra sharp cutting edges, which are slightly longer on the outside than on the inside, score the wood fibres during the drilling process. This unique three-point tip with a maximum hardness of 58 HRC also speeds up drilling in wood. This means that the drill can no longer stray and the result is an exact, tear-free hole. The professional wood drill bits from BAER are perfect for drilling in hard and soft wood or MDF boards, even in glued or coated boards.
The advantages at a glance:
- precise centre point for pinpoint positioning
- two extra sharp cutting edges for tear-free drilling
- exact drilling, without running of the drill bit

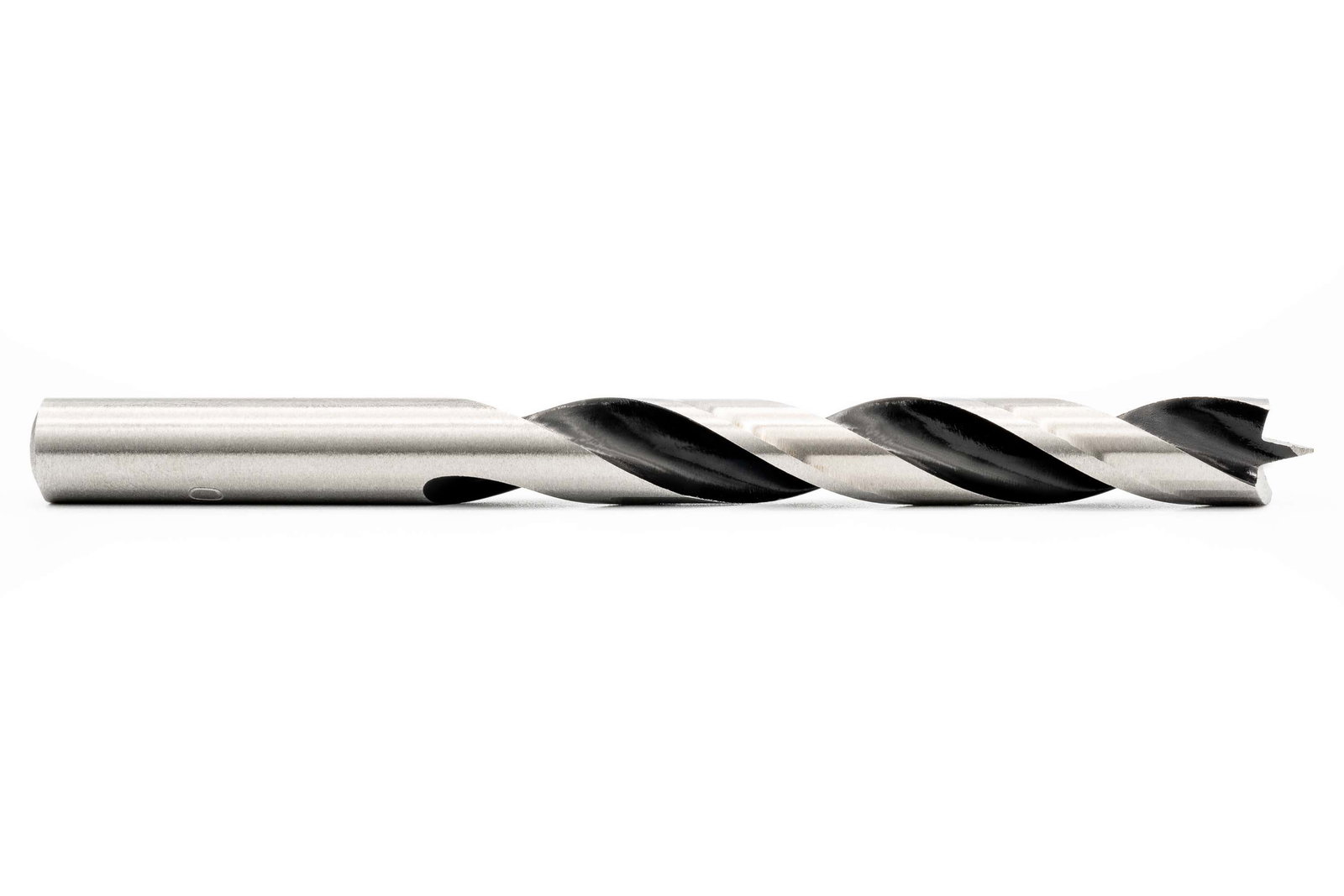

Wood drill bits
Drill body made of tool steel C45
The drill body is made of durable tool steel C45 in industrial quality. The wood drill bits from BAER have an excellent tool life time even after many drilling operations. The spirals are black lacquered, roll-forged and polished and ensure easy removal of the drilled material to achieve an exact drilling result.
With the cylindrical shank, the wood drill bits can be used in all common drilling machines and cordless drill drivers.
The advantages at a glance:
- very good tool life time due to C45 tool steel
- easy removal of the material to be drilled
- Cylindrical shank for all drill chucks
Quality for a long service life
The wood drill bits from BAER are characterised by:
- Temperature resistance
- Wear resistance
- Cutting edge stability
- Smooth running + removal of the drilled material
This makes BAER wood drill bits suitable for hard and soft wood or MDF boards. Precise work and long-term cost savings are added to this.
