Photo and C-Mount Threads
Thread cutting tools for photo and C-mount threads: the photo thread 1/4"-20 UNC and 3/8"-16 UNC for tripods and camera accessories, as well as the C-mount thread 1"-32 UN for lenses and industrial cameras. BAER manufactures matching hand screw taps and dies for these specialist threads.
Express in Germany
- Order within 12 h 18 min, estimated delivery Fri 20 Nov – Mon 23 Nov
- Express shipping within Germany: order by 13:00, delivery tomorrow
Express in Germany
- Order within 12 h 18 min, estimated delivery Fri 20 Nov – Mon 23 Nov
- Express shipping within Germany: order by 13:00, delivery tomorrow
Express in Germany
- Order within 12 h 18 min, estimated delivery Fri 20 Nov – Mon 23 Nov
- Express shipping within Germany: order by 13:00, delivery tomorrow
Express in Germany
- Order within 12 h 18 min, estimated delivery Fri 20 Nov – Mon 23 Nov
- Express shipping within Germany: order by 13:00, delivery tomorrow
Express in Germany
- Order within 12 h 18 min, estimated delivery Fri 20 Nov – Mon 23 Nov
- Express shipping within Germany: order by 13:00, delivery tomorrow
Express in Germany
- Order within 12 h 18 min, estimated delivery Fri 20 Nov – Mon 23 Nov
- Express shipping within Germany: order by 13:00, delivery tomorrow
Photo Thread and C-Mount Thread
Photography is one of the fields in which inch threads are commonly used even in Europe. They are found especially on tripods and lenses, where these standardised variants provide the necessary security when using often high-priced equipment. Even though quick-release bayonet mounts are now common on cameras, the lens thread is far from obsolete. The tripod thread also remains as popular as ever. You will find all the tools you need to machine these two types of threads in the BAER online shop.
Everything you need to know about photo and C-mount threads
When it comes to photo threads, we are not talking about a single type of thread, but about several different threads that have typically become established as standards on cameras of all kinds.
The first of these is the tripod thread. This term refers to two sizes of the American UNC thread, namely 1/4″ – 20 UNC and 3/8″ – 16 UNC. These are inch threads with a 60° thread angle, an external diameter of 1/4 or 3/8 inch, and a pitch of 20 or 16 threads per inch respectively. These threads are used to create a secure connection between the tripod and the tripod head, or with the device itself via the camera thread. A firm hold at this point is important not only for achieving optimum results when taking photographs, but also for avoiding damage to the often expensive equipment. This is why the robust UNC thread is often chosen here.
Lens threads are divided into C-mount, CS-mount and S-mount. C-mount lenses used to be the standard in photography and in the film sector. This is an inch thread with an external diameter of 1 inch (2.54 cm). The S-mount thread is designed for miniature lenses or board lenses and is a metric thread M 12 × 0,5. Both variants are used to securely attach interchangeable lenses to the camera body.
Photo threads – our range
Precision is key in photographic technology, and adventurous photographers in particular will now and then find themselves needing to re-cut or repair a dirty or damaged photo thread. In the BAER online shop you will find exactly the right products for this task. Whether internal or external thread – we have the tools you need.

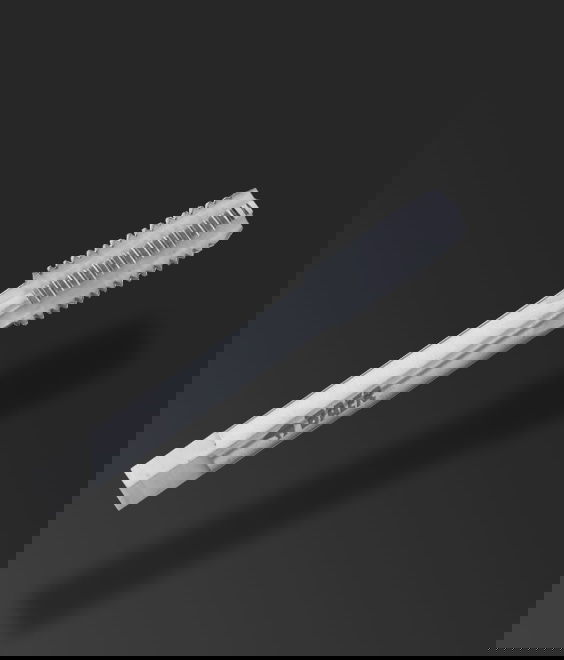

Screw taps individually or in a thread set

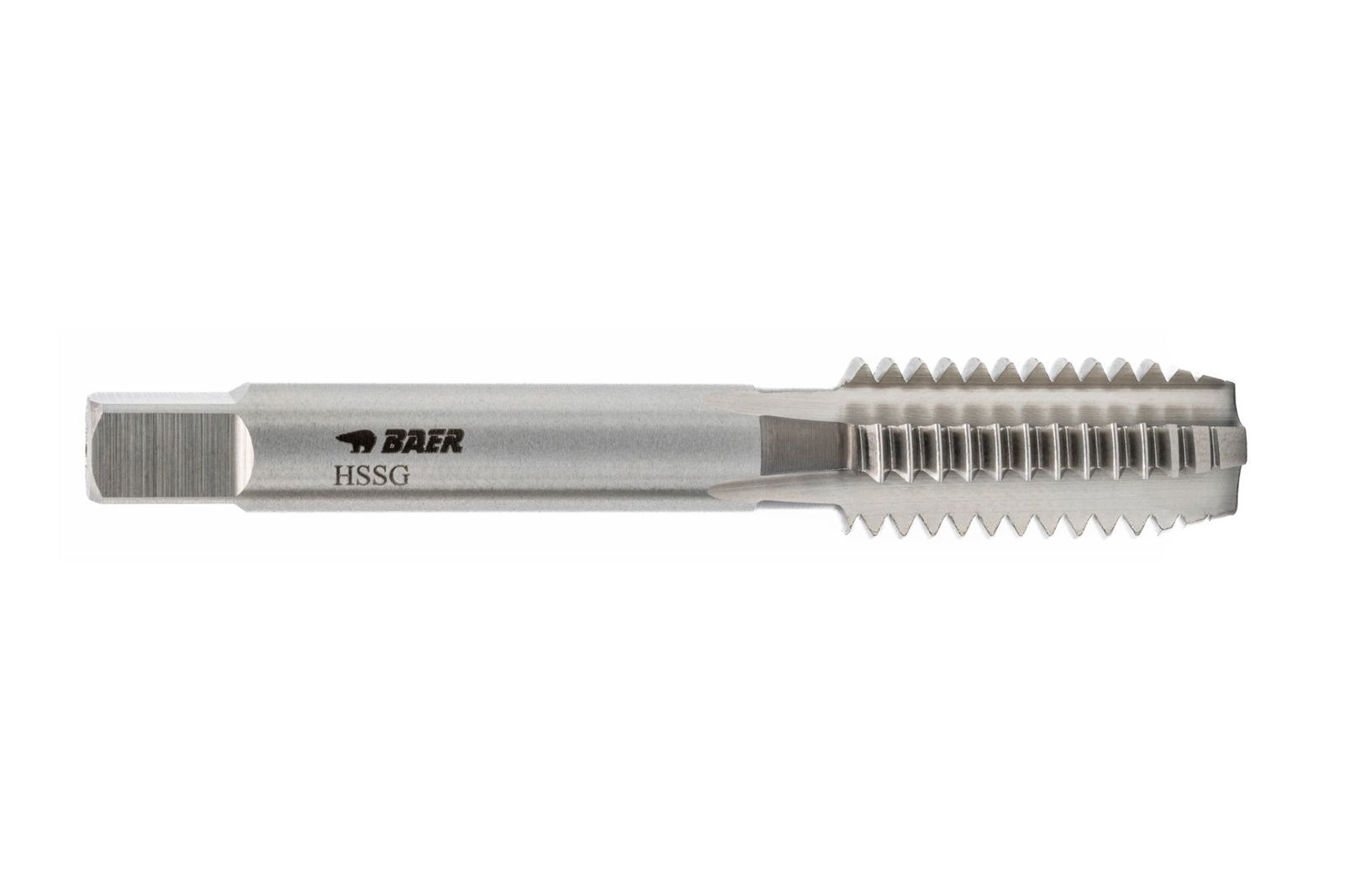

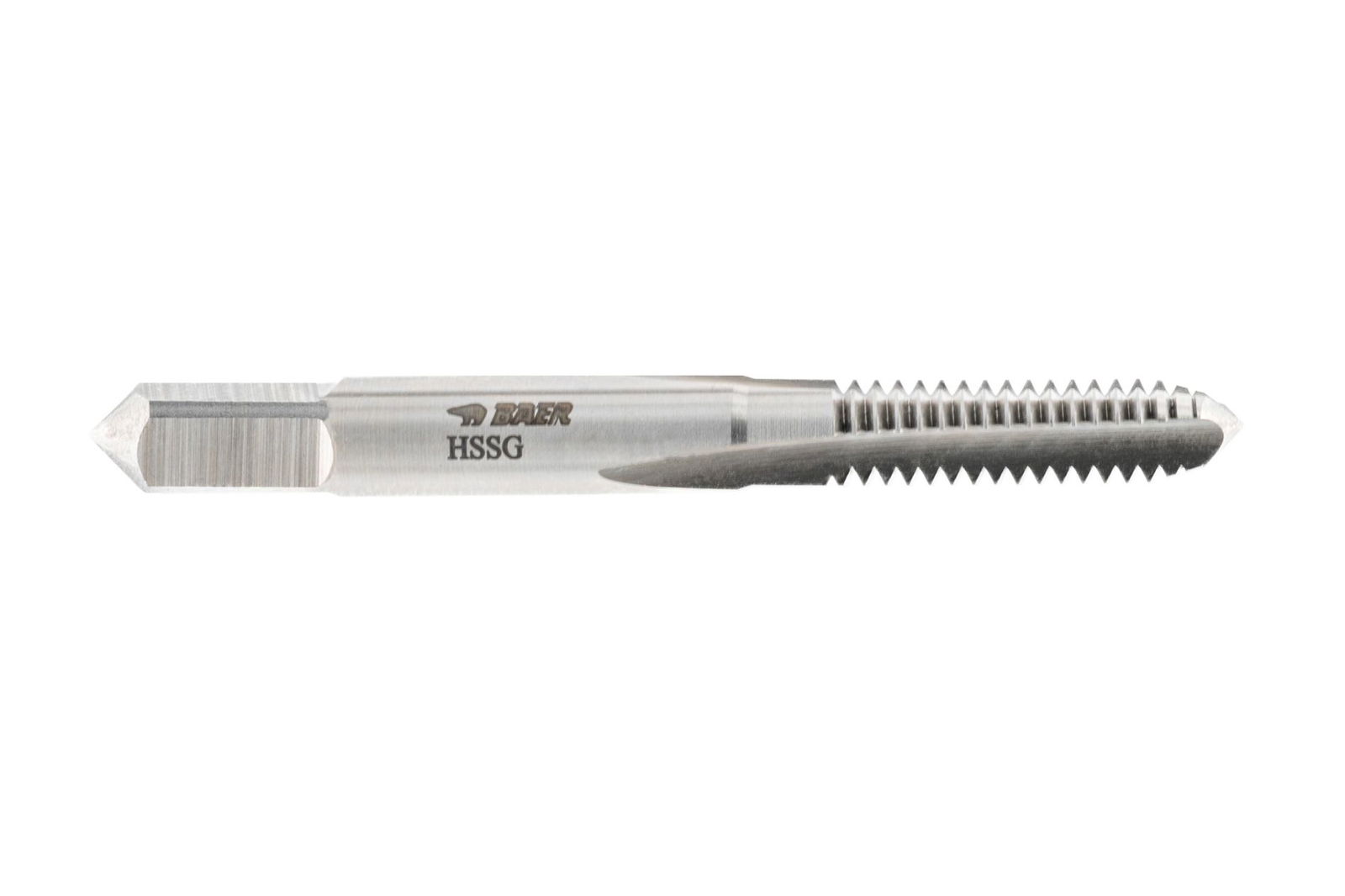

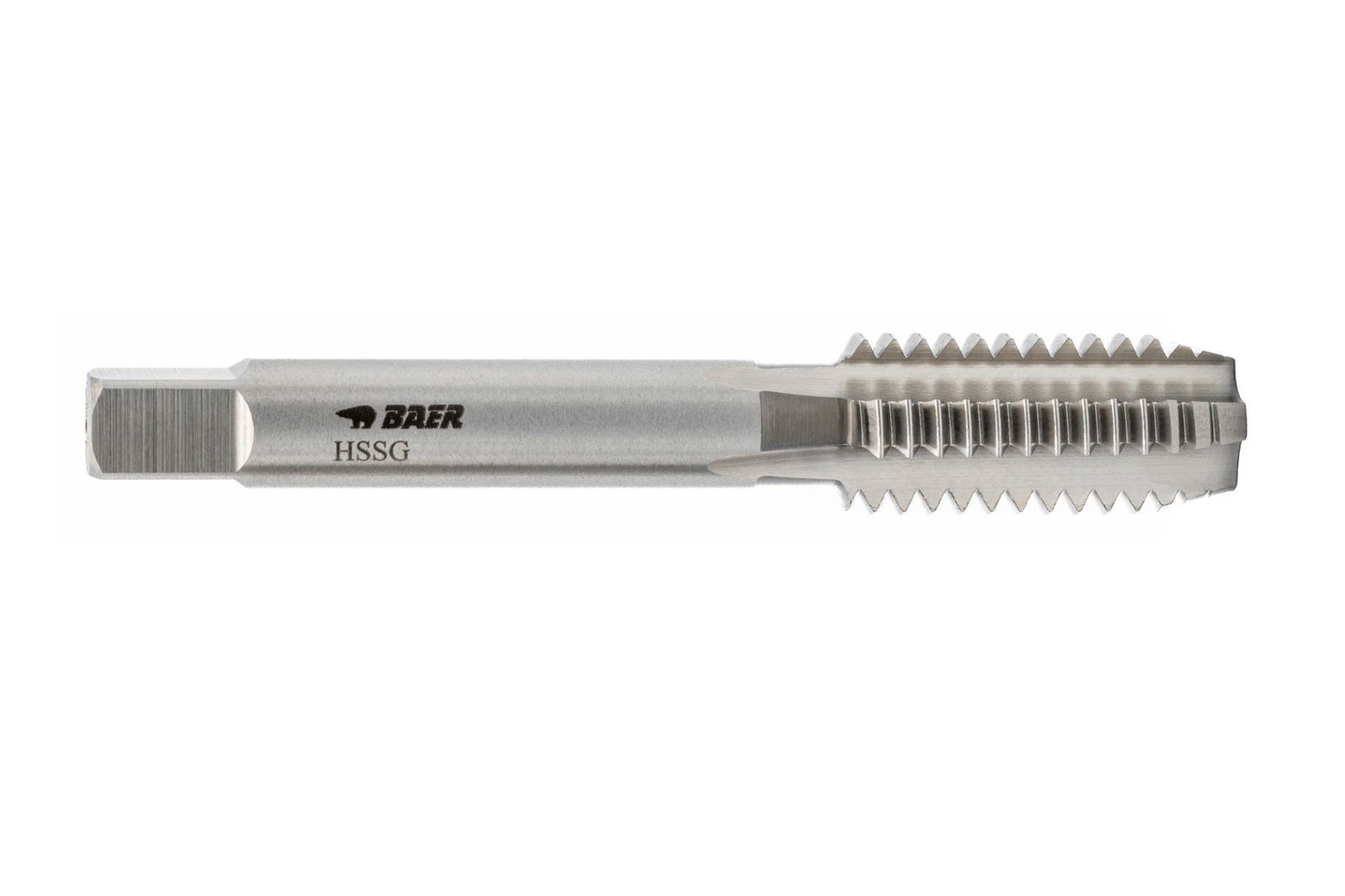

We offer high-quality HSSG screw taps for tripod threads in 1/4 inch and 3/8 inch diameters. These tools are ideally suited to machining threads on cameras and tripod heads and always deliver perfect results. All screw taps in this category are short machine taps. This is particularly practical, as it keeps you flexible and means you can also cut the required thread by hand.
We also provide the right support for machining your lens threads. Whether for C-mount or S-mount, our HSSG screw taps make your project easy to complete. While the C-mount screw tap is a short machine tap, the finer S-mount thread should be machined with hand screw taps. You can find these with us either individually or in a practical thread set consisting of a taper tap (No. 1) and a finishing tap (No. 3).

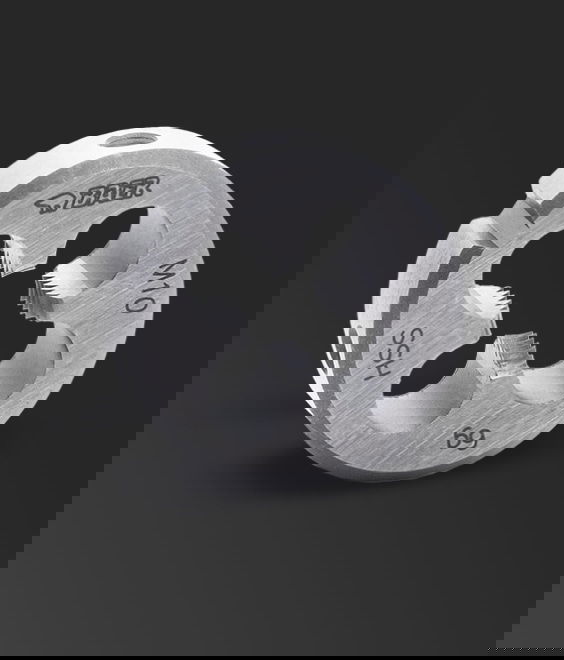

Round dies for tripod heads and lenses
Of course, you can also machine and re-cut external threads in the photographic field with BAER tools. We offer round dies for the 1/4'' and 3/8'' tripod thread as well as for the C-mount and S-mount lens threads. All tools are made from high-quality HSS, for reliable precision and a long service life.
Discover tools and accessories for photo threads in the BAER online shop now!
Whether exotic types such as the photo thread or classics such as the metric ISO thread – at BAER you will find tools for virtually every thread cutting application. Try it out and see for yourself! And if you have any questions or would like detailed advice, our customer service is always here for you. You can reach us by telephone or simply via our contact form.
