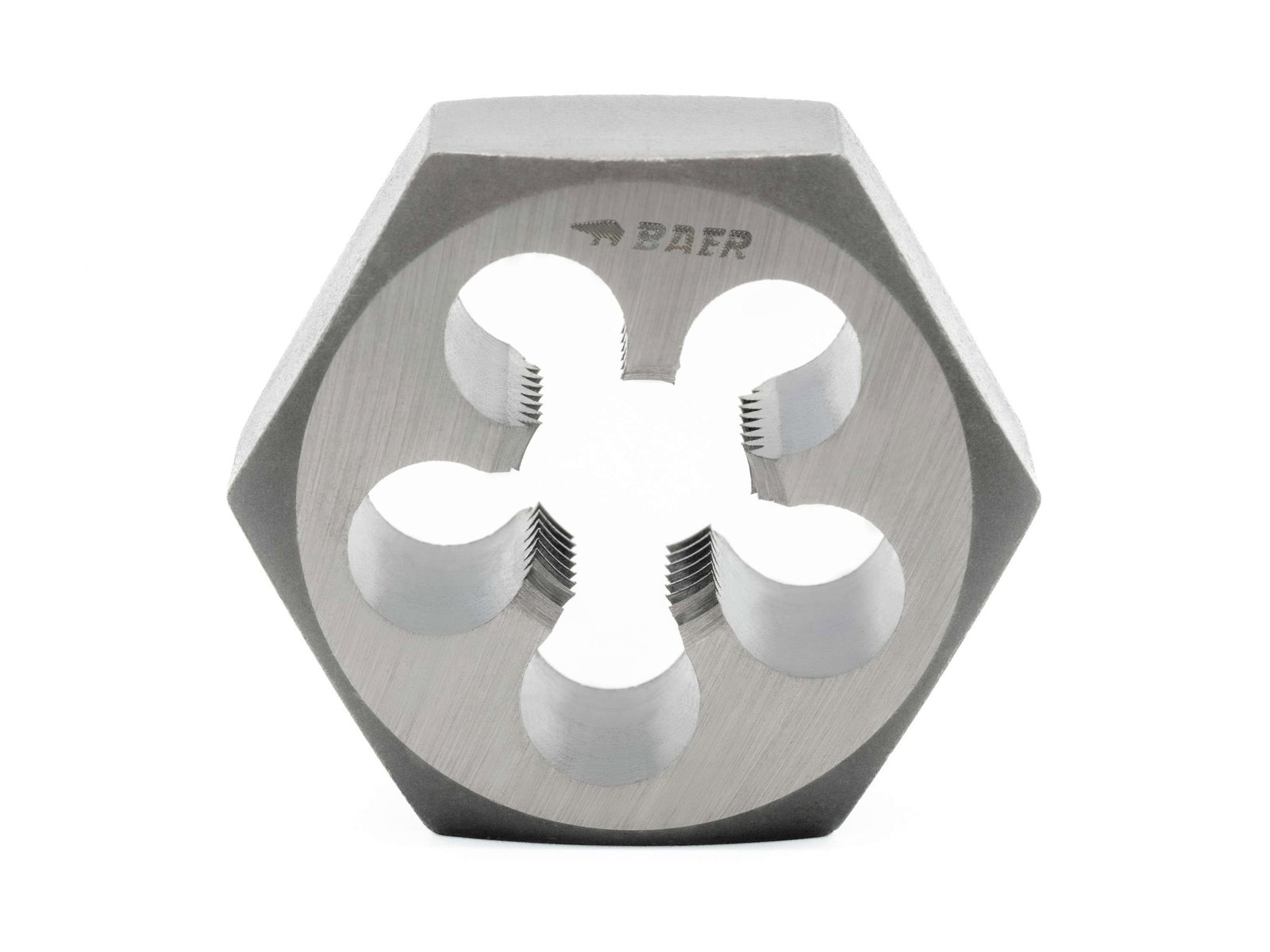

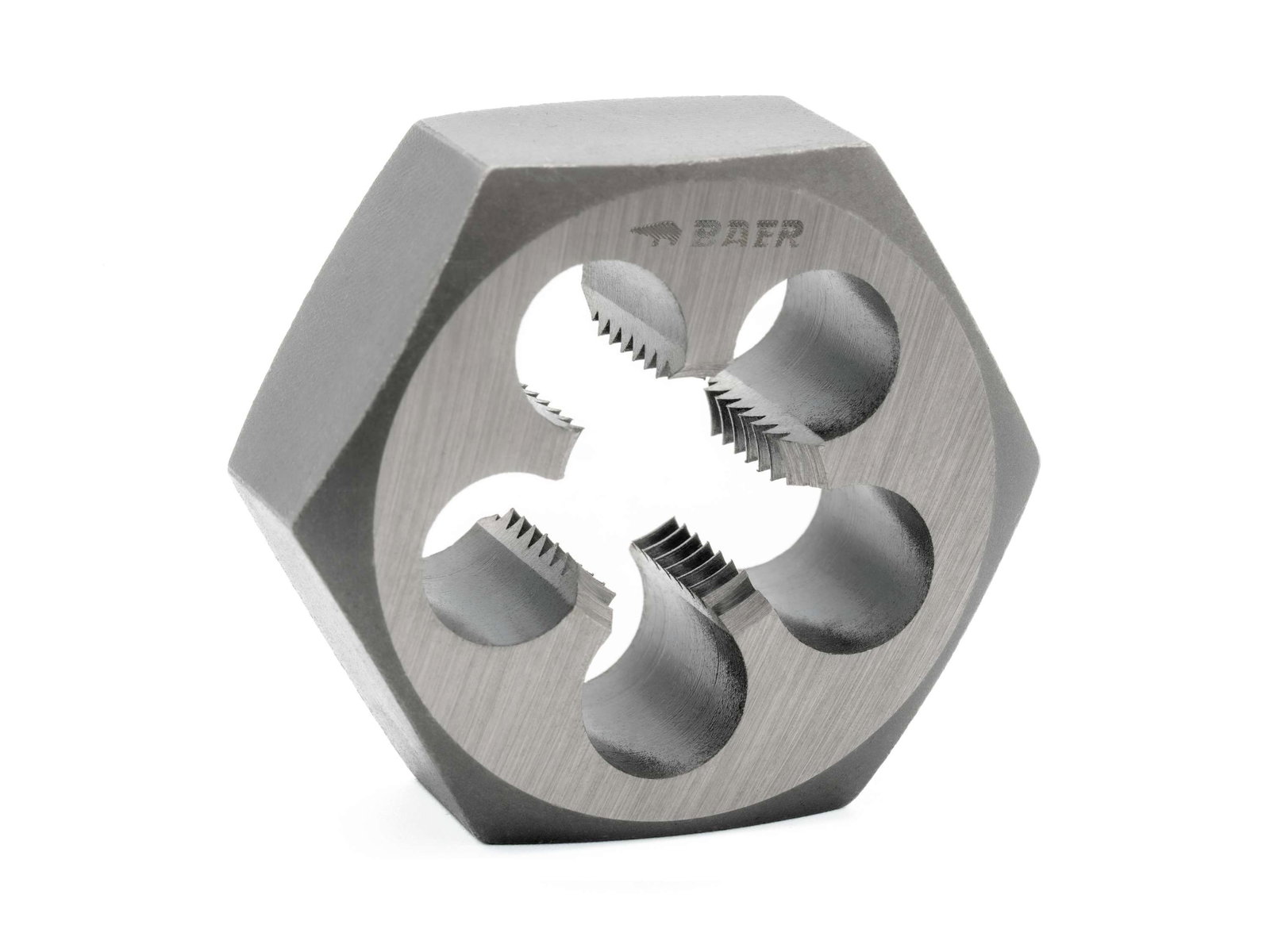

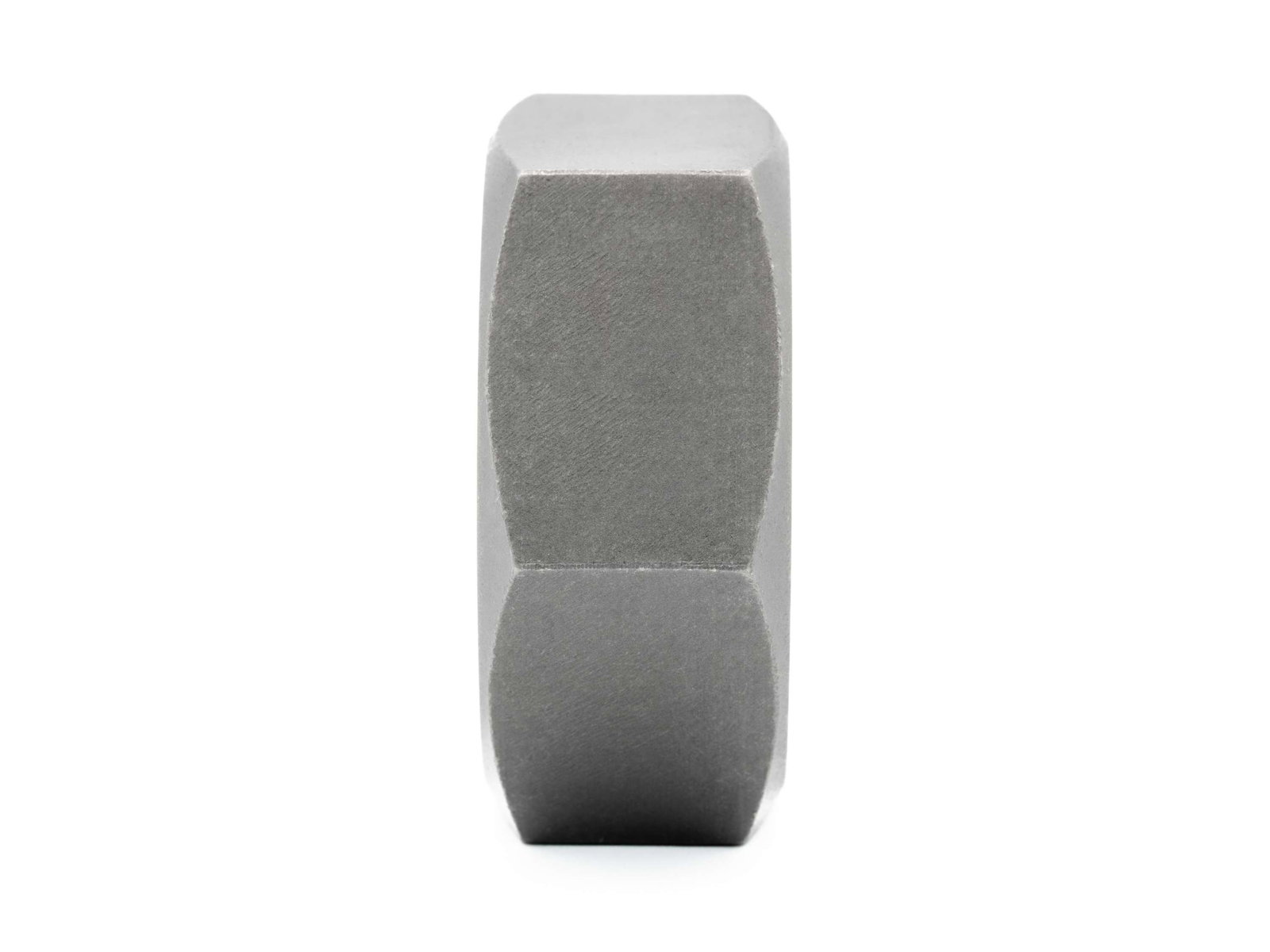

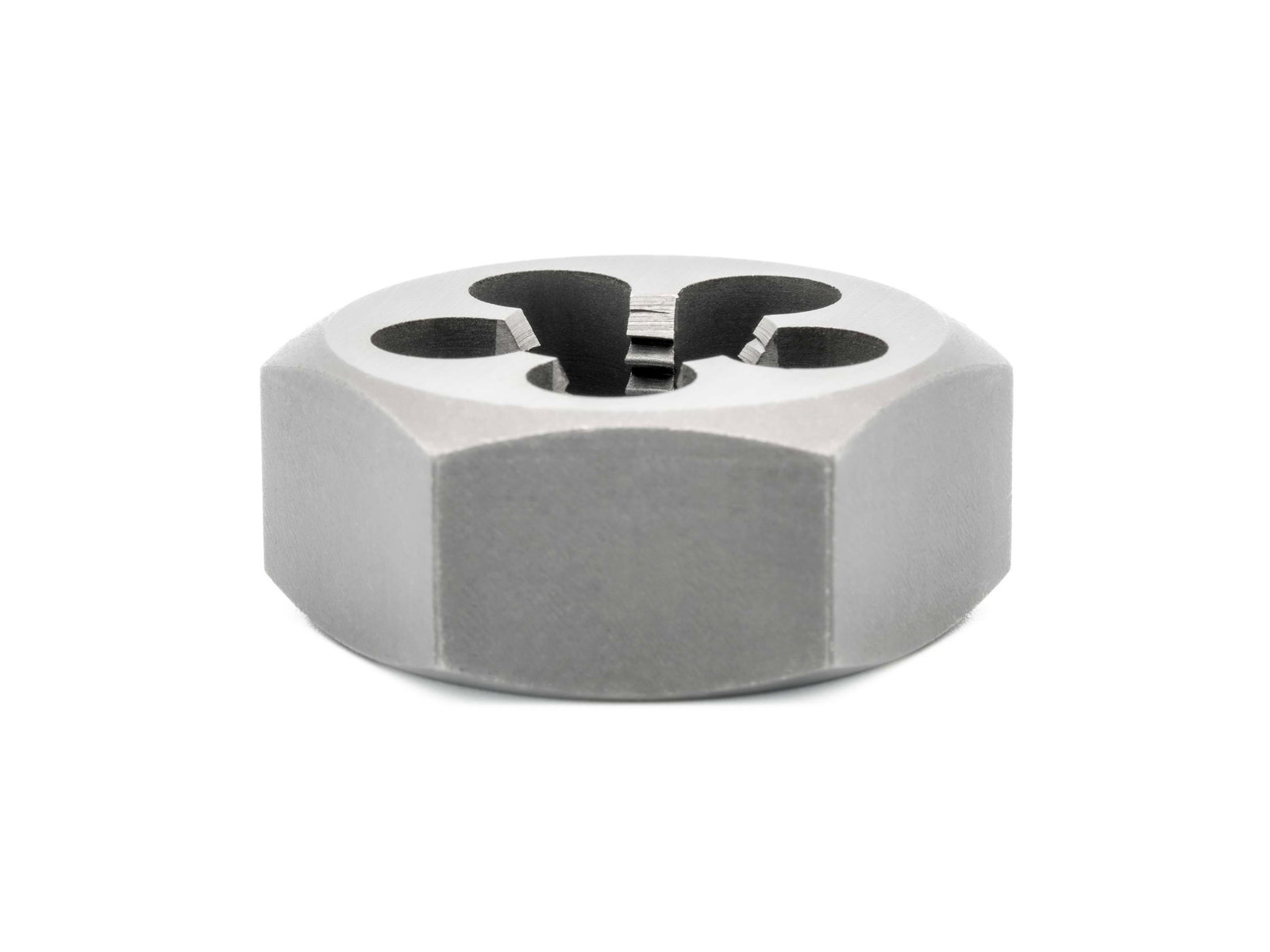

BAER Hexagon Die Nut R (BSPT) 1/2 x 14 - HSS
BAER Hexagon Die Nut R (BSPT) 1/2 x 14 - HSS
The hexagon die nut is particularly advantageous for repairs, as it can be moved with ring or open-end spanners, making it easier to reach inaccessible places. BAER dies are perfect for anyone who wants to cut external threads. Basically, this cutting tool has an external hexagon and - depending on the size - has three or more cutting edges inside. The holes between the cutting edges take up the chips, roll them and carry them away. Hexagonal die nuts are used to cut screws, nuts and threaded rods in everyday use. The hexagon die nut is made of the high-speed steel HSS, which has better toughness and is less susceptible to breakage than HSSE steel. HSS steel is also a popular material for making tools that are subjected to high stresses. HSS hexagonal die nuts can be used for structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloyed copper and short-chipping copper-tin alloys. Also plastics such as POM, PVC etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.
Dimensions
| Height H |
19 mm |
|---|---|
| Diameter |
1/2 |
| Pitch |
14 |
| Dimension |
R (BSPT) 1/2 x 14 |
Characteristics
| Product group |
Round cutting die |
|---|---|
| Product type |
Hexagon die nuts |
| Thread standard |
R (BSPT): Tapered Whitworth pipe thread according to ISO 7/1 DIN EN 10226-1 + 2 |
| Tolerance |
medium |
| Direction |
Right |
| Standard |
DIN 382 |
| Material |
HSS |
Technical information - Cutting dies
1,5
HSS
medium
Applications
- for recutting and repairing damaged threads
- good machinable materials up to 800 N/mm²
- in places that are difficult to access
Technical drawing
| Height H |
19 mm |
|---|---|
| Wrench size S |
50. mm |
| Dimension Diameter D |
R (BSPT) 1/2 x 14 |
| Diameter |
1/2 |
