BAER Hexagon Die Nut UNF 1.1/8 x 12 - HSS
BAER Hexagon Die Nut UNF 1.1/8 x 12 - HSS

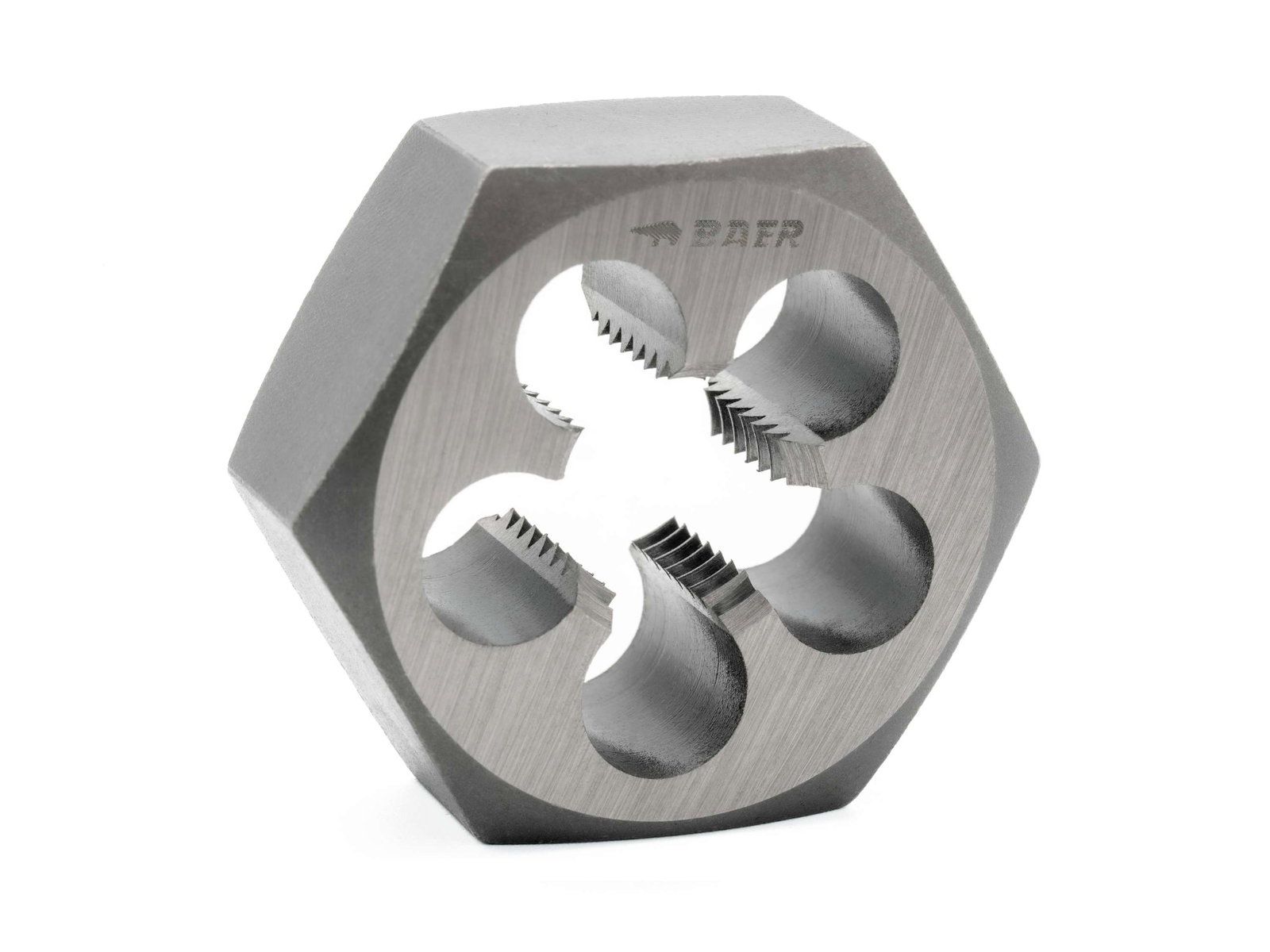

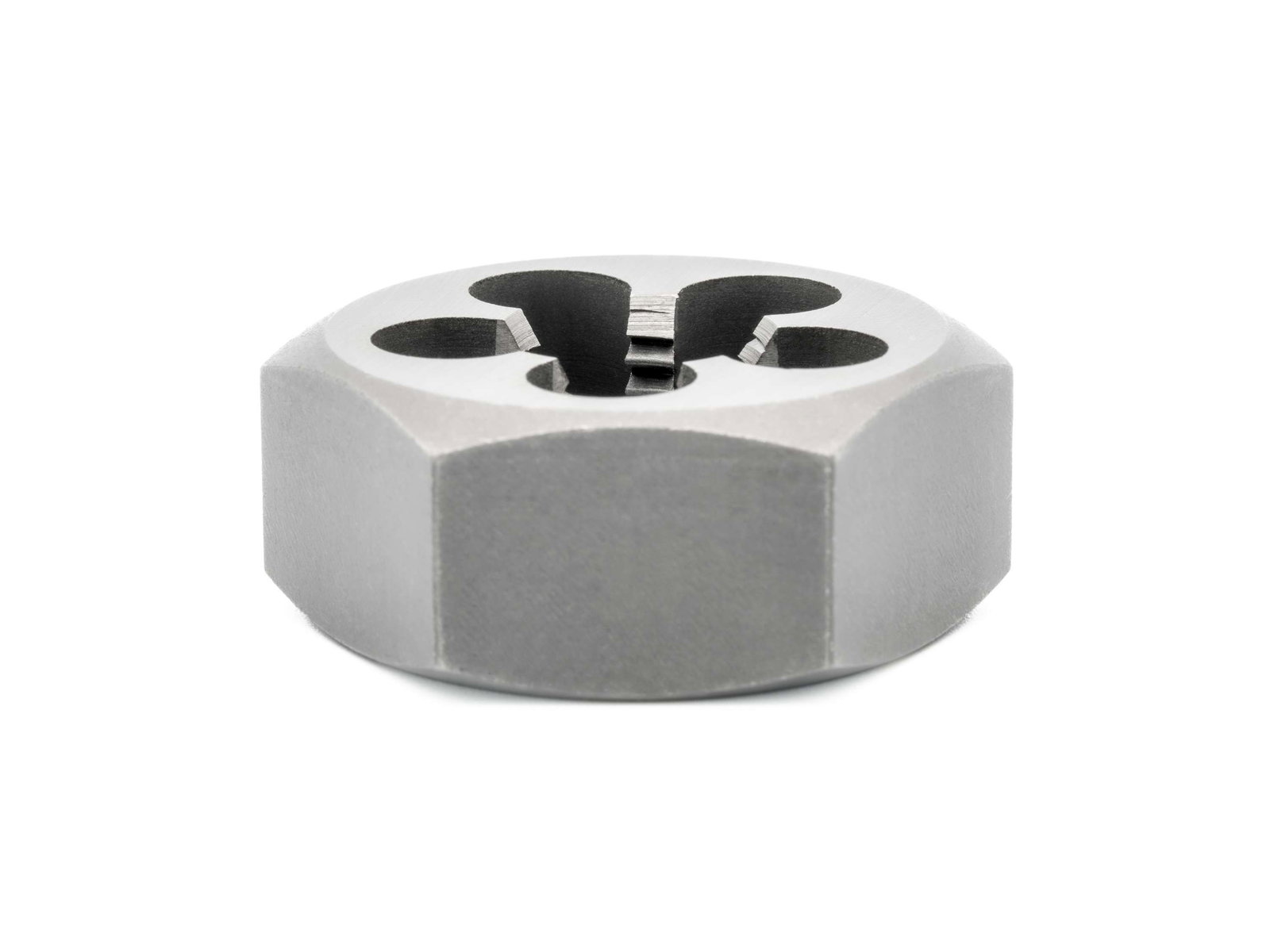

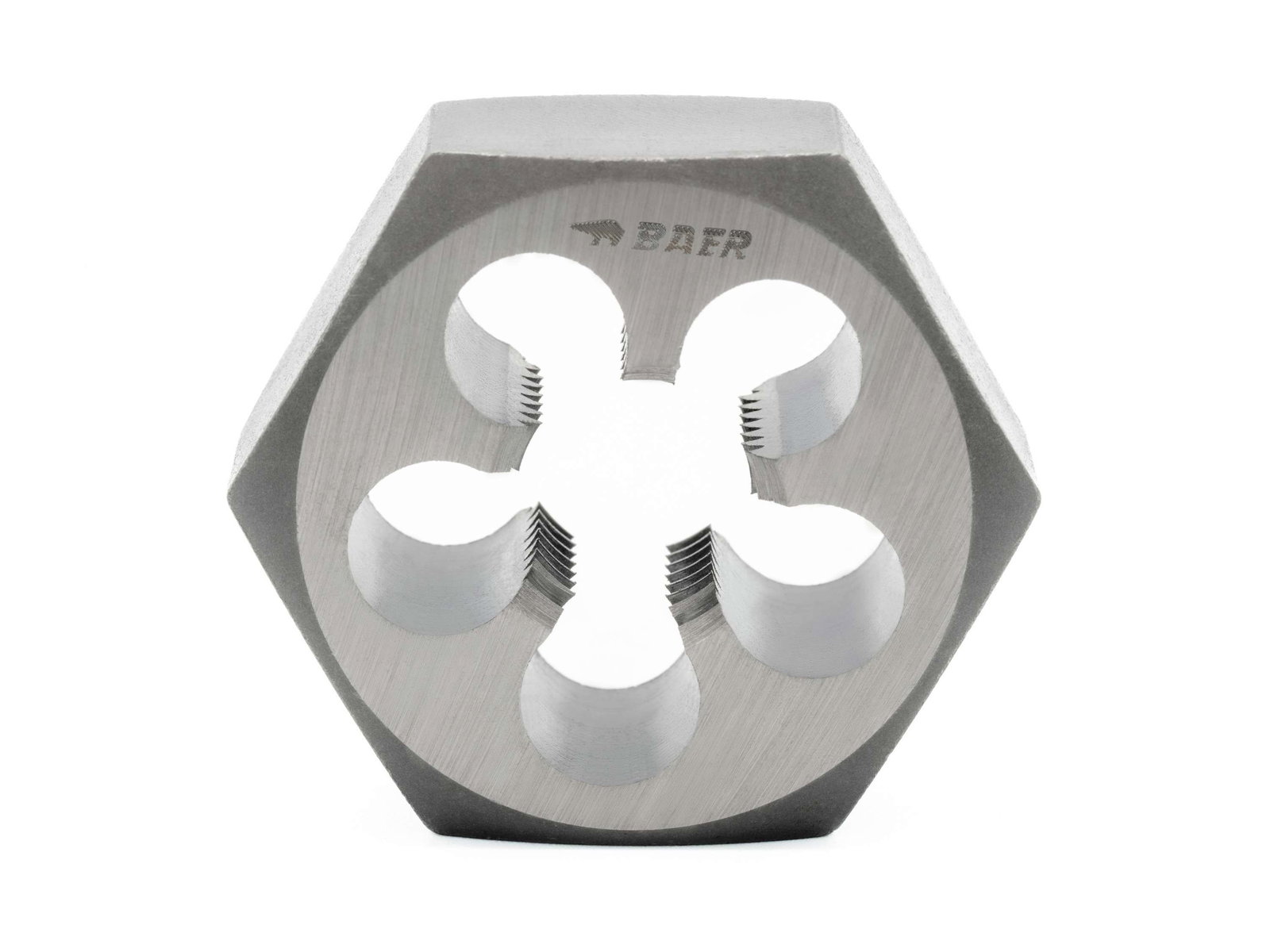

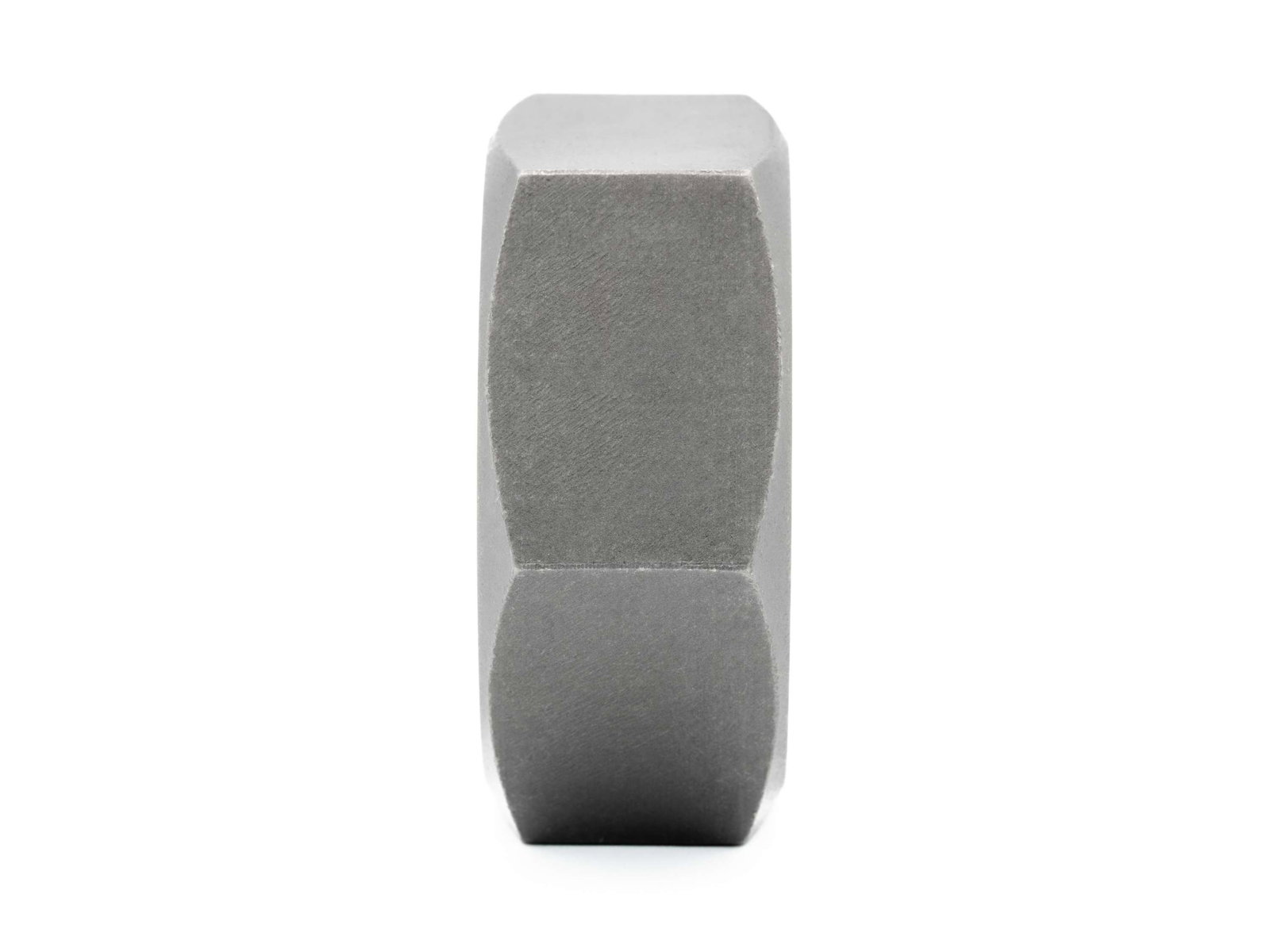

The hexagonal die (also called hexagonal cutting nut) is particularly advantageous for repairs, as it can be moved with ring spanners or open-end spanners, allowing you to reach inaccessible places more easily. BAER thread cutting dies are threading tools that are perfect for external threads. This metal-cutting tap has an external hexagon and - depending on the size - has three or more cutting edges on the inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. The external thread cutting tool is made of high-speed steel (HSS). HSS steel has a higher toughness and a lower susceptibility to breakage compared to HSSE steel. HSS steel is known for its exceptional cutting performance and durability. HSS hexagonal die nuts can be used for a wide range of applications, such as structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloy copper, as well as short-chipping copper-tin alloys, plastics such as POM, PVC, etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.
Dimensions
| Height H |
18 mm |
|---|---|
| Diameter |
1.1/8" |
| Nominal diameter in inches |
1,125 |
| Nominal diameter in mm |
28,575 |
| Pitch |
12 |
| Pitch in mm |
2,117 |
| Dimension |
UNF 1.1/8" x 12 |
Characteristics
| Product group |
Round cutting die |
|---|---|
| Product type |
Hexagon die nuts |
| Thread standard |
UNF: American Fine Unified National thread according to ANSI B1.1 |
| Tolerance |
2A |
| Direction |
Right |
| Standard |
DIN 382 |
| Material |
HSS |
Technical information - Cutting dies
1,5
HSS
2A
Applications
- for recutting and repairing damaged threads
- good machinable materials up to 800 N/mm²
- in places that are difficult to access
Technical drawing
| Bolt pre-cutting diameter D2 |
28,38 mm |
|---|---|
| Height H |
18 mm |
| Wrench size S |
60 mm |
| Dimension Diameter D |
UNF 1.1/8" x 12 |
| Diameter |
1.1/8" |
