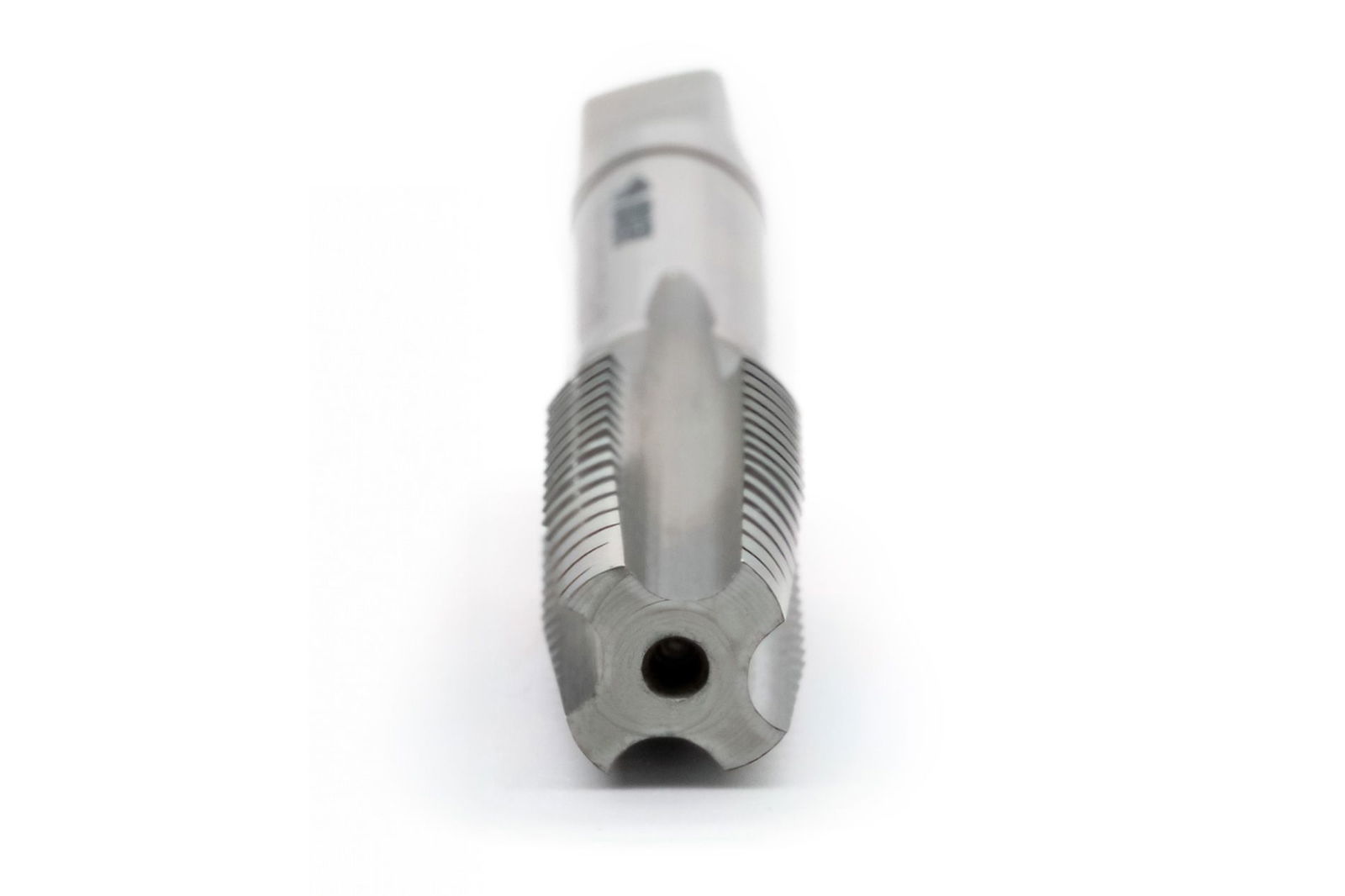

BAER HSSG Hand Tap Taper (No. 1) G (BSP) 5/8 x 14 - LEFT
BAER HSSG Hand Tap Taper (No. 1) G (BSP) 5/8 x 14 - LEFT
The left-hand cutting hand tap taper tap (No. 1) enables you to pre-cut a left-hand thread. The advantage of pre-cutting a thread is that the cutting forces on the subsequent finishing tap (No. 3) are reduced. The taper tap (No. 1) is marked with a ring and removes approx. 65 percent of the thread profile. Because no complete thread profile is cut, the thread is not yet usable. Only when the finishing tap (No. 3) completes the thread in the last process is it fully usable. By dividing the work between two or three taps, it is easier to cut a straight and clean thread by hand.
Compared to the machine tap, the hand tap has a short shank. This allows you to cut internal thread by hand without jamming and can be operated with tap wrenches, tool ratchets or other holding tools with square drive.
The thread can be cut in a pre-drilled core hole.
A left-hand thread is tapped counterclockwise. The left-hand tap or left-hand screw tap is also operated counterclockwise.
Dimensions
Diameter |
5/8 |
---|---|
Nominal diameter in inches |
0,902 |
Nominal diameter in mm |
22,91 |
Pitch |
14 |
Pitch in mm |
1,814 |
Dimension |
G (BSP) 5/8 x 14 |
Characteristics
Product group |
Screw taps |
---|---|
Product type |
Hand tap sets |
Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
Tolerance |
medium |
Direction |
Left |
Standard |
DIN 5157 |
Tensile strength at room temperature |
up to 900 N/mm² | 27.1 HRC |
Material |
HSSG bright |
21 mm
Through hole and blind hole up to 2 x D
Form A straight fluted
6-8 threads
Rarely occurs. Chips remain in flutes.
External cooling and lubrication
HSSG bright
up to 900 N/mm² | 27.1 HRC
medium
Applications
- Materials with good machinability up to 900 N/mm²
- Unalloyed and low-alloy steels
Examples of applications
- Inch thread or Whitworth thread in the sanitary sector
- G-pipe pipe thread
- Fittings, connectors, nipples, threaded fittings for water pipes, sanitary threads, water threads
- Double nipples and double pipe nipples
- Angle connection
- Pipe threaded connections
Technical drawing
D1 |
G (BSP) 5/8 x 14 |
---|---|
D2 |
18 mm |
L1 |
80 mm |
L2 |
22 mm |
Diameter |
5/8 |
Square |
14,5 mm |
Application – Sample materials for taps
Unalloyed construction steels | |
---|---|
1.0035 | S185 (St33) |
1.0036 | S235JRH |
1.0038 | RSt37-2 |
1.0039 | S235JRG1+CR |
1.0044 | St44-2 |
1.0060 | E335 (St60-2) |
1.0116 | St37-3 |
1.0570 | St 52-3 |
Alloyed construction steels | |
---|---|
1.5415 | 15Mo3 |
1.5423 | 16Mo5 |
1.5622 | 14Ni6 |
1.7335 | 13CrMo44 |
1.7337 | 16CrMo44 |
1.7715 | 14MoV63 |
Free-cutting steels | |
---|---|
1.0711 | 9S20 |
1.0715 | 9SMn28 |
1.0718 | 11SMnPb30 |
1.0721 | 10S20 |
1.0723 | 15S20 |
1.0726 | 35S20 |
1.0737 | 9SMnPb36 |
1.0758 | 60SPb20 |
Case-hardening steels | |
---|---|
1.0401 | (C15) |
1.7016 | 17CR3 |
1.7131 | 16MnCr5 |
1.5919 | 15CrNi6 |
Quenched and tempered steels unalloyed | |
---|---|
1.0402 | C 22 |
1.1151 | C22E (Ck22) |
1.0503 | C 45 |
1.1191 | C45E (Ck45) |
Cast steel | |
---|---|
1.0420 | GS-38 |
1.5419 | GS-22 Mo 4 |
1.6750 | GS-20 NiCrMo3 7 |
1.7357 | GS-17 CrMo 5 5 |
Malleable cast iron | |
---|---|
0.8145 | EN-GJMB 450-6 |
0.8170 | EN-GJMB 700-2 |
0.8045 | EN-GJMW-450-7 |
0.8055 | EN-GJMW-550-4 |
Pure copper low-alloyed | |
---|---|
2.0240 | CuZn15 |
2.0265 | CuZn30 |
Brass short-chipping | |
---|---|
2.0401 | CuZn39Pb3 |
Brass long-chipping | |
---|---|
2.0321 | CuZn37 |
2.0335 | CuZn36 |
2.0360 | CuZn40 |
Aluminum cast Si > 5-12 % | |
---|---|
3.2161 | G-AlSi8Cu3 |
3.2163 | G-AlSi9Cu3 |
3.2381 | G-AlSi10Mg |
3.2583 | G-AlSi12(Cu) |
Lamellar graphite cast iron | |
---|---|
0.6010 | EN-GJL 100 (GG-10) |
0.6020 | EN-GJL 200 (GG -20) |
0.6025 | EN-GJL 250 (GG-25) |
0.6030 | EN-GJL 300 (GG -30) |
Copper-tin alloy (bronze) short-chipping | |
---|---|
2.1090.01 | G-CuSn7ZnPb |
2.1086.01 | G-CuSn10Zn |
2.1097 | G-CuSn5ZnPb |
Pure copper, low-alloyed copper | |
---|---|
2.0240 | CuZn15 |
2.0265 | CuZn30 |
Further information
- G (BSP) - British Standard Pipe DIN ISO 228 - Cylindrical pipe thread
- Whitworth Pipe Thread
- Designations, geometries and definitions on taps
- Thread tolerances of the internal thread
- Internal thread and core hole dimensions
- Tap Chamfer forms
- Comparison inch-mm
- Surface treatments on tapping tools
- Cutting speeds and lubrication/cooling
- Information about tapping
- Material table
