BAER Round Cutting Die M 27 x 3.0 - HSSE for Stainless Steel
BAER Round Cutting Die M 27 x 3.0 - HSSE for Stainless Steel

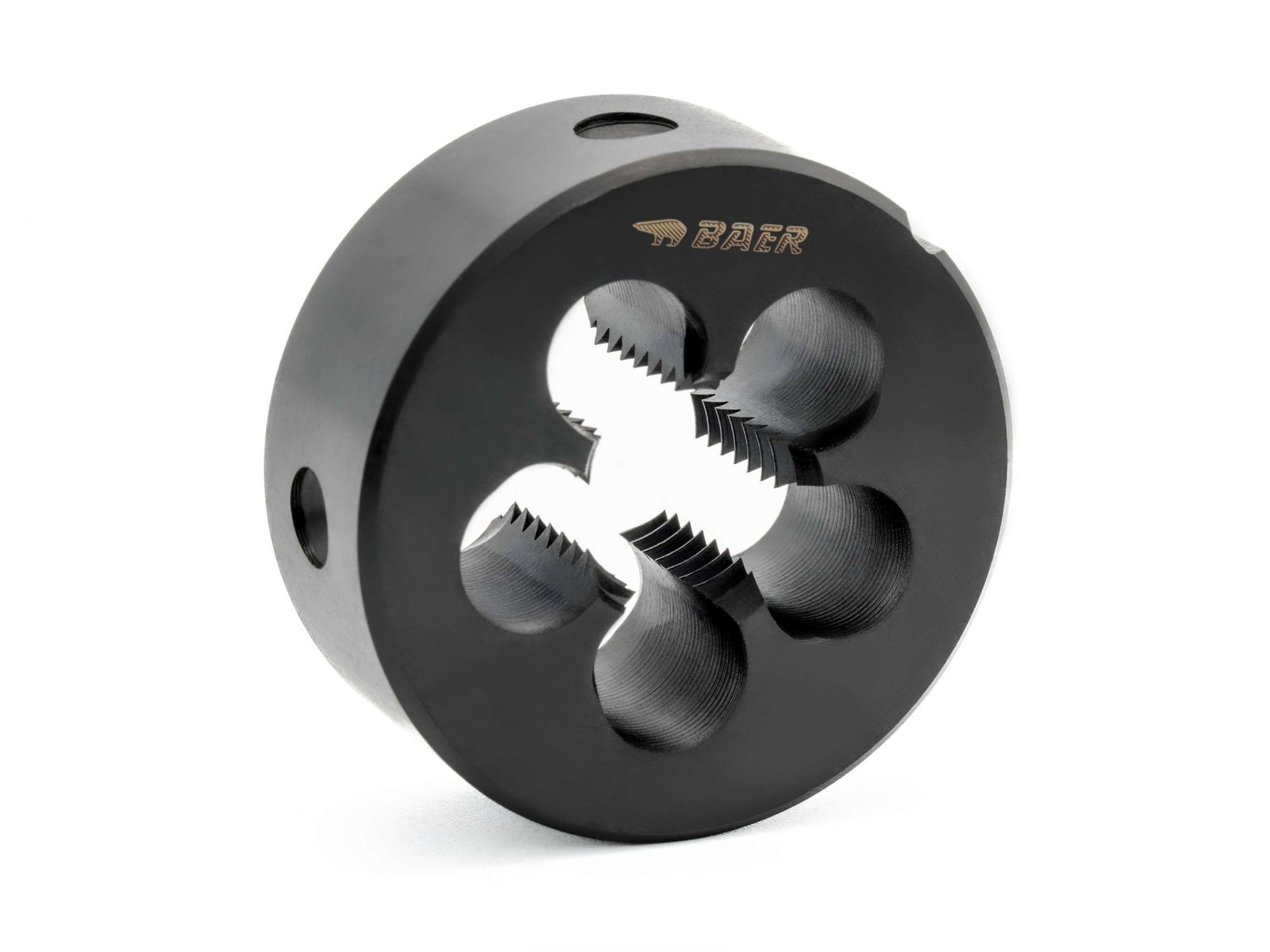

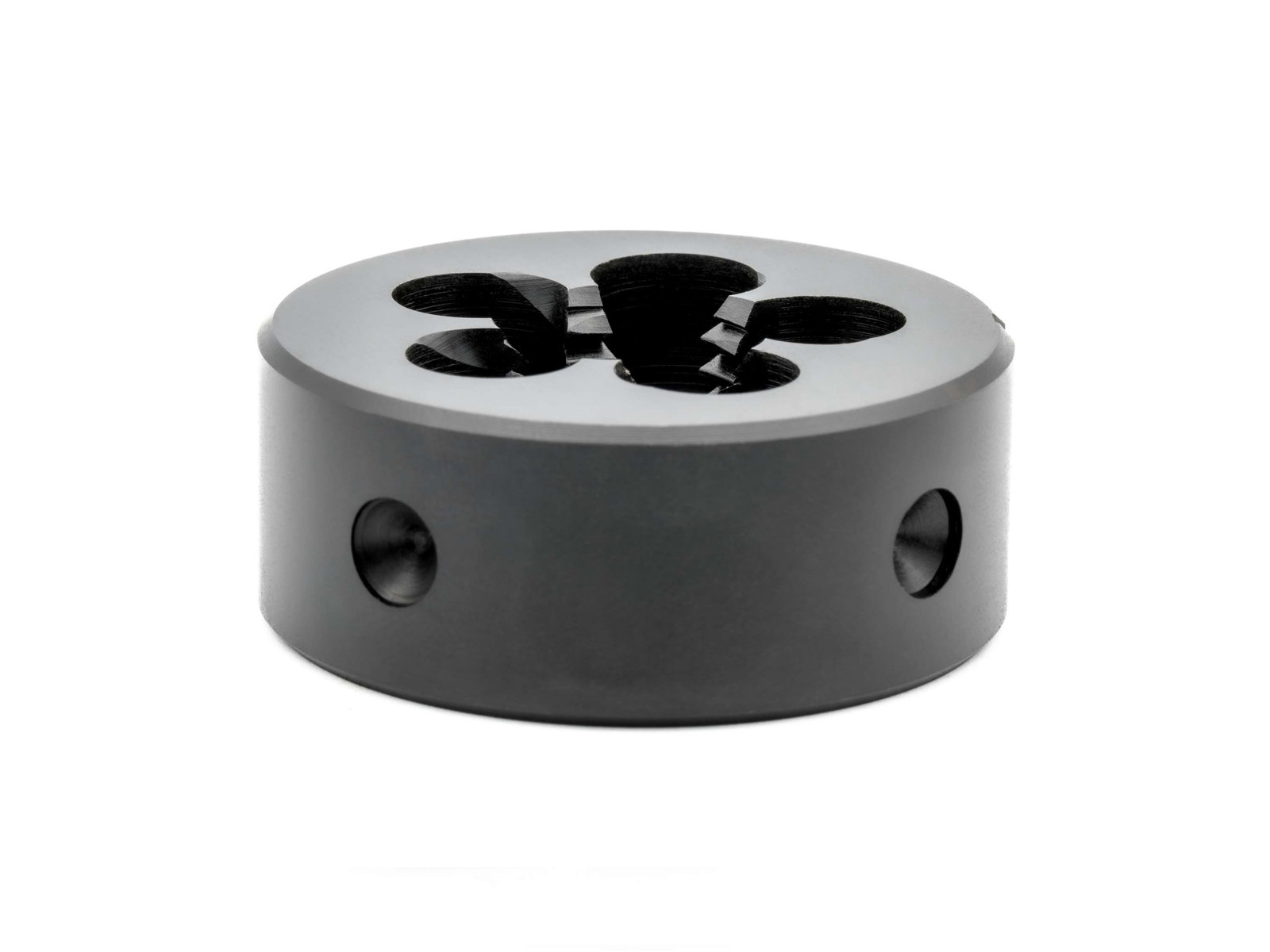

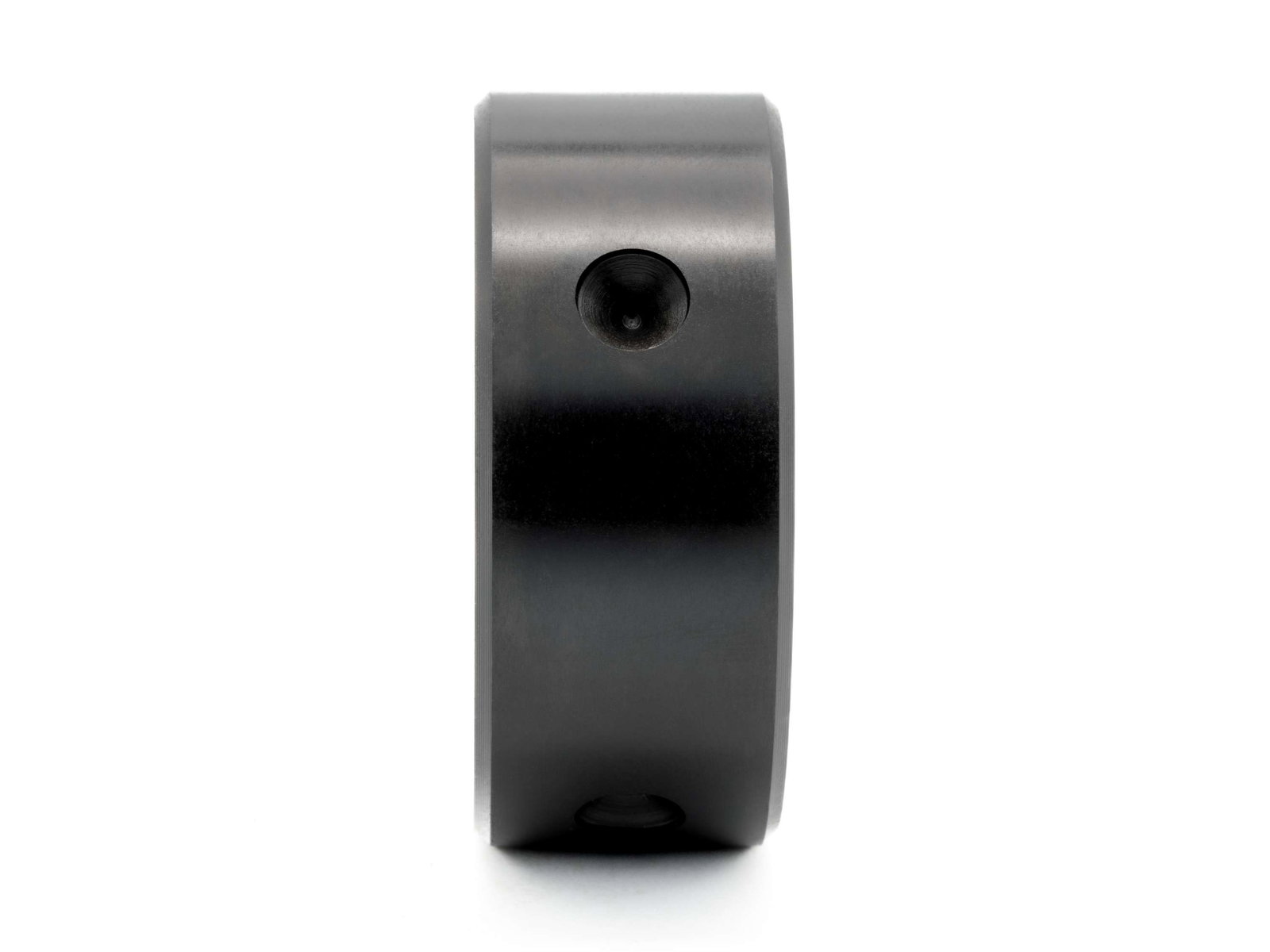

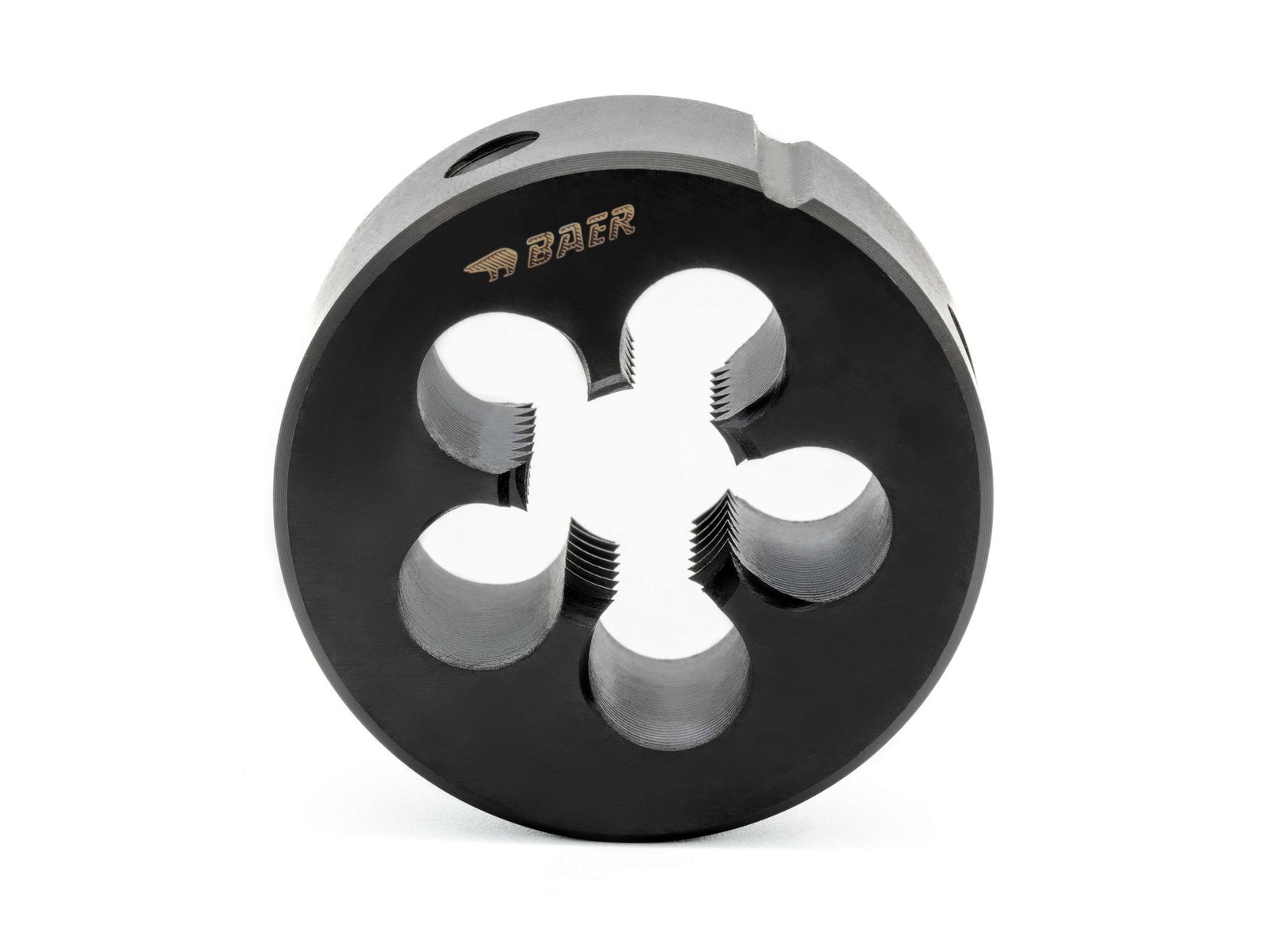

BAER thread cutting dies are threading tools that are perfect for external threads. Basically, this cutting tool is cylindrical and - depending on the size - has three or more cutting edges inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. Round dies are cylindrical and are used to make external threads in one operation. There are four holes and a groove on the outer casing of the round die, which are used to fasten the die in matching die stock and holders using retaining screws. External threads are cut by hand with die stock. Special die holders are used for the tailstock on a lathe or for the chuck of a drill. The die is made of the high-quality high-speed steel HSSE. HSSE is more heat-resistant, more wear-resistant and has a slightly higher hardness. The higher cobalt content makes the tool particularly durable and reliable. The improved surface finish, the spiral point (spiral entry) and the base material HSSE give you the necessary power for working with difficult-to-cut materials and stainless steels. The cutting tool also has a special cutting edge geometry so that it can be used in metalworking for stainless and acid-resistant steels, stainless steels, INOX, case-hardening steels, heat-resistant structural steels and malleable cast iron, among other things. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.
Dimensions
| Height H |
25 mm |
|---|---|
| Diameter |
27 |
| Nominal diameter in inches |
1,063 |
| Nominal diameter in mm |
27 |
| Pitch |
3,0 |
| Pitch in mm |
3 |
| Dimension |
M 27 x 3,0 |
Characteristics
| Product group |
Round cutting die |
|---|---|
| Product type |
Round cutting dies |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO-6g |
| Direction |
Right |
| Standard |
DIN 223 (DIN EN 2256 |
| Material |
HSSE nitrided |
Technical information - Cutting dies
with spiral entry (spiral point)
2,0
HSSE nitrided
ISO-6g
Applications
- stainless steels (INOX, V2A, V4A etc.)
- and for general use up to 1200 N/mm²
Technical drawing
| Bolt pre-cutting diameter D2 |
26,77 mm |
|---|---|
| Height H |
25 mm |
| Outside diameter D1 |
65 mm |
| Dimension Diameter D |
M 27 x 3,0 |
| Diameter |
27 |
Application – Sample materials
| Stainless steels | |
|---|---|
| 1.4305 | X8CrNiS18-9 |
| 1.4301 | X5CrNi18-10 (A2) |
| 1.4404 | X2CrNiMo17-12-2 (V4A) |
| 1.4541 | X6CrNiTi18-10 |
| Free-cutting steels | |
|---|---|
| 1.0718 | 11SMnPb30 |
| 1.0721 | 10S20 |
| 1.0726 | 35S20 |
| 1.0758 | 60SPb20 |
| Case-hardening steels | |
|---|---|
| 1.0401 | (C15) |
| 1.7016 | 17 CR3 |
| 1.7131 | 16MnCr5 |
| 1.5919 | 15CrNi6 |
| General construction steels | |
|---|---|
| 1.0035 | S 185 (St 33) |
| 1.0036 | S 235 JRH |
| 1.0039 | S 235JRG1+CR |
| 1.0060 | E 335 (St 60-2) |
| Pure copper, low-alloyed copper | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
| Copper-tin alloy (bronze) short-chipping | |
|---|---|
| 2.1090.01 | G-CuSn7ZnPb |
| 2.1086.01 | G-CuSn10Zn |
| Quenched and tempered steels unalloyed | |
|---|---|
| 1.1151 | C22E (Ck 22) |
| 1.0503 | C 45 |
| 1.1191 | C45E (Ck 45) |
