BAER Round Cutting Die MF 12 x 1.5 - HSSE spiral entry

€39.32*

Prices incl. VAT plus shipping costs

In stock

Same-day shipping for orders placed by tomorrow 12:50 o'clock

Express shipping available

EAN 4058462042225
Item no 121404008
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

BAER Round Cutting Die MF 12 x 1.5 - HSSE spiral entry

The die is a reliable and durable tool that helps you to produce precise external threads in one operation. It is equipped with four holes and a V-groove that secure the die in matching die stock and holders. This allows you to handle the die safely and comfortably. The BAER round die is also perfect for use in a tailstock or chuck of a drill press. Dies are tools used for cutting screws, nuts and threaded rods in everyday life. Round dies are cylindrical in shape and are used for making external threads in one operation. There are four holes and a groove on the outer casing of the round die, which are used to fasten the die in suitable die holder and holders by means of retaining screws. External threads are cut by hand with die stock. Special die holders are used for the tailstock on a lathe or for the chuck of a drill. The die is made of the high-quality high-speed steel HSSE. HSSE is more heat-resistant, more wear-resistant and has a slightly higher hardness. The higher cobalt content makes the tool particularly durable and reliable. The improved surface finish, the spiral entry and the basic material HSSE give you the necessary power for working with difficult-to-cut materials and stainless steels. The cutting tool also has a special cutting edge geometry so that it can be used in metalworking for quenched and tempered steels and case-hardening steels up to 1200 N/mm², as well as stainless and acid-resistant steels, heat-resistant structural steels and malleable cast iron. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 10 mm
Diameter 12
Nominal diameter in inches 0,472
Nominal diameter in mm 12
Pitch 1,5
Pitch in mm 1,5
Dimension MF 12 x 1,5

Characteristics

Product group Round cutting die
Product type Round cutting dies
Thread standard MF: Metric ISO fine thread according to DIN 13
Tolerance ISO-6g
Direction Right
Standard DIN 223 (DIN EN 2256
Material HSSE

Technical information - Cutting dies

Bild Form: https://media.baer.tools/media/vector/21/f8/b6/schneideisen_schaelanschnitt.svg
Form / Geometry
with spiral entry (spiral point)
Bild Anschnitt: https://media.baer.tools/media/vector/75/83/18/schneideisen_anschnitt.svg
Chamfer
1,5
Bild Material: https://media.baer.tools/media/vector/c8/8d/2f/gewindebohrer_blank.svg
Material
HSSE
Tolerance: ISO-6g
Tolerance
ISO-6g

Applications

  • Tempering and case-hardening steels up to 1200 N/mm²
  • stainless and acid-resistant steels (VA materials)
  • and for general use

Technical drawing

Bolt pre-cutting diameter D2 11,92 mm
Height H 10 mm
Outside diameter D1 38 mm
Dimension Diameter D MF 12 x 1,5
Diameter 12

Zubehör

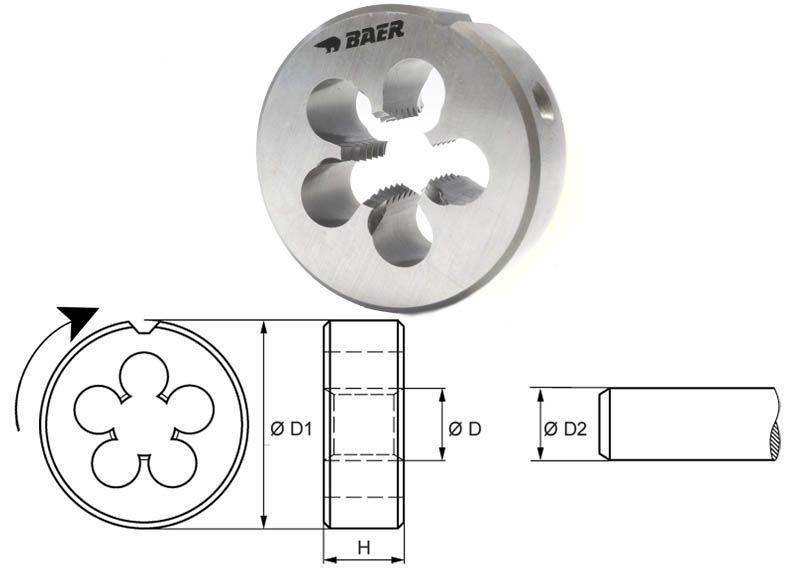

BAER Round Cutting Die MF 12 x 1.5 - HSSE for Stainless Steel
