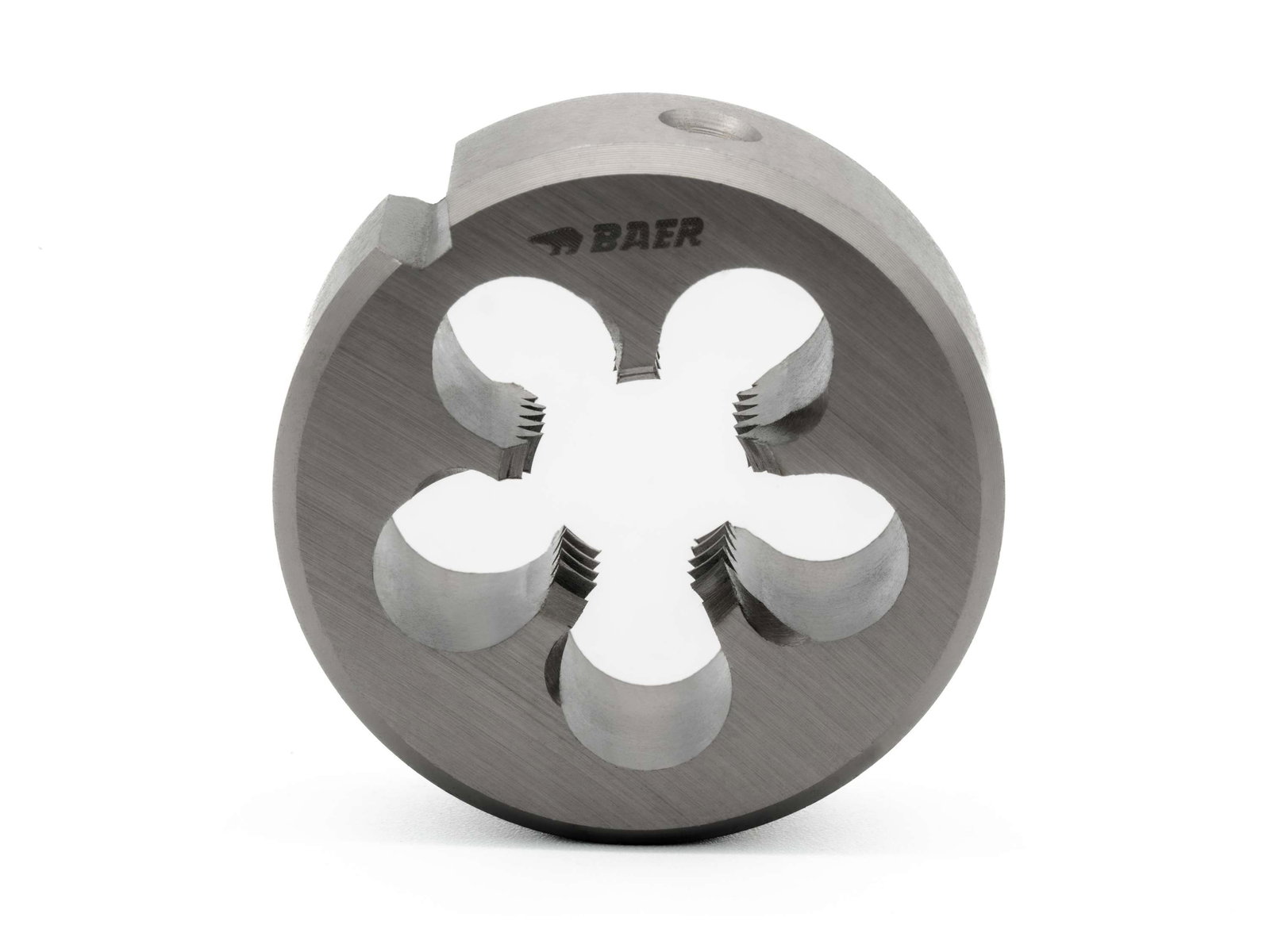

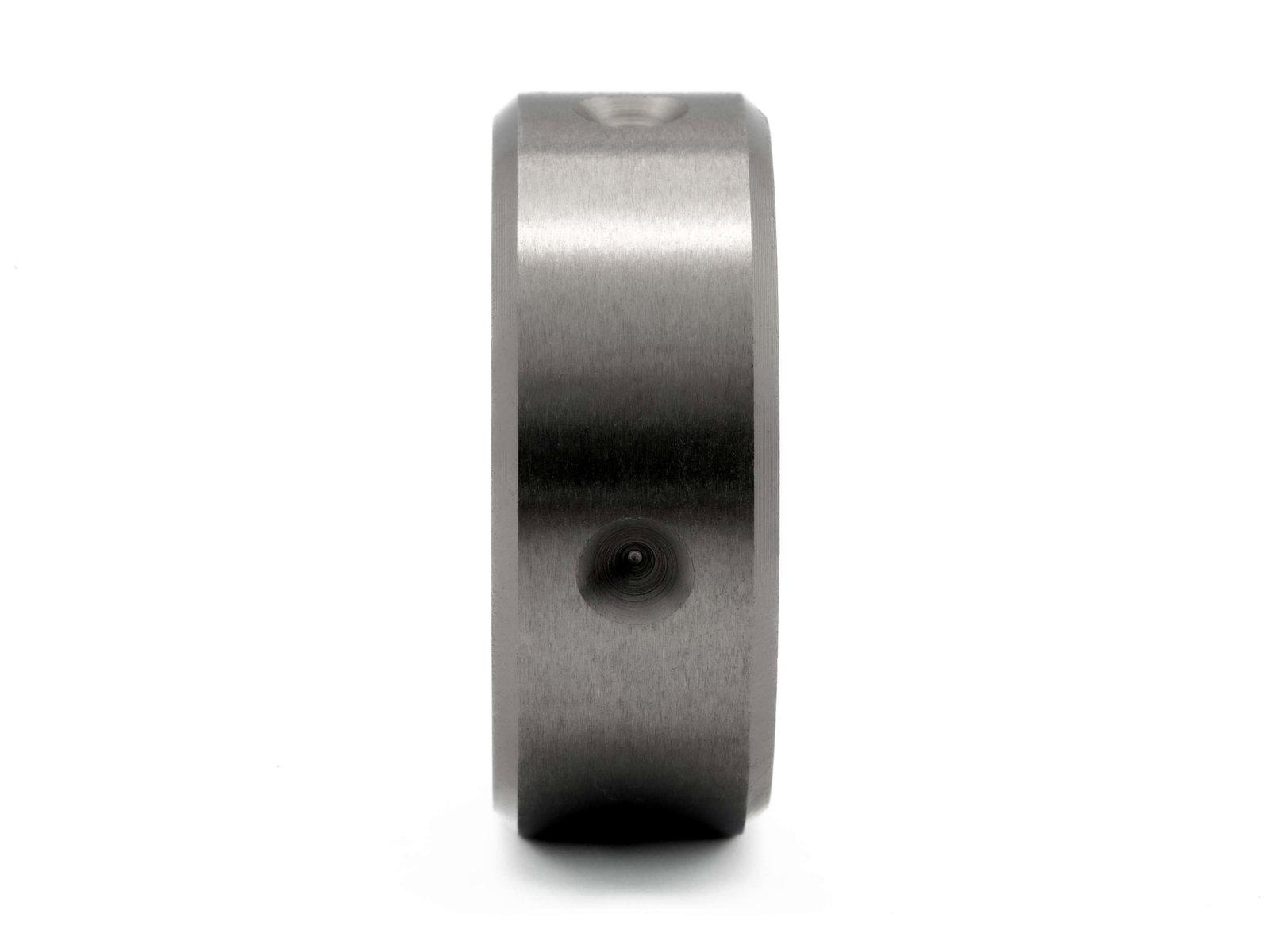

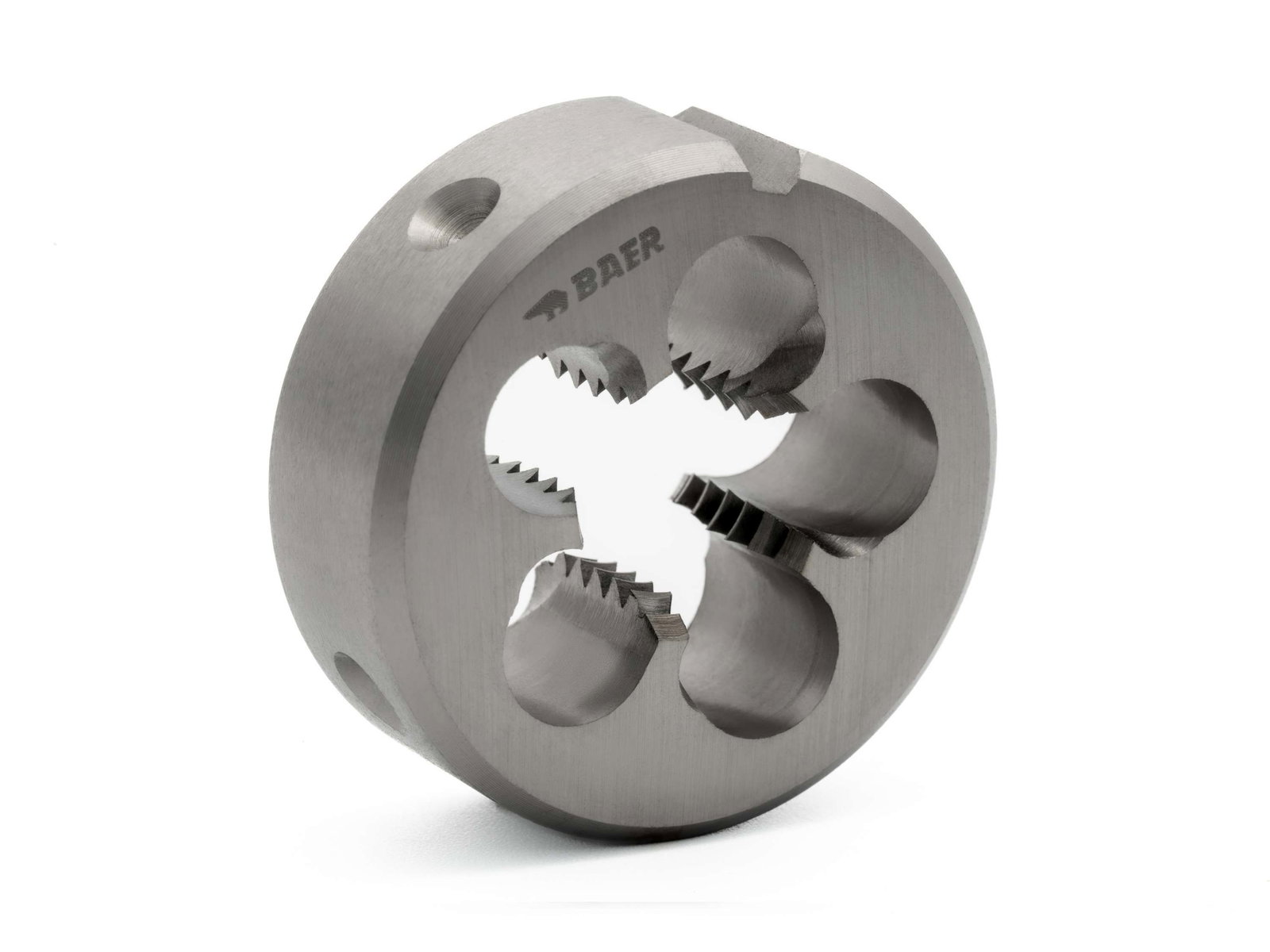

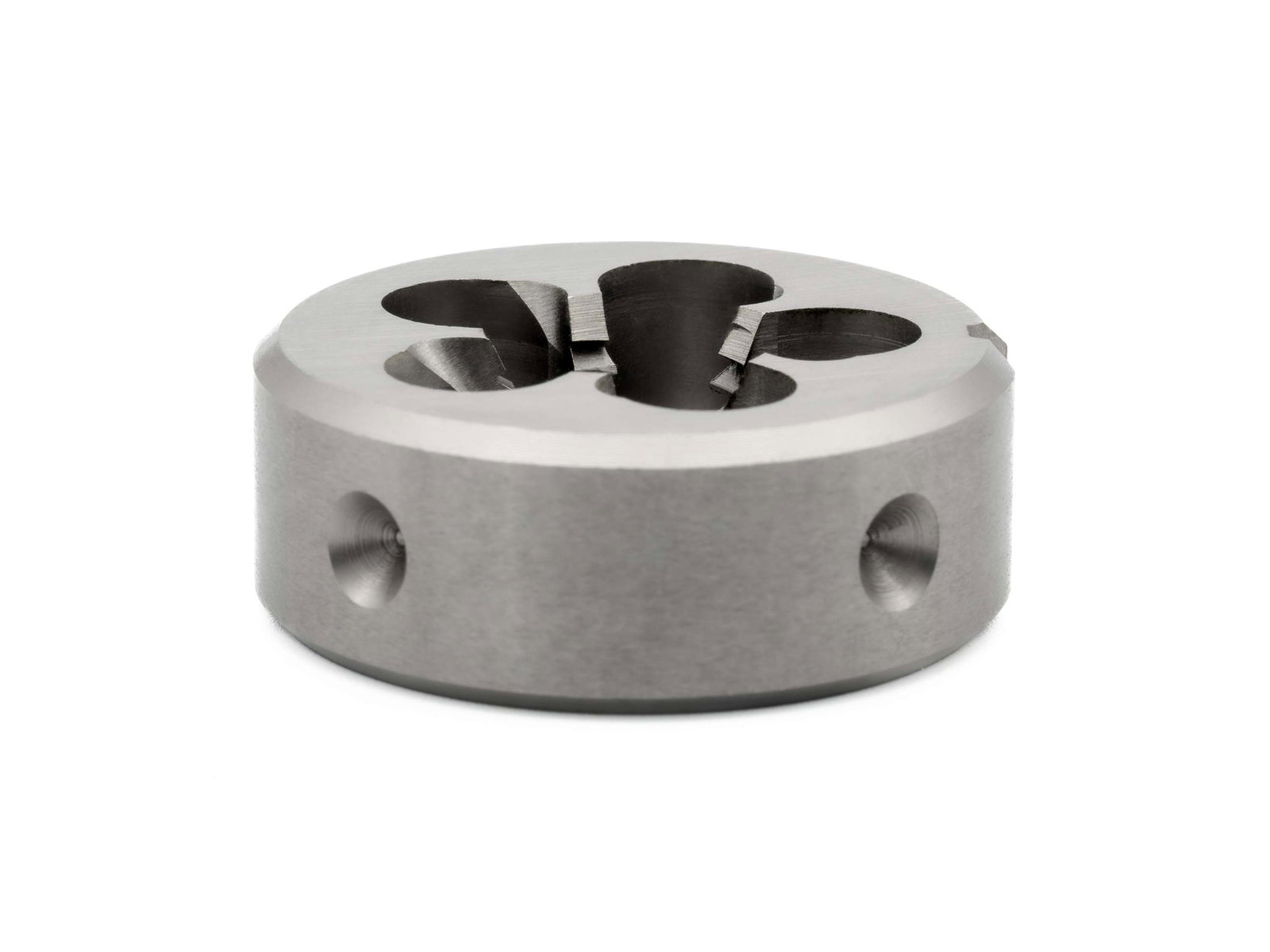

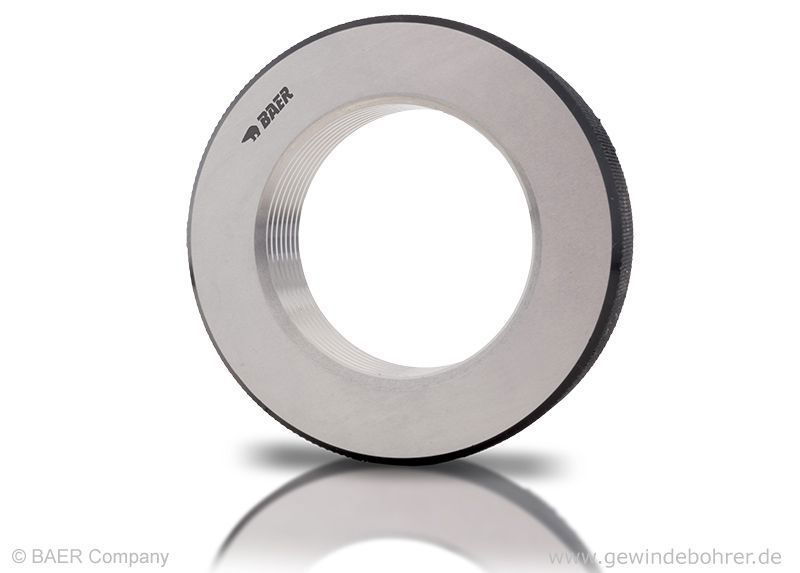

BAER Round Cutting Die MF 24 x 1.5 - HSSE spiral entry
BAER Round Cutting Die MF 24 x 1.5 - HSSE spiral entry
BAER thread cutting dies are threading tools that are perfect for external threads. Basically, this cutting tool is cylindrical and has - depending on the size - three or more cutting edges inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. The die holder is used to cut the threads by hand and the special die holders also allow you to attach the round die to a tailstock or drill. The dies can usually be used on both sides and have a perfect cut. The die is made of the high-speed steel HSSE. HSSE steel is more heat-resistant, more wear-resistant and has a slightly higher hardness than conventional HSS steel. The improved surface finish, the spiral point (spiral entry) and the base material HSSE give you the necessary strength for working with difficult-to-cut materials and stainless steels. The cutting tool also has a special cutting edge geometry so that it can be used in metalworking for tempering and case-hardening steels up to 1200 N/mm², as well as stainless and acid-resistant steels, heat-resistant structural steels and malleable cast iron. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.
Dimensions
| Height H |
16 mm |
|---|---|
| Diameter |
24 |
| Nominal diameter in inches |
0,945 |
| Nominal diameter in mm |
24 |
| Pitch |
1,5 |
| Pitch in mm |
1,5 |
| Dimension |
MF 24 x 1,5 |
Characteristics
| Product group |
Round cutting die |
|---|---|
| Product type |
Round cutting dies |
| Thread standard |
MF: Metric ISO fine thread according to DIN 13 |
| Tolerance |
ISO-6g |
| Direction |
Right |
| Standard |
DIN 223 (DIN EN 2256 |
| Material |
HSSE |
Technical information - Cutting dies
with spiral entry (spiral point)
1,5
HSSE
ISO-6g
Applications
- Tempering and case-hardening steels up to 1200 N/mm²
- stainless and acid-resistant steels (VA materials)
- and for general use

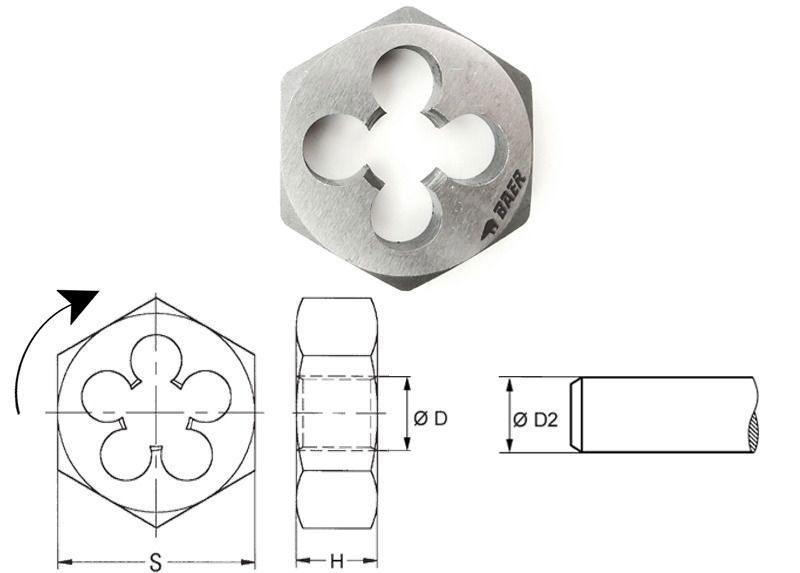

Technical drawing
| Bolt pre-cutting diameter D2 |
23,92 mm |
|---|---|
| Height H |
16 mm |
| Outside diameter D1 |
55 mm |
| Dimension Diameter D |
MF 24 x 1,5 |
| Diameter |
24 |
