BAER Round Cutting Die MF 8 x 0.5 - HSSE for Stainless Steel
BAER Round Cutting Die MF 8 x 0.5 - HSSE for Stainless Steel

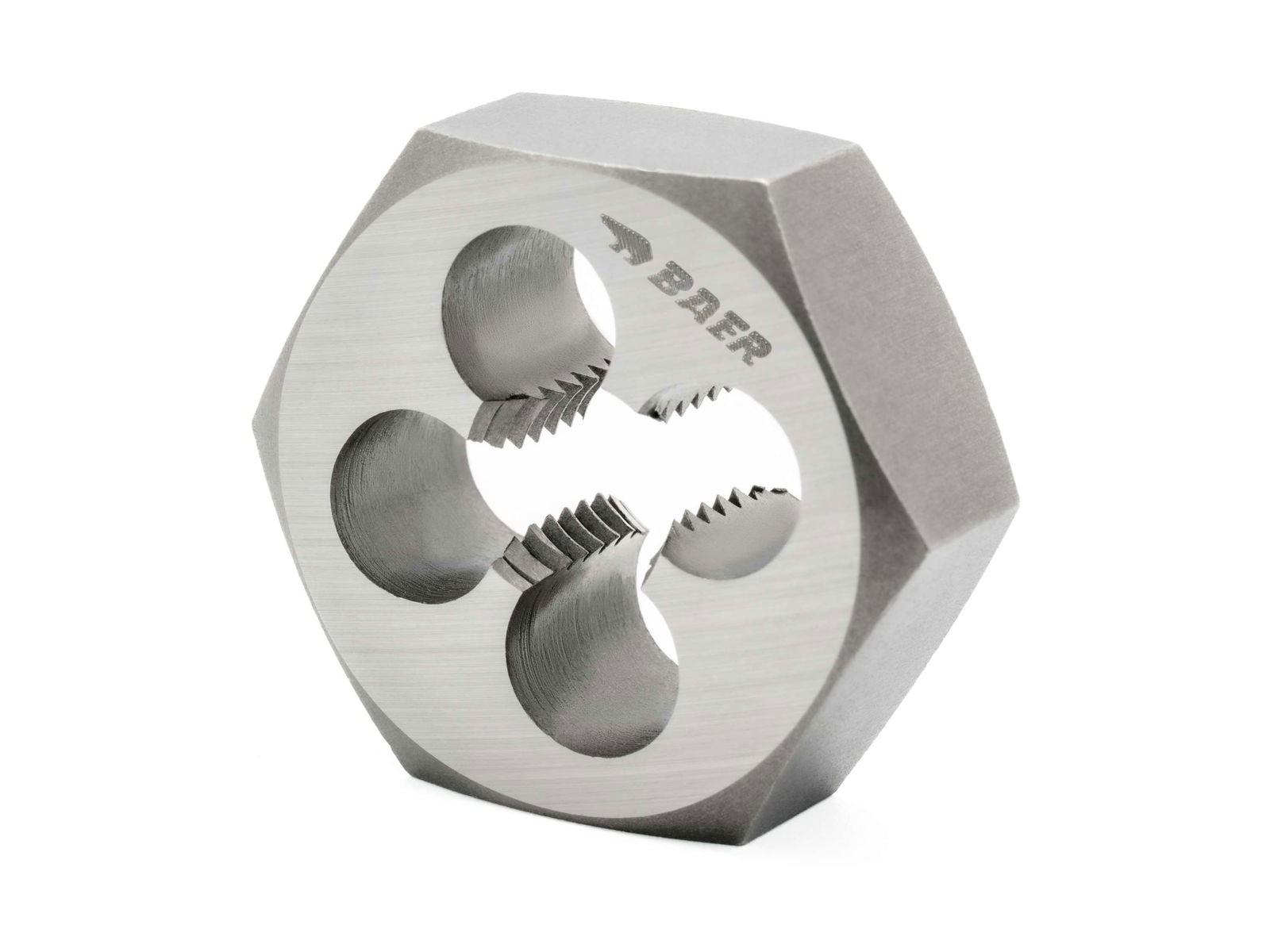

BAER dies are perfect for anyone who wants to cut external threads. Basically, this cutting tool is cylindrical and has - depending on the size - three or more cutting edges inside. The holes between the cutting edges receive the chips, roll them and discharge them. Dies are used to cut screws, nuts and threaded rods in everyday use. Round dies are cylindrical and are used for making external threads in one operation. There are four holes and a groove on the outer casing of the round die, which are used to secure the die in matching die stock and holders using retaining screws. External threads are cut by hand with die stock. Special die holders are used for the tailstock on a lathe or for the chuck of a drill press. The die is made of high-speed steel HSSE. HSSE steel is more heat-resistant, wear-resistant and has a slightly higher hardness than conventional HSS steel. The improved surface finish, the spiral point (spiral entry) and the base material HSSE give you the necessary strength for working with difficult-to-cut materials and stainless steels. The thread cutting die also has a special cutting edge geometry so that it can be used in metalworking for stainless and acid-resistant steels, stainless steels, INOX, case-hardening steels, heat-resistant structural steels and malleable cast iron, among other things. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.
Dimensions
| Height H |
9 mm |
|---|---|
| Diameter |
8 |
| Nominal diameter in inches |
0,315 |
| Nominal diameter in mm |
8 |
| Pitch |
0,5 |
| Pitch in mm |
0,5 |
| Dimension |
MF 8 x 0,5 |
Characteristics
| Product group |
Round cutting die |
|---|---|
| Product type |
Round cutting dies |
| Thread standard |
MF: Metric ISO fine thread according to DIN 13 |
| Tolerance |
ISO-6g |
| Direction |
Right |
| Standard |
DIN 223 (DIN EN 2256 |
| Material |
HSSE |
Technical information - Cutting dies
with spiral entry (spiral point)
2,0
HSSE
ISO-6g
Applications
- stainless steels (INOX, V2A, V4A etc.)
- and for general use up to 1200 N/mm²
Technical drawing
| Bolt pre-cutting diameter D2 |
7,92 mm |
|---|---|
| Height H |
9 mm |
| Outside diameter D1 |
25 mm |
| Dimension Diameter D |
MF 8 x 0,5 |
| Diameter |
8 |
Application – Sample materials
| Stainless steels | |
|---|---|
| 1.4305 | X8CrNiS18-9 |
| 1.4301 | X5CrNi18-10 (A2) |
| 1.4404 | X2CrNiMo17-12-2 (V4A) |
| 1.4541 | X6CrNiTi18-10 |
| Free-cutting steels | |
|---|---|
| 1.0718 | 11SMnPb30 |
| 1.0721 | 10S20 |
| 1.0726 | 35S20 |
| 1.0758 | 60SPb20 |
| Case-hardening steels | |
|---|---|
| 1.0401 | (C15) |
| 1.7016 | 17 CR3 |
| 1.7131 | 16MnCr5 |
| 1.5919 | 15CrNi6 |
| General construction steels | |
|---|---|
| 1.0035 | S 185 (St 33) |
| 1.0036 | S 235 JRH |
| 1.0039 | S 235JRG1+CR |
| 1.0060 | E 335 (St 60-2) |
| Pure copper, low-alloyed copper | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
| Copper-tin alloy (bronze) short-chipping | |
|---|---|
| 2.1090.01 | G-CuSn7ZnPb |
| 2.1086.01 | G-CuSn10Zn |
| Quenched and tempered steels unalloyed | |
|---|---|
| 1.1151 | C22E (Ck 22) |
| 1.0503 | C 45 |
| 1.1191 | C45E (Ck 45) |
