BAER Round Cutting Die MJ 6 x 1 - HSSE-PM

Price on request

Prices incl. VAT plus shipping costs

In stock

Same-day shipping for orders placed by tomorrow 12:50 o'clock

Express shipping available

EAN 4058462115141
Item no 431405005
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

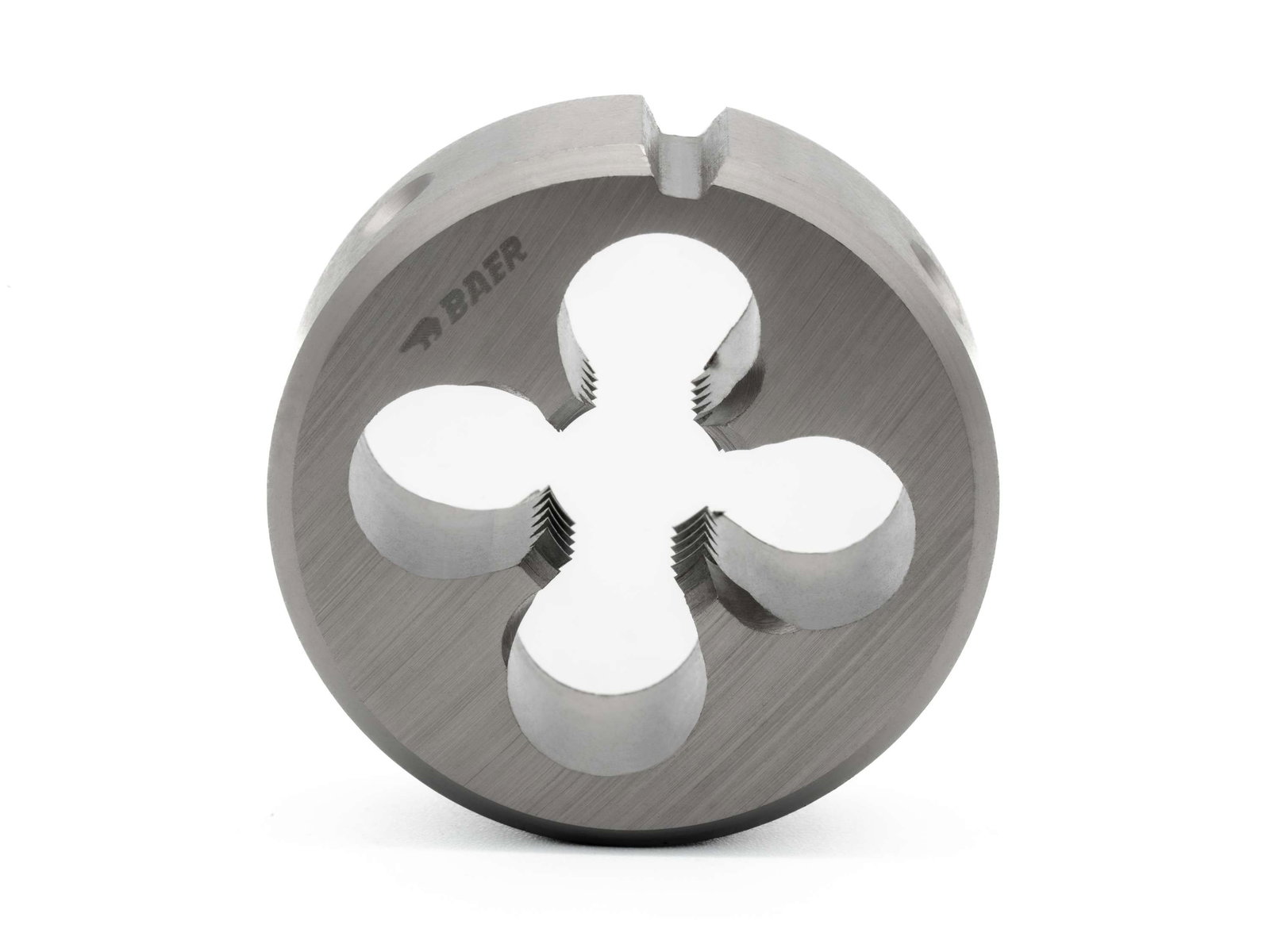

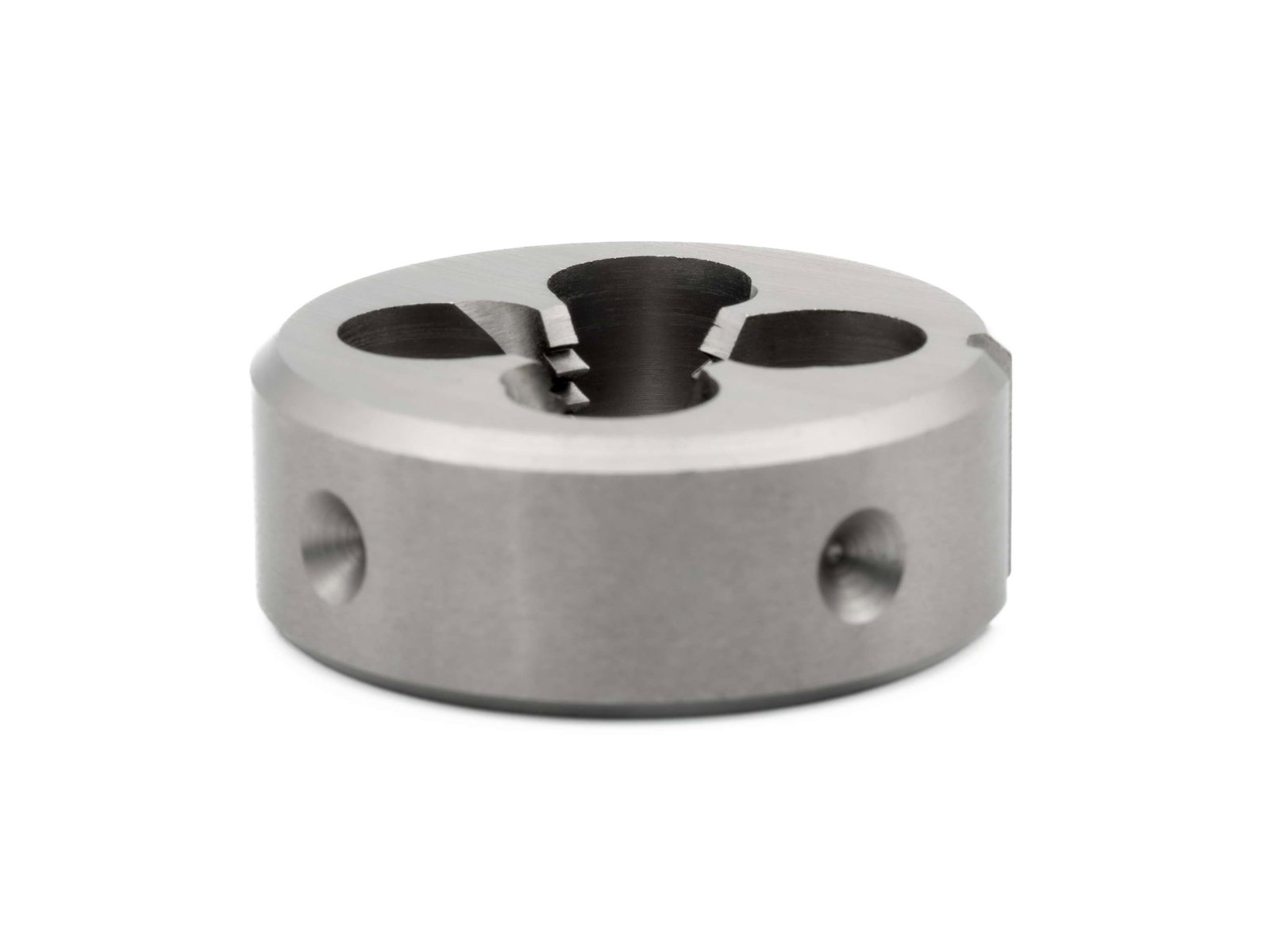

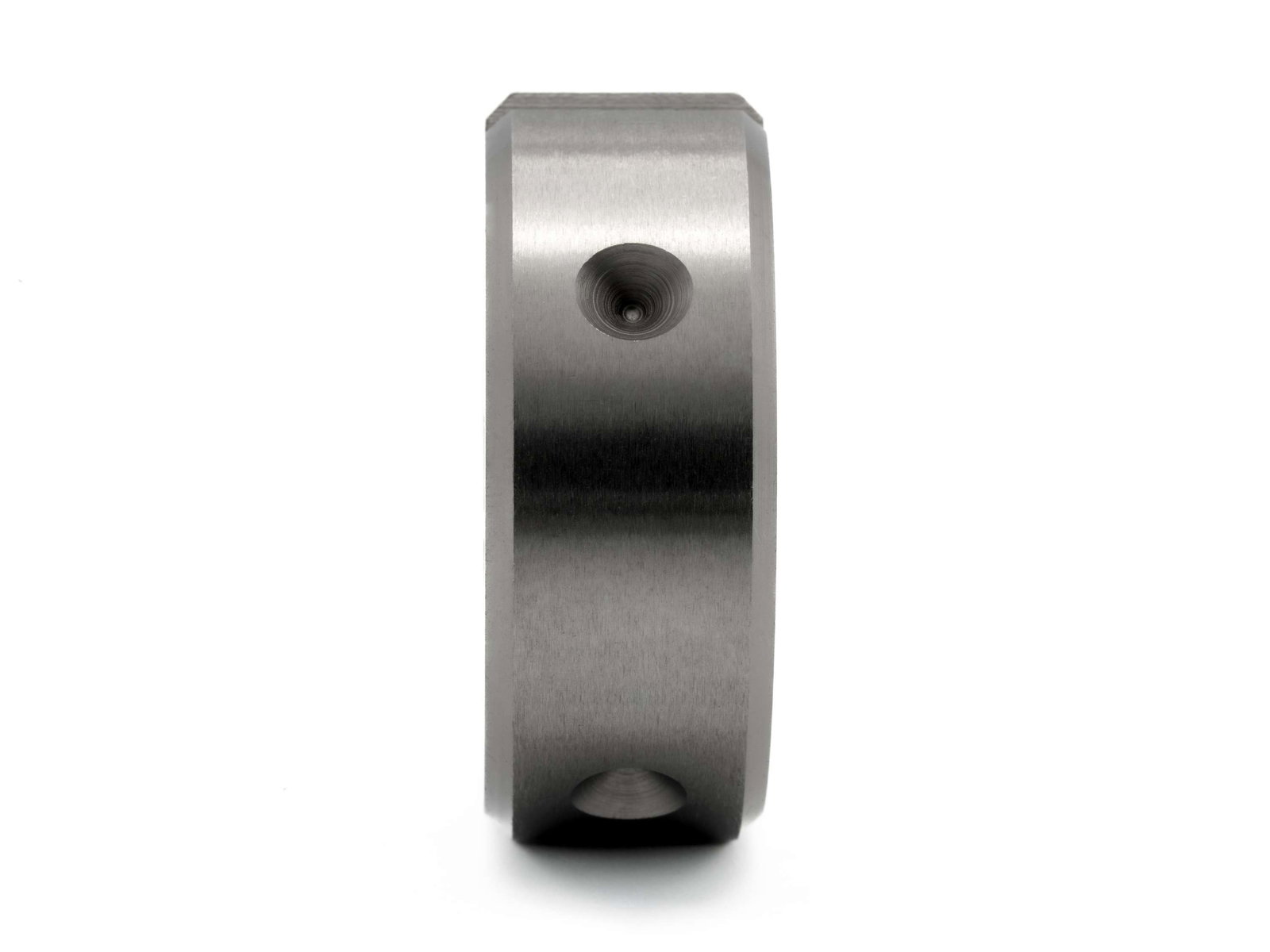

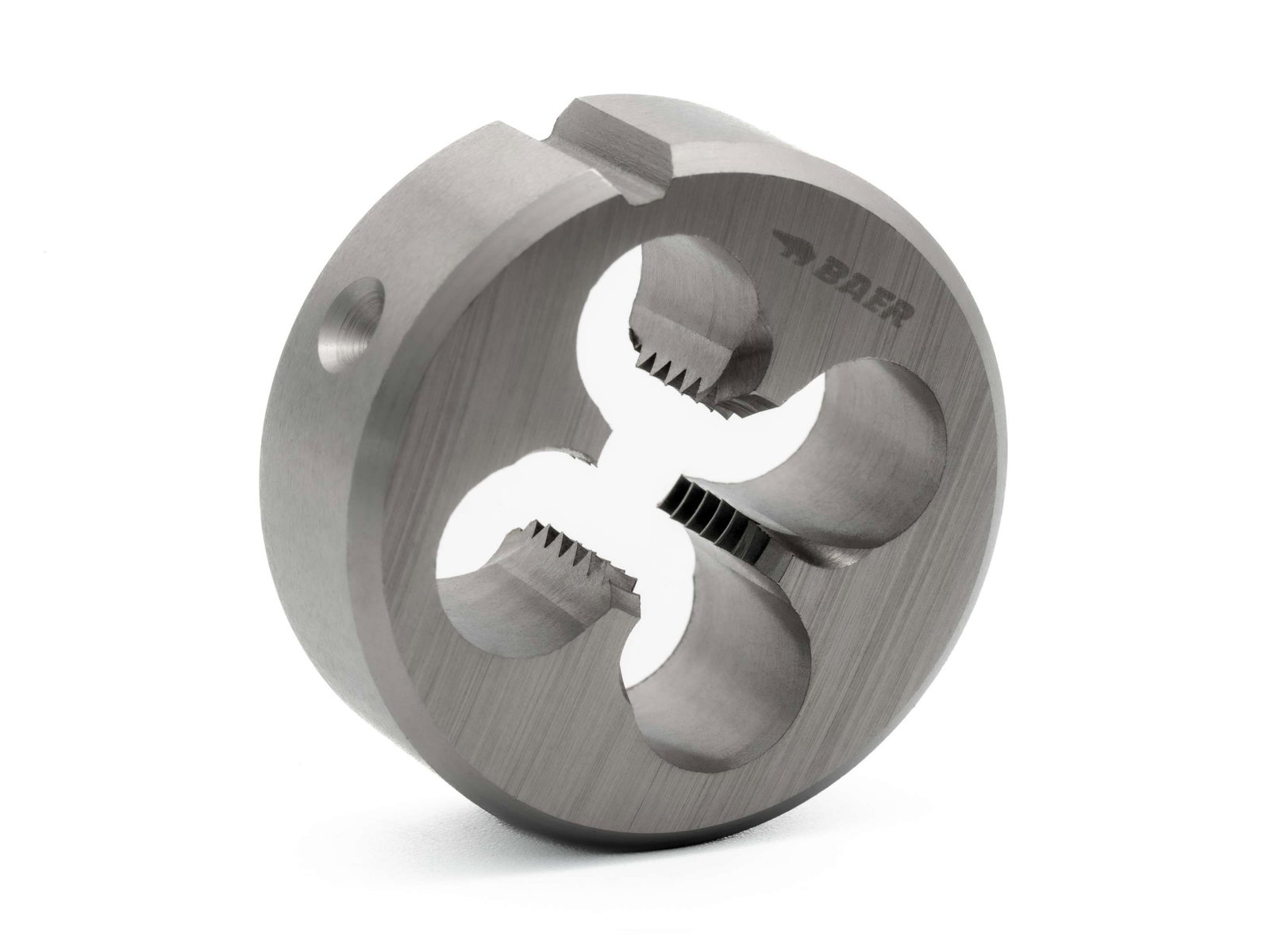

BAER Round Cutting Die MJ 6 x 1 - HSSE-PM

The die is a reliable and durable tool that helps you to produce precise external threads in one operation. It is equipped with four holes and a V-groove that secure the die in matching die stock and holders. This allows you to handle the die safely and comfortably. The BAER round die is also perfect for use in a tailstock or chuck of a drill press. Dies are tools used for cutting screws, nuts and threaded rods in everyday life. The die holder is used to cut the threads by hand and with the special die holders you can also attach the round die to a tailstock or drill press. The dies can usually be used on both sides and have a perfect cut. The die is made of the high-quality high-speed steel HSSE. HSSE is more heat-resistant, more wear-resistant and has a slightly higher hardness. The higher cobalt content makes the tool particularly durable and reliable. The improved surface finish, the spiral point (spiral entry) and the base material HSSE give you the necessary power for working with difficult-to-cut materials and stainless steels. The cutting tool also has a special cutting edge geometry so that it can be used in metalworking for quenched and tempered steels and case-hardening steels up to 1200 N/mm², as well as stainless and acid-resistant steels, heat-resistant structural steels and malleable cast iron. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 7 mm
Diameter 6
Nominal diameter in inches 0,2362205
Nominal diameter in mm 6
Pitch 1,0
Pitch in mm 1,0
Dimension MJ 6 x 1,0

Characteristics

Product group Round cutting die
Product type Round cutting dies
Thread standard MJ: Metric aerospace thread DIN ISO 5855
Tolerance 4h/6h
Direction Right
Standard DIN 223 (DIN EN 2256
Material HSSE

Technical information - Cutting dies

Bild Anschnitt: https://media.baer.tools/media/vector/75/83/18/schneideisen_anschnitt.svg
Chamfer
1,75
Bild Material: https://media.baer.tools/media/vector/c8/8d/2f/gewindebohrer_blank.svg
Material
HSSE
Tolerance: 4h/6h
Tolerance
4h/6h

Applications

  • stainless steels (INOX, V2A, V4A etc.)
  • and for general use up to 1200 N/mm²

Technical drawing

Height H 7 mm
Outside diameter D1 20 mm
Dimension Diameter D MJ 6 x 1,0
Diameter 6
