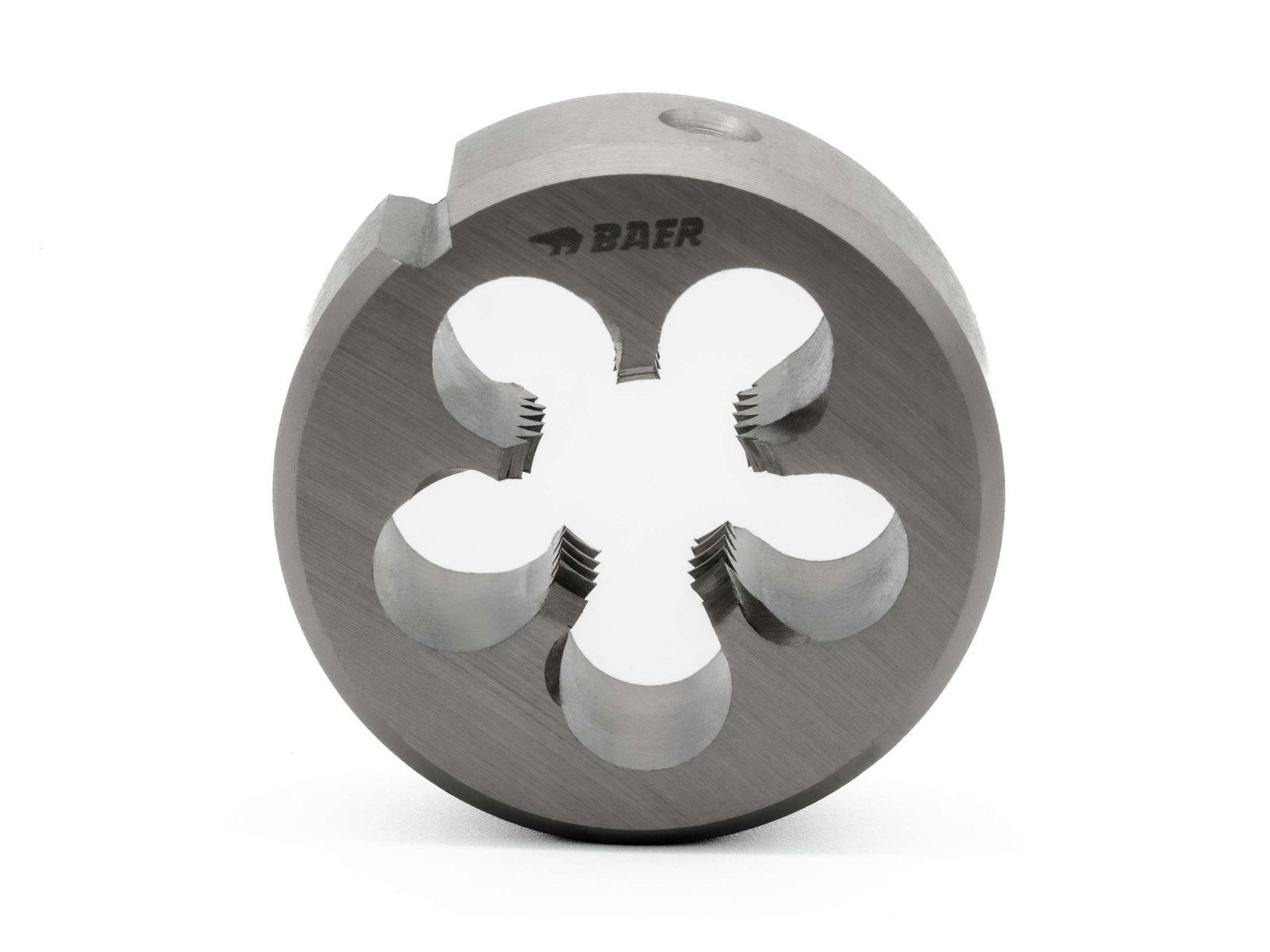

BAER Round Cutting Die UNC 5/8 x 11 - HSSE for Stainless Steel

Price on request

Prices incl. VAT plus shipping costs

In stock

EAN 4058462112300
Item no 141405107
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

BAER Round Cutting Die UNC 5/8 x 11 - HSSE for Stainless Steel

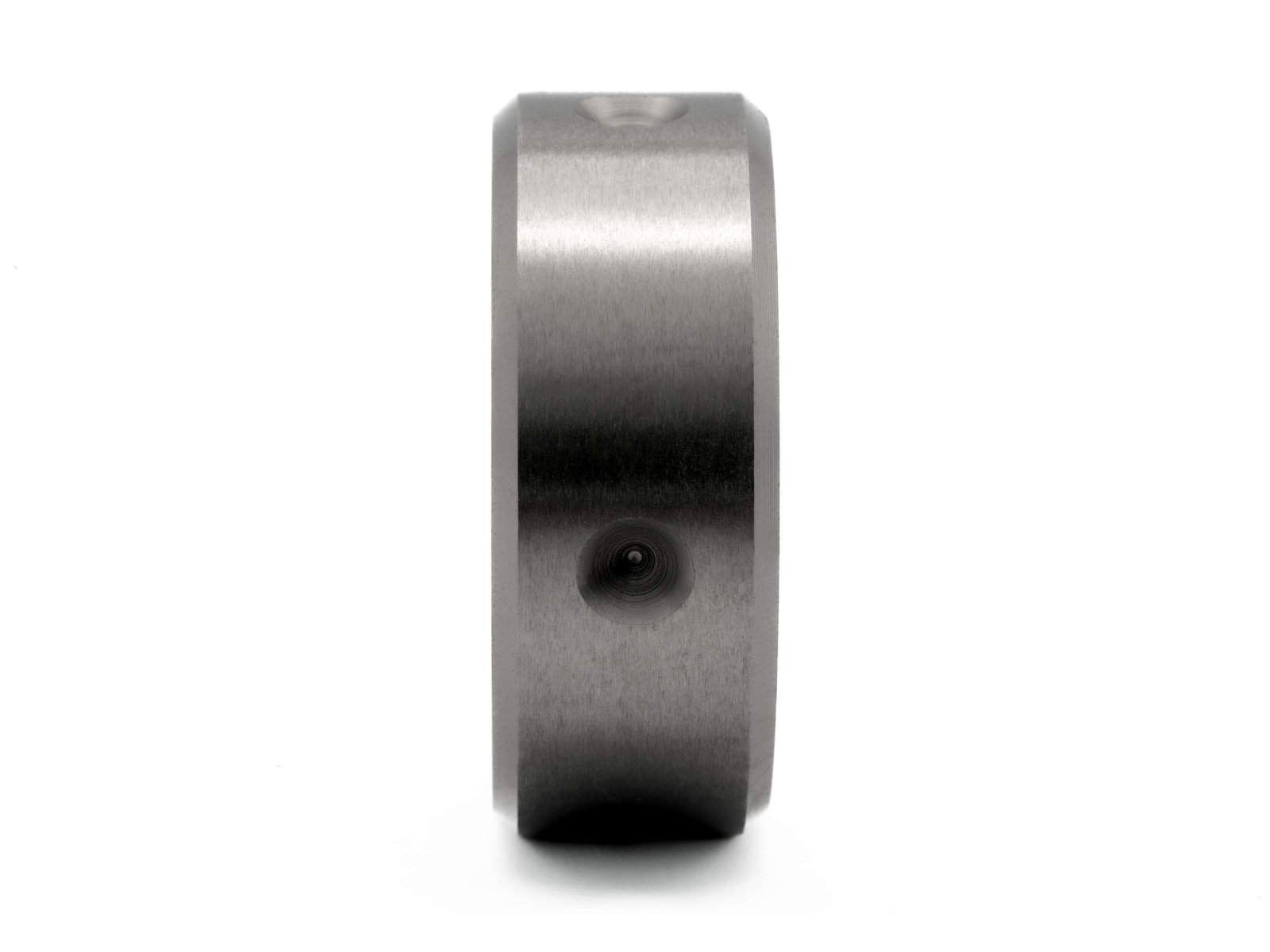

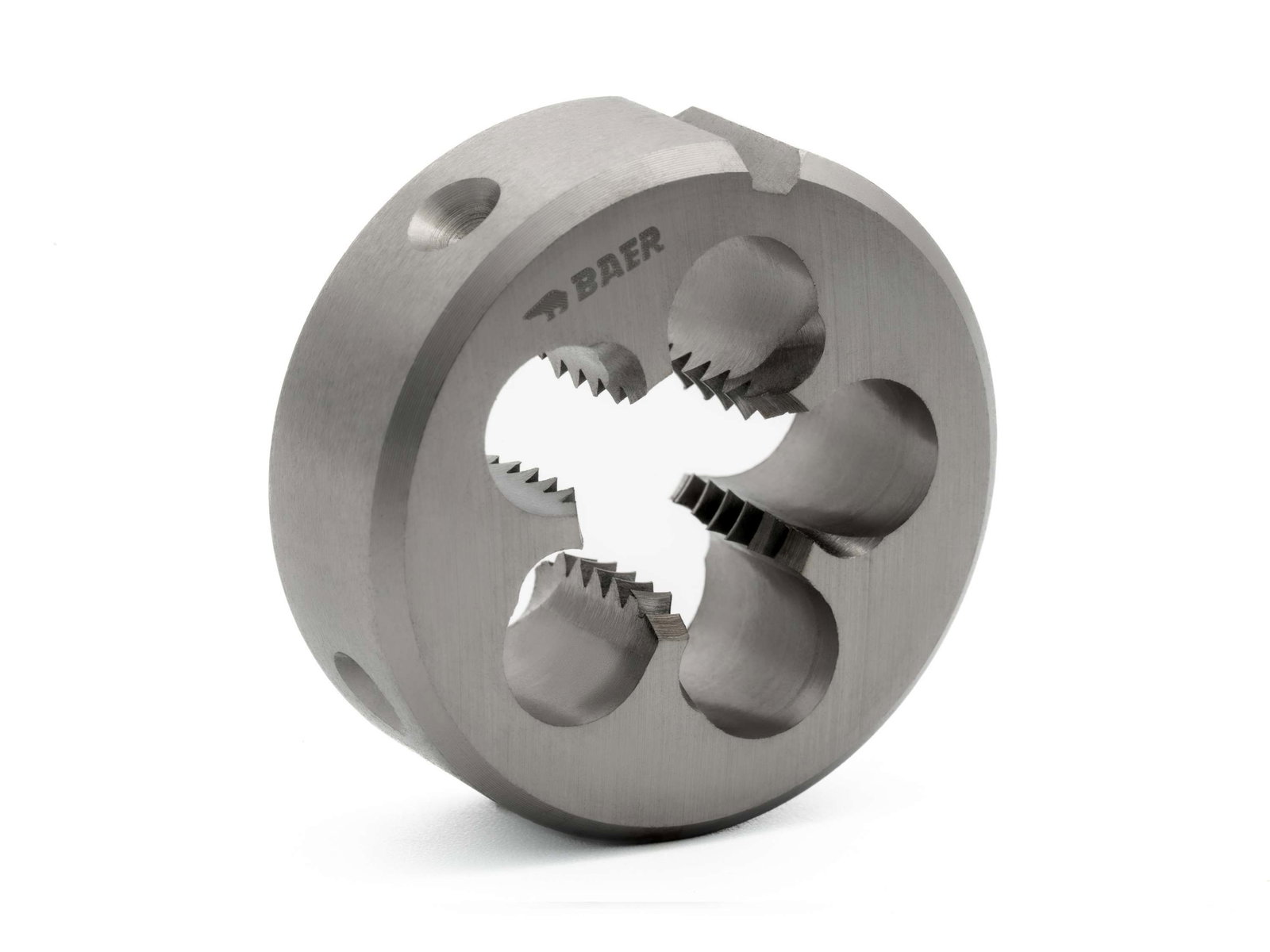

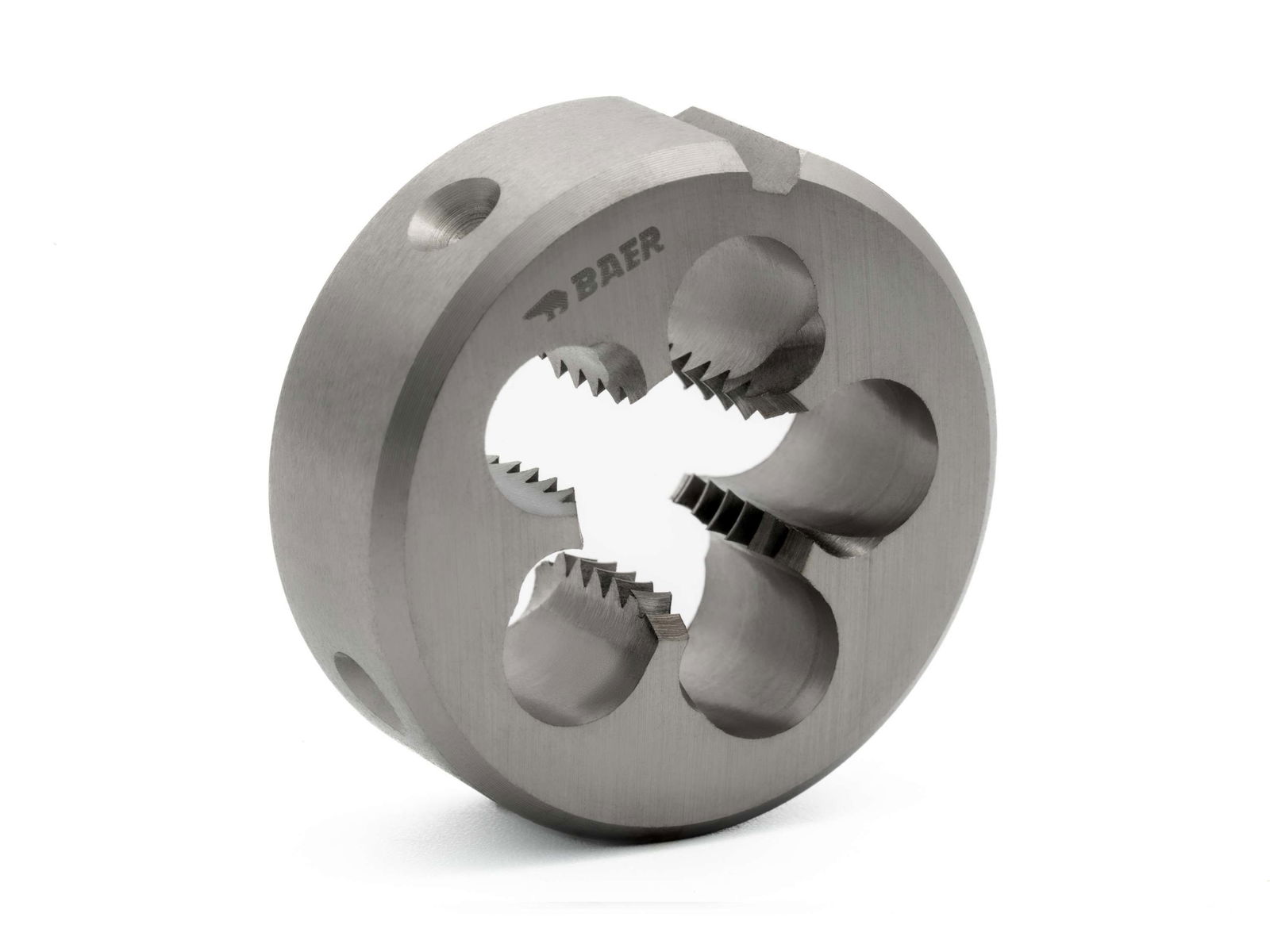

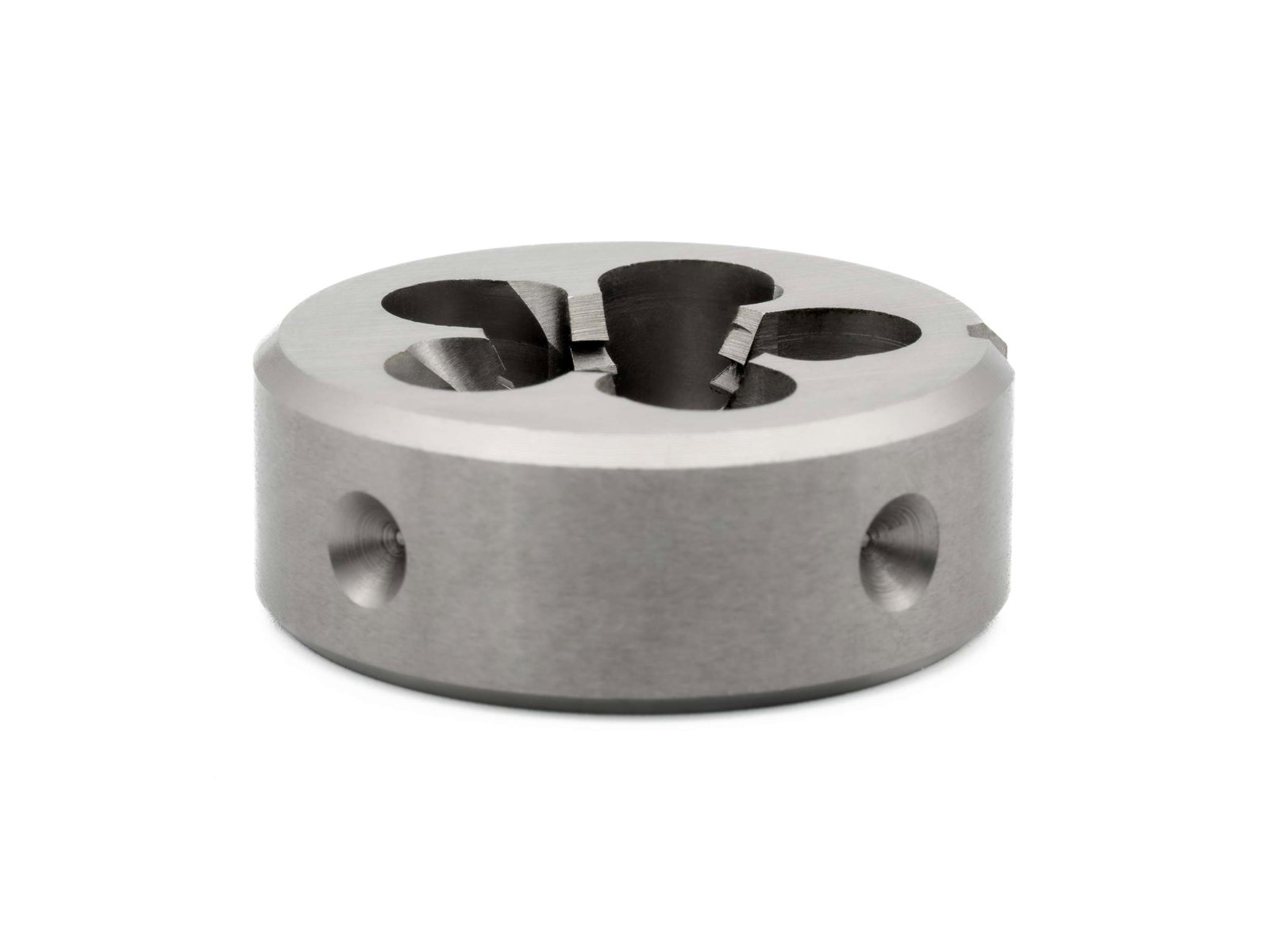

The die is a reliable and durable tool that helps you to produce precise external threads in one operation. It is equipped with four holes and a V-groove that secure the die in matching die stock and holders. This allows you to handle the die safely and comfortably. The BAER round die is also perfect for use in a tailstock or chuck of a drill press. Dies are tools used for cutting screws, nuts and threaded rods in everyday life. Round dies are cylindrical in shape and are used for making external threads in one operation. There are four holes and a groove on the outer casing of the round die, which are used to fasten the die in suitable die holder and holders by means of retaining screws. External threads are cut by hand with die stock. Special die holders are used for the tailstock on a lathe or for the chuck of a drill. The die is made of the high-quality high-speed steel HSSE. HSSE is more heat-resistant, more wear-resistant and has a slightly higher hardness than HSS steel. the round die is therefore more durable and can also be used for demanding tasks. The improved surface finish, the spiral entry and the basic material HSSE give you the necessary strength for working with difficult-to-cut materials and stainless steels. The thread cutting die also has a special cutting edge geometry so that it can be used in metalworking for stainless and acid-resistant steels, stainless steels, INOX, case-hardening steels, heat-resistant structural steels and malleable cast iron, among other things. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 18 mm
Diameter 5/8
Nominal diameter in inches 0,625
Nominal diameter in mm 15,875
Pitch 11
Pitch in mm 2,309
Dimension UNC 5/8 x 11

Characteristics

Product group Round cutting die
Product type Round cutting dies
Thread standard UNC: American Unified National Coarse thread according to ANSI B1.1
Tolerance 2A
Direction Right
Standard DIN 223 (DIN EN 2256
Material HSSE

Technical information - Cutting dies

Bild Form: https://media.baer.tools/media/vector/21/f8/b6/schneideisen_schaelanschnitt.svg
Form / Geometry
with spiral entry (spiral point)
Bild Anschnitt: https://media.baer.tools/media/vector/75/83/18/schneideisen_anschnitt.svg
Chamfer
2,0
Bild Material: https://media.baer.tools/media/vector/c8/8d/2f/gewindebohrer_blank.svg
Material
HSSE
Tolerance: 2A
Tolerance
2A

Applications

  • stainless steels (INOX, V2A, V4A etc.)
  • and for general use up to 1200 N/mm²

Technical drawing

Bolt pre-cutting diameter D2 15,68 mm
Height H 18 mm
Outside diameter D1 45 mm
Dimension Diameter D UNC 5/8 x 11
Diameter 5/8

Application – Sample materials

Stainless steels
1.4305 X8CrNiS18-9
1.4301 X5CrNi18-10 (A2)
1.4404 X2CrNiMo17-12-2 (V4A)
1.4541 X6CrNiTi18-10
Free-cutting steels
1.0718 11SMnPb30
1.0721 10S20
1.0726 35S20
1.0758 60SPb20
Case-hardening steels
1.0401 (C15)
1.7016 17 CR3
1.7131 16MnCr5
1.5919 15CrNi6
General construction steels
1.0035 S 185 (St 33)
1.0036 S 235 JRH
1.0039 S 235JRG1+CR
1.0060 E 335 (St 60-2)
Pure copper, low-alloyed copper
2.0240 CuZn15
2.0265 CuZn30
Copper-tin alloy (bronze) short-chipping
2.1090.01 G-CuSn7ZnPb
2.1086.01 G-CuSn10Zn
Quenched and tempered steels unalloyed
1.1151 C22E (Ck 22)
1.0503 C 45
1.1191 C45E (Ck 45)

Zubehör

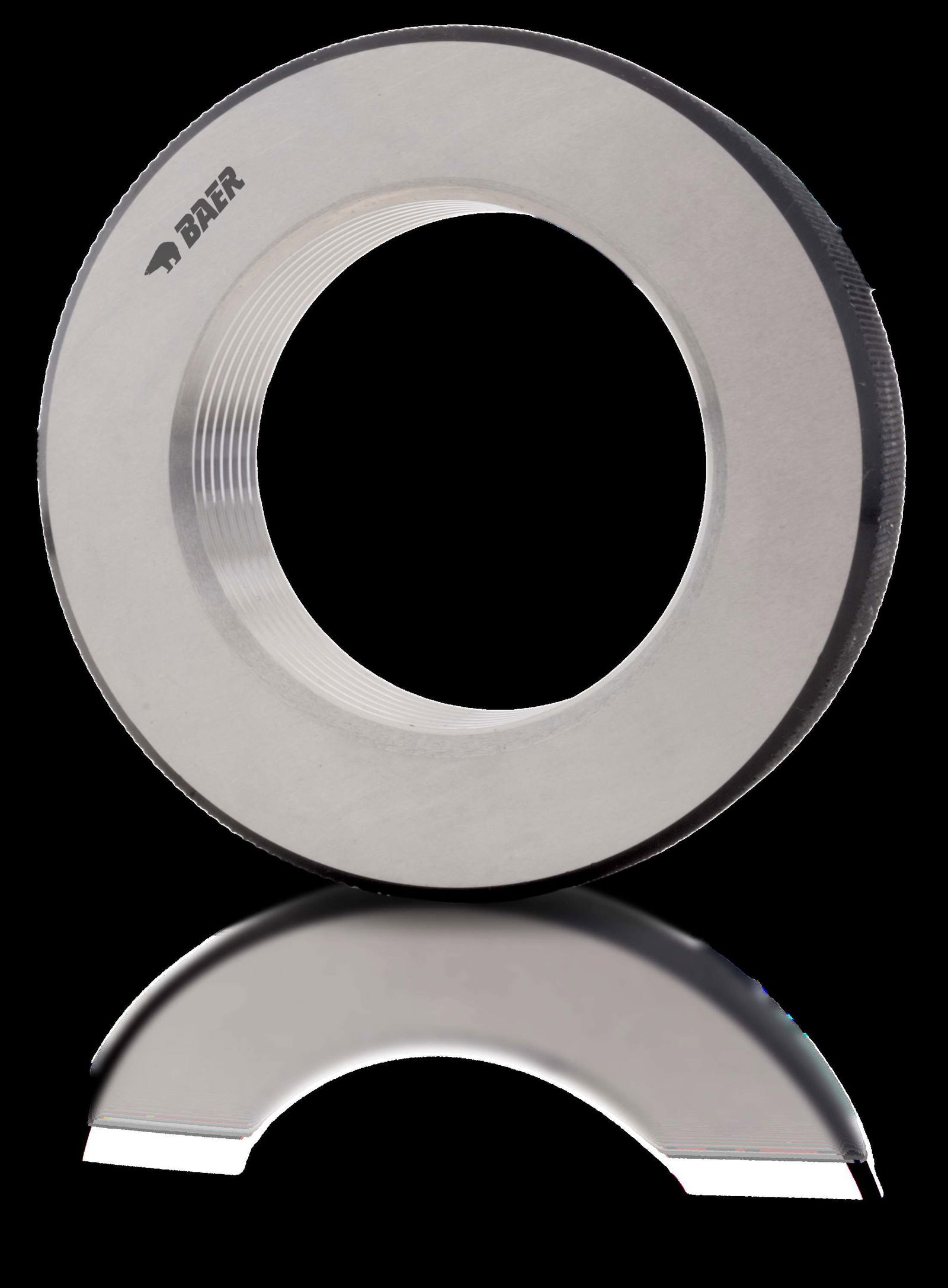

Thread ring gauge GO UNC 5/8 x 11 - tolerance 2A

In stock

Item no.: 142501011
€85.23*
BAER Die Stocks - Steel 45 x 18mm | M 16-20 | BSW 5/8-13/16

In stock

Express shipping available

Same-day shipping for orders placed by 25.11.2024 12:50 o'clock
Item no.: 491824001
€25.31*
BAER High Performance Cutting Paste 100 ml

In stock

Express shipping available

Same-day shipping for orders placed by 25.11.2024 12:50 o'clock
Item no.: SP100
€9.44*

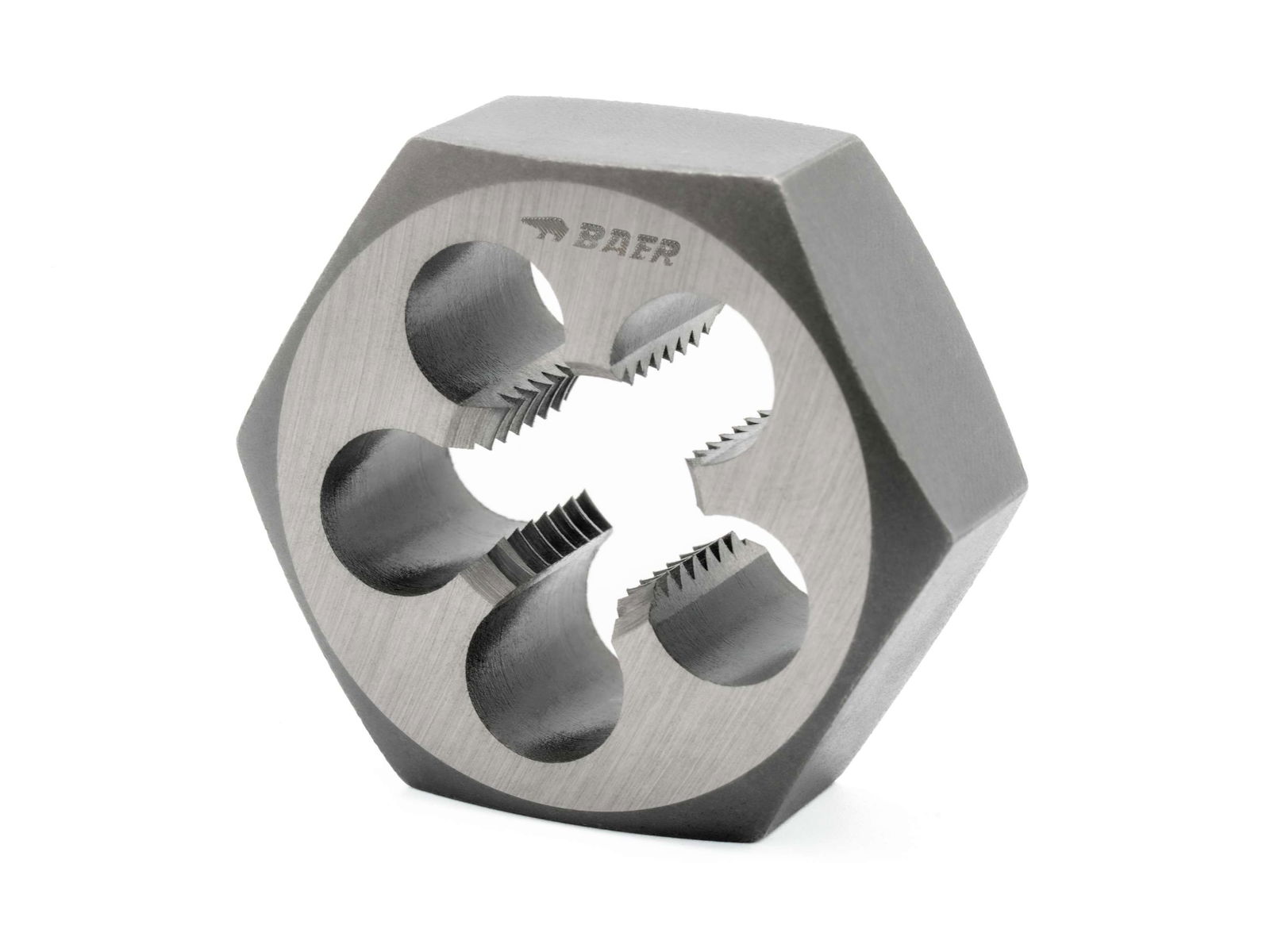

BAER Hexagon Die Nut UNC 5/8 x 11 - HSS
