BAER Round Cutting Die UNF 3/4 x 16 - HSSE for Stainless Steel

Price on request

Prices incl. VAT plus shipping costs

In stock

EAN 4058462112171
Item no 151405110
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

BAER Round Cutting Die UNF 3/4 x 16 - HSSE for Stainless Steel

BAER thread cutting dies are threading tools that are perfect for external threads. Basically, this cutting tool is cylindrical and has - depending on the size - three or more cutting edges inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. The die holder is used to cut the threads by hand and the special die holders also allow you to attach the round die to a tailstock or drill. The dies can usually be used on both sides and have a perfect cut. The die is made of the high-speed steel HSSE. HSSE steel is more heat-resistant, more wear-resistant and has a slightly higher hardness than conventional HSS steel. The improved surface finish, the spiral point (spiral entry) and the base material HSSE give you the necessary strength for working with difficult-to-cut materials and stainless steels. The thread cutting die also has a special cutting edge geometry so that it can be used in metalworking for stainless and acid-resistant steels, stainless steels, INOX, case-hardening steels, heat-resistant structural steels and malleable cast iron, among other things. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 14 mm
Diameter 3/4
Nominal diameter in inches 0,75
Nominal diameter in mm 19,05
Pitch 16
Pitch in mm 1,587
Dimension UNF 3/4 x 16

Characteristics

Product group Round cutting die
Product type Round cutting dies
Thread standard UNF: American Fine Unified National thread according to ANSI B1.1
Tolerance 2A
Direction Right
Standard DIN 223 (DIN EN 2256
Material HSSE

Technical information - Cutting dies

Bild Form: https://media.baer.tools/media/vector/21/f8/b6/schneideisen_schaelanschnitt.svg
Form / Geometry
with spiral entry (spiral point)
Bild Anschnitt: https://media.baer.tools/media/vector/75/83/18/schneideisen_anschnitt.svg
Chamfer
2,0
Bild Material: https://media.baer.tools/media/vector/c8/8d/2f/gewindebohrer_blank.svg
Material
HSSE
Tolerance: 2A
Tolerance
2A

Applications

  • stainless steels (INOX, V2A, V4A etc.)
  • and for general use up to 1200 N/mm²

Technical drawing

Bolt pre-cutting diameter D2 19,05 mm
Height H 14 mm
Outside diameter D1 45 mm
Dimension Diameter D UNF 3/4 x 16
Diameter 3/4

Application – Sample materials

Stainless steels
1.4305 X8CrNiS18-9
1.4301 X5CrNi18-10 (A2)
1.4404 X2CrNiMo17-12-2 (V4A)
1.4541 X6CrNiTi18-10
Free-cutting steels
1.0718 11SMnPb30
1.0721 10S20
1.0726 35S20
1.0758 60SPb20
Case-hardening steels
1.0401 (C15)
1.7016 17 CR3
1.7131 16MnCr5
1.5919 15CrNi6
General construction steels
1.0035 S 185 (St 33)
1.0036 S 235 JRH
1.0039 S 235JRG1+CR
1.0060 E 335 (St 60-2)
Pure copper, low-alloyed copper
2.0240 CuZn15
2.0265 CuZn30
Copper-tin alloy (bronze) short-chipping
2.1090.01 G-CuSn7ZnPb
2.1086.01 G-CuSn10Zn
Quenched and tempered steels unalloyed
1.1151 C22E (Ck 22)
1.0503 C 45
1.1191 C45E (Ck 45)

Zubehör

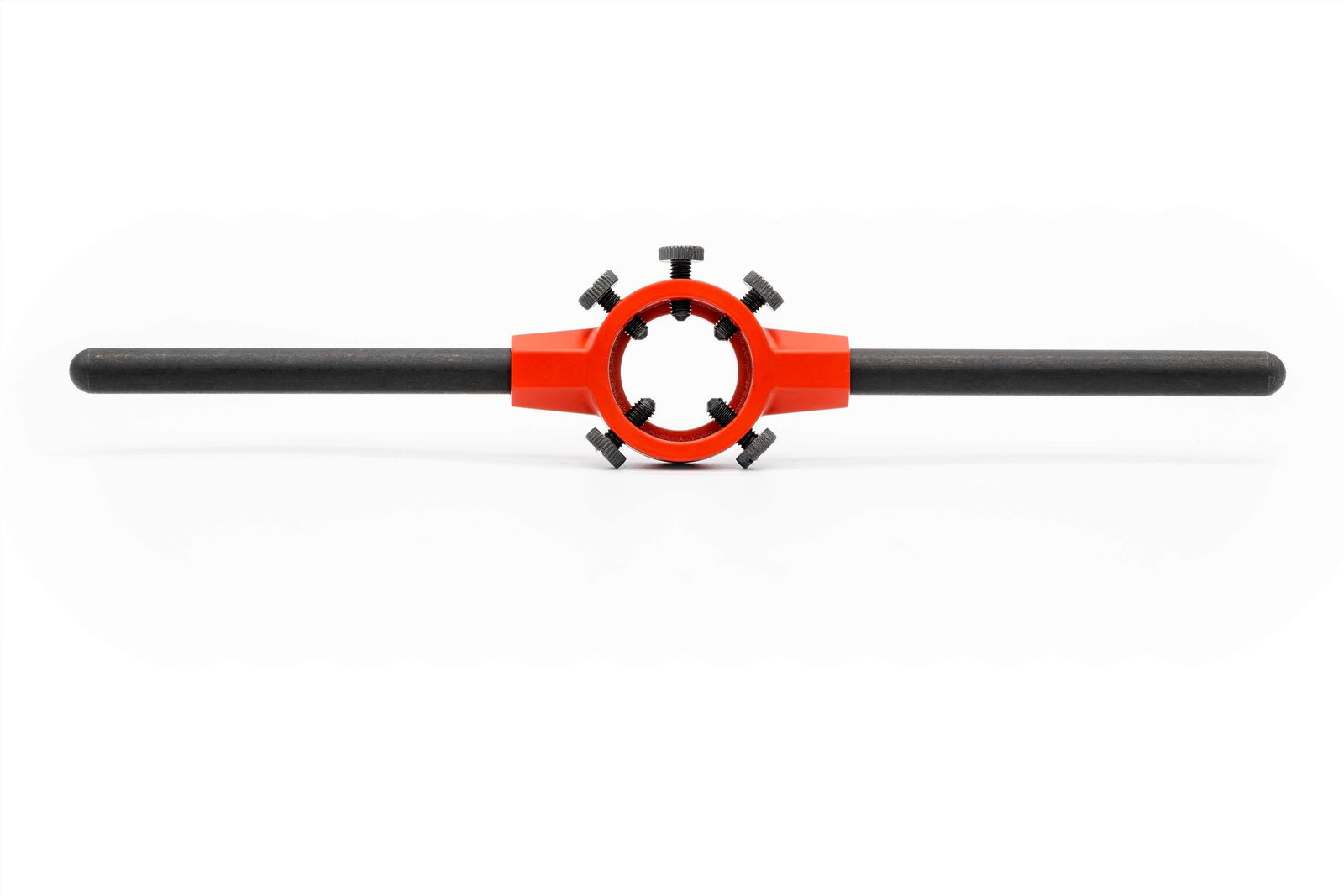

BAER Die Stocks - PRO 45 x 14mm | MF 16-20 | G (BSP) 3/8-1/2

In stock

Express shipping available

Same-day shipping for orders placed by tomorrow 12:50 o'clock
Item no.: 491825008
€12.73*
BAER Hexagon Die Nut UNF 3/4 x 16 - HSS

In stock

Express shipping available

Same-day shipping for orders placed by tomorrow 12:50 o'clock
Item no.: 151501008
€32.87*
Thread ring gauge NO-GO UNF 3/4 x 16 - tolerance 2A

In stock

Item no.: 152601008
€100.36*
BAER High Performance Cutting Paste 100 ml

In stock

Express shipping available

Same-day shipping for orders placed by tomorrow 12:50 o'clock
Item no.: SP100
€9.44*
