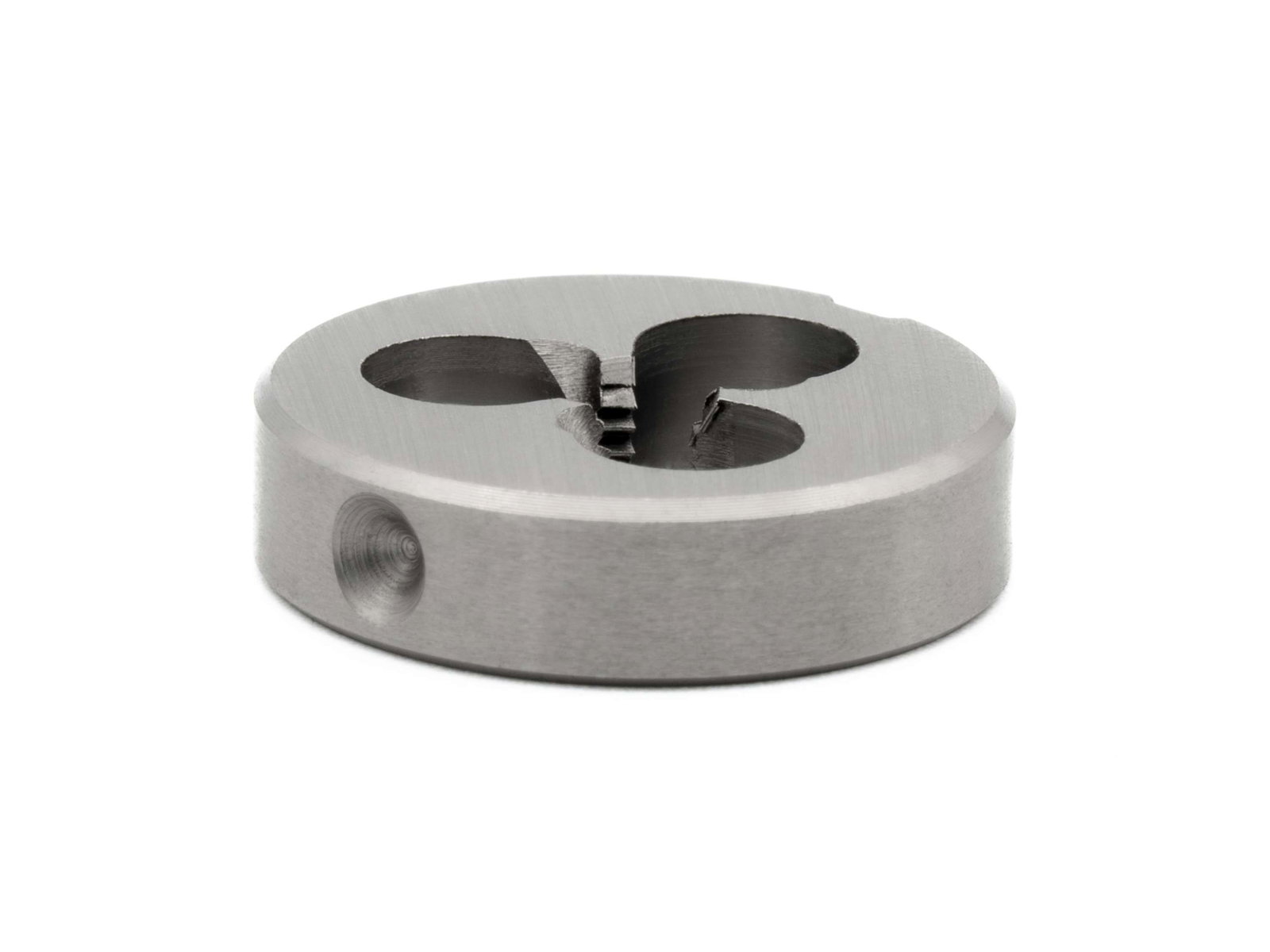

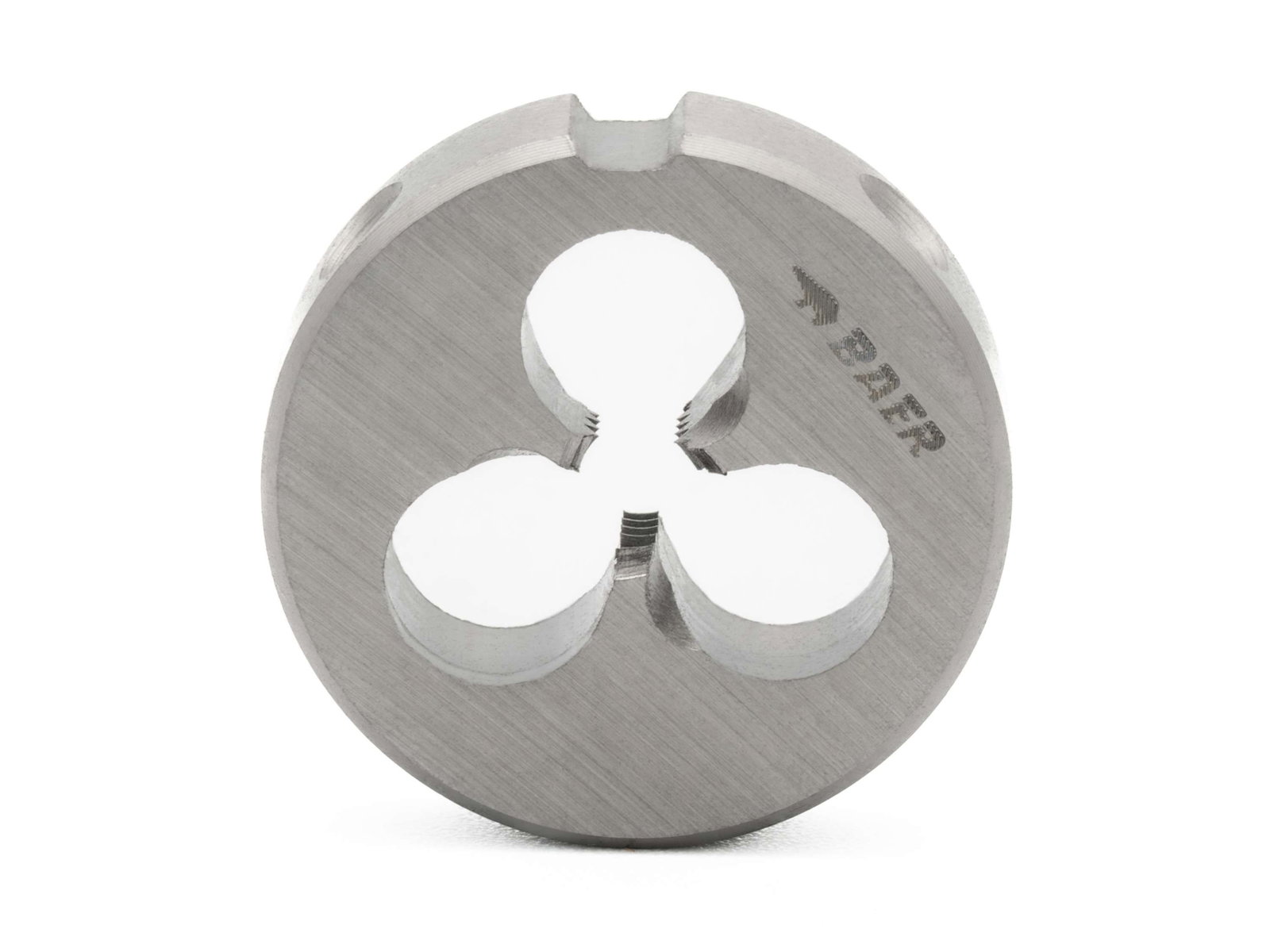

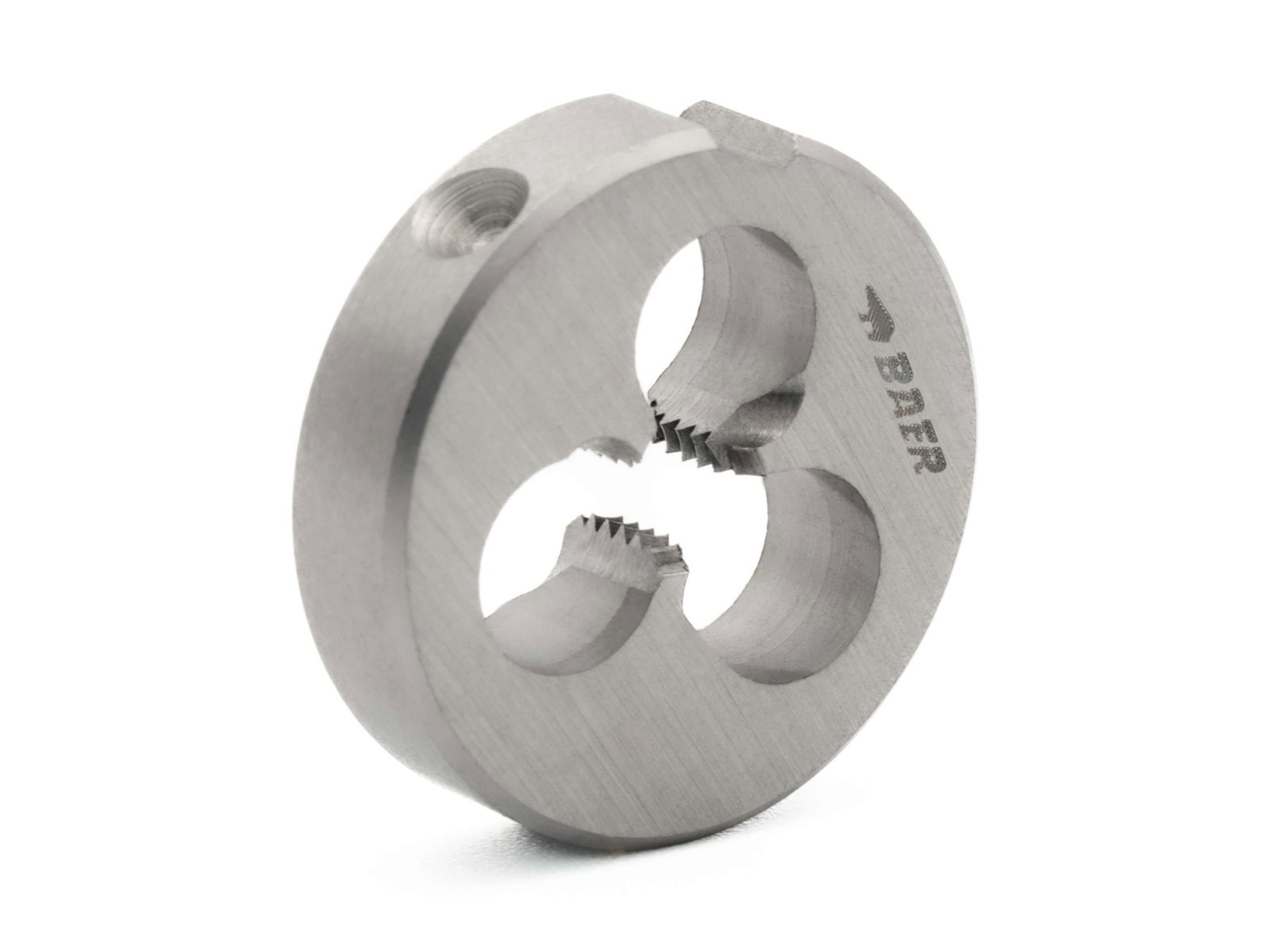

BAER Round Cutting Die UNJF 4 - 48 - HSSE-PM
BAER Round Cutting Die UNJF 4 - 48 - HSSE-PM
The die is a reliable and durable tool that helps you to produce precise external threads in one operation. It is equipped with four holes and a V-groove that secure the die in matching die stock and holders. This allows you to handle the die safely and comfortably. The BAER round die is also perfect for use in a tailstock or chuck of a drill press. Dies are tools used for cutting screws, nuts and threaded rods in everyday life. The die holder is used to cut the threads by hand and with the special die holders you can also attach the round die to a tailstock or drill press. The dies can usually be used on both sides and have a perfect cut. The die is made of the high-quality high-speed steel HSSE. HSSE is more heat-resistant, more wear-resistant and has a slightly higher hardness than HSS steel. the round die is therefore more durable and can also be used for demanding tasks. The improved surface finish, the spiral entry and the basic material HSSE give you the necessary strength for working with difficult-to-cut materials and stainless steels. The cutting tool also has a special cutting edge geometry so that it can be used in metalworking for, among other things, tempering and case-hardening steels up to 1200 N/mm², as well as stainless and acid-resistant steels, heat-resistant structural steels and malleable cast iron. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.
Dimensions
| Height H |
5 mm |
|---|---|
| Diameter |
No. 4 |
| Nominal diameter in inches |
0,112 |
| Nominal diameter in mm |
2,845 |
| Pitch |
48 |
| Pitch in mm |
0,529 |
| Dimension |
UNJF No. 4 x 48 |
Characteristics
| Product group |
Round cutting die |
|---|---|
| Product type |
Round cutting dies |
| Thread standard |
UNJF: American Unified aerospace fine thread according to ISO 3161-1977, BS 4084-1987, MiL-S |
| Tolerance |
3AX |
| Direction |
Right |
| Standard |
DIN 223 (DIN EN 2256 |
| Material |
HSSE |
Technical information - Cutting dies
1,75
HSSE
3AX
Applications
- stainless steels (INOX, V2A, V4A etc.)
- and for general use up to 1200 N/mm²
Technical drawing
| Height H |
5 mm |
|---|---|
| Outside diameter D1 |
16 mm |
| Dimension Diameter D |
UNJF No. 4 x 48 |
| Diameter |
No. 4 |
