BAER Round Cutting Die W 28.8 x 14 tapered - HSS

€306.73*

Prices incl. VAT plus shipping costs

In stock

EAN 4058462112492
Item no 301401002
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

BAER Round Cutting Die W 28.8 x 14 tapered - HSS


BAER thread cutting dies are threading tools that are perfect for external threads. Basically, this cutting tool is cylindrical and has - depending on the size - three or more cutting edges inside. The holes between the cutting edges take up the chips, roll them and carry them away. Dies are commonly used in everyday life to make screws, nuts and threaded rods. The die holder is used to cut the threads by hand and the special die holders also allow you to attach the round die to a tailstock or drill. The dies can usually be used on both sides and have a perfect cut. The external thread cutting tool is made of high-speed steel (HSS). HSS steel has a higher toughness and a lower susceptibility to breakage compared to HSSE steel. HSS steel is known for its exceptional cutting performance and durability. HSS cutting dies can be used for a wide range of applications, such as structural steels, carbon steels and free-cutting steels. It is also suitable for case-hardening steels and unalloyed tempering steels with a strength of up to 750 N/mm². Cast steel as well as zinc alloys can also be cut with it, as well as pure copper, low-alloy copper, as well as short-chipping copper-tin alloys, plastics such as POM, PVC, etc. It is important that you lubricate the tool plumbed working and with cutting oil or cutting paste.

Dimensions

Height H 30 mm
Diameter 28,8
Pitch 14
Dimension W 28,8 x 14

Characteristics

Product group Round cutting die
Product type Round cutting dies
Thread standard W: Tapered Whitworth thread for gas cylinder valves according to DIN 477 with taper 3:25
Tolerance medium
Direction Right
Standard Factory standard
Material HSS

Technical information - Cutting dies

Schematic representation of Bild Anschnitt
Chamfer
1,75
Schematic representation of Bild Material
Material
HSS
Schematic representation of Tolerance: medium
Tolerance
medium

Applications

  • General-purpose use up to 750 N/mm²
  • general structural steels, free-cutting steels, case-hardening steels and unalloyed heat-treatable steels
  • Pure copper, low-alloyed copper, as well as short-chipping copper-tin alloys
  • Plastics such as POM, PVC, etc.

Technical drawing

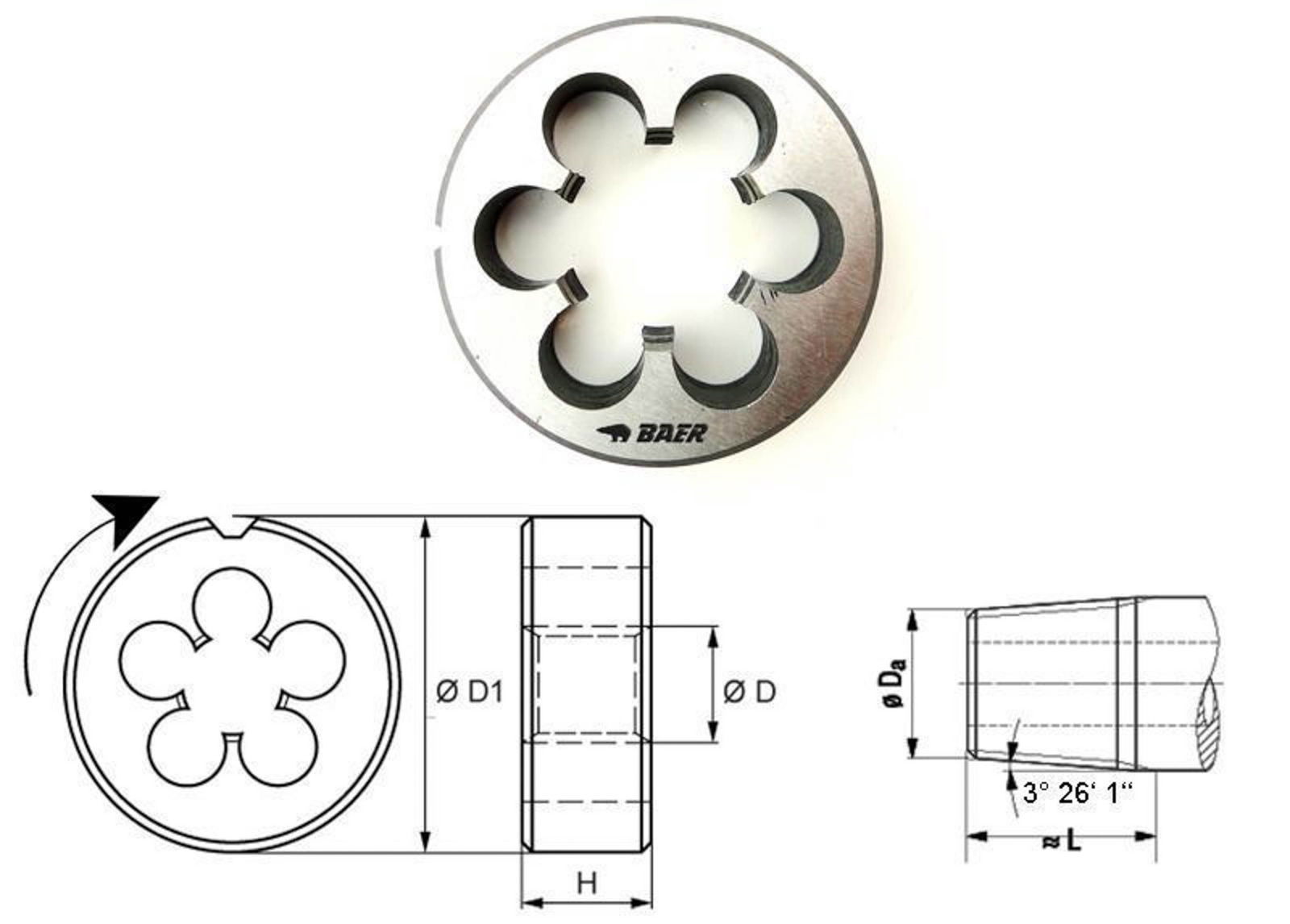

Technical drawing round die with conical thread
Bolt pre-cutting diameter D2 25,74 mm
Height H 30 mm
Outside diameter D1 65 mm
Dimension Diameter D W 28,8 x 14
Diameter 28,8

Application – Sample materials for dies

General construction steels
1.0035 S185 (St33)
1.0036 S235JRH
1.0039 S235JRG1+CR
1.0060 E335 (St60-2)
Free-cutting steels
1.0718 11SMnPb30
1.0721 10S20
1.0726 35S20
1.0758 60SPb20
Case-hardening steels
1.0401 (C15)
1.7016 17CR3
1.7131 16MnCr5
1.5919 15CrNi6
Quenched and tempered steels unalloyed
1.0402 C 22
1.1151 C22E (Ck22)
1.0503 C 45
1.1191 C45E (Ck45)
Pure copper, low-alloyed copper
2.0240 CuZn15
2.0265 CuZn30
Copper-tin alloy (bronze) short-chipping
2.1090.01 G-CuSn7ZnPb
2.1086.01 G-CuSn10Zn
Plastics
PMMA
POM
PVC

Accessories
