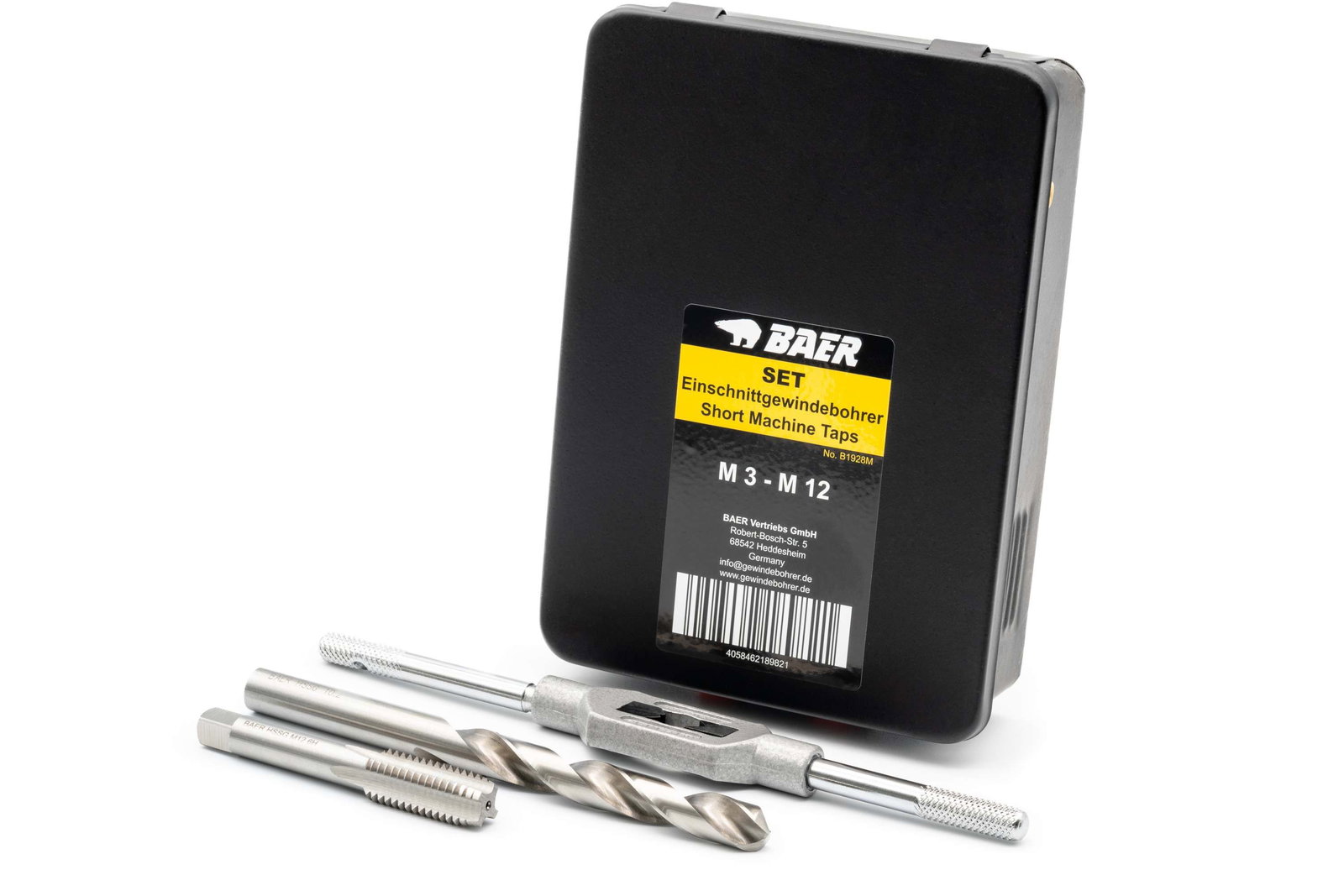

Finished thread cutting with only one threading tool - the short machine tap makes it possible. A screw tap with full thread profile, suitable for time-saving thread cutting by hand or semi-professionally by machine. And all this at an unbeatable price-performance ratio in well-known BAER quality. Cutting straight into the core hole is the most important thing when drilling threads. At BAER you buy short machine taps ex works in tested BAER industrial quality. Especially when it comes to tools, it is always worth spending a few euros more. Our short machine taps are perfect for cutting a precise thread. They are suitable for the following materials: unalloyed structural steels, alloyed structural steels, free-cutting steels and cast steel. You will receive the BAER short machine tap set in a high-quality metal case.
Dimensions
| Diameter |
3 - 12 |
|---|---|
| Dimension |
M 3 - 12 |
Characteristics
| Product group |
threading tool sets |
|---|---|
| Product type |
Threading tool sets |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Tensile strength at room temperature |
up to 800 N/mm² | 22.2 HRC |
| Material |
HSSG bright |
Technical information – Screw taps
Through hole and blind hole up to 2 x D
Form D straight fluted
3.5-5 threads
see illustration
External cooling and lubrication
HSSG bright
up to 800 N/mm² | 22.2 HRC
ISO2/6H

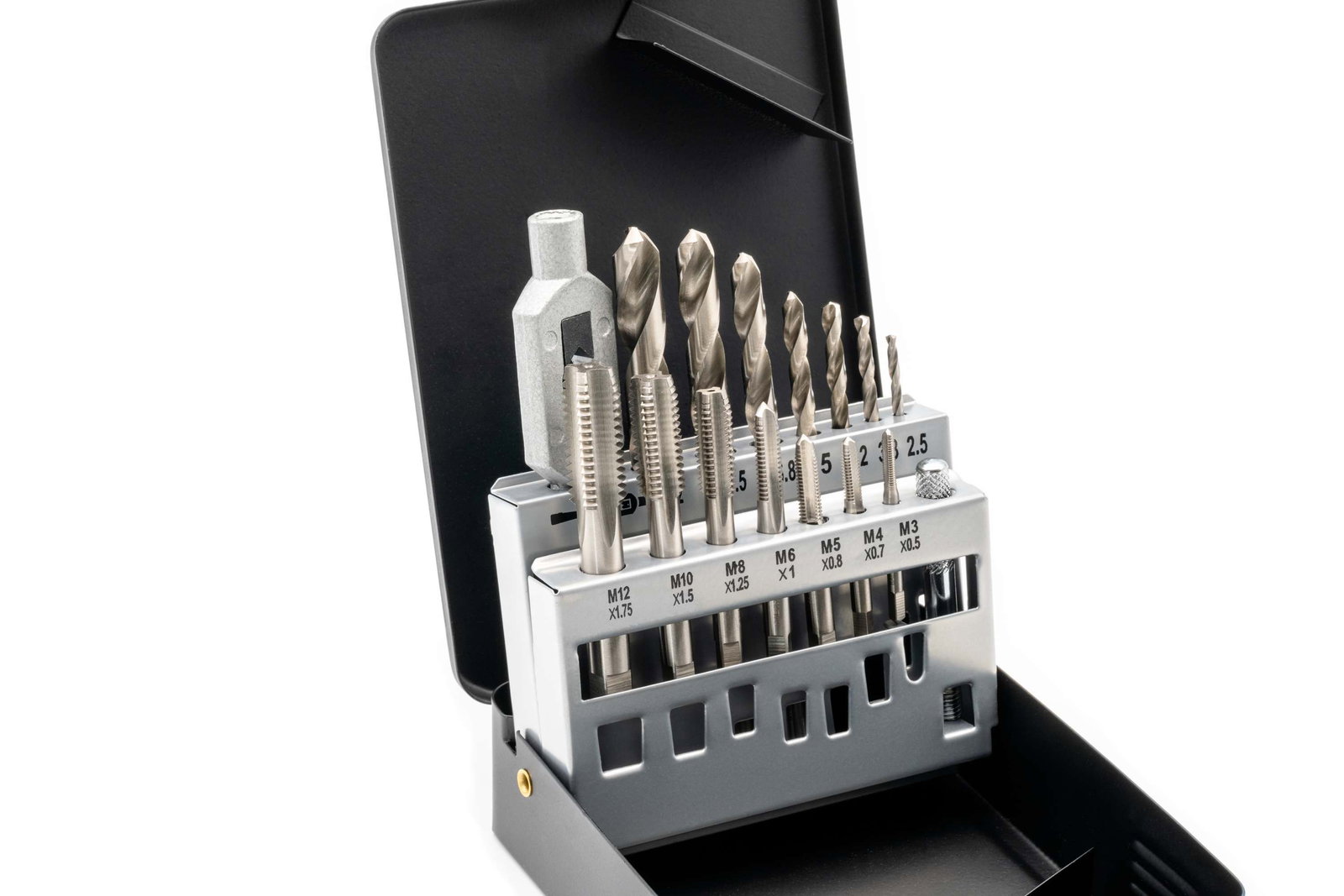

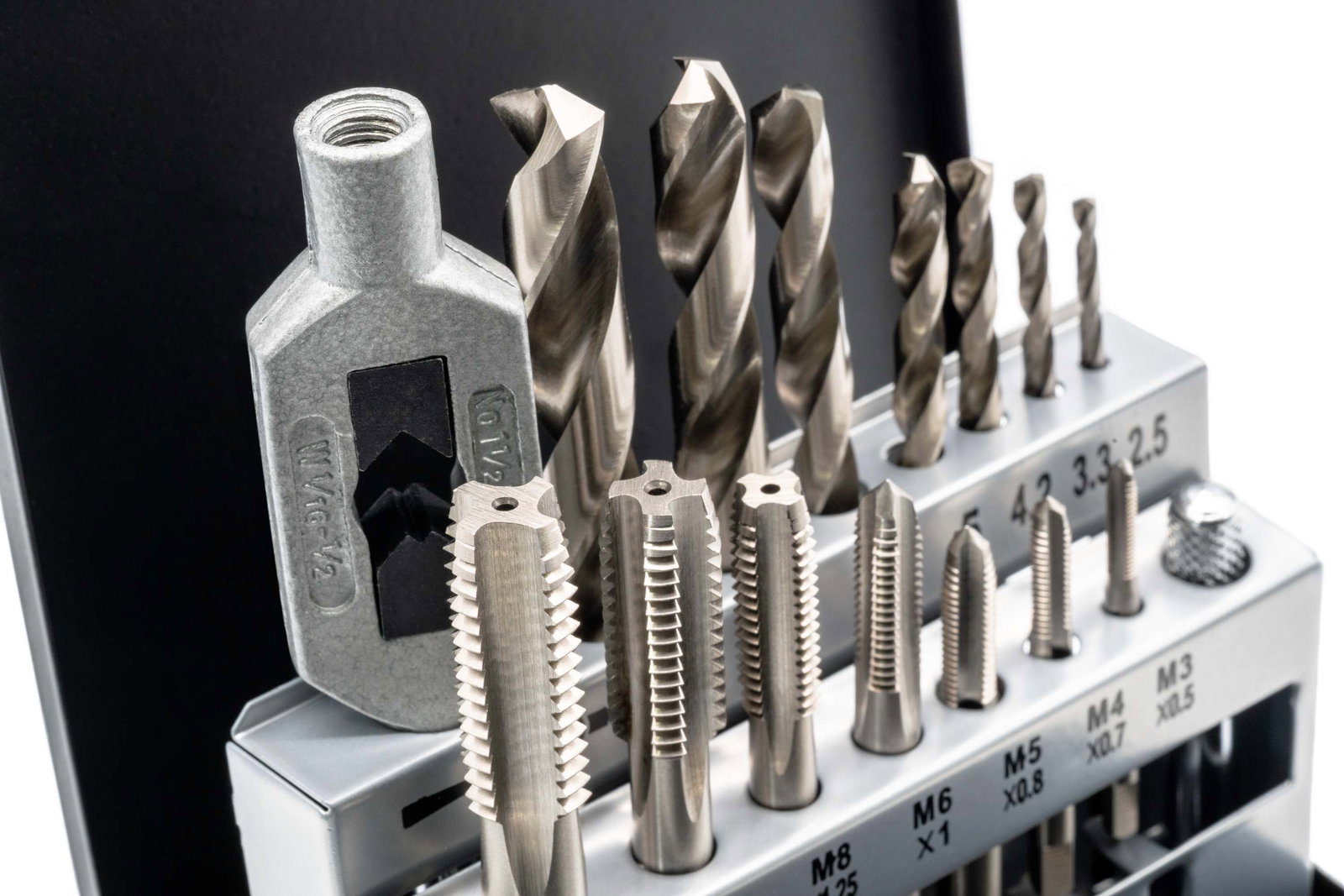

Set content
| BAER HSSG machine taps | M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8 M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5 M 12 x 1,75 |
|---|---|
| BAER HSSG core drill bit | 2,5 mm | 3,3 mm | 4,2 mm | 5,0 mm 6,8 mm | 8,5 mm | 10,2 mm |
| BAER adjustable die-cast tap wrench | No. 1.1/2: M 1-12 | 1/16-1/2 | G 1/8 |
Applications
- General-purpose use
- Materials with good machinability up to 800 N/mm²
- Unalloyed and low-alloy steels
- for through hole and blind hole
- for manual use

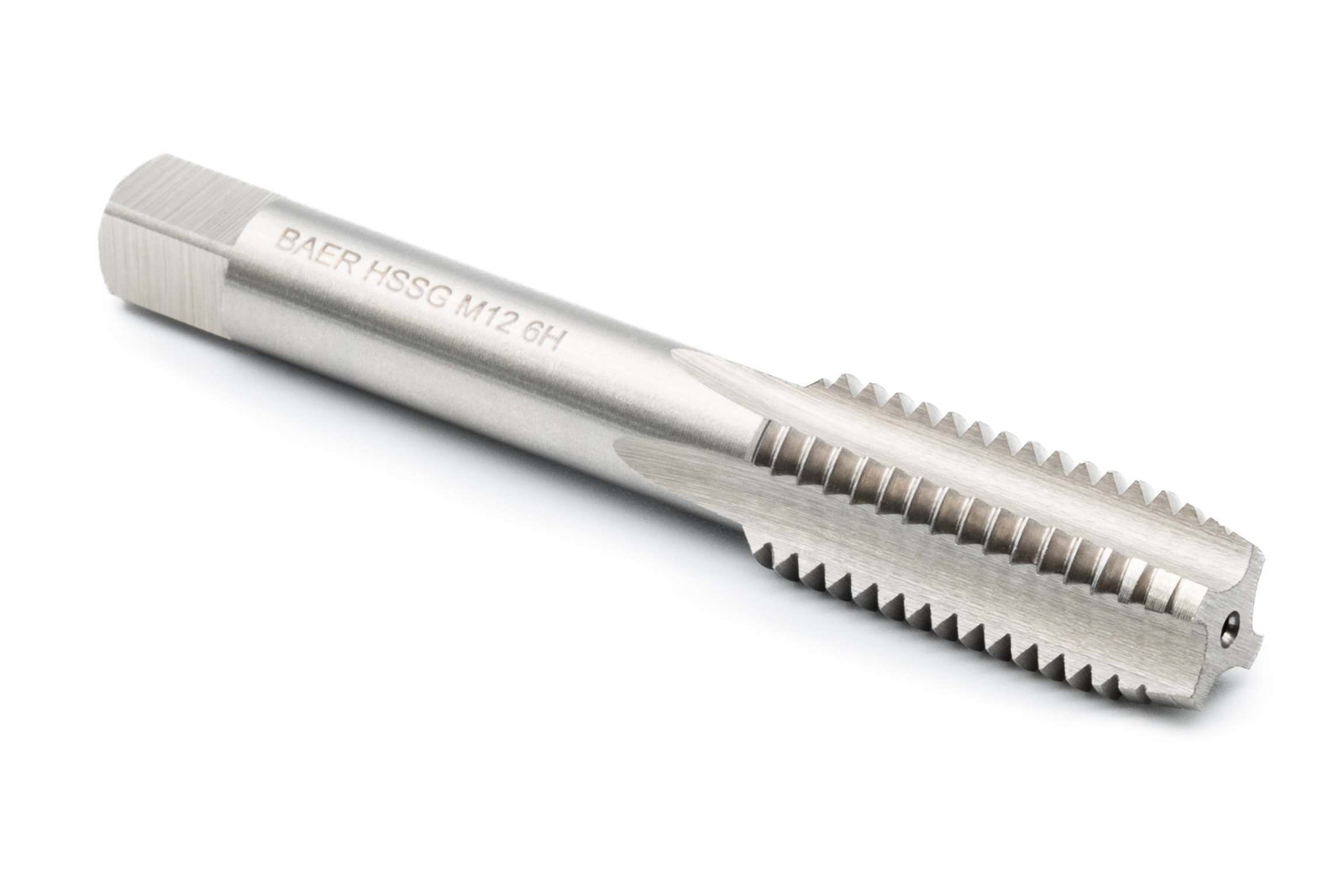

BAER HSSG short machine tap
for through-hole and blind hole | M 3 - M 12 threads
Cutting a finished thread with just one tool in one operation, even by hand - is that possible? Yes, the short machine tap makes efficient production of internal threads possible. Whether by hand or semi-professionally by machine, this internal tap with full thread profile cuts precisely and saves time. At the same time, it cuts precisely and straight into the core hole - an absolute must when drilling threads. BAER short machine taps are suitable for general use in easily machinable materials up to 800 N/mm². These include unalloyed and low-alloy steels, free-cutting steels and cast steel. They cut a through-hole and blind hole up to 2 x D and are suitable for hand and machine use.
The advantages at a glance:
- Thread cutting with one tool
- precise and time-saving
- for hand and machine use
- Use in materials with good machinability up to 800 N/mm²
- Through-hole and blind hole up to 2 x D
- Hand and machine use
Technical information:
- Form D: 3.5 - 5 threads chamfer
- Thread tolerance: ISO2/6H

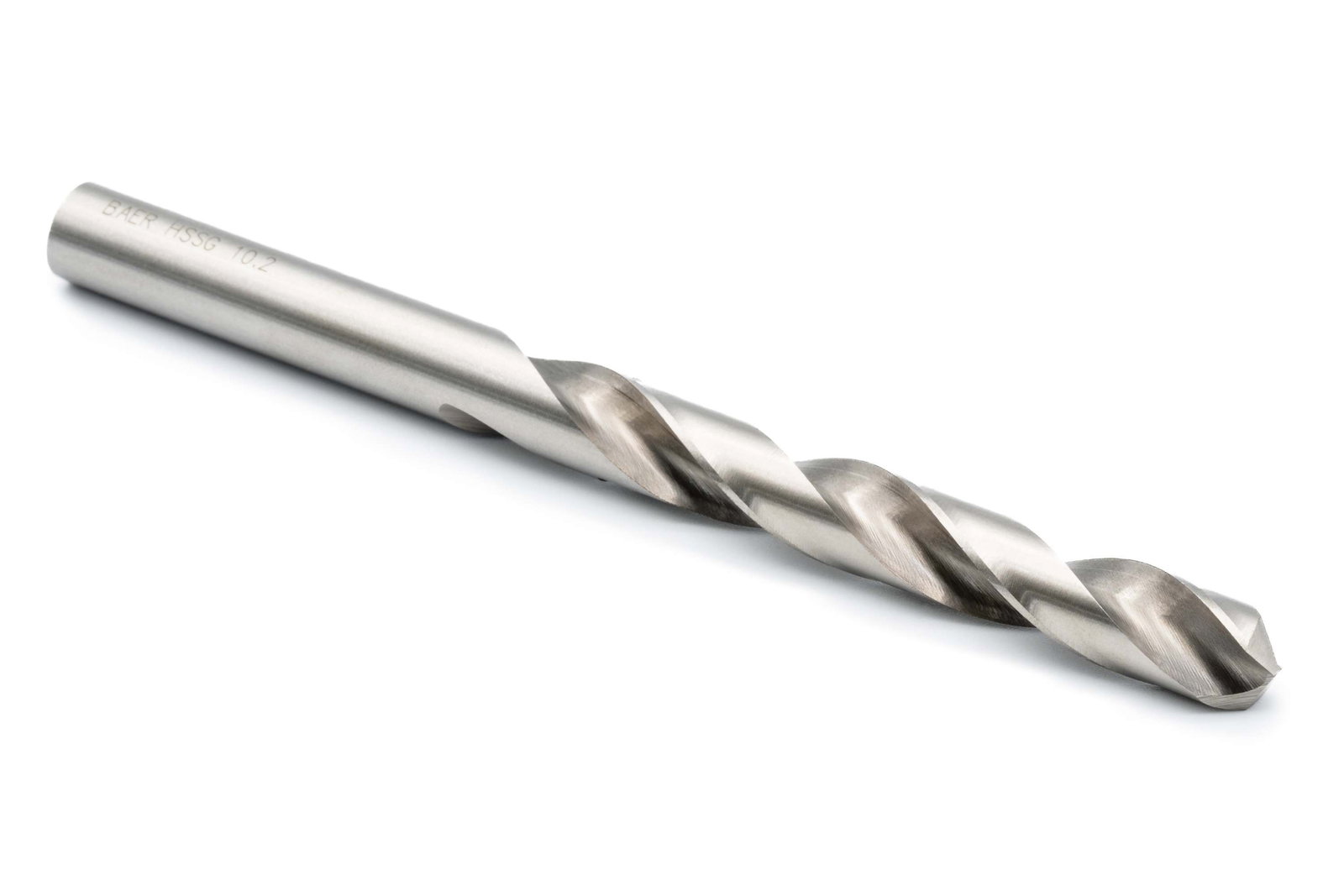

BAER HSSG twist drill bit
core drill bit for M 3 - M 12 threads
Our twist drill bit work with a very high accuracy and very low tolerances, thus high-precision work with a high tool life time is possible. The result: an exact hole. The spiral as well as the cutting edges have an ideal self-centring behaviour due to their split point and have a good chip evacuation. HSSG drills can be used in CNC machines, drill presses, drill presses, cordless screwdrivers, percussion drills and hammer drills, among others. They are perfect for drilling into materials such as steel, cast steel, cast iron, sintered iron, graphite, brass, aluminium and bronze and retain their hardness up to approx. 600°C, right, with cylindrical shank according to DIN 338. Furthermore, the twist drill bit are also suitable for the universal use, of course you can also drill into wood or aluminium. As they are characterised by high efficiency and low production costs, they are often used in series production. Twist drill bit with cylindrical shank are suitable for use in all drill chucks and can be clamped in the same way as in quick-change drill chuck as well as keyed drill chuck.
The advantages at a glance:
- high accuracy and very low tolerances → precise drill hole
- Cross grinding → ideal self-centring behaviour and good chip evacuation
- Cylindrical shank → suitable for all drill chucks
- Can be used as a universal tap
This means that BAER hand taps and dies made of high-speed steel HSS can also cope with many material requirements. Accurate work and long-term cost savings are added to this.

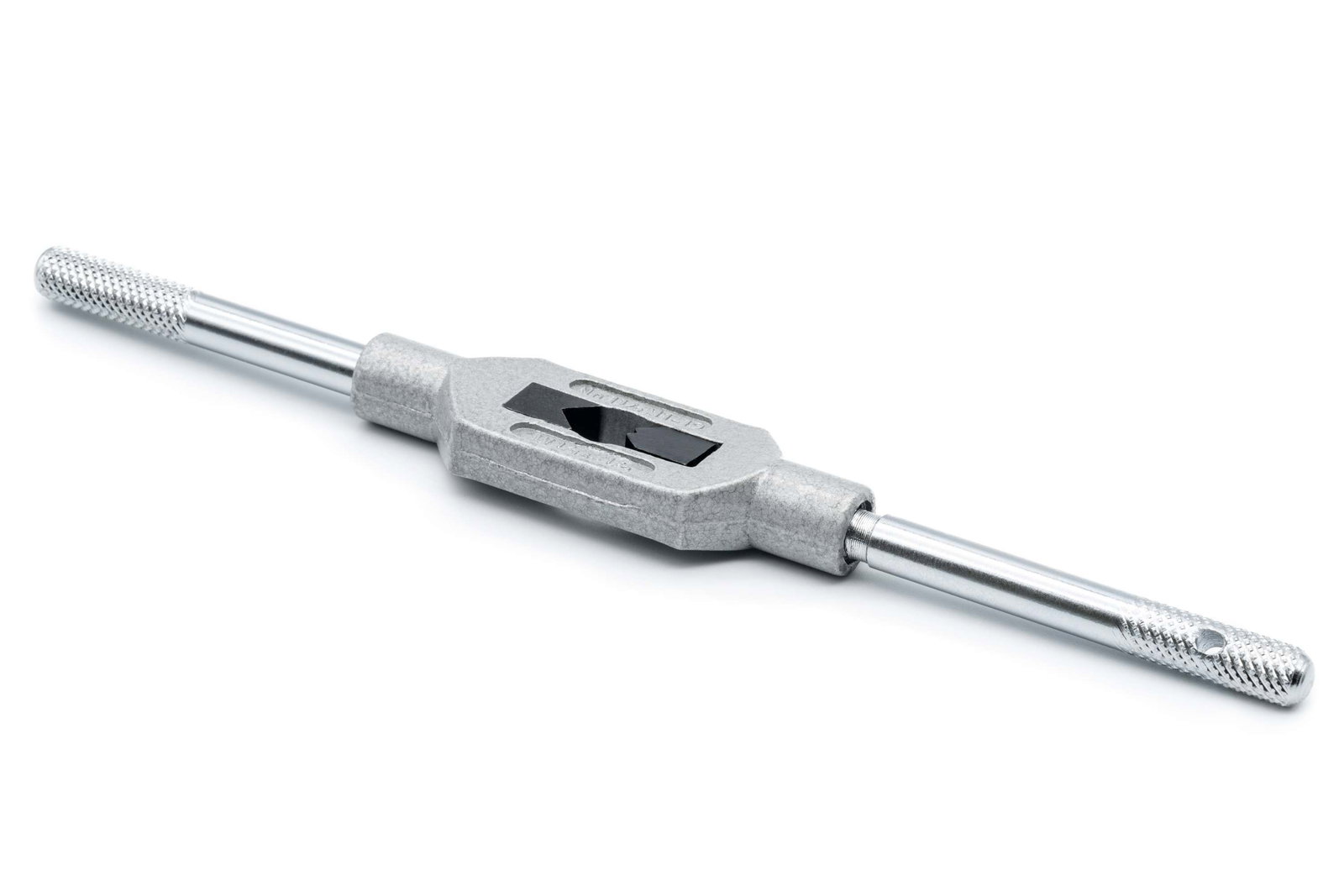

BAER adjustable tap wrench made of zinc die cast
DIN 1814, zinc die-cast body, hardened jaws
The adjustable tap wrench is a holding tool for cutting internal thread by hand. The quality of a tap wrench lies in the material as well as in the clamping jaws, the holding handles and the geometry. The long levers on the right and left help to cut plumb into the hole and easily apply the required torque. The compact and robust design in the zinc die casting ensures an excellent price-performance ratio. Another advantage is the easy handling and the short changing times.
This adjustable tap wrench made of zinc die cast is suitable for the following use:
- Square: 2.1 - 8.0 mm
- for screw tap: M 1-12 | 1/16-1/2 | G 1/8
Quality
for long service life
The high-alloy tool steel HSS can work with up to four times higher cutting speeds than ordinary tool steel.
This set is characterised by:
- Temperature resistance / heat hardness
- Wear resistance
- Cutting edge stability
- high smooth running
- good chip evacuation
This means that BAER hand taps and dies made of high-speed steel HSS can cope with many material requirements. Accurate work and long-term cost savings are added to this.
