BAER TriTap HSSE-VAP Machine Tap Form B - M 5 x 0.8 - DIN 371
In stock
Express shipping available

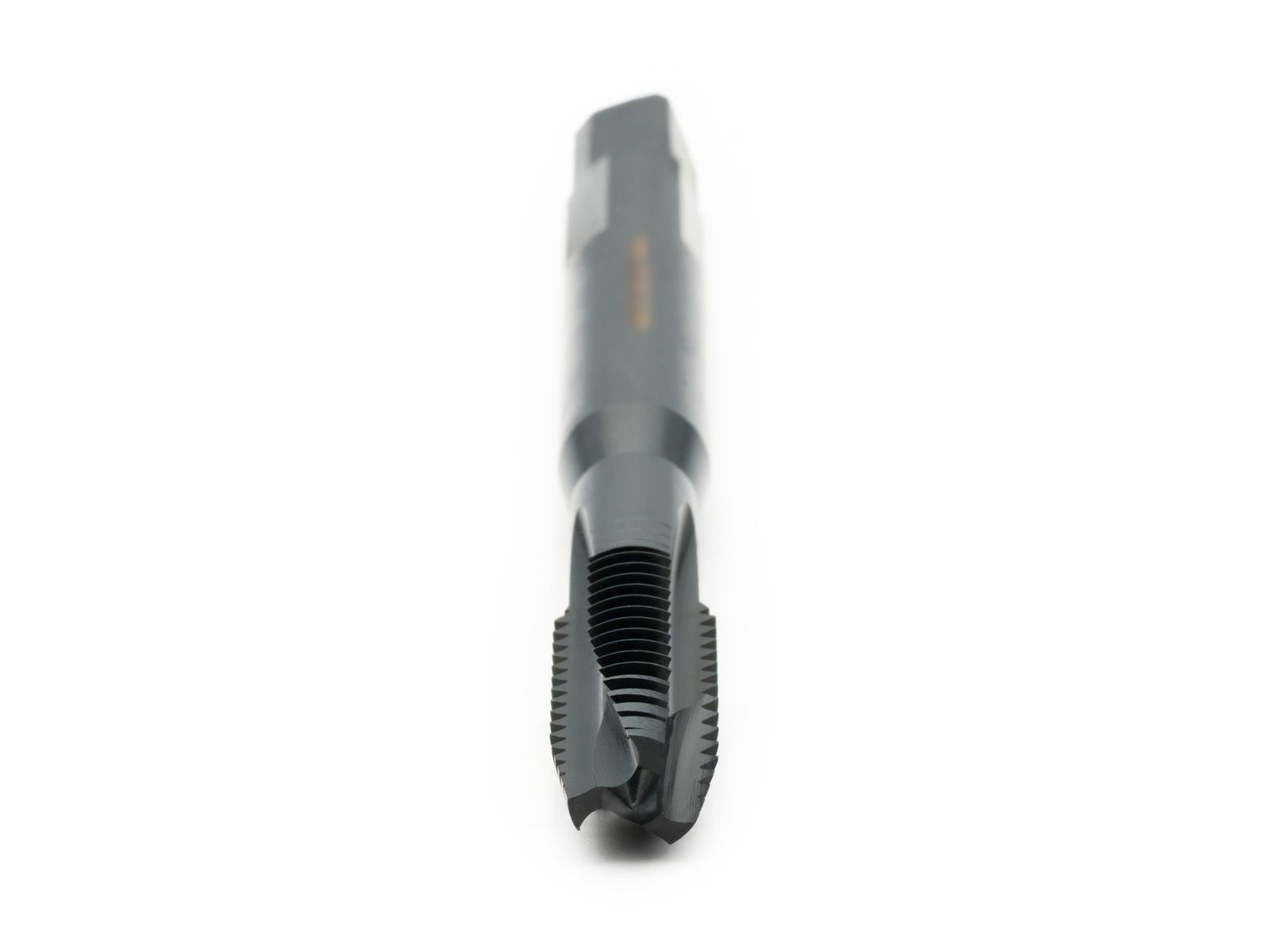

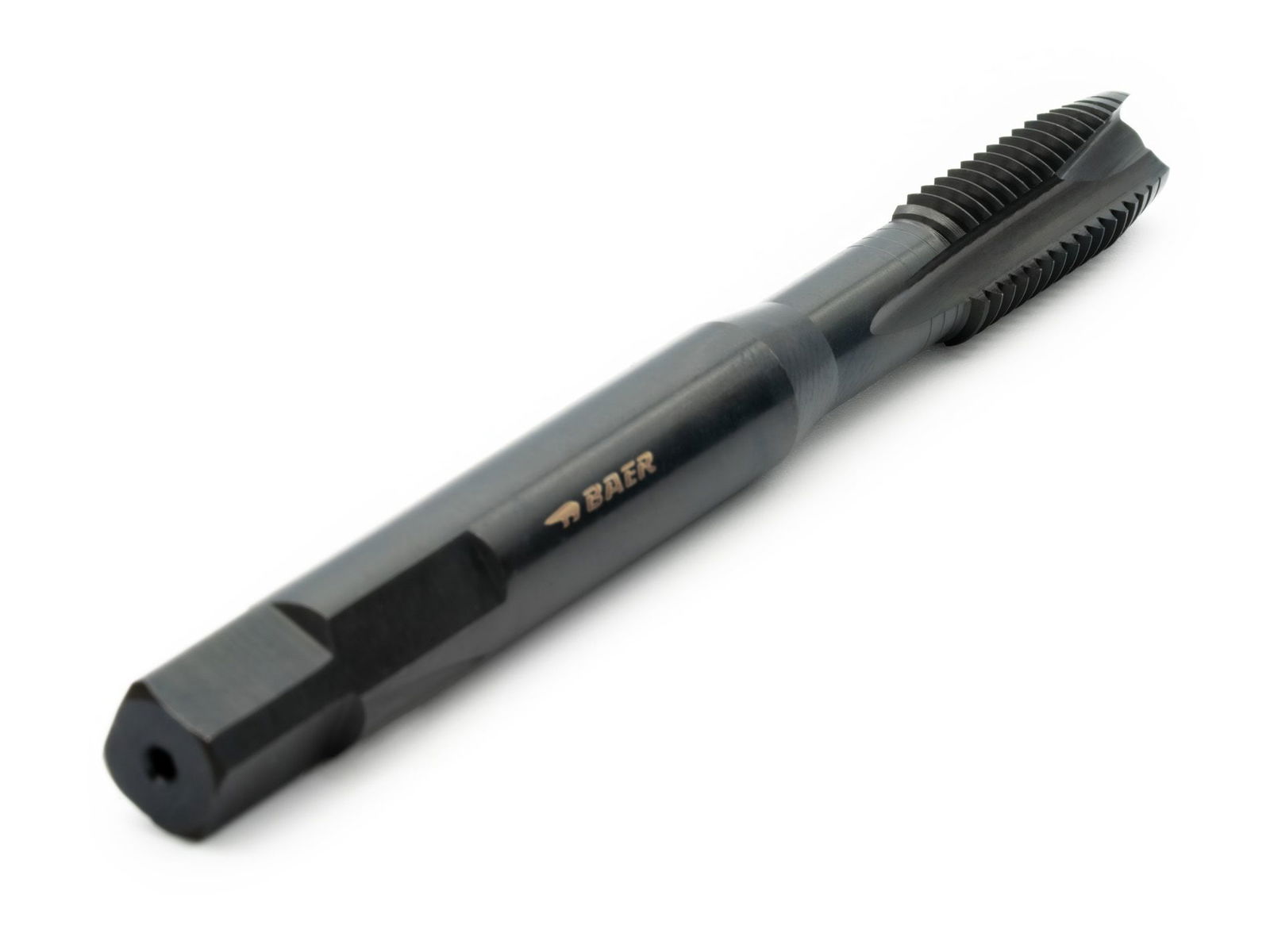

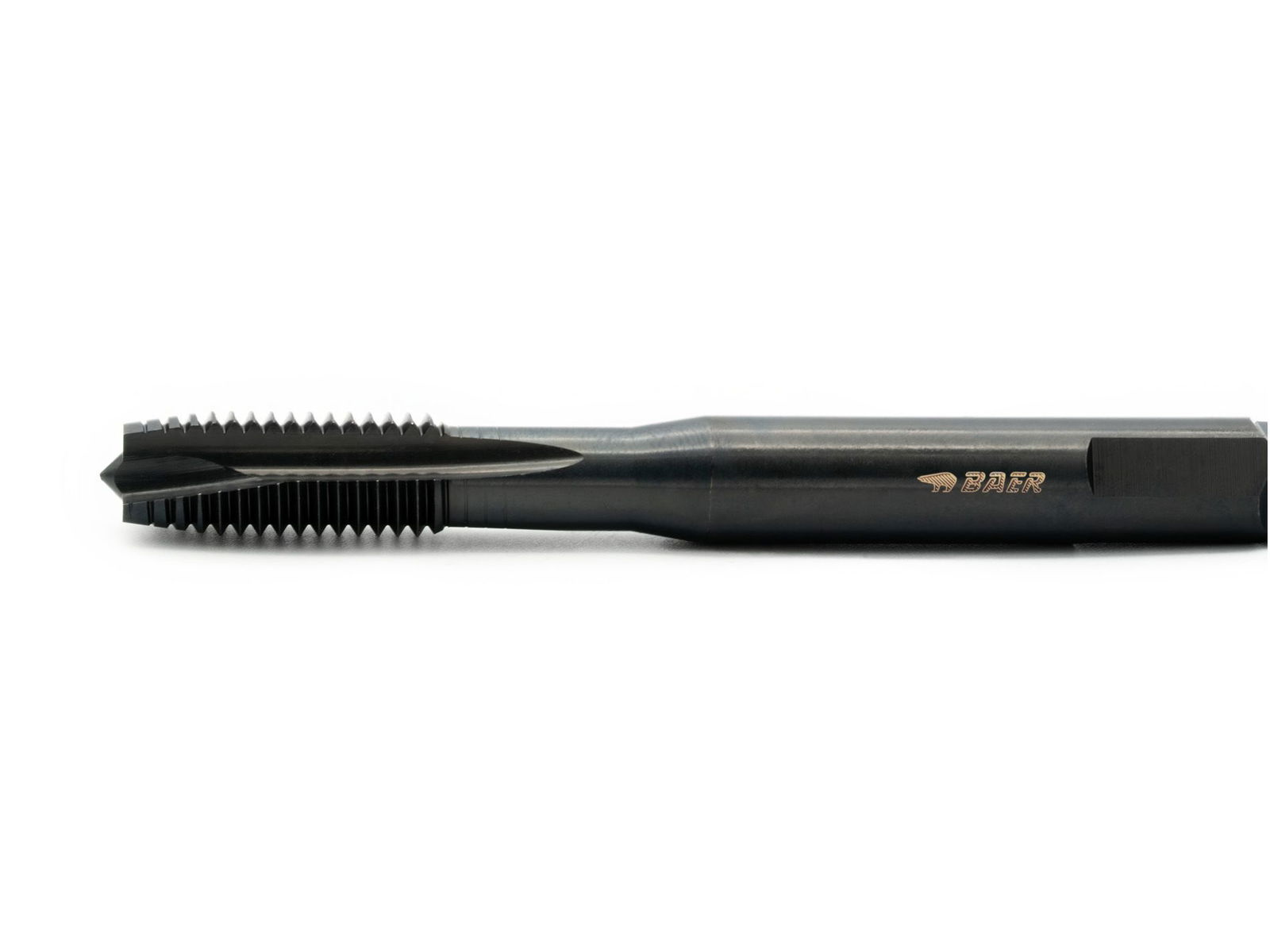

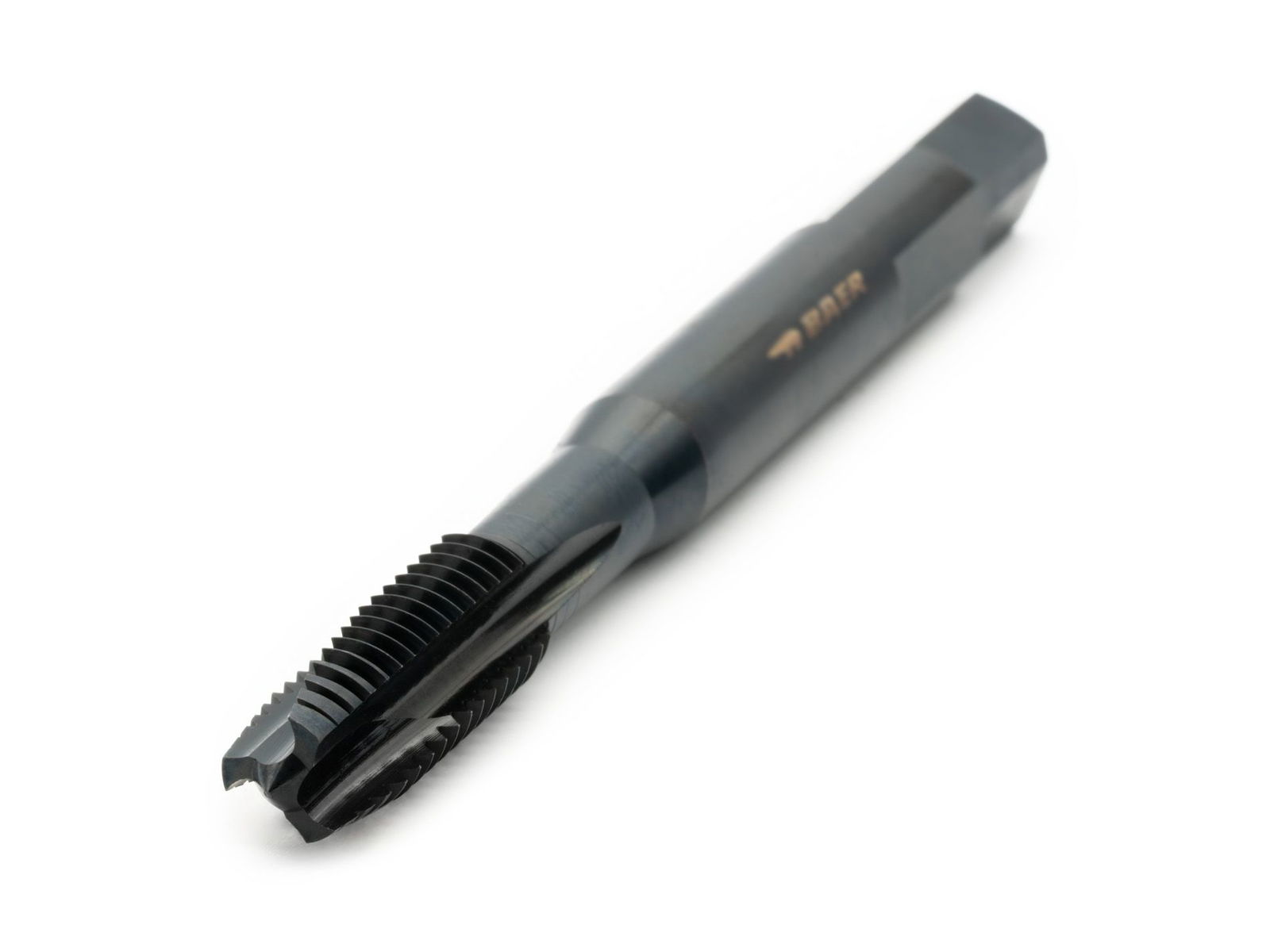

BAER TriTap HSSE-VAP Machine Tap Form B - M 5 x 0.8 - DIN 371
BAER HSSE-VAP TriTap Thread Taps

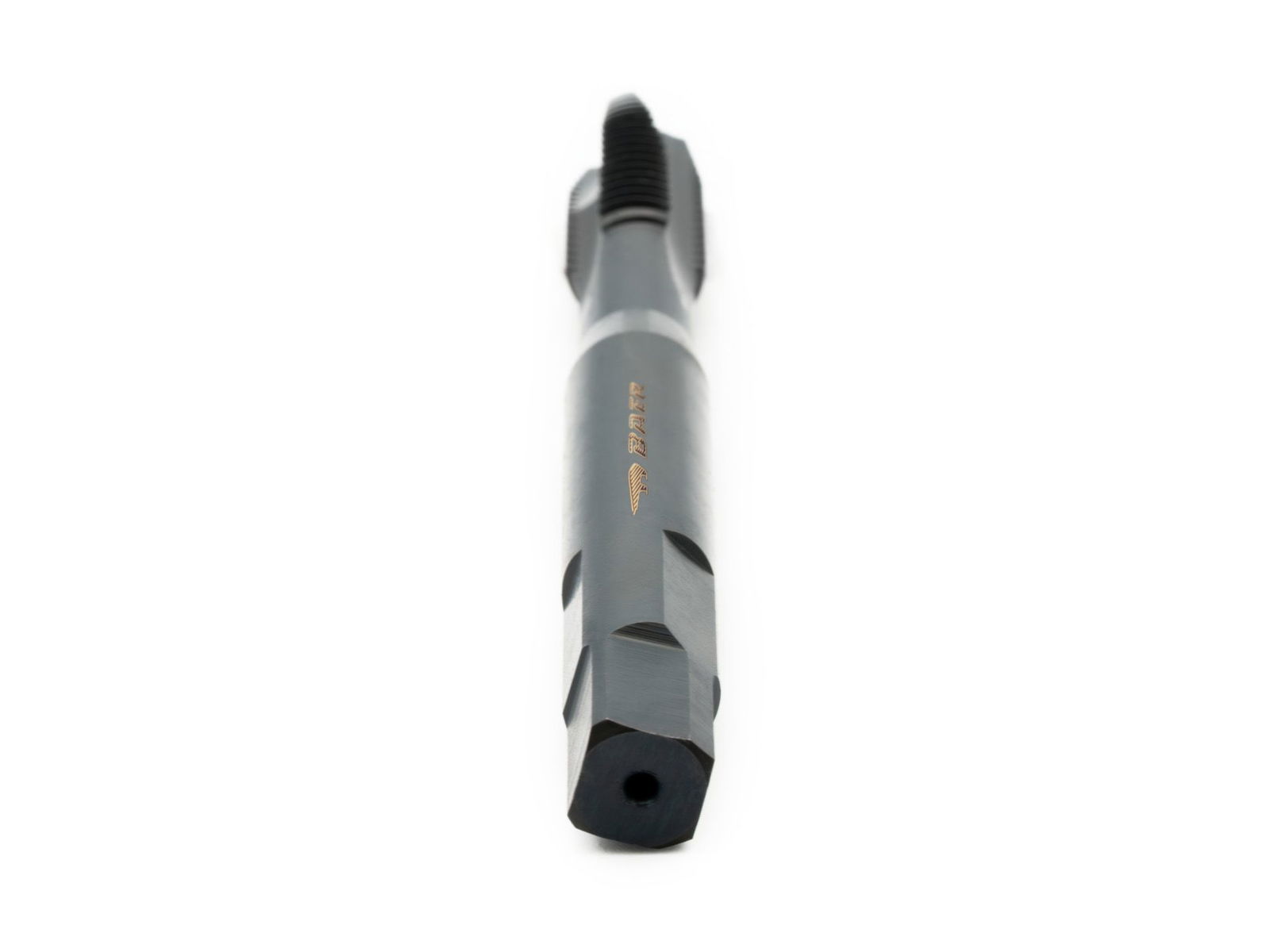

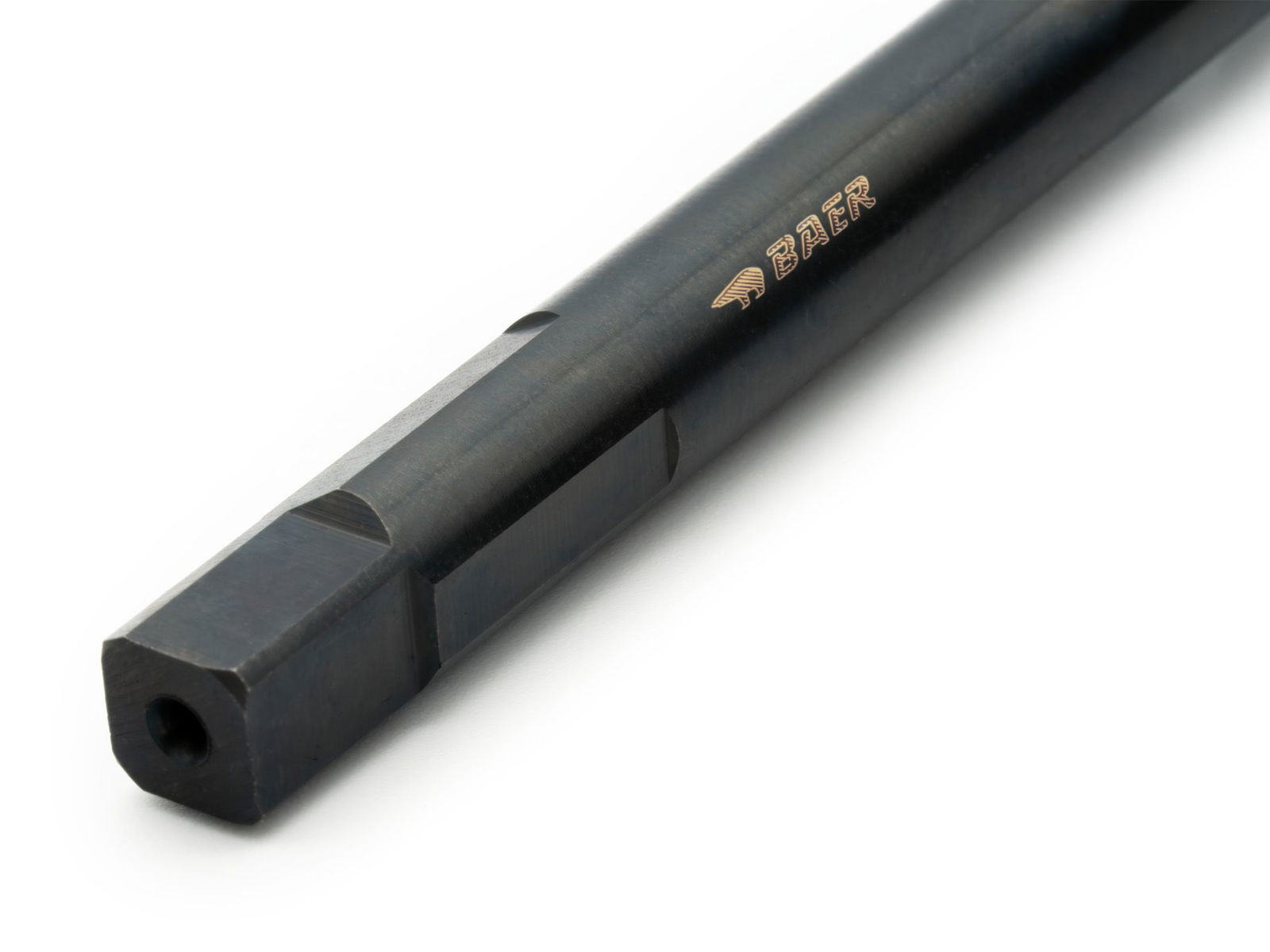

Our TriTap thread taps are the perfect solution for everyone who values flexibility. Thanks to the special shank design, thread cutting is also possible with hand-held machines – all in proven BAER quality. Thread tapping works best with a stationary drill press, a thread cutting machine, or a CNC machine. However, in practice, using such machines is often not feasible or only with great effort. The obvious solution is to clamp the tap into a hand-held drill with a quick-release chuck. The problem: The chuck jaws cannot grip the round shank securely and do not accommodate a square drive. This often leads to the tool slipping. We address this issue with the innovative design of our new TriTap thread taps. The special feature lies in the shank. In addition to the usual square drive, we’ve integrated a three-flat shank. These three flat surfaces are ideal for being gripped firmly by the three chuck jaws of a standard hand drill. In addition to its innovative design, the TriTap thread tap stands out with exceptional quality and long service life. The robust HSSE steel with cobalt alloy handles even demanding materials such as stainless steel. The vaporized finish reduces friction, protects against corrosion, and ensures that cutting oil adheres better to the tool surface. As a bonus, the oxidized finish gives the tap an especially refined look. This makes our TriTap thread taps true universal tools, suitable for a wide range of applications. Thread cutting with hand-held machines comes with certain challenges. To achieve clean results and avoid tool breakage, keep the following points in mind:
- Hold the tool precisely perpendicular to the borehole. Tools such as angle guides can be a valuable aid.
- Avoid high speeds, as you have less precise control over the feed when working by hand.
- For blind hole threads, be especially careful not to bottom out the tap.
TriTap thread taps are ideal for tradespeople, DIYers, and installers who want to stay flexible and mobile on the job without compromising on quality.
Dimensions
| Diameter |
5 |
|---|---|
| Nominal diameter in inches |
0,197 |
| Nominal diameter in mm |
5 |
| Pitch |
0,8 |
| Pitch in mm |
0,8 |
| Dimension |
M 5 x 0,8 |
| Square |
4,9 mm |
Characteristics
| Product group |
Screw taps |
|---|---|
| Product type |
Machine taps |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Standard |
DIN 371 |
| Tensile strength at room temperature |
up to 1200 N/mm² | 38 HRC |
| Material |
HSSE VAP |
Technical information – Screw taps
4.2 mm
Through hole up to 4 x D
Form B with spiral point
4-5 threads
Chips are removed downwards in the direction of cutting
External cooling and lubrication
HSSE VAP
up to 1200 N/mm² | 38 HRC
ISO2/6H
Applications
- Steels and steel alloys up to 1200 N/mm²
- Stainless steels up to 1000 N/mm²; stainless steels; stainless steels; VA steels, INOX, V2A, V4A
- Lamellar graphite cast iron (GG) and with spheroidal graphite (GGG) up to 1000 N/mm²; grey cast iron, nodular graphite cast iron
- Pure titanium and titanium alloys up to 900 N/mm²
- Pure nickel and nickel alloys up to 900 N/mm²
- All cast and wrought aluminium alloys
- Copper, copper alloys and brass (all chip lengths)
- for manual and machine use
Examples of applications
- Bicycle thread M5 for cable clamp
Technical drawing
| D1 |
M 5 x 0,8 |
|---|---|
| D2 |
6 mm |
| L1 |
70 mm |
| L2 |
14 mm |
| Diameter |
5 |
| Square |
4,9 mm |
Application – Sample materials
| Stainless steels (ferritic, austenitic, martensitic) | Cutting speed vc in m/min | |
|---|---|---|
| 1.4104 | X14CrMoS17 | 5 - 12 |
| 1.4301 | X5CrNi18-10 (V2A) | 5 - 12 |
| 1.4571 | X6CrNiMoTi17-12-2 (V4A) | 5 - 12 |
| 1.4005 | X12CrS13 | 5 - 12 |
| Construction steels, case-hardening steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.0050 | St50-2 | 6 - 15 |
| 1.0401 | C15 | 6 - 15 |
| 1.7147 | 20MnCr5 | 6 - 15 |
| 1.5919 | 15CrNi6 | 6 - 15 |
| Alloyed steels, quenched and tempered steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.8515 | 31CrMo12 | 5 - 10 |
| 1.0503 | C45 | 6 - 15 |
| 1.7218 | 25CrMo4 | 6 - 15 |
| 1.6511 | 36CrNiMo4 | 6 - 15 |
| Copper alloys, brass (long-chipping) | Cutting speed vc in m/min | |
|---|---|---|
| E-Cu 57 | EN CW400A | 10 - 20 |
| CuZn37 | EN CW 508 L (Ms58) | 10 - 20 |
Cutting speed vc [m/min] = (Outer diameter * π * speed) / 1000
Rotation speed n [1/min] = (Cutting speed in m/min * 1000) / (Outer diameter * π)
Feedrate programming [mm/min] = speed * pitch
Please note that the above cutting speeds are indicative and must be adjusted depending on lubrication and actuation.
