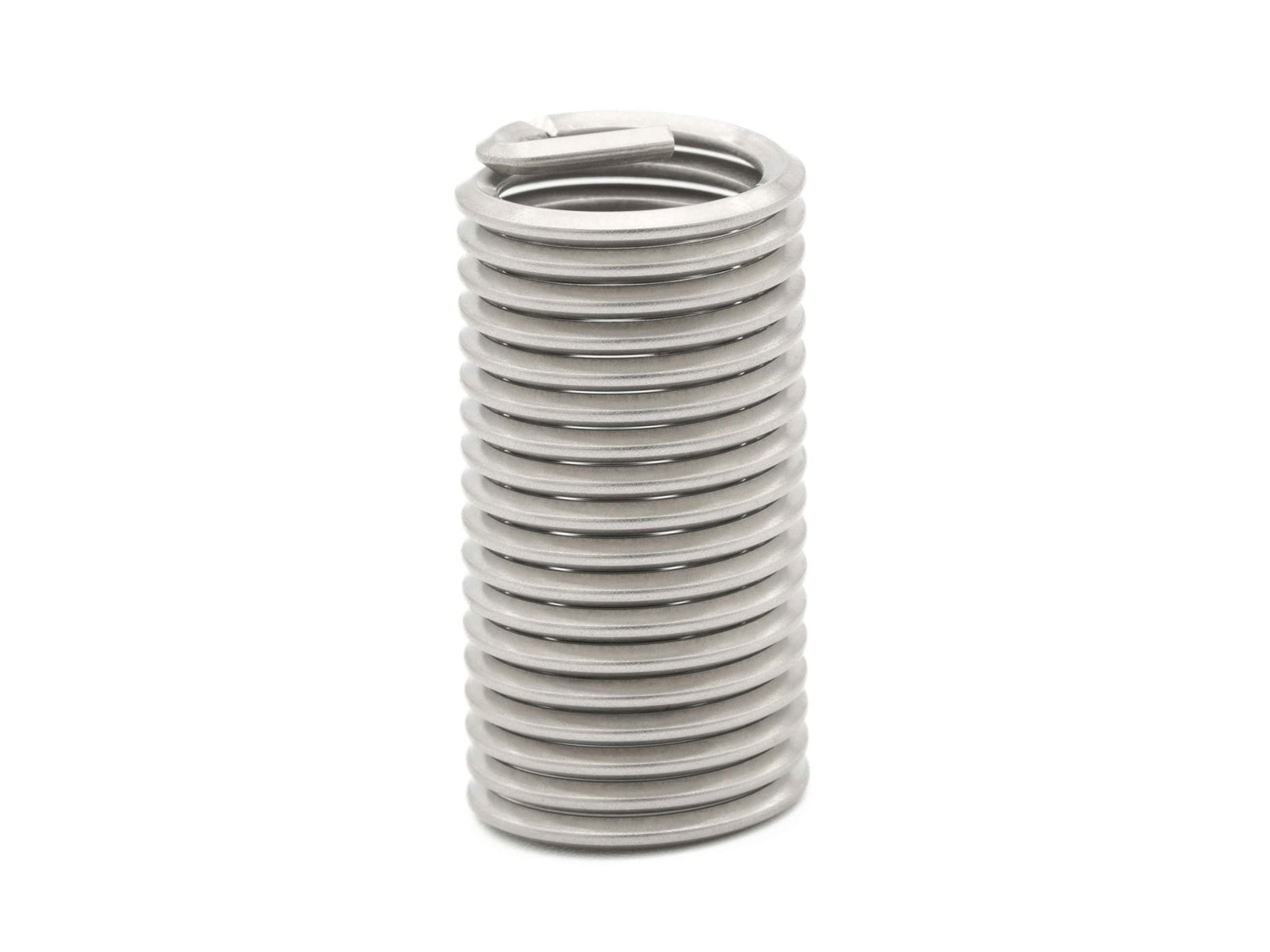

BaerCoil Wire Thread Inserts BA 2 - 3.0 D (14.1 mm) - free running - 100 pcs.
BaerCoil Wire Thread Inserts BA 2 - 3.0 D (14.1 mm) - free running - 100 pcs.
BaerCoil® thread inserts are made of high-quality materials wire thread inserts. BaerCoil® thread inserts provide a durable and powerful threaded connection and scrap recovery in the thread repair. The inserts also create load-bearing connections in materials with low shear strength. thread inserts are precise and wear-resistant, holding your screw firmly in place without changing the thread insert. Ideal for repairing stripped or worn threads. wire thread inserts are commonly used in automotive, electrical, medical, lightweight construction, and aerospace applications.
The BaerCoil® thread insert is the perfect solution for damaged threads and that at the same time nominal diameter. For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) is cut for the wire thread insert. This thread is often called STI thread (STI=Screw Thread Insert). Then the BaerCoil® thread insert is screwed into the old thread and thus the workpieces are screwed on again. With BaerCoil® thread inserts, the thread produced is significantly more stable than the original thread.
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread, even in lightweight constructions. Today, they are already an important component in aviation and vehicle construction. They save weight and allow the use of smaller and shorter screw connections.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
2 |
|---|---|
| Dimension |
BA 2 |
| Length |
3,0 D |
| T (Length when installed) |
14,1 mm |
| Thread length calculation |
3.0 D means 3 times the diameter: 3 times 4.7 mm=14.1 mm The nominal diameter for BA 2 is approx. 4.7 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
BA: British Association Standard Thread according to BS 93 |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
2 |
|---|---|
| Length |
3,0 D |
| T (Length when installed) |
14,1 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,220 '' - 0,243 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
0,667 '' |
| D (minimum depth of the core hole, without tip) |
0,699 '' |
