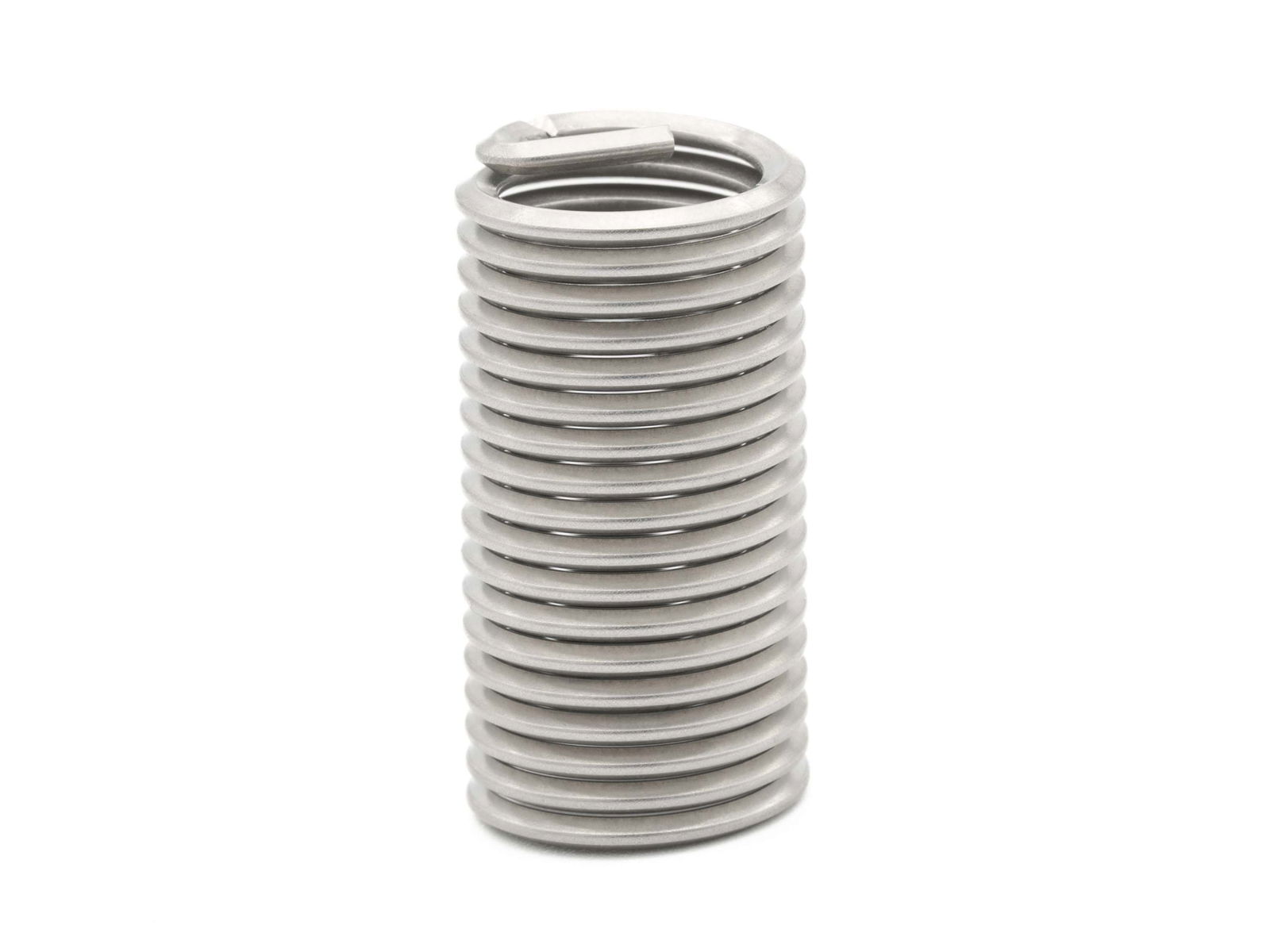

BaerCoil Wire Thread Inserts BA 4 - 3.0 D (10.8 mm) - free running - 100 pcs.
BaerCoil Wire Thread Inserts BA 4 - 3.0 D (10.8 mm) - free running - 100 pcs.
BaerCoil® wire thread inserts provide a durable and powerful threaded connection in the thread repair. The inserts also create load-bearing connections in materials with low shear strength and are precise and wear-resistant. wire thread inserts are frequently used in automotive, electrical engineering, medical technology, lightweight construction and aerospace. BaerCoil® wire thread inserts are the perfect solution for a long-lasting, powerful threaded connection and scrap recovery. They also create load-bearing connections in materials with low shear strength and are precise and wear-resistant. wire thread inserts are frequently used in automotive, electrical engineering, medical technology, lightweight constructions as well as in aerospace.
The BaerCoil® thread insert is the perfect solution for damaged threads and that at the same time nominal diameter. For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) is cut for the wire thread insert. This thread is often called STI thread (STI=Screw Thread Insert). Then the BaerCoil® thread insert is screwed into the old thread and thus the workpieces are screwed on again. With BaerCoil® thread inserts, the thread produced is significantly more stable than the original thread.
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread, even in lightweight constructions. Today, they are already an important component in aviation and vehicle construction.
BaerCoil® thread inserts can be shortened according to the required length with a side cutter or similar.
Dimensions
| Diameter |
4 |
|---|---|
| Dimension |
BA 4 |
| Length |
3,0 D |
| T (Length when installed) |
10,8 mm |
| Thread length calculation |
3.0 D means 3 times the diameter: 3 times 3.6 mm=10.8 mm The nominal diameter for BA 4 is approx. 3.6 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
BA: British Association Standard Thread according to BS 93 |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
4 |
|---|---|
| Length |
3,0 D |
| T (Length when installed) |
10,8 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,170 '' - 0,188 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
0,516 '' |
| D (minimum depth of the core hole, without tip) |
0,542 '' |
