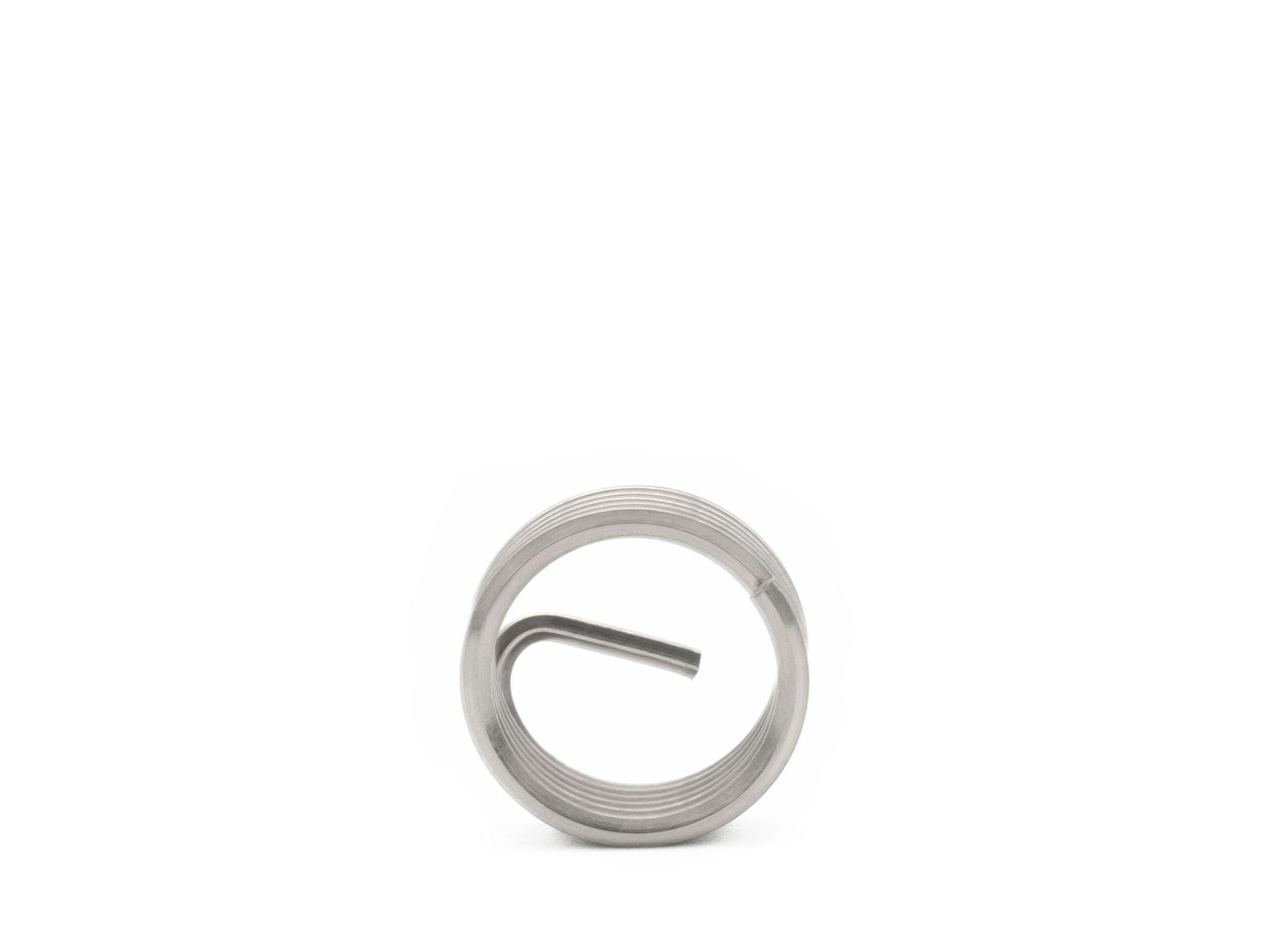

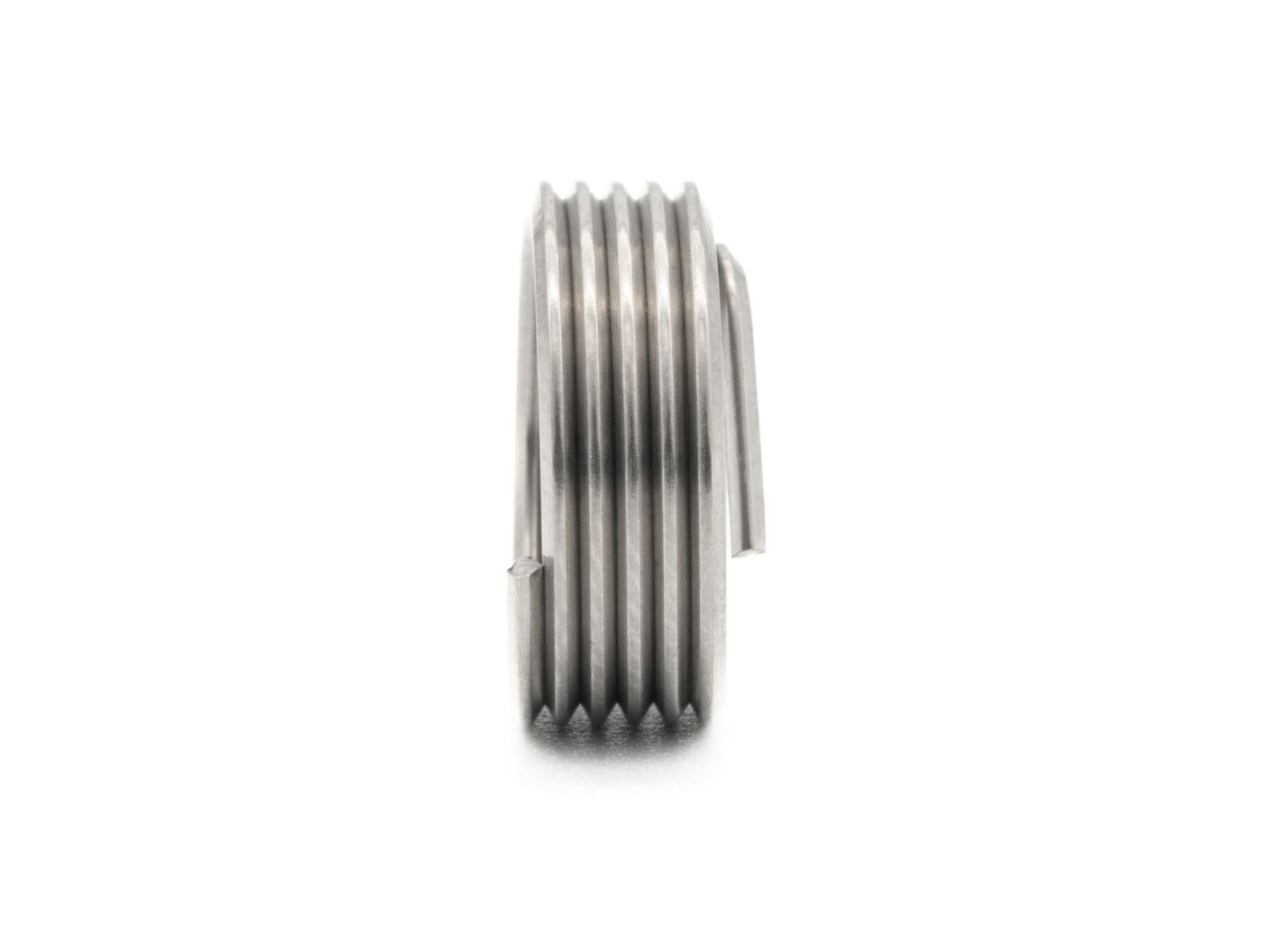

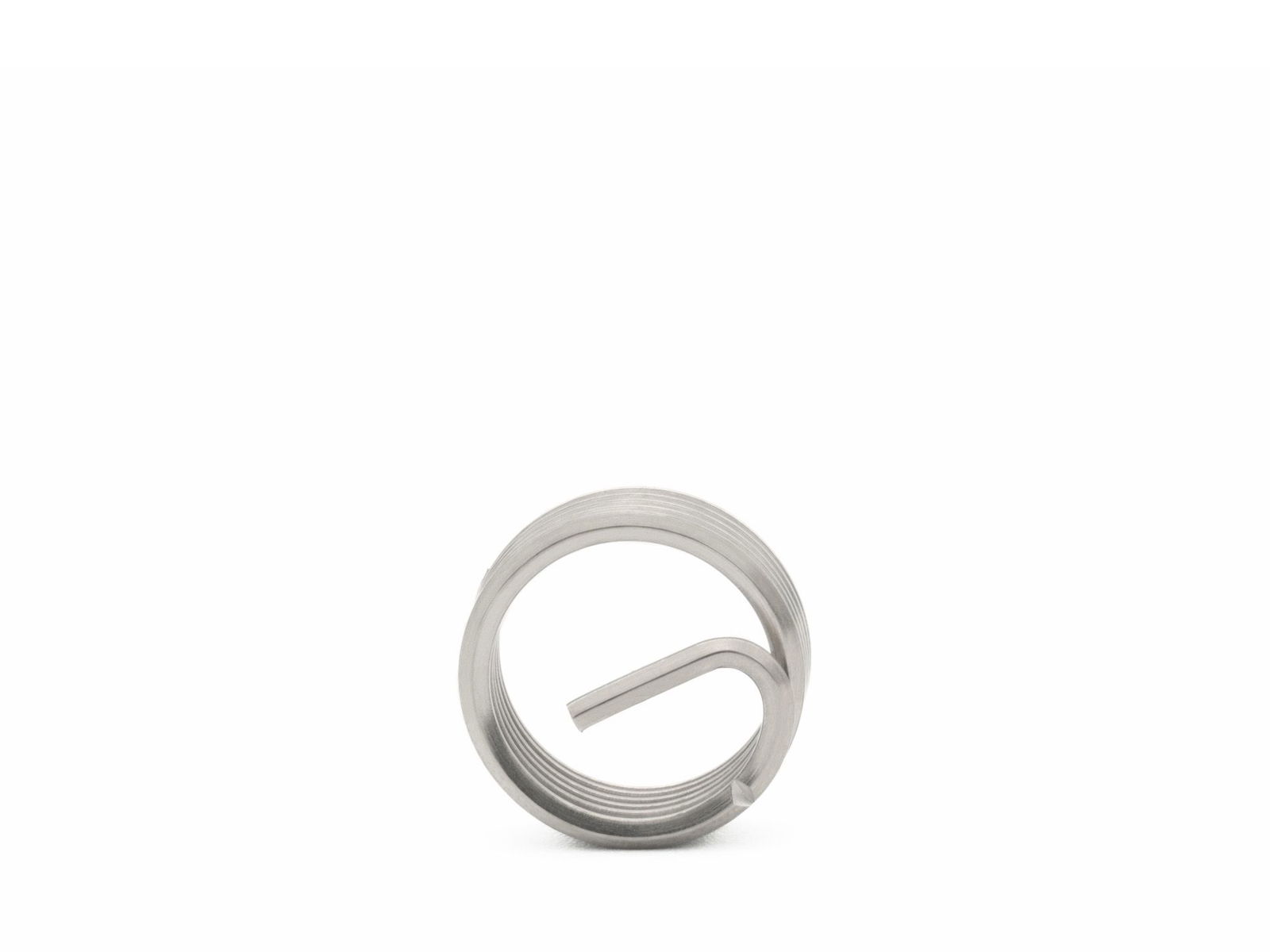

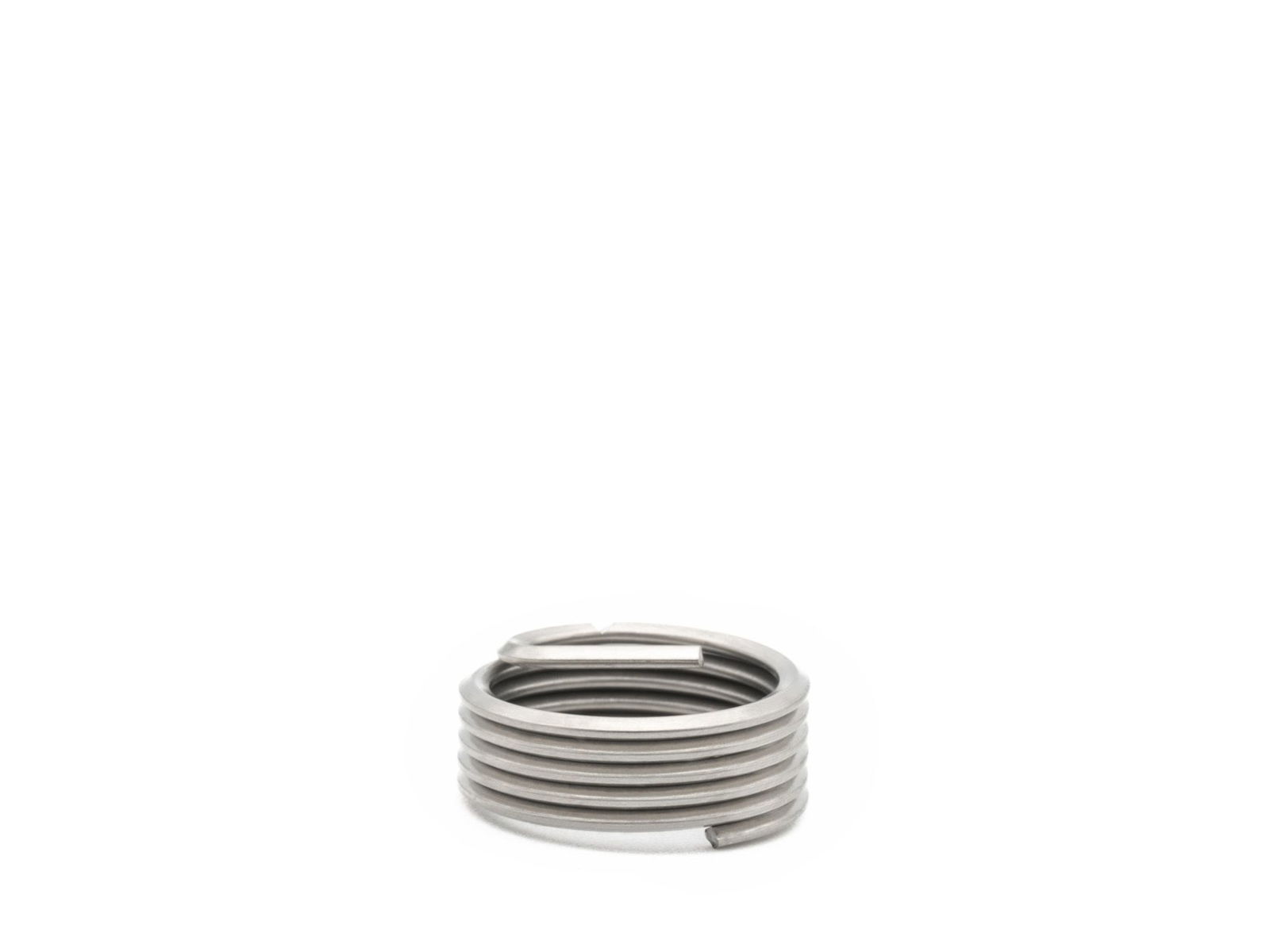

BaerCoil Wire Thread Inserts G (BSP) 1“ x 11 - 1.5 D (38.1 mm) - free running - 5 pcs.
In stock
Express shipping available
BaerCoil Wire Thread Inserts G (BSP) 1“ x 11 - 1.5 D (38.1 mm) - free running - 5 pcs.
BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads. STI thread (screw thread insert) is cut and the BaerCoil® insert is screwed in. The thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread - even in lightweight constructions. Due to their flexibility, they can compensate for pitch and angle errors and thus guarantee optimum force transmission. BaerCoil® thread inserts are already important components in the aerospace and automotive industries and help to reduce carrier material and use smaller, shorter bolted joints.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
1" |
|---|---|
| Pitch |
11 |
| Dimension |
G (BSP) 1" x 11 |
| Length |
1,5 D |
| T (Length when installed) |
38,1 mm |
| Thread length calculation |
1.5 D means 1.5 times the calculation diameter: 1.5 times 25.4 mm=38.1 mm The nominal diameter for G (BSP) 1" is approx. 33.25 mm, but according to the standard the length is calculated with the diameter of 25.4 mm for calculation purposes |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
1" |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
38,1 mm |
| F (Min. - Max. outside diameter of thread insert) |
1,416 '' - 1,543 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
1,819 '' |
| D (minimum depth of the core hole, without tip) |
1,910 '' |
