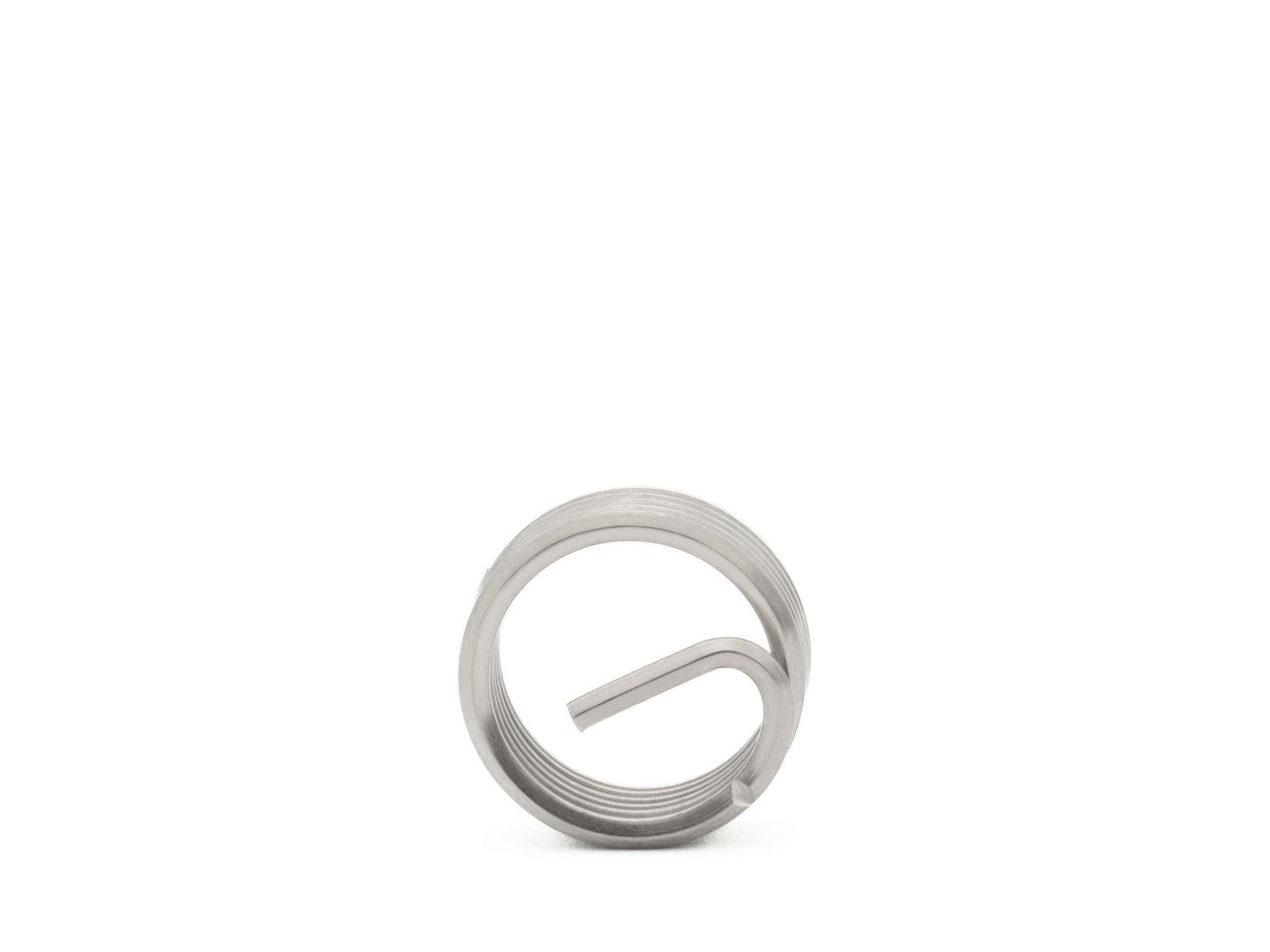

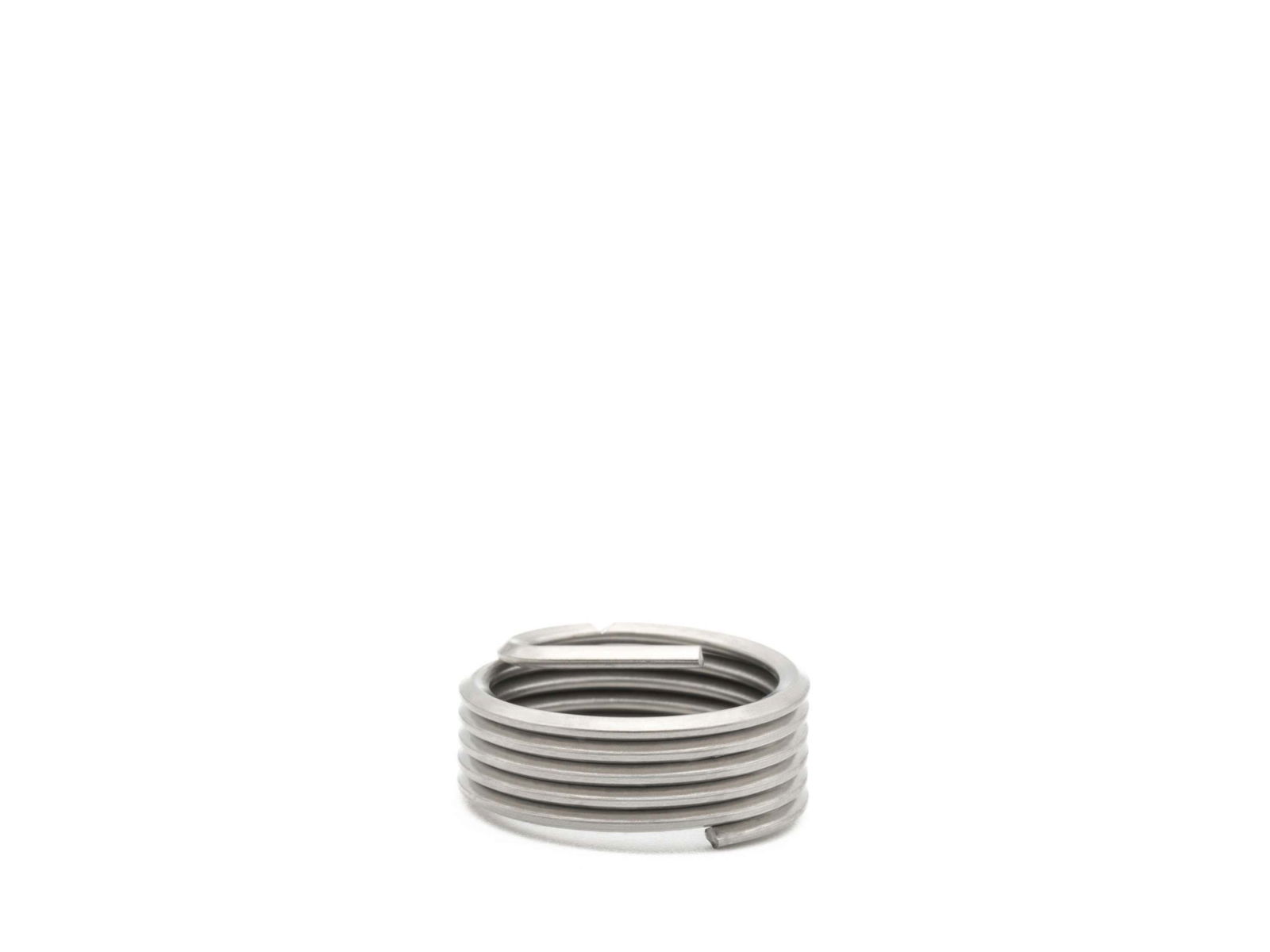

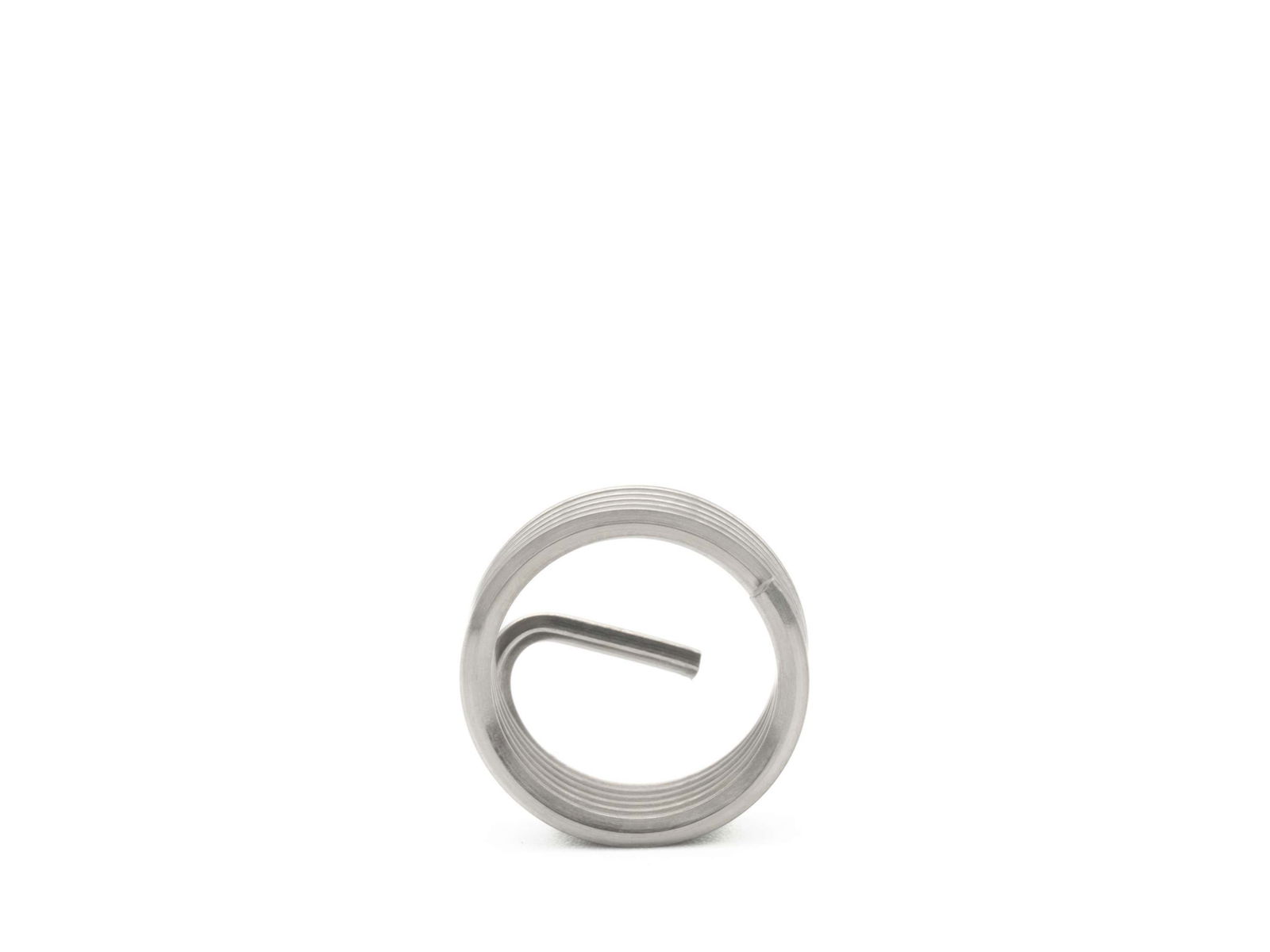

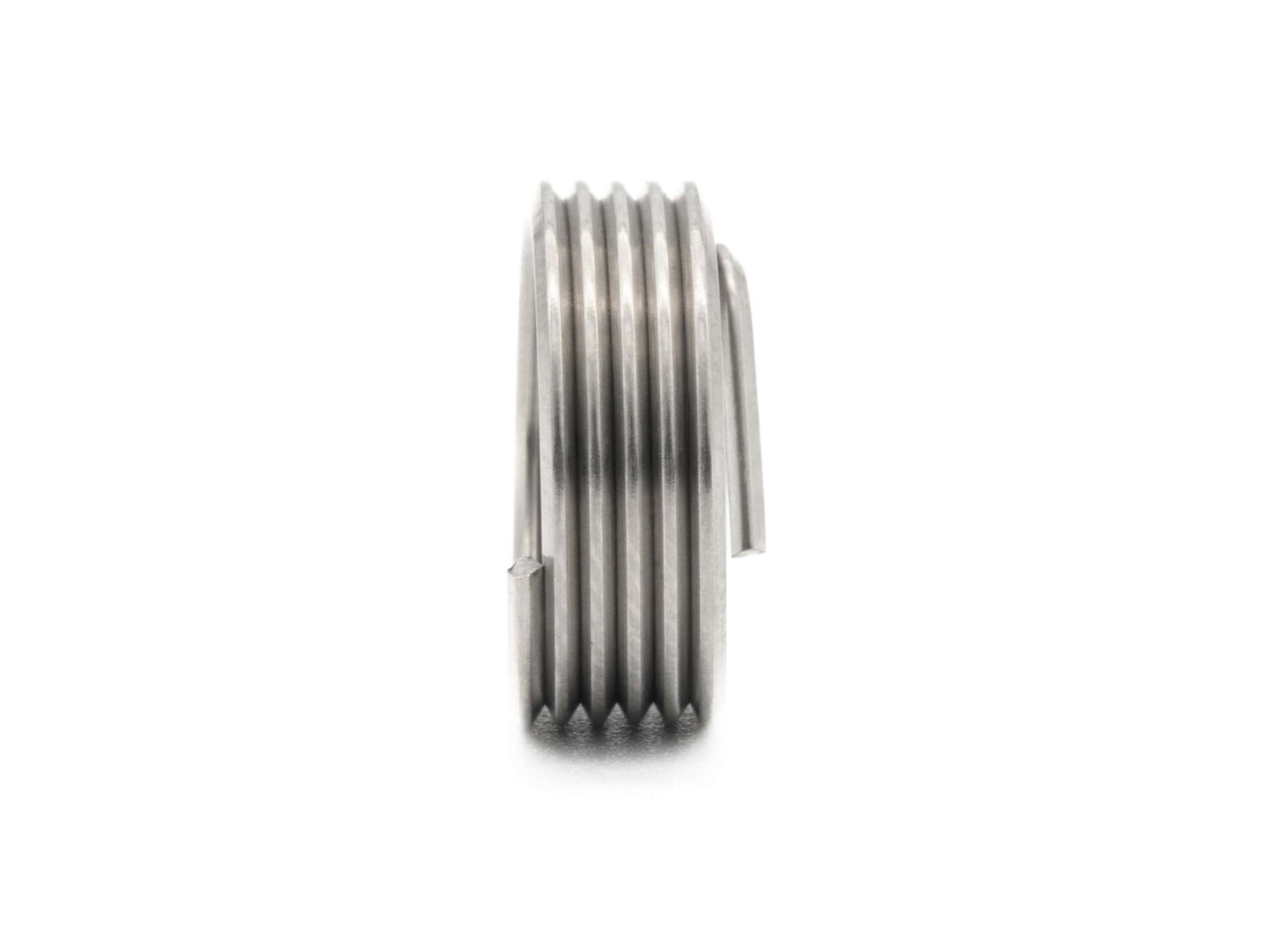

BaerCoil Wire Thread Inserts G (BSP) 1/8 x 28 - 1.5 D (4.76 mm) - free running - 100 pcs.
BaerCoil® wire thread inserts provide a durable and powerful threaded connection in the thread repair. The inserts also create load-bearing connections in materials with low shear strength and are precise and wear-resistant. wire thread inserts are frequently used in automotive, electrical engineering, medical technology, lightweight construction and aerospace. BaerCoil® wire thread inserts are the perfect solution for a long-lasting, powerful threaded connection and scrap recovery. They also create load-bearing connections in materials with low shear strength and are precise and wear-resistant. wire thread inserts are frequently used in automotive, electrical engineering, medical technology, lightweight constructions as well as in aerospace.
BaerCoil® thread inserts are the perfect solution for damaged threads. They are drilled out and a new STI thread (screw thread insert) is cut for the wire thread insert. This thread is often also called STI thread (STI=Screw Thread Insert). Then the BaerCoil® thread insert is screwed into the old thread and thus the workpieces are screwed on again. With BaerCoil® thread inserts, the thread produced is significantly more stable than the original thread.
BaerCoil® thread inserts are perfect for applications where a balanced distribution of forces is required. They can withstand both static and dynamic loads and help save support material.
BaerCoil® thread inserts can be shortened with a side cutter or similar, according to the length required.
Dimensions
| Diameter |
1/8 |
|---|---|
| Pitch |
28 |
| Dimension |
G (BSP) 1/8 x 28 |
| Length |
1,5 D |
| T (Length when installed) |
4,76 mm |
| Thread length calculation |
1.5 D means 1.5 times the calculation diameter: 1.5 times 3.175 mm=4.76 mm The nominal diameter for G (BSP) 1/8 is approx. 9.73 mm, but according to the standard the length is calculated with the diameter of 3.175 mm for calculation purposes |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
1/8 |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
4,76 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,426 '' - 0,472 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
0,313 '' |
| D (minimum depth of the core hole, without tip) |
0,349 '' |
