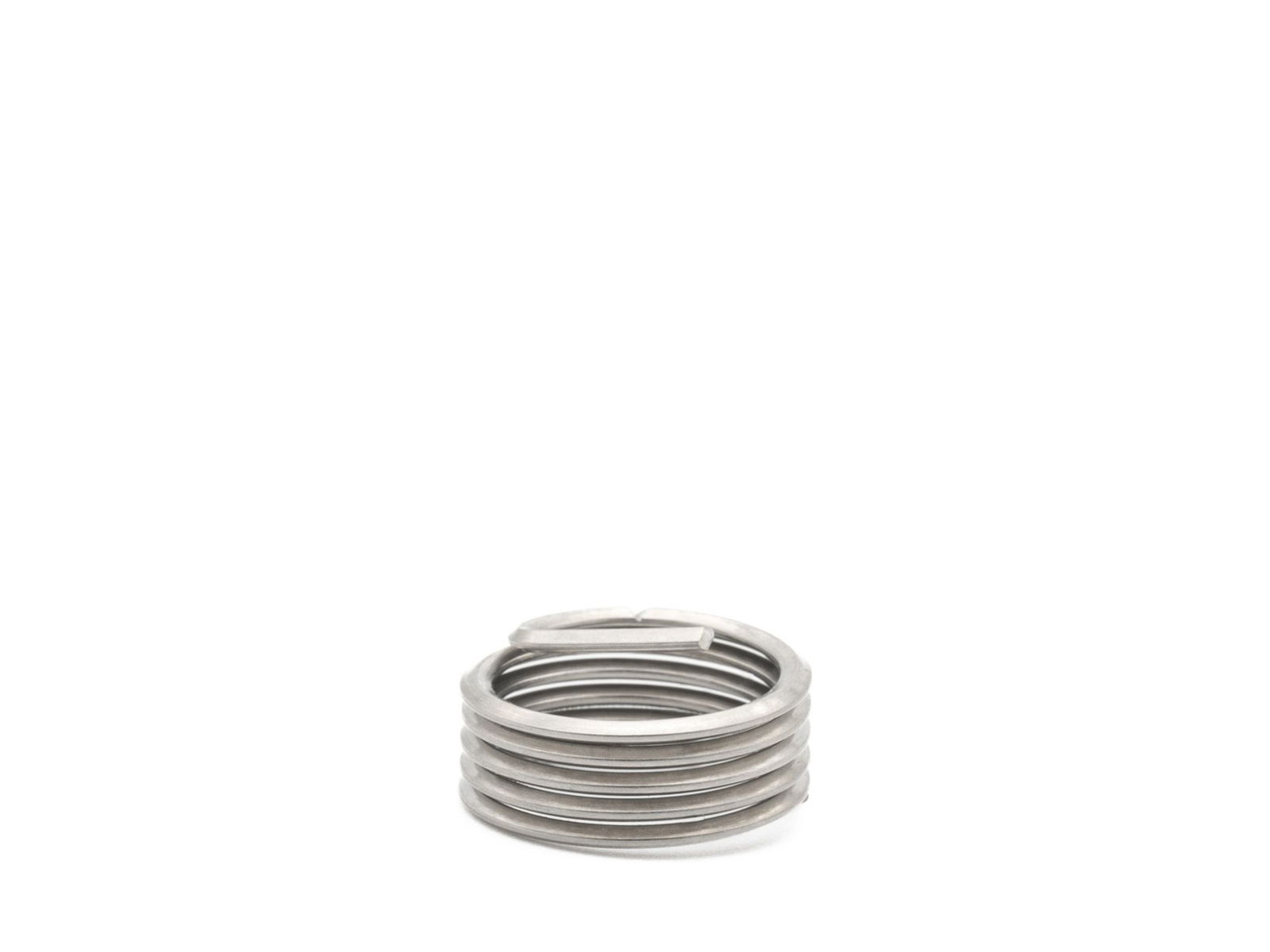

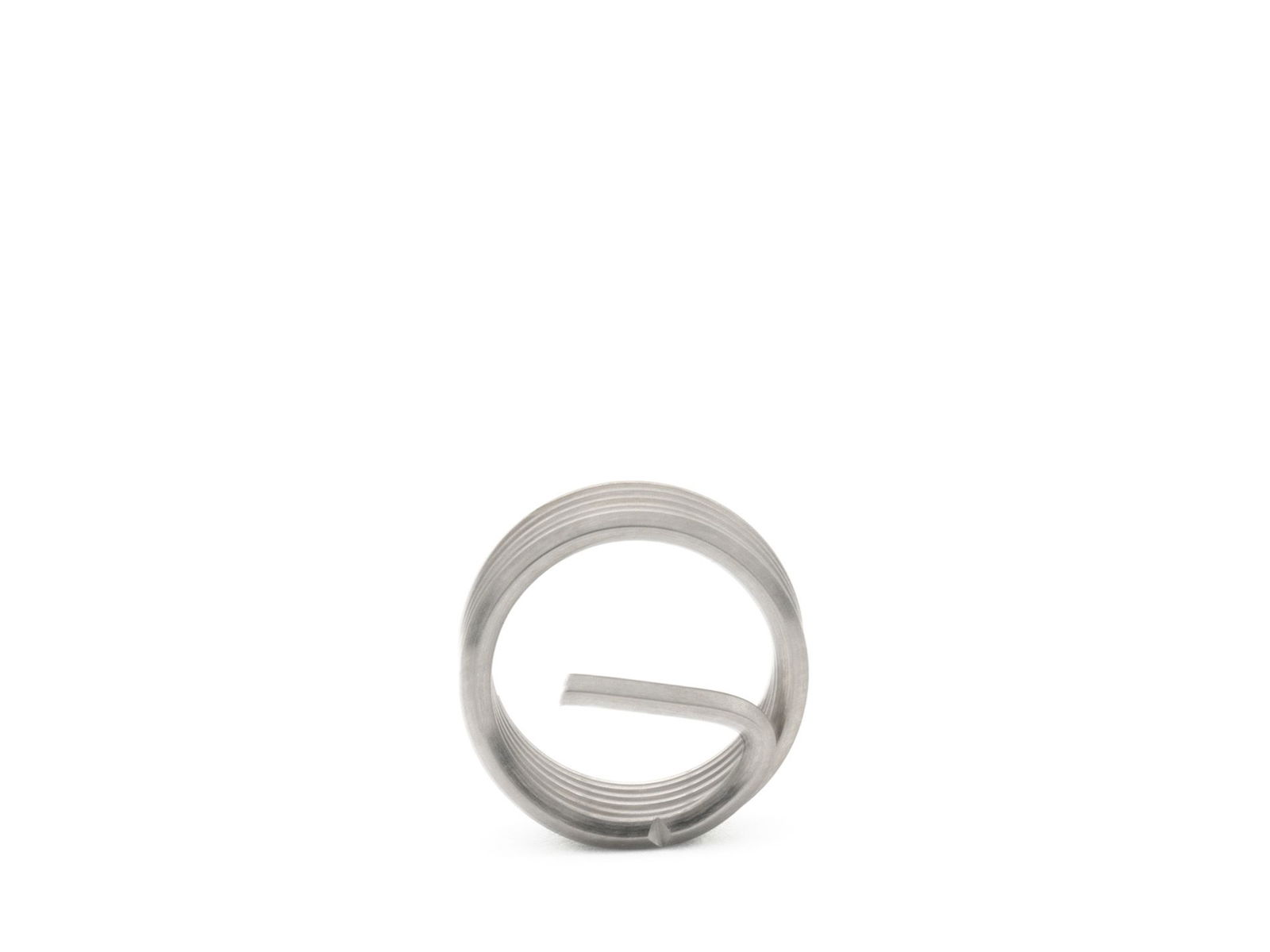

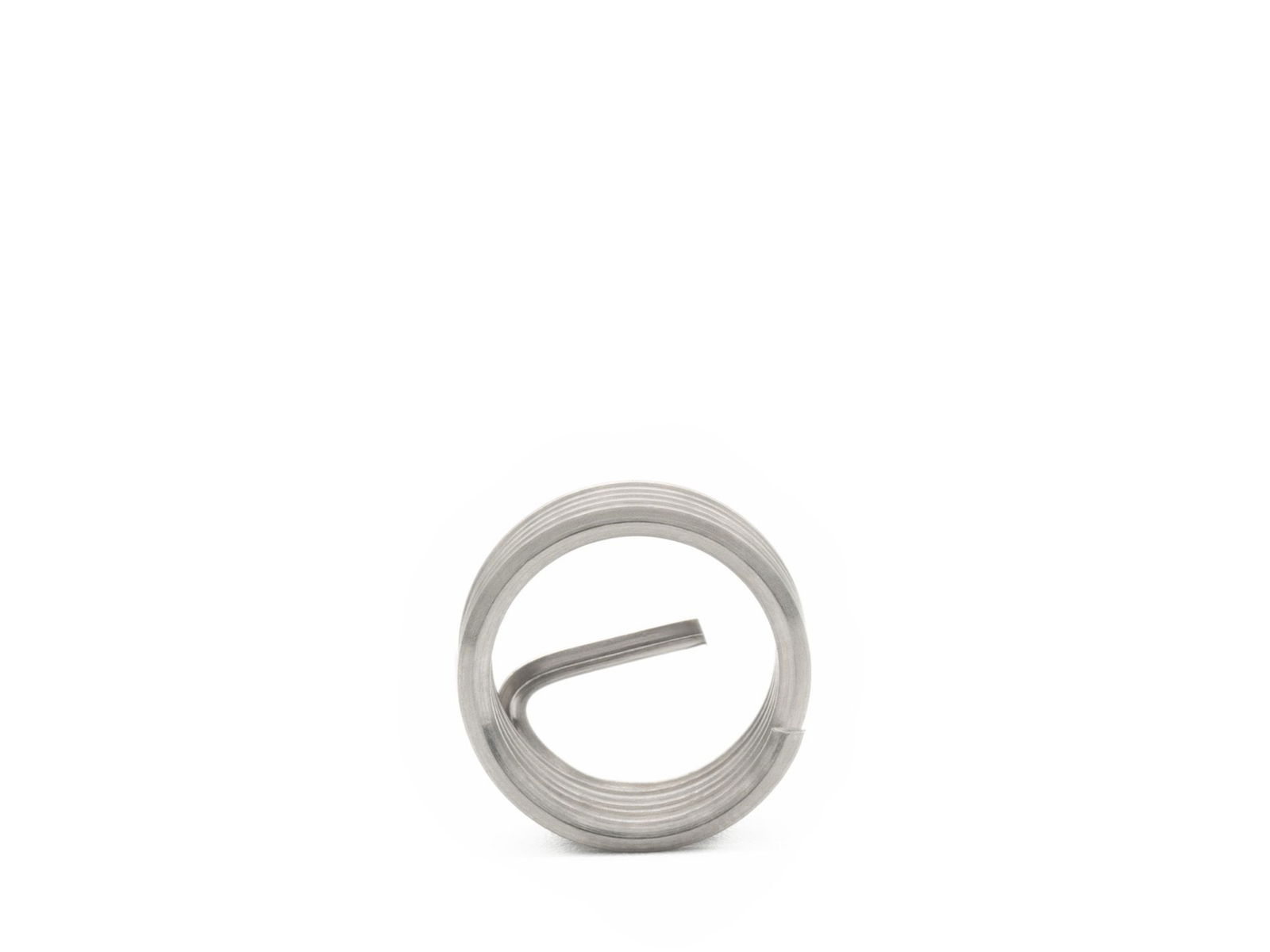

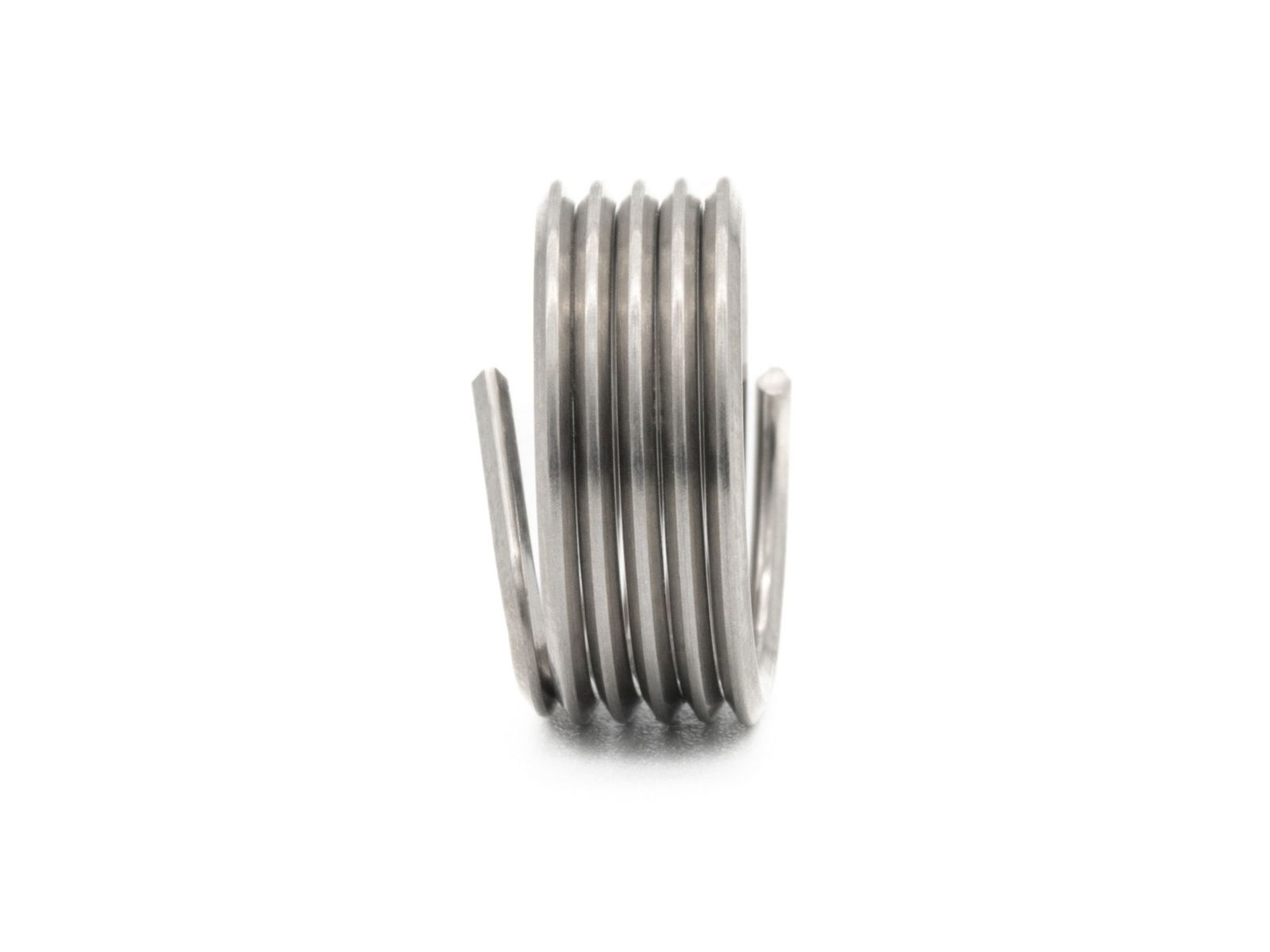

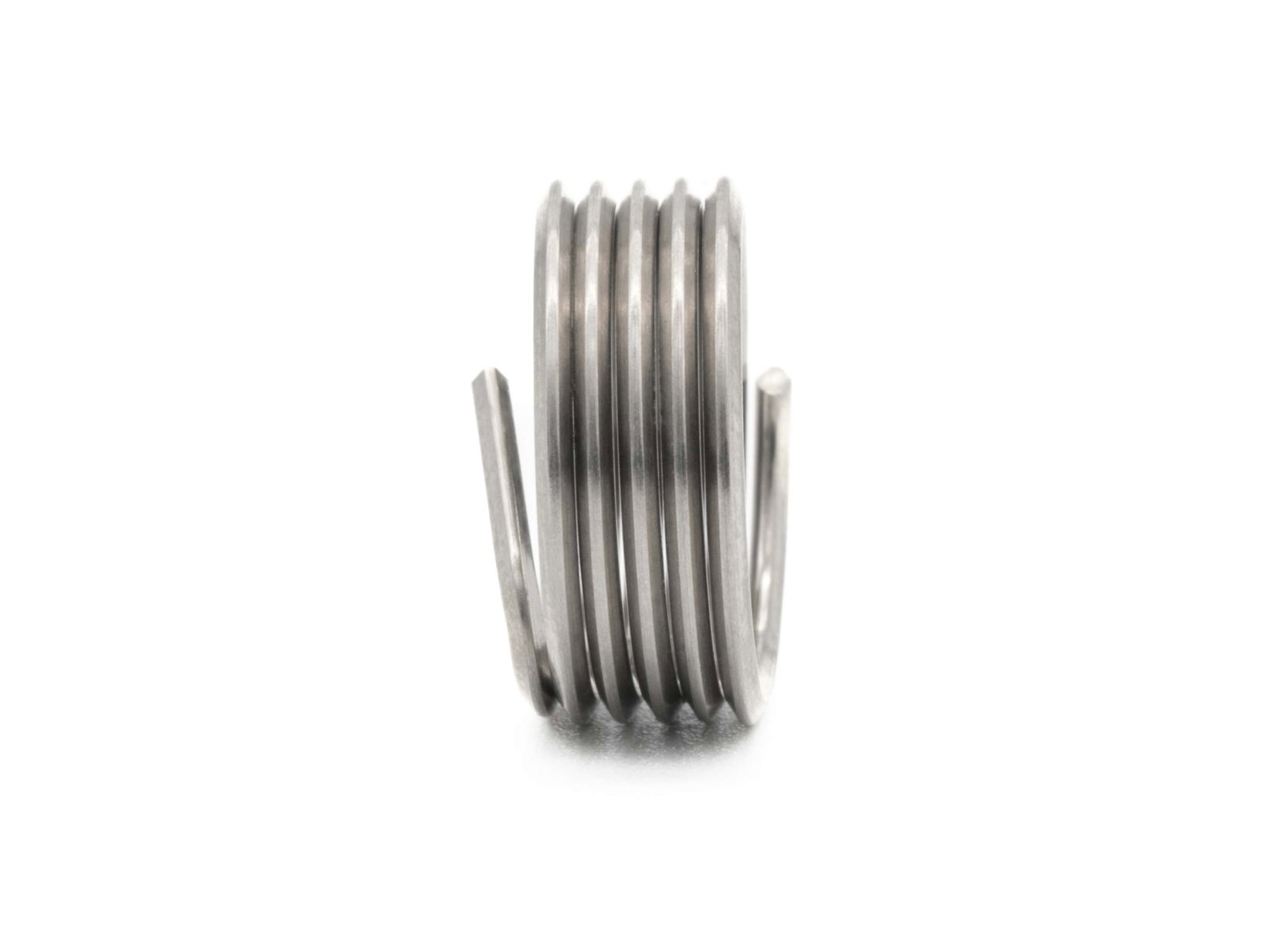

BaerCoil Wire Thread Inserts G (BSP) 3/4 x 14 - 2.0 D (38.1 mm) - free running - 5 pcs.
BaerCoil® thread inserts are the best solution for your thread repair! With them you can create long-lasting and powerful threaded connections. The inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear-resistant - your screw will stay firmly in place without the thread insert slipping.
For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) is cut for the wire- thread insert. Often this thread is also called STI thread (STI=Screw Thread Insert).
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread - even in lightweight constructions. Due to their flexibility, they can compensate for pitch and angle errors and thus guarantee optimum power transmission. BaerCoil® thread inserts are already important components in the aerospace and automotive industries and help to reduce carrier material and use smaller, shorter bolted joints.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
3/4 |
|---|---|
| Pitch |
14 |
| Dimension |
G (BSP) 3/4 x 14 |
| Length |
2,0 D |
| T (Length when installed) |
38,1 mm |
| Thread length calculation |
2.0 D means 2 times the calculation diameter: 2 times 19.05 mm=38.1 mm The nominal diameter for G (BSP) 3/4 is approx. 26.44 mm, but according to the standard the length is calculated with the diameter of 19.05 mm for calculation purposes |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
3/4 |
|---|---|
| Length |
2,0 D |
| T (Length when installed) |
38,1 mm |
| F (Min. - Max. outside diameter of thread insert) |
1,127 '' - 1,228 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
1,749 '' |
| D (minimum depth of the core hole, without tip) |
1,820 '' |
