BaerCoil Wire Thread Inserts G (BSP) 5/8 x 14 - 1.0 D (15.88 mm) - free running - 10 pcs.
In stock
Express shipping available

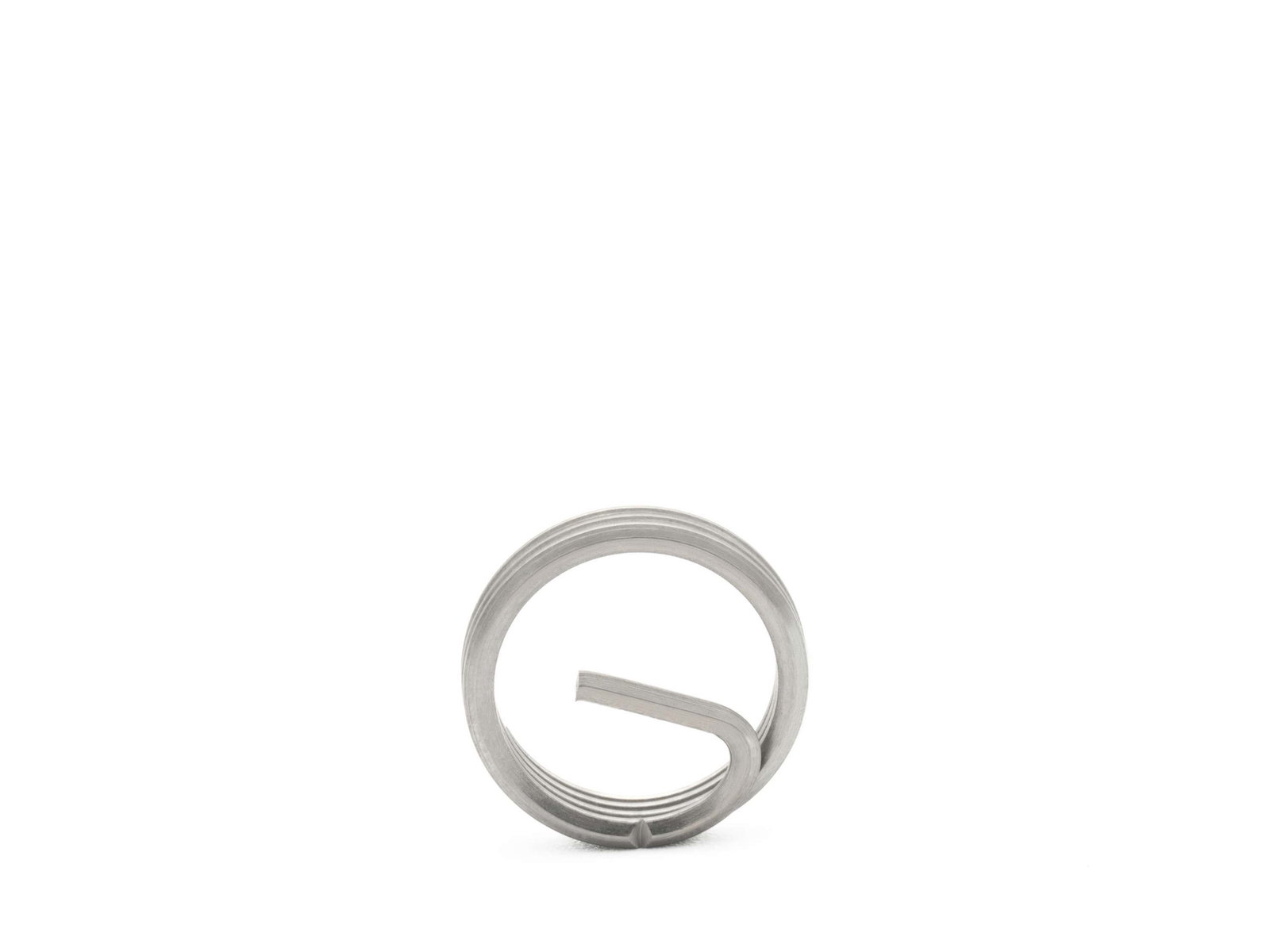

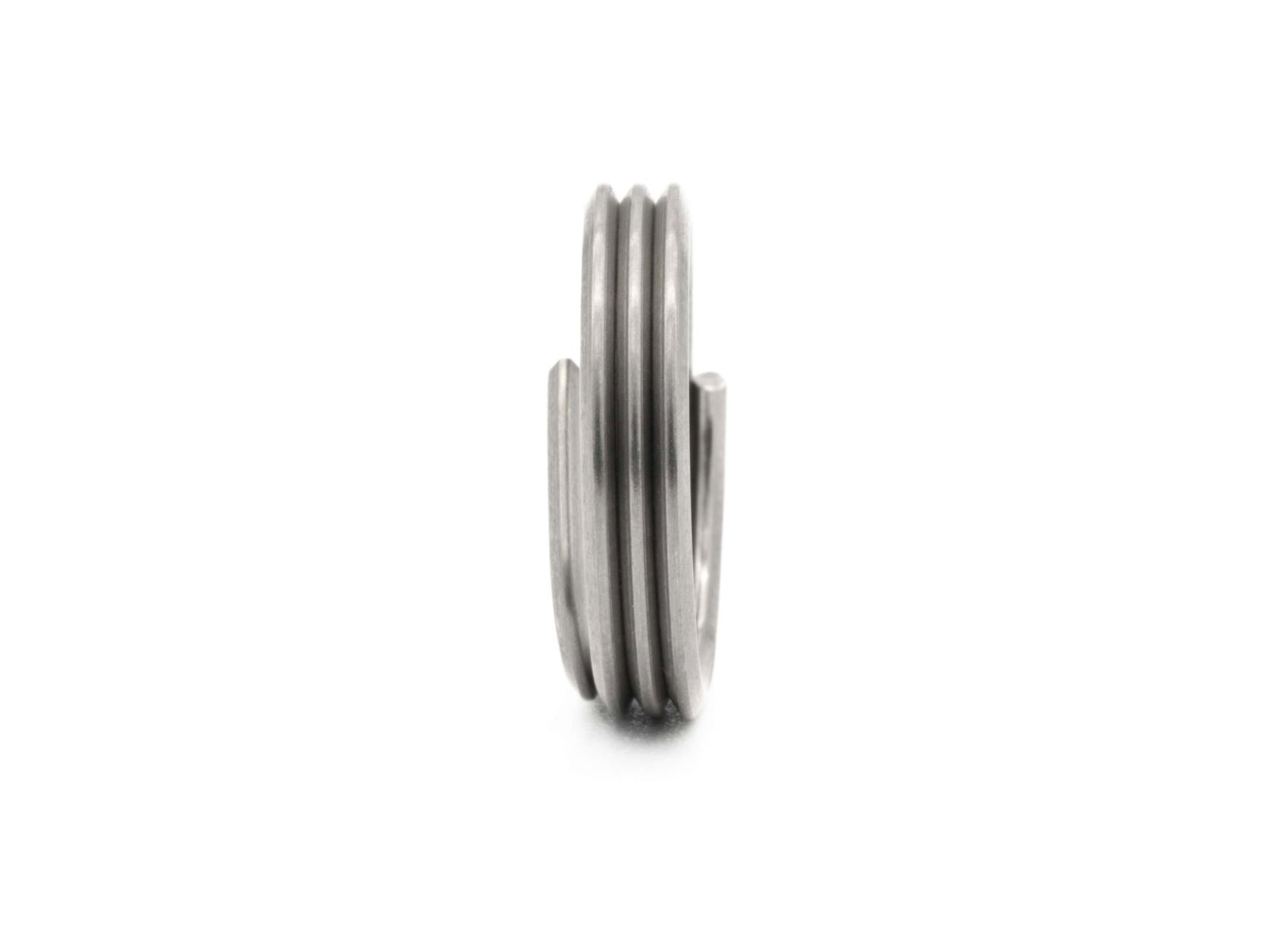

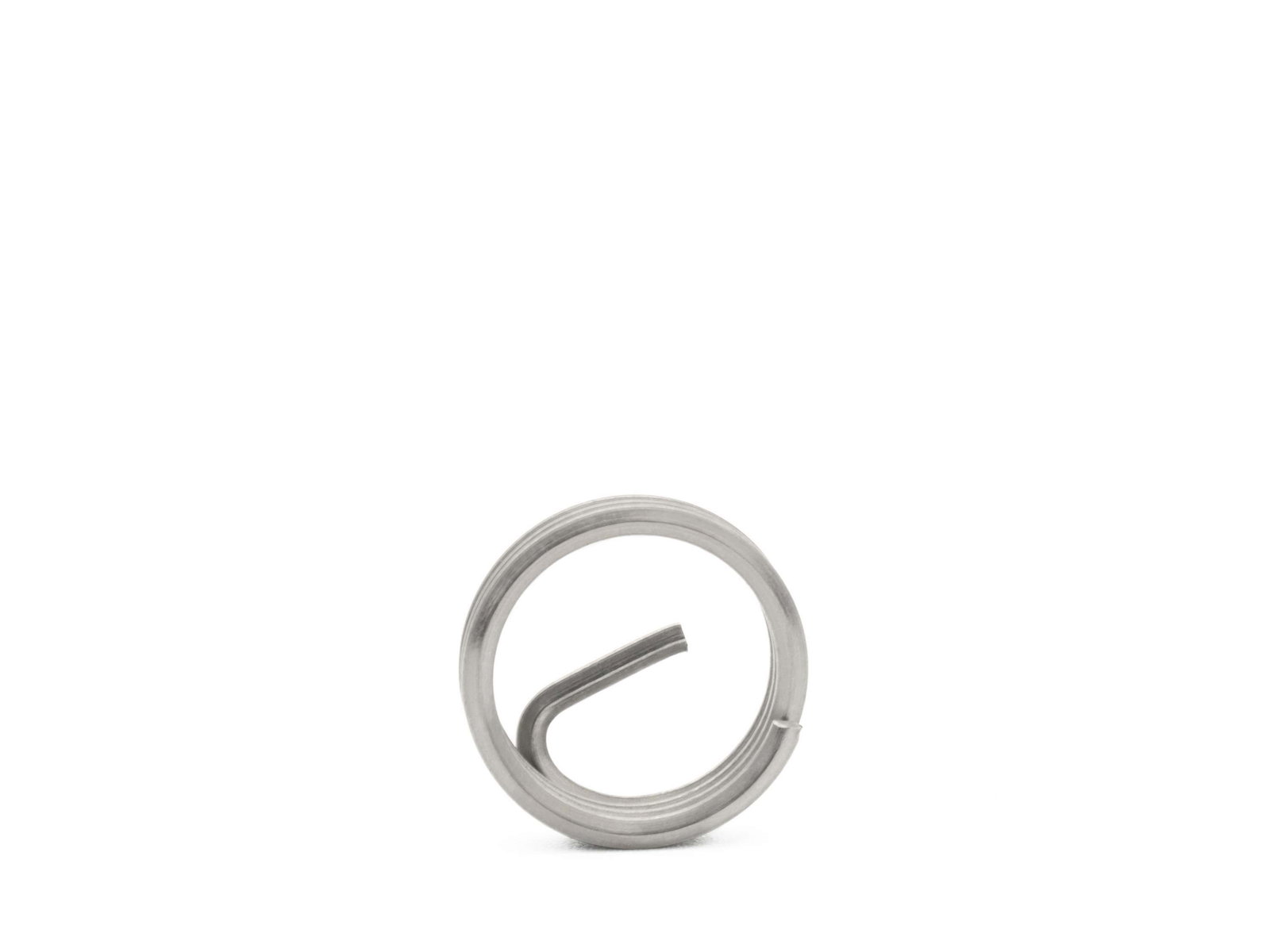

BaerCoil Wire Thread Inserts G (BSP) 5/8 x 14 - 1.0 D (15.88 mm) - free running - 10 pcs.
BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads. With the use of BaerCoil® thread inserts, the thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts are an indispensable component in aviation and vehicle construction. They ensure that both static and dynamic work loads are distributed in a balanced manner over the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angular errors, so that optimum power transmission from the bolt to the nut thread is achieved. Especially in lightweight constructions, BaerCoil® thread inserts help to reduce the carrier material and to use smaller or shorter screw connections. Thanks to their versatility and reliability, BaerCoil® thread inserts are now an indispensable component in many industries.
BaerCoil thread inserts can be shortened to the required length with a side cutter or similar.
Dimensions
| Diameter |
5/8 |
|---|---|
| Pitch |
14 |
| Dimension |
G (BSP) 5/8 x 14 |
| Length |
1,0 D |
| T (Length when installed) |
15,88 mm |
| Thread length calculation |
1.0 D means 1 times the calculation diameter: 1 times 15.875 mm=15.88 mm The nominal diameter for G (BSP) 5/8 is approx. 22.91 mm, but according to the standard the length is calculated with the diameter of 15.875 mm for calculation purposes |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
5/8 |
|---|---|
| Length |
1,0 D |
| T (Length when installed) |
15,88 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,988 '' - 1,078 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
0,874 '' |
| D (minimum depth of the core hole, without tip) |
0,945 '' |
