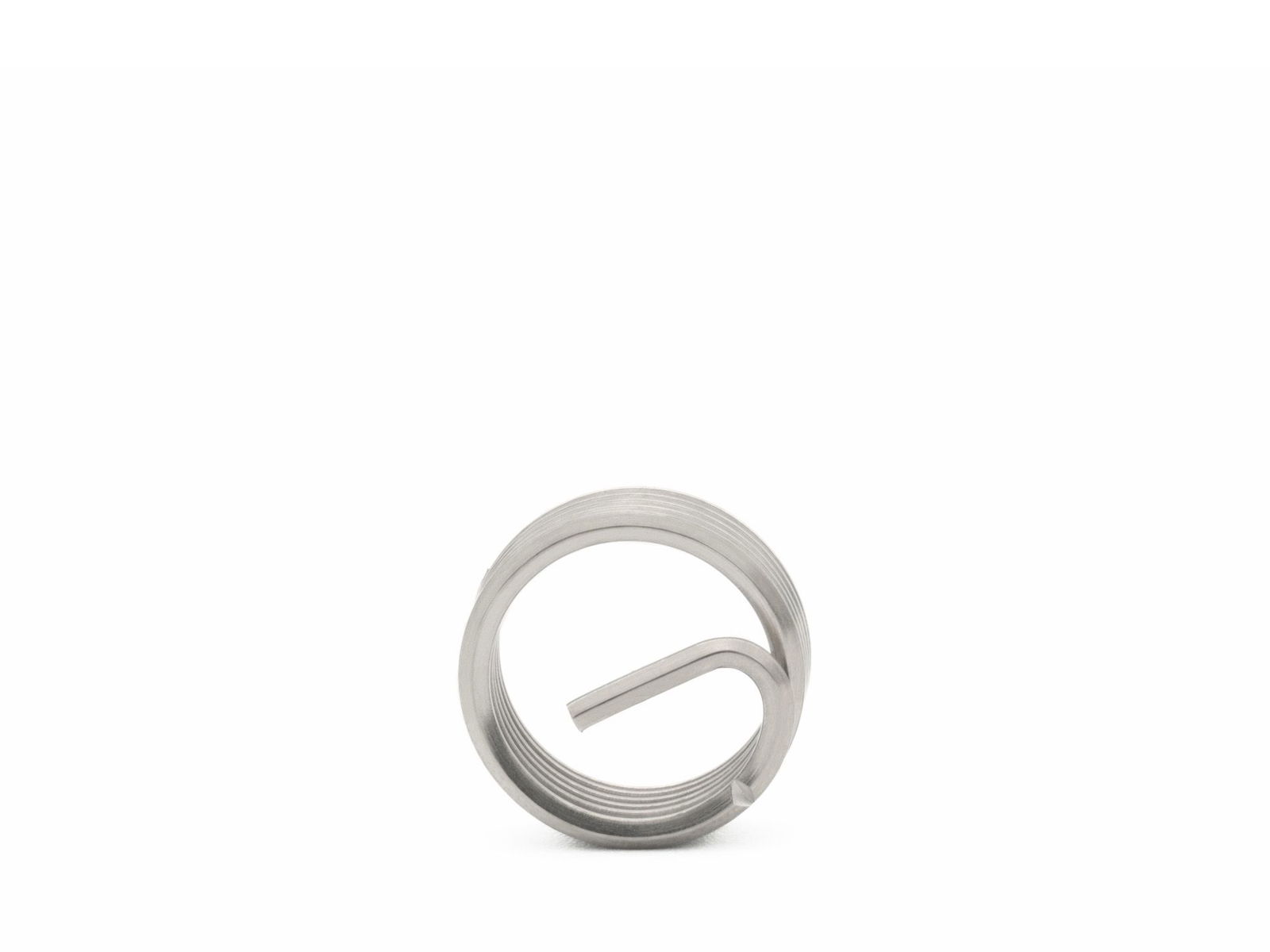

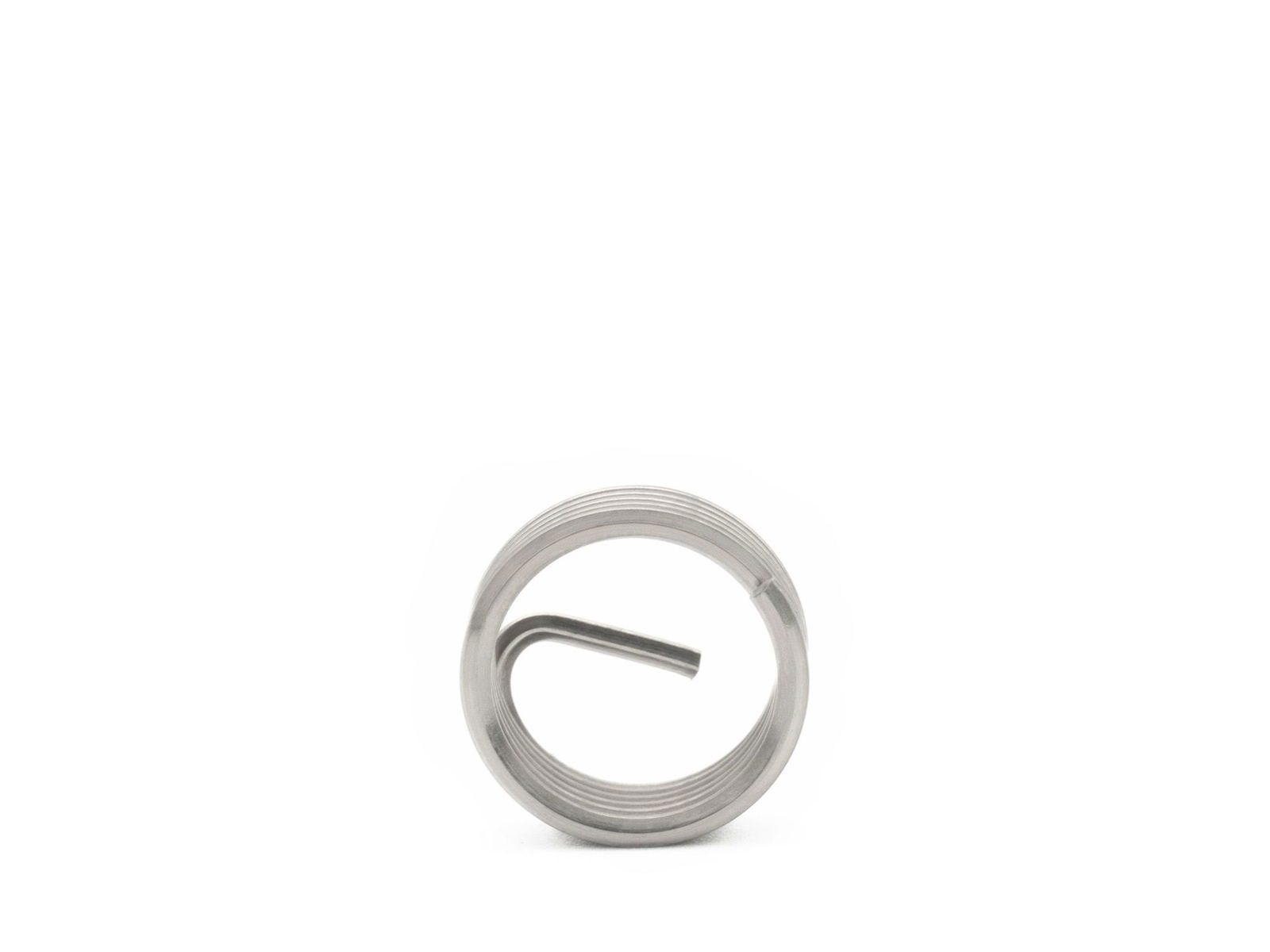

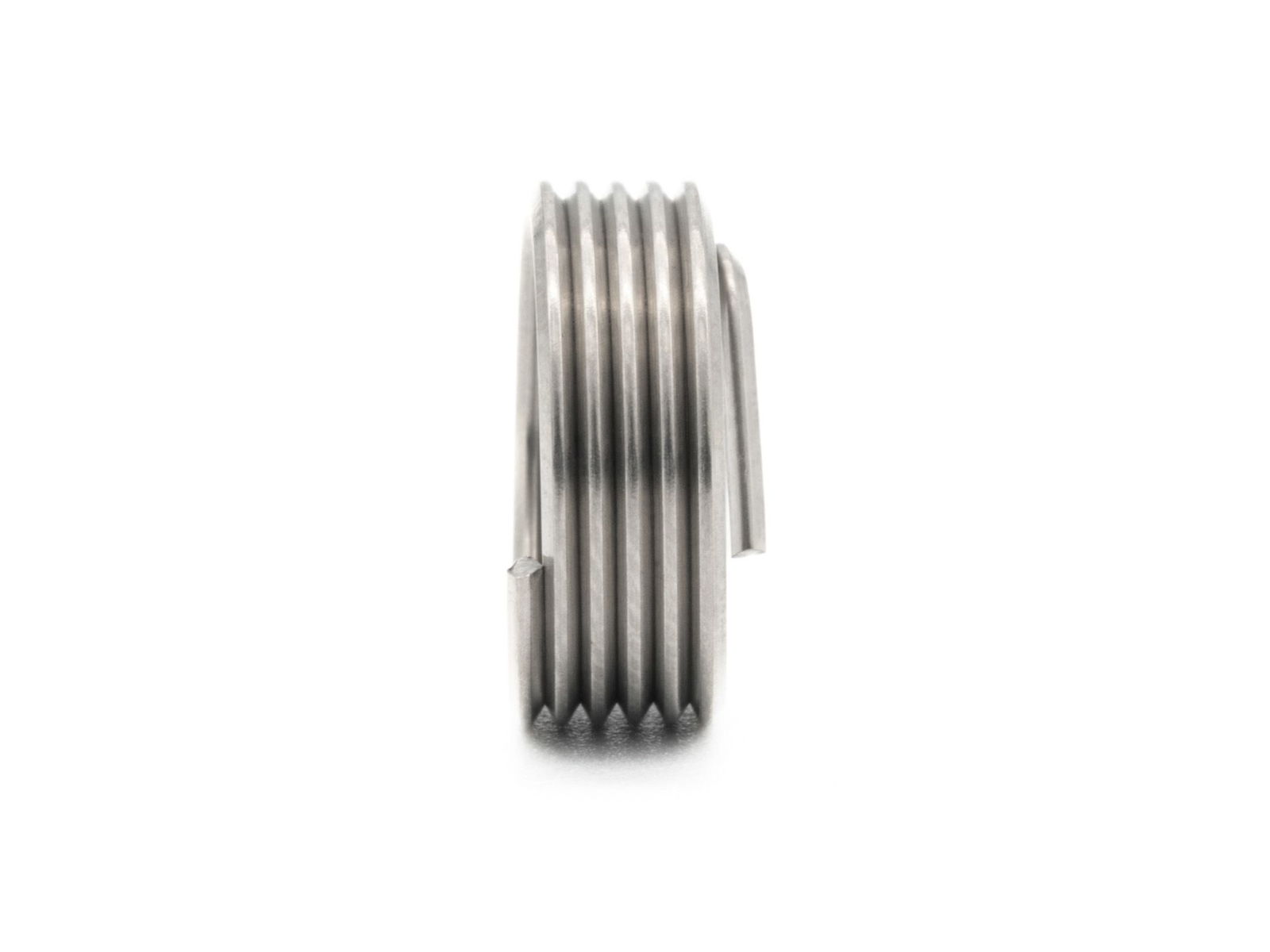

BaerCoil Wire Thread Inserts G (BSP) 5/8 x 14 - 1.5 D (23.81 mm) - free running - 10 pcs.
BaerCoil Wire Thread Inserts G (BSP) 5/8 x 14 - 1.5 D (23.81 mm) - free running - 10 pcs.
BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads. With the use of BaerCoil® thread inserts, the thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts ensure that both static and dynamic work loads are evenly distributed between the individual thread turns. Also, the flexibility of the ® thread inserts compensates for any pitch and angular errors, so that optimum force transmission from the bolt to the nut thread is achieved.
BaerCoil® thread inserts can be shortened according to the required length with a side cutter or similar.
Dimensions
| Diameter |
5/8 |
|---|---|
| Pitch |
14 |
| Dimension |
G (BSP) 5/8 x 14 |
| Length |
1,5 D |
| T (Length when installed) |
23,81 mm |
| Thread length calculation |
1.5 D means 1.5 times the calculation diameter: 1.5 times 15.875 mm=23.81 mm The nominal diameter for G (BSP) 5/8 is approx. 22.91 mm, but according to the standard the length is calculated with the diameter of 15.875 mm for calculation purposes |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
5/8 |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
23,81 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,988 '' - 1,078 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
1,186 '' |
| D (minimum depth of the core hole, without tip) |
1,257 '' |
